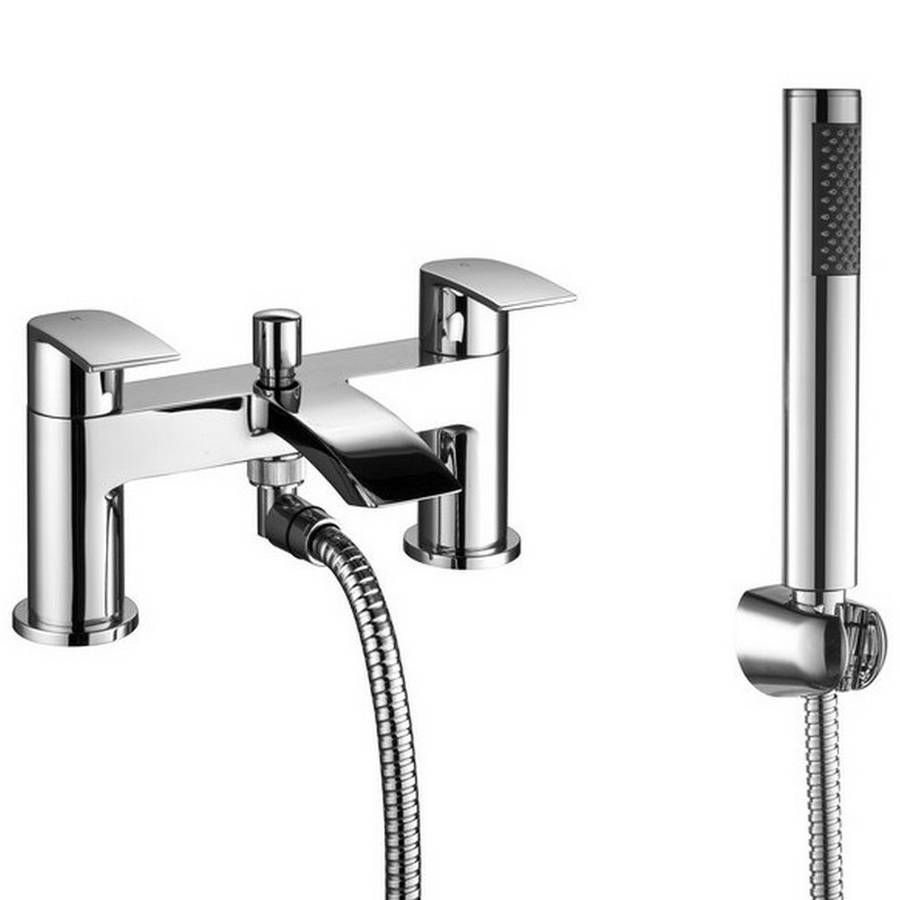

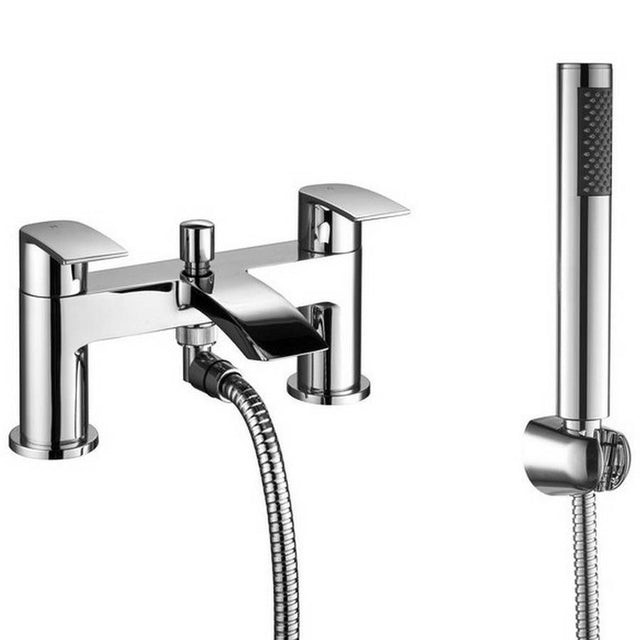

Kartell K-VIT Curve Bath Shower Mixer Chrome (TAP281CU)

The Kartell K-VIT Curve range does what its name suggests — a bold curved spout arcing out of a clean, slightly angular body. This is the bath shower mixer: a deck-mounted bath tap with a diverter and a shower handset on a flexible hose.

What it does

It fills the bath like a normal bath filler, and the diverter sends water to the handset instead — so you can shower over the bath, rinse hair, or clean the bath itself without a separate shower installation.

If you already have a separate shower and only need to fill the bath, the Curve bath filler costs less and keeps the line of the spout clean — which is rather the point of this range.

Before you order

Bath taps use 3/4" BSP connections, larger than the 1/2" on basin taps, so check your existing tails.

The waste is sold separately — unlike the Curve basin mixers, which include a clicker waste.

Suitable for low pressure systems. Being straight: on gravity-fed plumbing the handset will be a gentle spray rather than a powerful shower. That's your water pressure, not the tap. If you want a proper shower over the bath on low pressure, you need a pump.

Living with it

The ceramic disc cartridge with quarter-turn operation is far less prone to dripping than a washer tap.

Also in matt black

The same design is made in matt black as Curve Nero. A bath shower mixer sits in the splash zone, which is where black is least forgiving — it shows limescale and water spotting far more than chrome, and wants wiping dry after use.

The rest of the Curve range

Match it with the mono basin mixer, or the mini version for a smaller basin. Both include a waste.

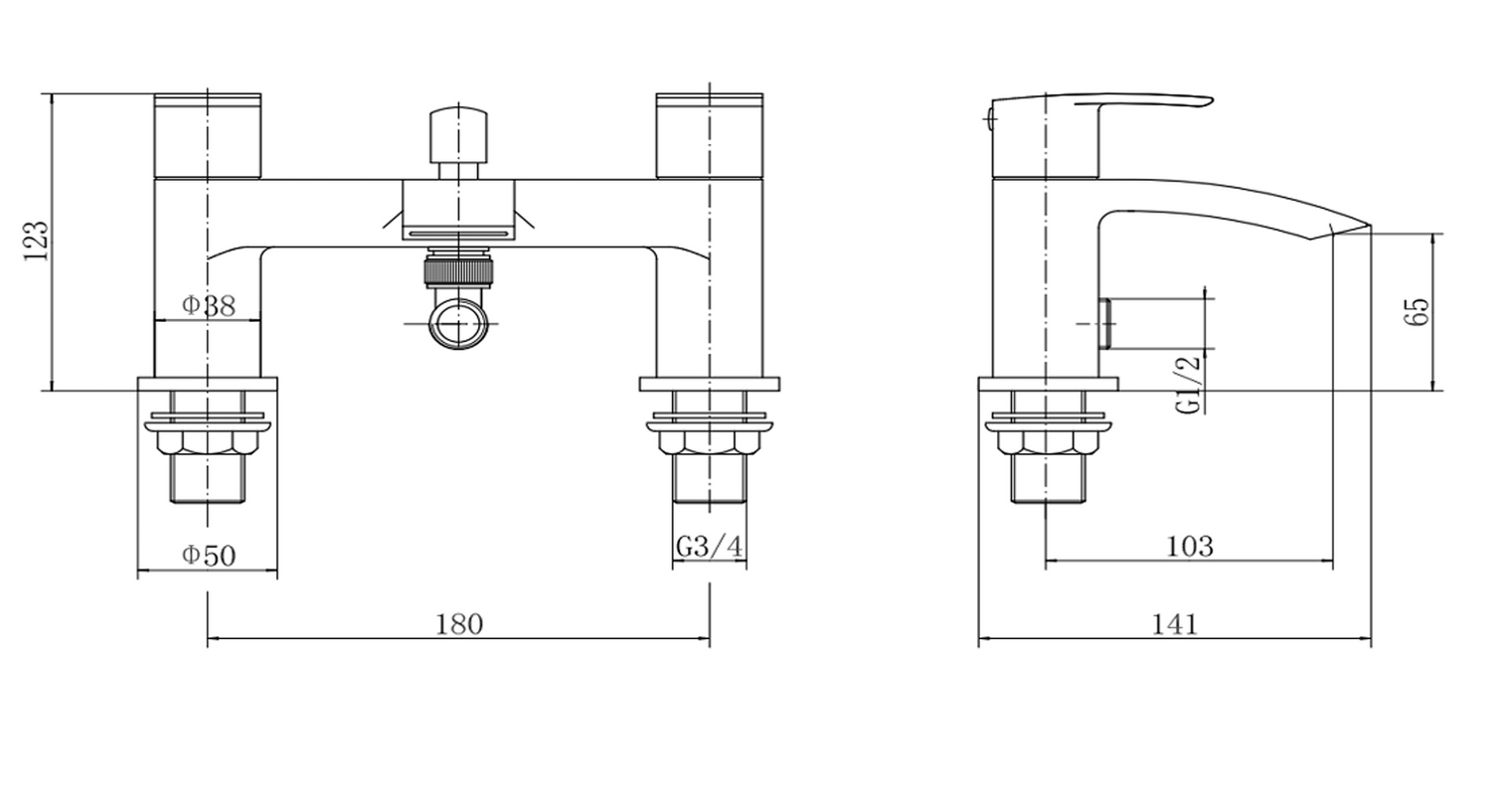

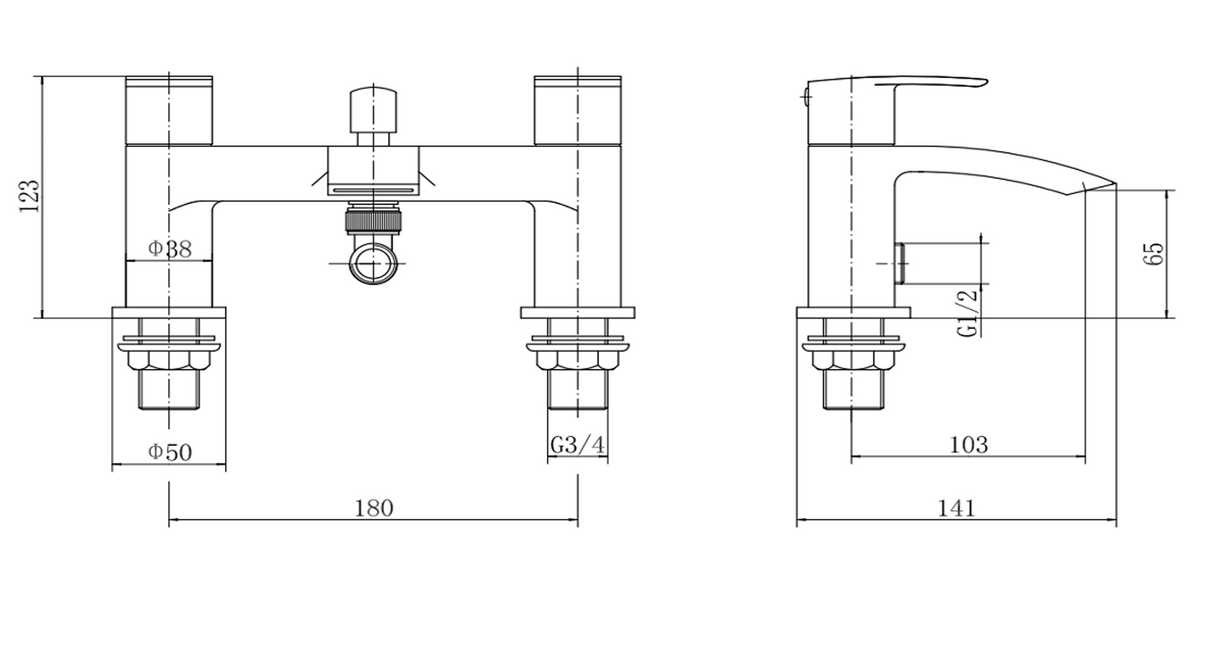

Specification

• Code: TAP281CU
• Polished chrome, gloss finish
• Solid brass construction
• Curved spout
• Ceramic disc cartridge, quarter turn operation
• Integrated diverter, shower handset and hose included
• Deck mounted, two tap holes
• 3/4" BSP connections
• Suitable for low pressure systems
• Weight 1.88kg
• Fixings supplied
• Waste sold separately
• Lifetime guarantee (1 year on moving parts)
• Barcode 5055681447694

Downloads

Download the technical data sheet
