Kartell K-VIT Unity Offset Quadrant Shower Tray Riser Kit – Gloss White (UNP1290Q100)

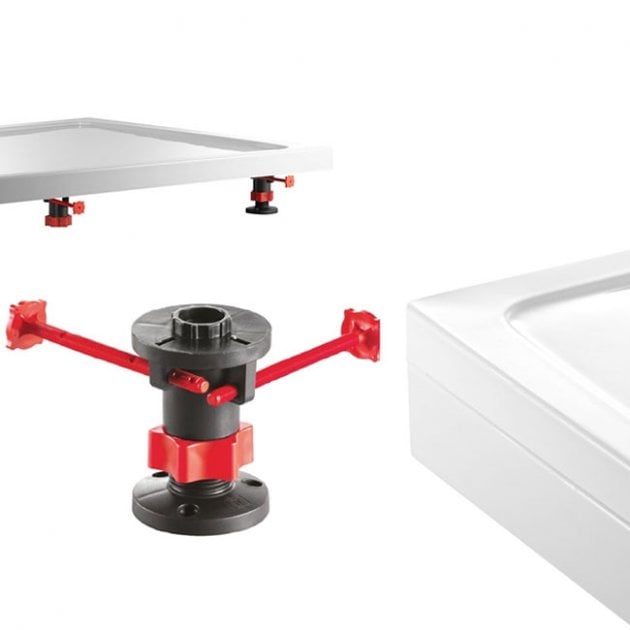

A Unity riser kit lets you fit a low profile shower tray where the waste can't be dropped below floor level — a timber floor, an upstairs bathroom, or a concrete slab you'd rather not cut into. The kit raises the tray onto adjustable legs and hides the trap and pipework behind a gloss white front panel shaped to the curve of the tray.

This is Panel Kit 2, shaped for offset quadrant trays. The panel follows the asymmetric curve of an offset tray, so a standard quadrant kit will not fit.

What you get

• Shaped gloss white front panel
• Adjustable legs and fixings
• 90mm plinth

Heights

The plinth is 90mm tall and the legs adjust between 90mm and 120mm. If you need to go above 90mm you'll have to source a taller plinth separately — the supplied one won't stretch to it.

Bear in mind that raising the tray creates a step back into the shower. If step-free access matters, it's worth the extra work of recessing the waste into the floor instead.

Specification

• Code: UNP1290Q100
• For Kartell K-VIT Unity offset quadrant trays (low profile and anti-slip)
• Gloss white finish
• Made in the UK
• 1 year guarantee
