Kartell K-VIT Unity Quadrant Shower Tray Riser Kit – Gloss White (UNP100Q100)

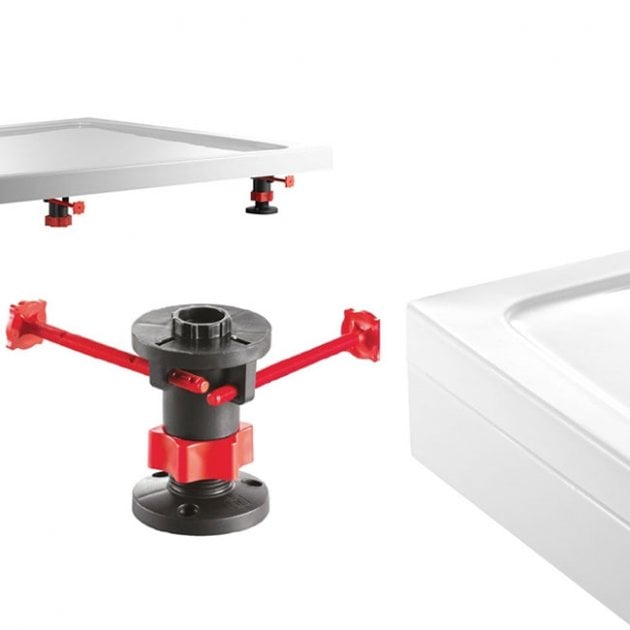

A Unity riser kit lets you fit a low profile shower tray where the waste can't be dropped below floor level — a timber floor, an upstairs bathroom, or a concrete slab you'd rather not cut into. The kit raises the tray onto adjustable legs and hides the trap and pipework behind a gloss white front panel that follows the curve of the tray.

This is Panel Kit 1, shaped for quadrant trays. Quadrant kits are curved to match the tray front, so a square or rectangle kit will not fit.

What you get

• Curved gloss white front panel
• Adjustable legs and fixings
• 90mm plinth

Heights

The plinth is 90mm tall and the legs adjust between 90mm and 120mm. If you need to go above 90mm you'll have to source a taller plinth separately — the supplied one won't stretch to it.

Bear in mind that raising the tray creates a step back into the shower. If step-free access matters, it's worth the extra work of recessing the waste into the floor instead.

Specification

• Code: UNP100Q100
• For Kartell K-VIT Unity quadrant trays (low profile and anti-slip)
• Gloss white finish
• Made in the UK
• 1 year guarantee
