Kartell K-VIT Unity Square & Rectangle Shower Tray Riser Kit 700–1200mm – Gloss White (UNP1290100)

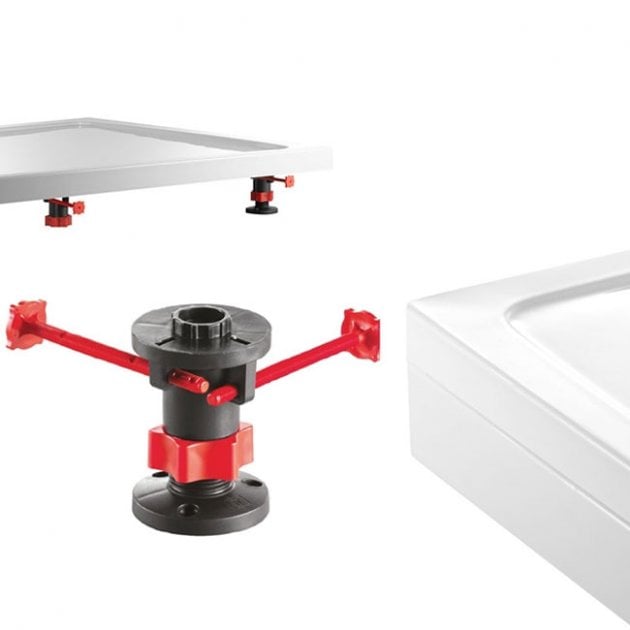

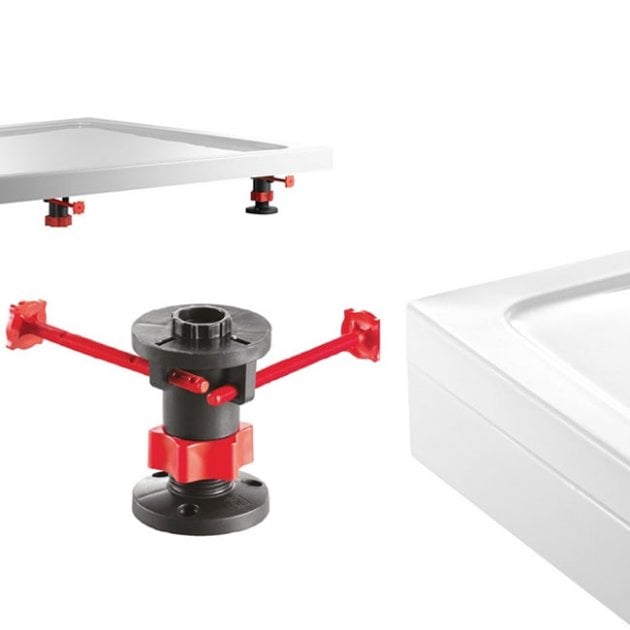

A Unity riser kit lets you fit a low profile shower tray where the waste can't be dropped below floor level — a timber floor, an upstairs bathroom, or a concrete slab you'd rather not cut into. The kit raises the tray onto adjustable legs and hides the trap and pipework behind a straight gloss white front panel.

This is Panel Kit 3, for square and rectangle trays up to 1200mm. For trays from 1300mm to 1800mm you need UNP1810100 instead, and for the 760 x 760mm square there's a dedicated kit, UNP76100.

What you get

• Gloss white front panel
• Adjustable legs and fixings
• 90mm plinth

Heights

The plinth is 90mm tall and the legs adjust between 90mm and 120mm. If you need to go above 90mm you'll have to source a taller plinth separately — the supplied one won't stretch to it.

Bear in mind that raising the tray creates a step back into the shower. If step-free access matters, it's worth the extra work of recessing the waste into the floor instead.

Specification

• Code: UNP1290100
• For Kartell K-VIT Unity square and rectangle trays up to 1200mm (low profile and anti-slip)
• Gloss white finish
• Made in the UK
• 1 year guarantee

Downloads

Download the technical data sheet
Download the fitting instructions
