Kartell K-VIT Unity Square & Rectangle Shower Tray Riser Kit 1300–1800mm – Gloss White (UNP1810100)

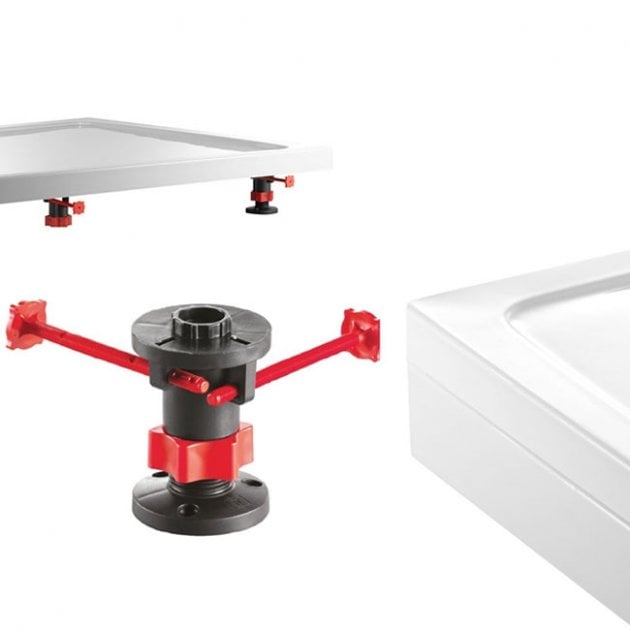

A Unity riser kit lets you fit a low profile shower tray where the waste can't be dropped below floor level — a timber floor, an upstairs bathroom, or a concrete slab you'd rather not cut into. The kit raises the tray onto adjustable legs and hides the trap and pipework behind a straight gloss white front panel.

This is Panel Kit 6, the long version, for square and rectangle trays from 1300mm to 1800mm. For trays up to 1200mm use UNP1290100 instead — it's the cheaper kit and this one's panel will be too long.

What you get

• Gloss white front panel
• Adjustable legs and fixings
• 90mm plinth

Heights

The plinth is 90mm tall and the legs adjust between 90mm and 120mm. If you need to go above 90mm you'll have to source a taller plinth separately — the supplied one won't stretch to it.

Bear in mind that raising the tray creates a step back into the shower. If step-free access matters, it's worth the extra work of recessing the waste into the floor instead. On the longer trays a riser kit also means more panel to keep clean at floor level.

Specification

• Code: UNP1810100
• For Kartell K-VIT Unity square and rectangle trays 1300–1800mm (low profile and anti-slip)
• Gloss white finish
• Made in the UK
• 1 year guarantee
