Multipanel Type C End Cap Profile – 2450mm & 2750mm (All Finishes)

Multipanel Type C End Cap Profile – 2450mm & 2750mm (All Finishes)

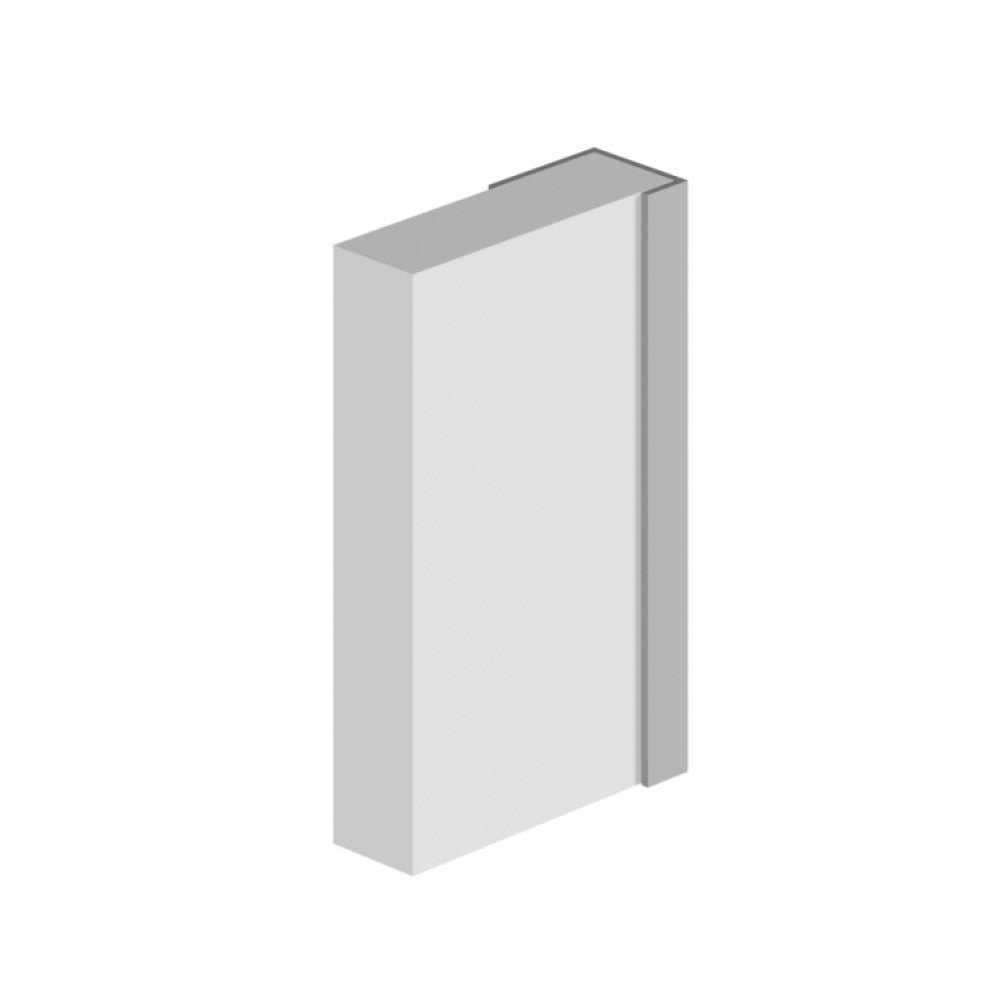

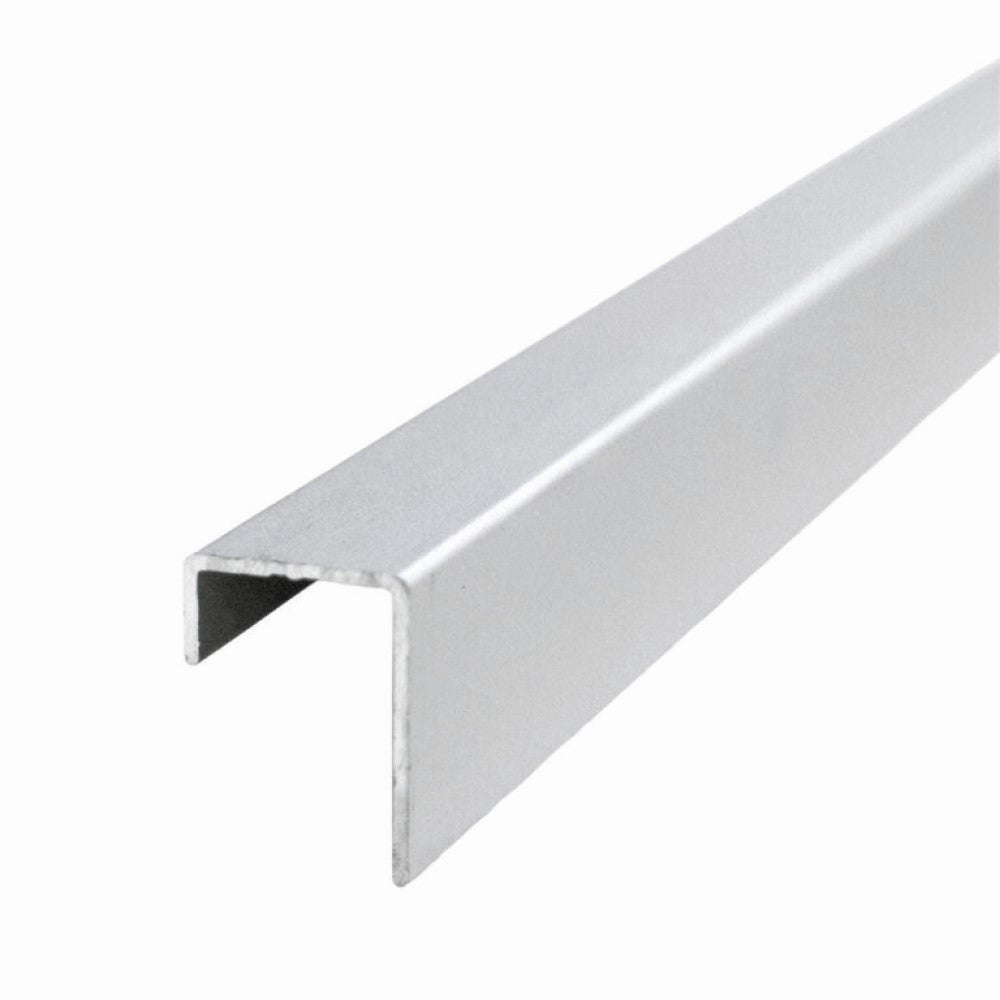

The Multipanel Type C End Cap Profile finishes the open, exposed edge of a panel where it stops – for example the side edge where panelling ends part-way along a wall, or the top edge when panels stop below the ceiling. It covers the cut edge so it looks tidy and stays sealed. It is made from aluminium and designed for 11mm Multipanel and Naturepanel wall panels.

Key features

• Genuine Multipanel aluminium profile for 11mm Multipanel and Naturepanel panels
• Available in Brushed Brass, Bright Polished, Satin Anodised, Gloss White, Matt Black to match your taps, shower and accessories
• Supplied slightly longer than the panel so it can be trimmed to an exact fit
• Cut with a fine-toothed hacksaw and remove any burrs before fitting

Which length do I need?

• 2450mm – for 2400mm tall panels (Classic, Contemporary, Linda Barker, and 2400mm Pure, Tile and Naturepanel panels)
• 2750mm – for the taller 2700mm Pure, Tile and Naturepanel panels

Which profile do I need?

• Type A – internal corners
• Type B – external corners
• Type C – end cap for open panel edges
• Type D – joins Unlipped panels on a flat wall (not needed with Hydrolock panels)
• Type 102 – angle profile fitted after the panels, for corners or edges

Fitting

Bed the profile and panel edges in silicone sealant for a watertight finish, and fix panels with Multipanel High Grab Panel Adhesive & Sealant. Count every internal corner, external corner and exposed edge in your room before ordering – most bathrooms need more profiles than expected.

Finishes and codes

Specification

Downloads

Multipanel installation guides
