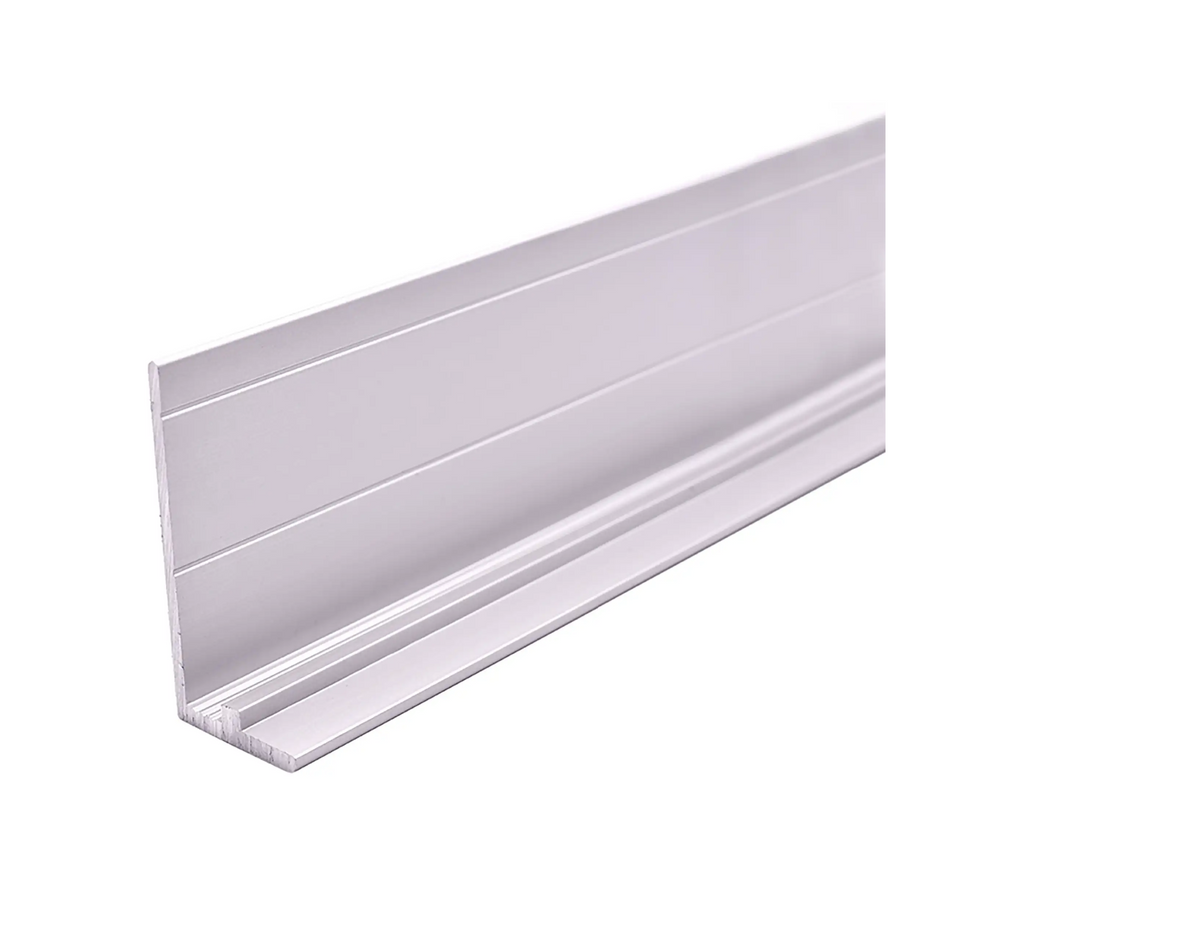

Multipanel Type X Base Profile – 2450mm – Satin Anodised (MPBPSA)

Multipanel Type X Base Profile – 2450mm – Satin Anodised (MPBPSA)

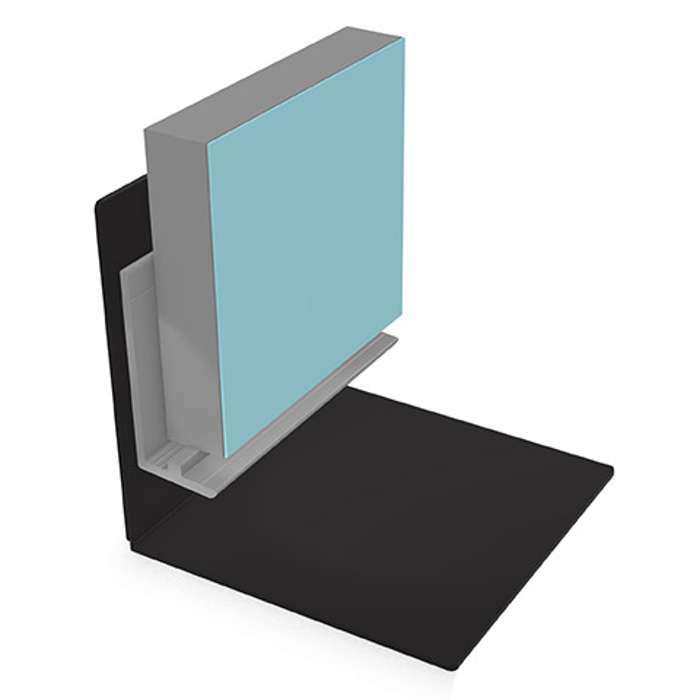

The Multipanel Type X Base Profile runs along the bottom edge of the wall panels, giving a neat, water-resistant finish where the panels stop above the floor. It is popular in wet rooms, where the floor covering runs up to the wall. It is made from aluminium and designed for 11mm Multipanel and Naturepanel wall panels.

Key features

• Genuine Multipanel profile for 11mm Multipanel and Naturepanel panels
• Satin Anodised finish
• Sits along the bottom edge of the panels and can be cut to length
• Fix with countersunk screws or bond in place, then seal the joins with silicone sealant
• 2450mm long – cut to length as needed

Which length do I need?

• 2450mm – for 2400mm tall panels. Cut to length as needed.

Which profile do I need?

• Type A – internal corners
• Type B – external corners
• Type C – end cap for open panel edges
• Type D – joins Unlipped panels on a flat wall (not needed with Hydrolock panels)
• Type X – base profile along the bottom edge of the panels
• Type Y – the last corner of a fully panelled room or recess
• Type 100 – slim flush corner, internal or external
• Type 101 – hidden internal corner, no visible trim
• Type 102 – angle profile fitted after the panels, for corners or edges
• Type 103 – PVC floor-to-wall trim where vinyl flooring meets the panels

Fitting

Fix panels with Multipanel High Grab Panel Adhesive & Sealant and seal every joint with silicone sealant for a watertight finish. Count every corner and exposed edge in your room before ordering – most bathrooms need more profiles than expected.

Finishes and codes

Specification

Downloads

Multipanel installation guides
