Description
Description
Pressalit Flexible Feed & Waste System for Height Adjustable Wash Basins – 500 to 1500 mm (R2071 / R2074 / R2075 / R2077)
A height adjustable or sideways adjustable wash basin needs plumbing that moves with it. Pressalit flexible feed and waste systems connect the basin to the water supply and drain with flexible pipes, so the basin can be raised, lowered or moved along a wall track while water keeps flowing to and from it.

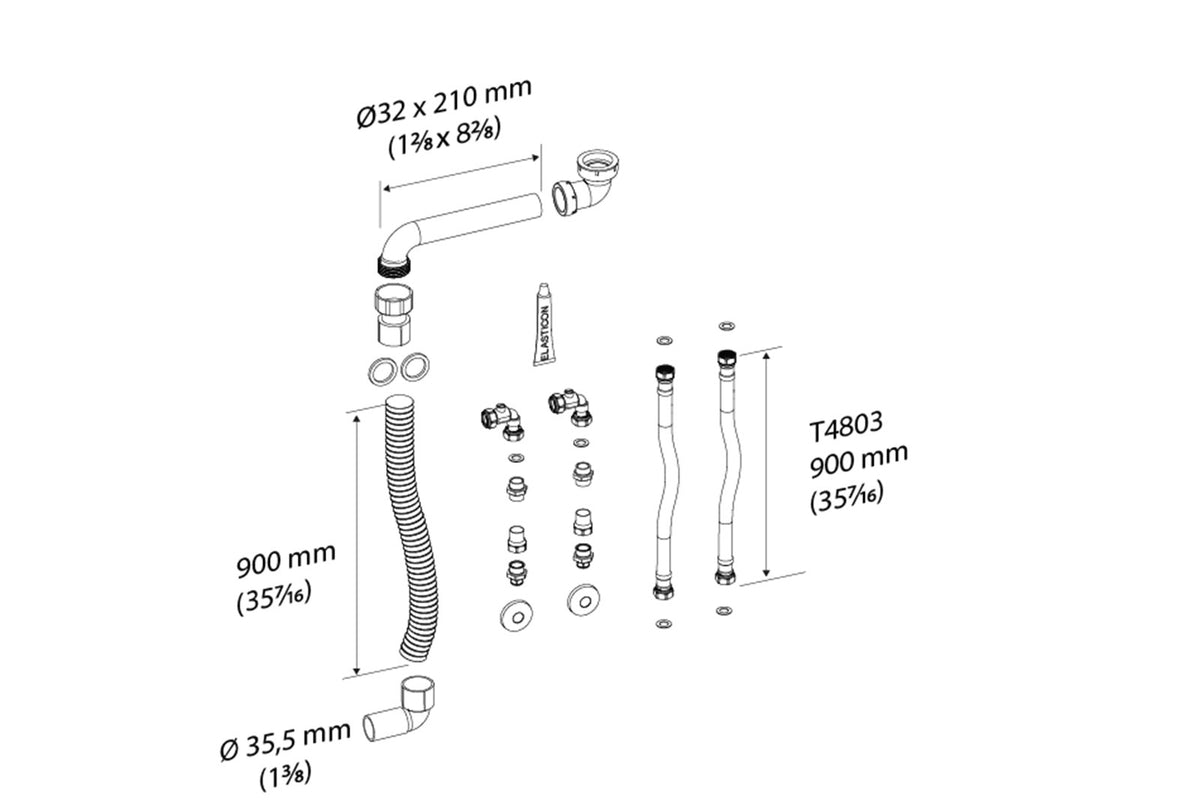

Each kit includes two braided hot and cold feed pipes with 1/2" connections and isolating valves, plus a flexible Ø32 mm waste pipe with an adaptor to fit a 40 mm compression coupling. Choose the pipe lengths to suit the bracket and how far the basin moves. The systems are WRAS-approved for the UK.
Key features & benefits
- Flexible hot and cold feed pipes with stainless steel braiding and 1/2" brass connecting nuts
- Right-angled isolating valves for the water supply included
- Flexible white PVC waste pipe, Ø32 mm, with adaptor to a 40 mm compression coupling
- Waste hose can be shortened on site
- Four length combinations from 500/700 mm to 1200/1500 mm
- WRAS-approved (UK)
- 5-year Pressalit warranty
Which length do I need?
Pressalit recommends specific kits for each bracket (UK market):
- PLUS wall-mounted brackets (R4750, R4751, R4650, R4550112) – R2071, R2075 or R2077.
- PLUS track-mounted brackets (R4780, R4781, R4680, R4580112, R4560) – R2074, R2075 or R2077; the longest R2074 allows for sideways travel.
- SELECT wash basin lifters – R2075.
- VALUE brackets – R2071, R2075 or R2077 (gas-assisted) and R2075 or R2077 (manual plate).
- MATRIX supports – R2075 or R2077 (height adjustable) and R2071 or R2075 (fixed).
MATRIX basin units already include a concealed feed and waste system.
What else you need
A 40 mm compression fitting for the waste connection is needed but not included. For a neat trap on adjustable installations, see the Pressalit HepVo in-line trap (R2076) or shallow trap kit (R2058).
Sizes, colours & product codes
| Feed and Waste Pipe Length | Product code | EAN |
|---|---|---|
| 500 / 700 mm | R2071 | 5708590147901 |
| 700 / 700 mm | R2075 | 5708590147932 |
| 900 / 900 mm | R2077 | 5708590360454 |
| 1200 / 1500 mm | R2074 | 5708590147925 |
Technical specification
| Specification | Detail |
|---|---|
| Feed pipes | Hot and cold, stainless steel braided, 1/2" brass connecting nuts |
| Valves | Right-angled isolating valves |
| Waste pipe | Flexible white PVC, Ø32 mm, with adaptor to 40 mm compression coupling |
| Lengths (feed / waste) | R2071: 500 / 700 mm; R2075: 700 / 700 mm; R2077: 900 / 900 mm; R2074: 1200 / 1500 mm |
| Approval | WRAS-approved (UK) |
| Net weight | Approx. 0.7–0.8 kg |
| Not included | 40 mm compression fitting |
| Warranty | 5 years from invoice date |
Delivery
Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Need it for a specific date or want help planning a full accessible bathroom? Call us on 0333 772 4162.
Frequently asked questions
Do I need this with a MATRIX basin unit?
No – MATRIX basin units include a concealed flexible feed and waste system.
Can the waste pipe be cut to length?
Yes – Pressalit says the waste hose can be shortened on site.
Is it WRAS approved?
Yes – the UK kits are WRAS-approved.
Which kit for a track-mounted bracket?
Pressalit recommends R2074, R2075 or R2077 for the track-mounted PLUS brackets – the 1200/1500 mm R2074 gives the most room for sideways movement.
