Pressalit Geberit Parts for Support Arm Flush Button & SELECT Toilet Lifter – Battery or Mains (R9343 / R9344)

Pressalit Geberit Parts for Support Arm Flush Button & SELECT Toilet Lifter – Battery or Mains (R9343 / R9344)

Geberit interconnection parts that link the Pressalit dual flush button on a PLUS support arm (R9342) to a Pressalit SELECT TL1 or TL2 toilet lifter. When ordered with the toilet lifter, Pressalit installs the parts at the factory during manufacture, so the lifter arrives ready to work with the flush button on the support arm.

Choose the battery-operated set (R9343), which uses Geberit 115.869.SN.6, or the mains-operated set (R9344), which uses Geberit 115.867.SN.6 and 115.861.00.6 – whichever suits the electrical supply in the room.

Key features & benefits

• Connects the PLUS support arm flush button R9342 to a SELECT TL1/TL2 toilet lifter
• Factory fitted by Pressalit when ordered with the toilet lifter

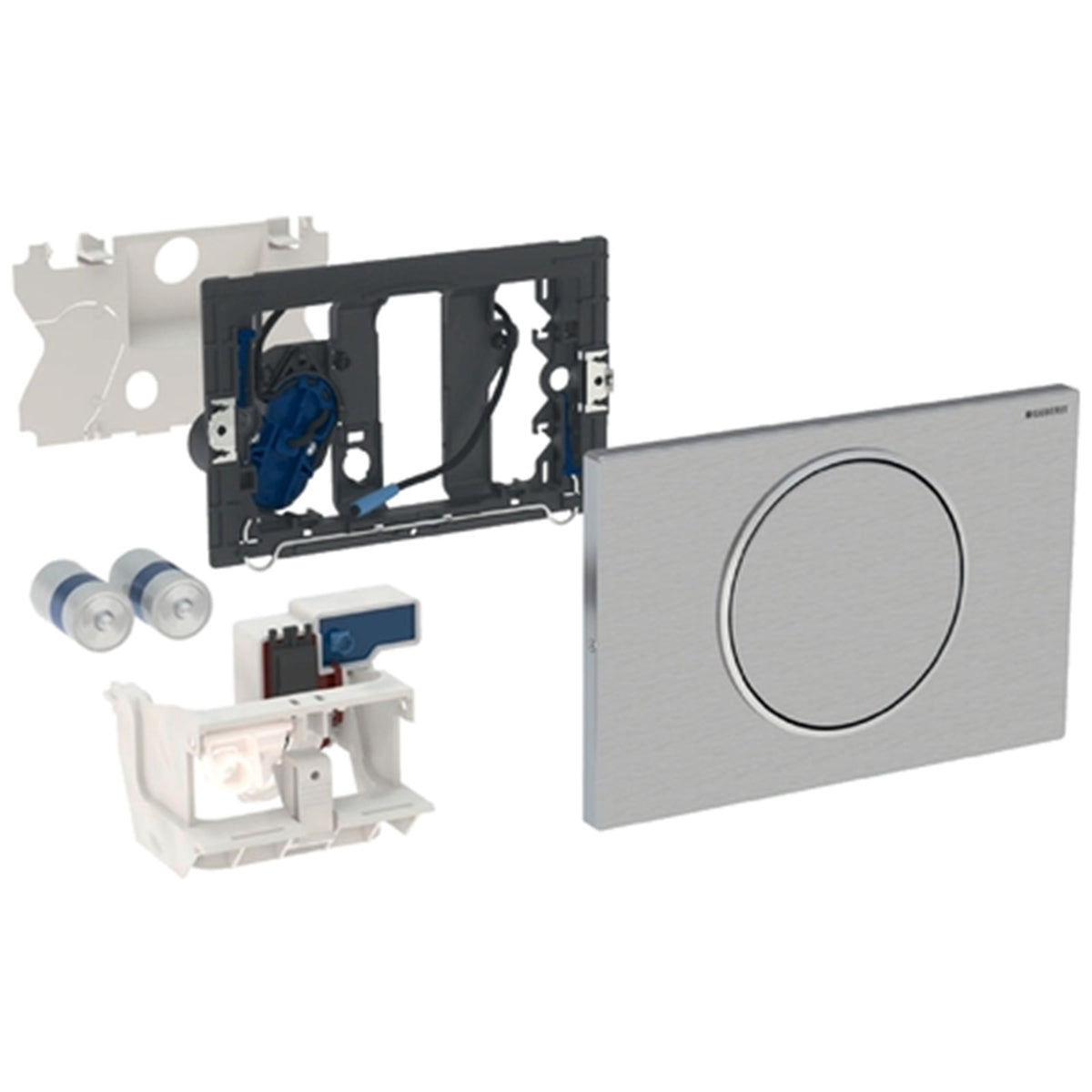

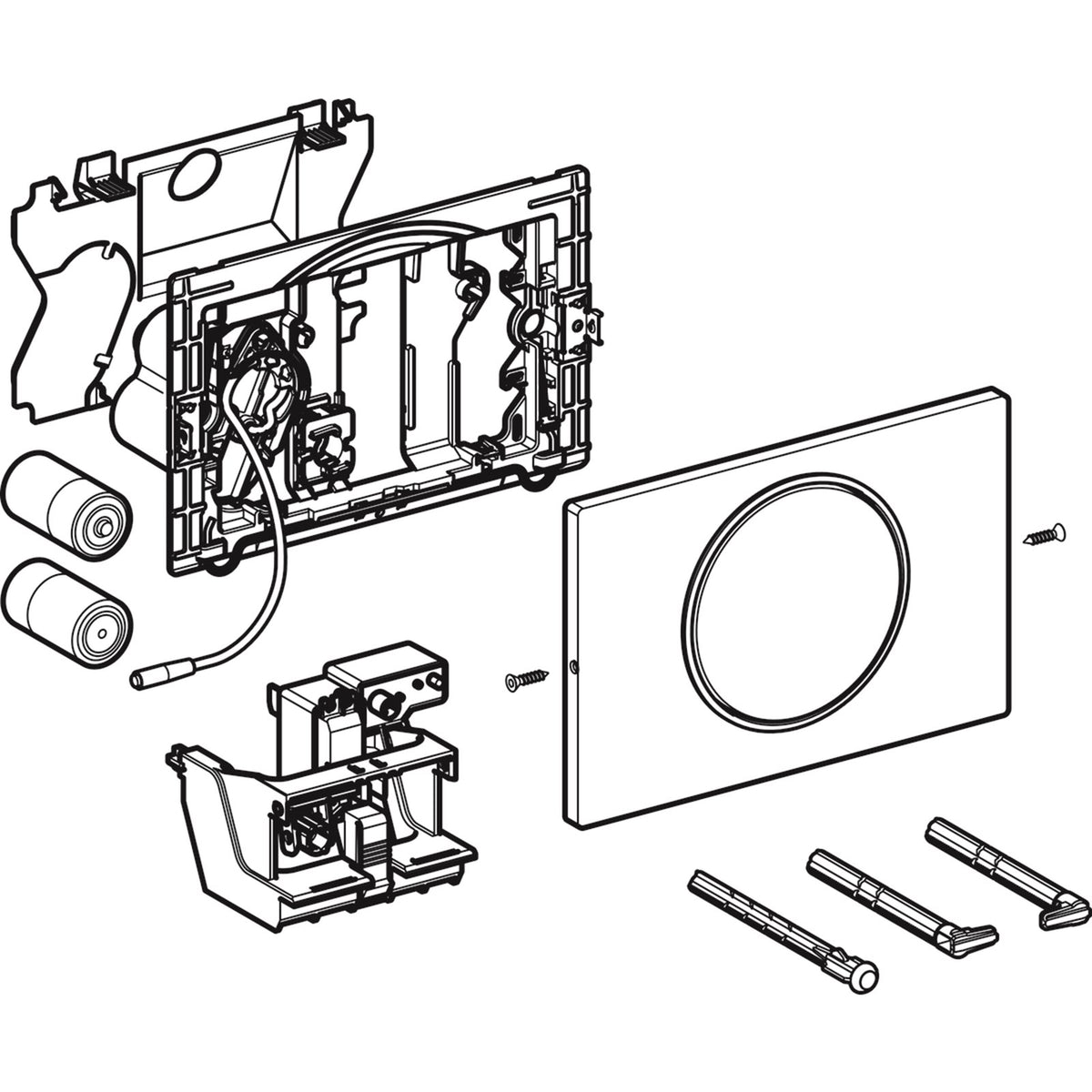

• Battery version: Geberit 115.869.SN.6, 2 × LR20 1.5 V batteries, max. 3 W

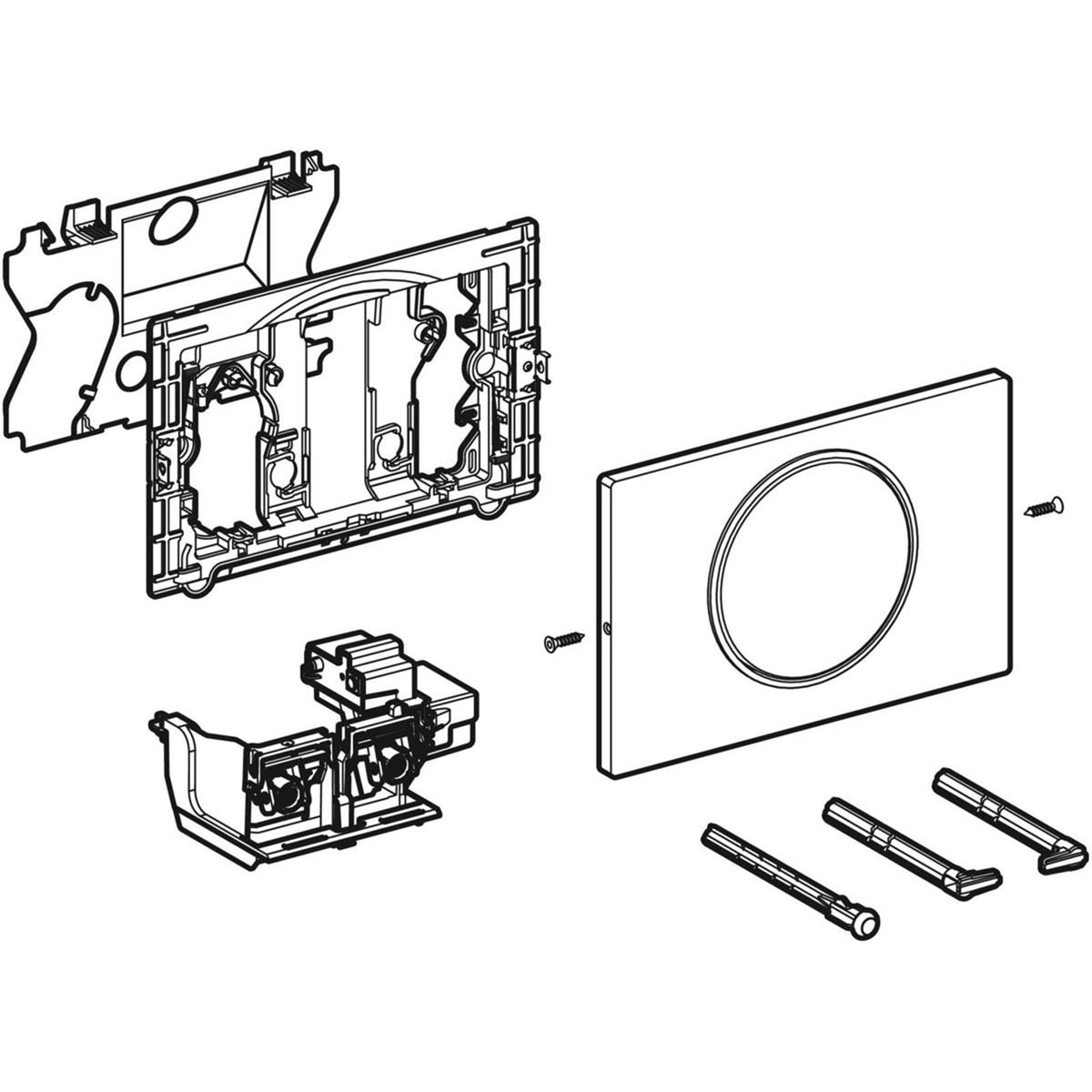

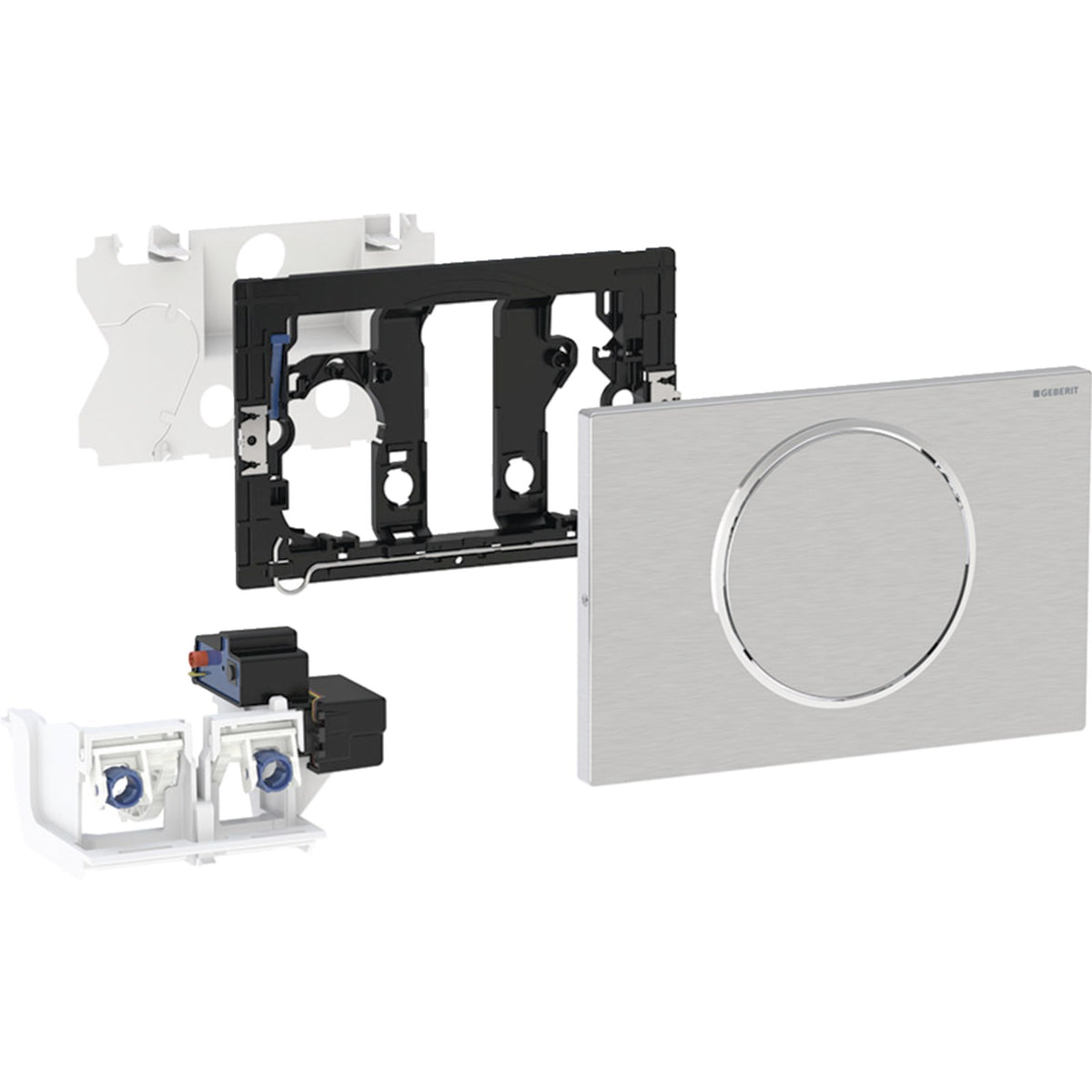

• Mains version: Geberit 115.867.SN.6 + 115.861.00.6, max. 12 W
• IP45 rated
• Gives users a flush within easy reach on the support arm

How to choose

Battery or mains? The battery set needs no electrical connection at the cistern; the mains set suits installations where a power supply is available and battery changes are not wanted.

Order together: these parts are installed at the factory during manufacture of the toilet lifter, so order them at the same time as your SELECT TL1 or TL2 lifter. You will also need the Pressalit dual flush button for PLUS support arm (R9342) and a PLUS support arm – all sold separately.

Not using a SELECT lifter? For a standard Geberit concealed cistern, order the Geberit parts listed on the flush button page directly instead.

Sizes, colours & product codes

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Pressalit items are made to order, so please check the product code before ordering. Questions? Call us on 0333 772 4162.

Frequently asked questions

Do I need these parts?

Only if you want Pressalit to prepare a SELECT TL1/TL2 toilet lifter to work with the R9342 flush button on a PLUS support arm.

Can they be fitted later?

Pressalit installs them at the factory during manufacture of the lifter, so order them with the lifter. For existing installations, call us on 0333 772 4162.

Is the flush button included?

No. Order the Pressalit dual flush button R9342 separately.

Which is better, battery or mains?

Battery needs no wiring; mains avoids battery changes. Both connect to the same flush button.

Downloads

• Technical datasheet – R9343 (PDF)
• Mounting instructions – R9343 (PDF)
• Technical datasheet – R9344 (PDF)
• Mounting instructions – R9344 (PDF)
