Pressalit INDIVO Brackets, Fittings & Installation Parts – Brackets, Stabilising Feet, Cable Trays, Covers, Extensions & Cranks, Choice of Part (RK1100)

Pressalit INDIVO Brackets, Fittings & Installation Parts – Brackets, Stabilising Feet, Cable Trays, Covers, Extensions & Cranks, Choice of Part (RK1100)

This listing brings together the Pressalit INDIVO brackets, fittings and installation parts used to complete an accessible, height adjustable kitchen – or to extend or service an existing INDIVO installation. Choose the part you need from the list: from simple manually adjustable worktop brackets to stabilising feet, cable trays, installation covers, wall cupboard extensions, crank handles and the flexible feed/waste system for a height adjustable sink.

INDIVO is used in homes, group homes, care centres, school kitchens and science labs where seated and standing users share the same kitchen.

Key features & benefits

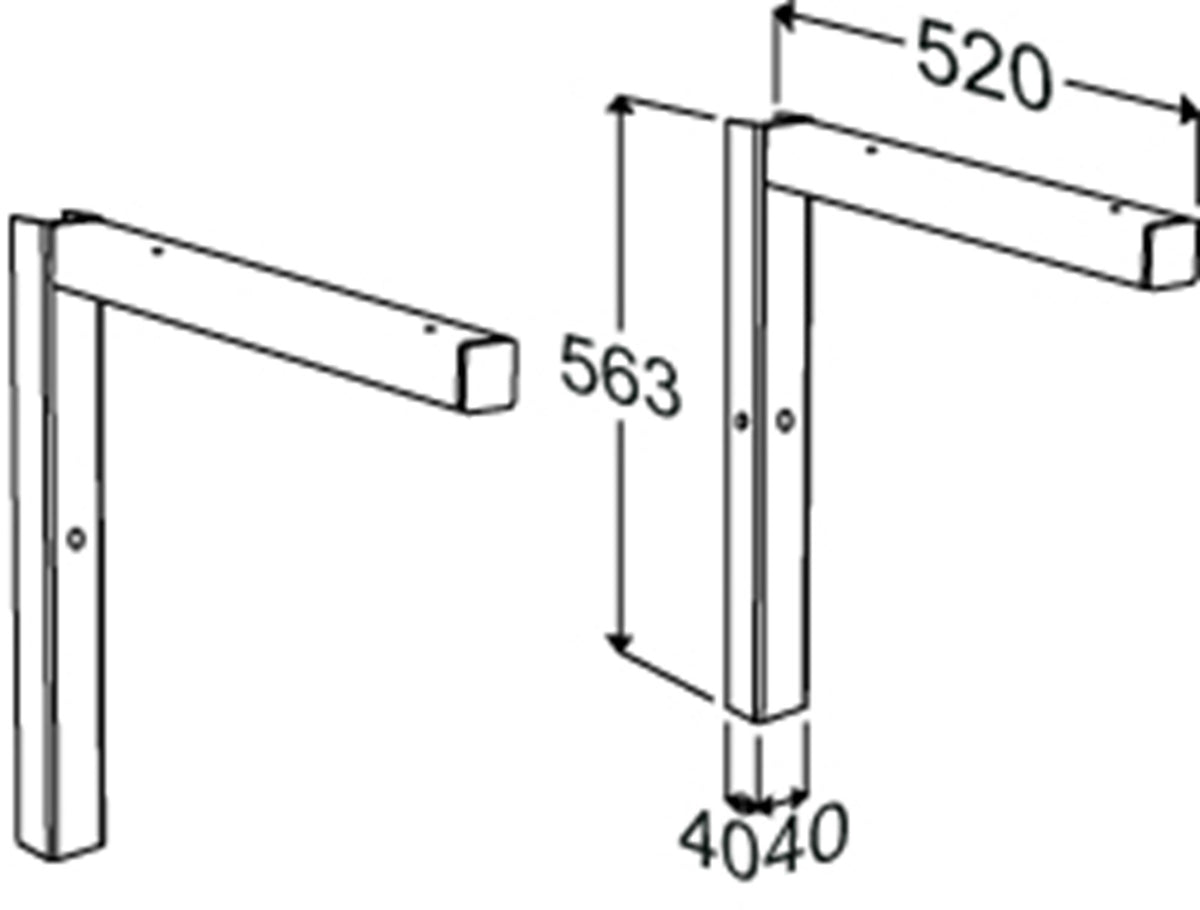

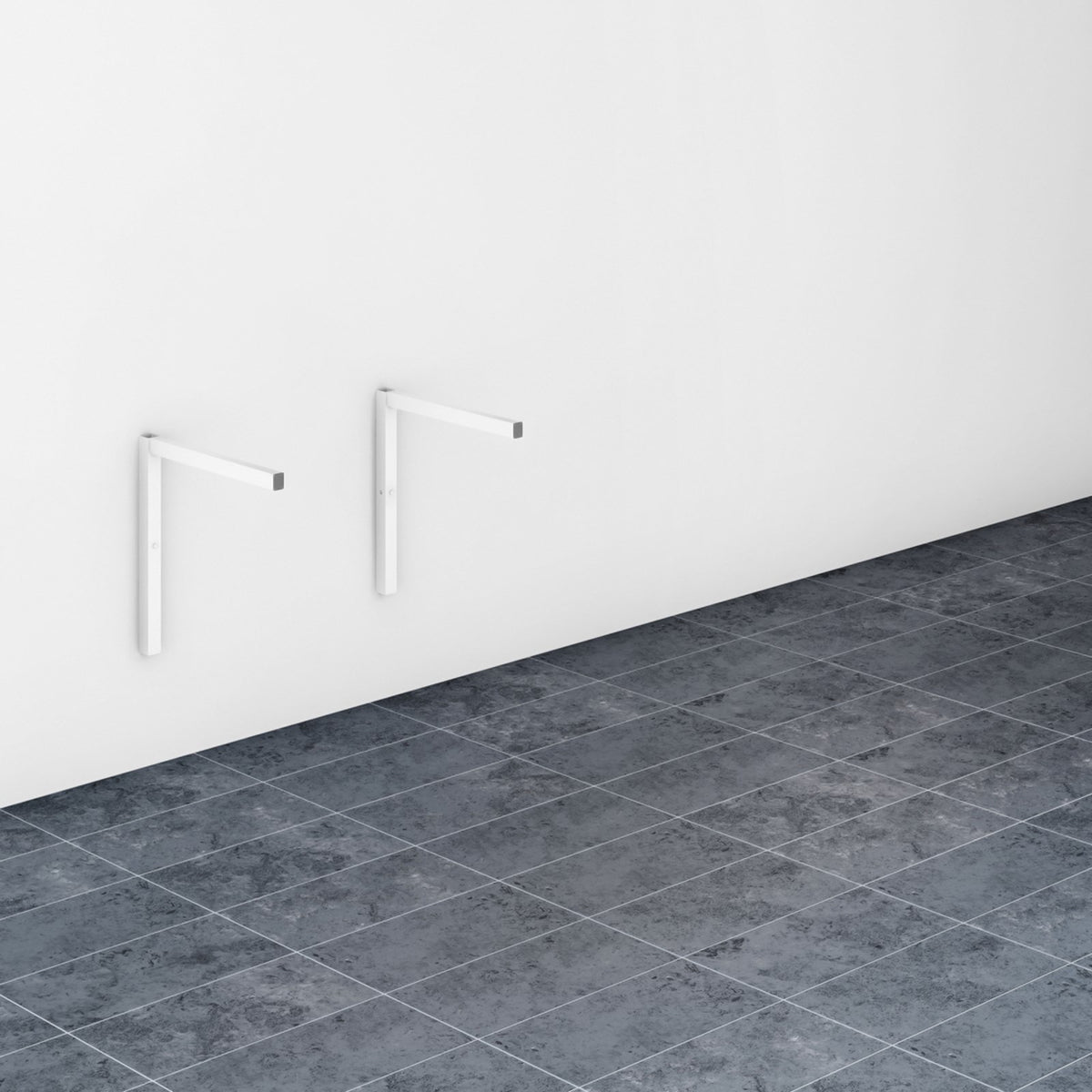

• INDIVO bracket (set of 2 or single) – wall-mounted worktop brackets, height adjustable over 250 mm with a spanner by one person; maximum 800 mm between brackets and 75 kg load including the worktop (set of 2).
• Crank-operated raiser – for adjusting the height of INDIVO brackets by crank.

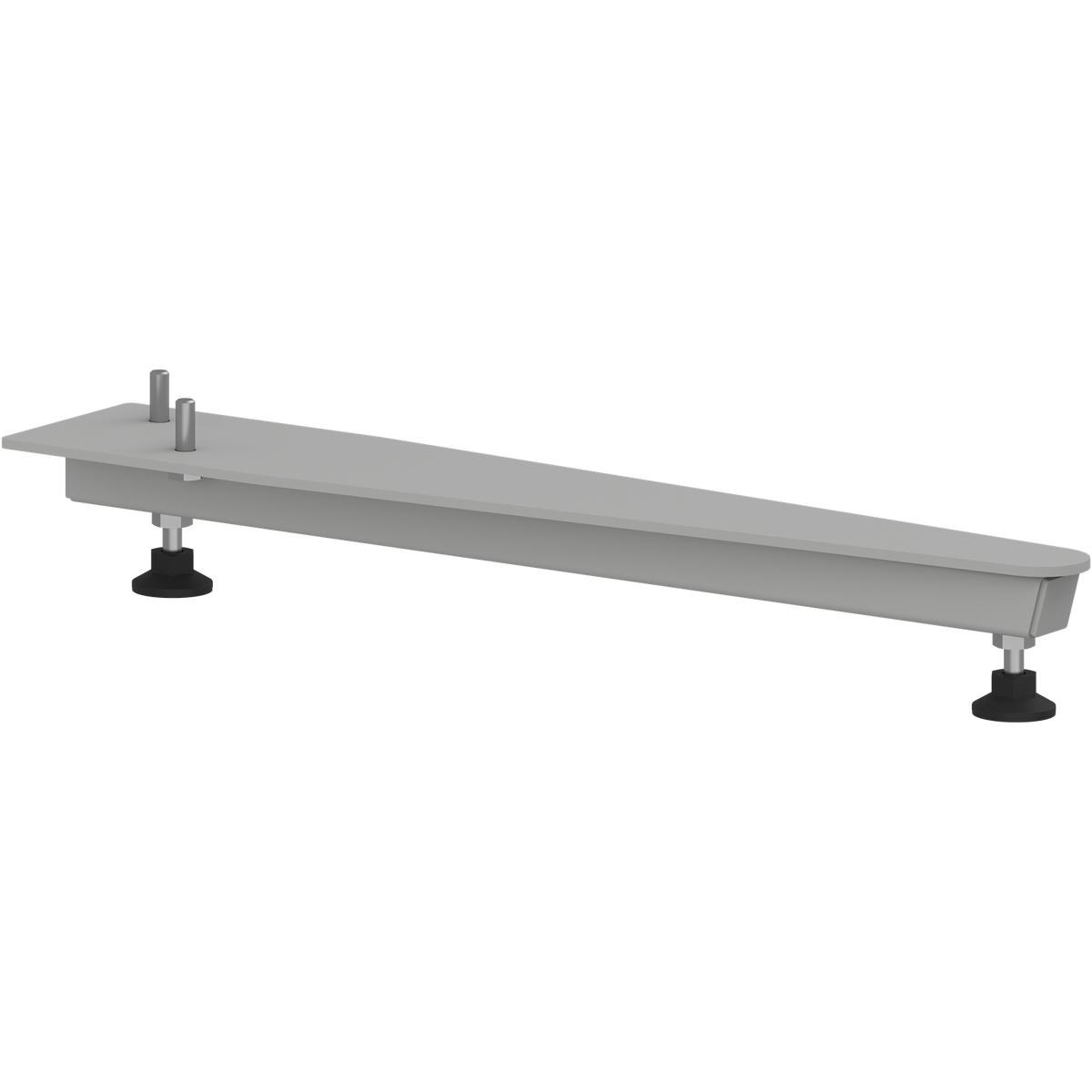

• Stabilising foot – extra support for a wall-mounted INDIVO worktop lift where the wall is not strong enough on its own; white or grey.
• Brackets and fittings – replacement worktop lift brackets, a cover-plate bracket and fascia-fitting brackets.
• Cable trays – 2000 mm trays to keep cabling tidy on worktop and wall cupboard lifts.
• Installation covers – neat white or grey covers for INDIVO installations.
• Extensions for wall cupboard lifts – allow wall cupboards taller than 725 mm to be fitted; specify the cupboard height when ordering.
• Flexible feed/waste system – Ø40 mm, 500/250–700 mm, so a sink can move with a height adjustable worktop.

Choosing the right part

Select the part from the Part list. Each option matches one Pressalit product code (see the table below). If you are replacing a part on an existing INDIVO kitchen, check the code on the original part or send us a photo and we will help identify it.

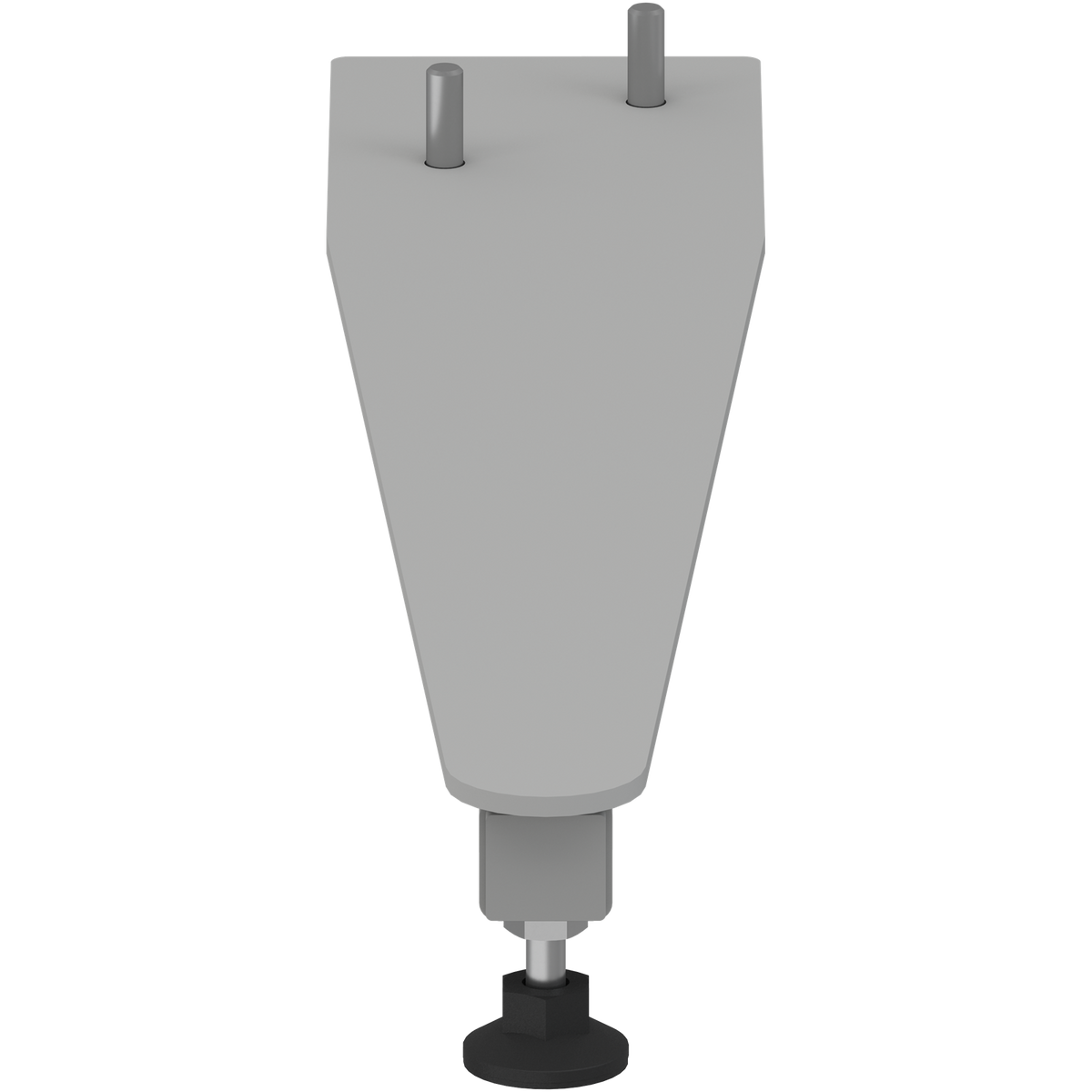

• Stabilising feet are fitted under wall-mounted worktop lifts.
• The extension for wall cupboard lifts is chosen by cupboard length: up to 1200 mm (RK1065) or 1201–2400 mm (RK1066).
• The folding crank handle is for the manually adjustable freestanding INDIVO lift.
• Mounting kits for the wall are ordered separately.

Sizes, colours & product codes

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer.

Need help identifying a part? Call us on 0333 772 4162.

Frequently asked questions

When do I need a stabilising foot?

Pressalit supplies it to give extra support to a wall-mounted INDIVO worktop lift where the wall is not strong enough on its own.

My wall cupboards are taller than 725 mm – what do I need?

Add the INDIVO extension for wall cupboard lifts, and tell us the cupboard height when ordering.

Can the INDIVO bracket be adjusted later?

Yes – it adjusts over 250 mm using a spanner, and one person can make the adjustment.

Downloads

• Technical datasheet – INDIVO bracket
• Mounting instructions – INDIVO bracket
• Technical datasheet – stabilising foot
• Mounting instructions – stabilising foot
• Technical datasheet – extension fittings
