Pressalit INDIVO Lift for Wall Cupboards – Electrically Height Adjustable, up to 1200 mm or 1201–2400 mm (RK1420 / RK1421)
The Pressalit INDIVO wall cupboard lift brings kitchen storage within easy reach. At the touch of a switch, the wall cupboards move diagonally – down by 430 mm and out by 180 mm towards the user – so the contents can be reached comfortably from a seated position, then returned to their normal height afterwards.
The mechanism and wiring are hidden behind the cupboards, so the kitchen keeps a clean, standard look. It is designed for private homes and shared settings such as care centres, group homes, school kitchens and science labs, and pairs naturally with the INDIVO worktop lifts.
Key features & benefits
- Diagonal movement – 430 mm down and 180 mm forward, at 18 mm/s.
- Hidden mechanism – motor and wiring sit behind the cupboards.
- Colour-coded switches – switches along the worktop front edge are colour-coded so worktop and cupboard controls are easy to tell apart; a wired remote control can also be used.
- 110 kg safe working load per lift – including the cupboards.
- Two sizes – one actuator for cupboard runs up to 1200 mm, two actuators for 1201–2400 mm.
- Expected service life – 10 years.
Choosing the right lift

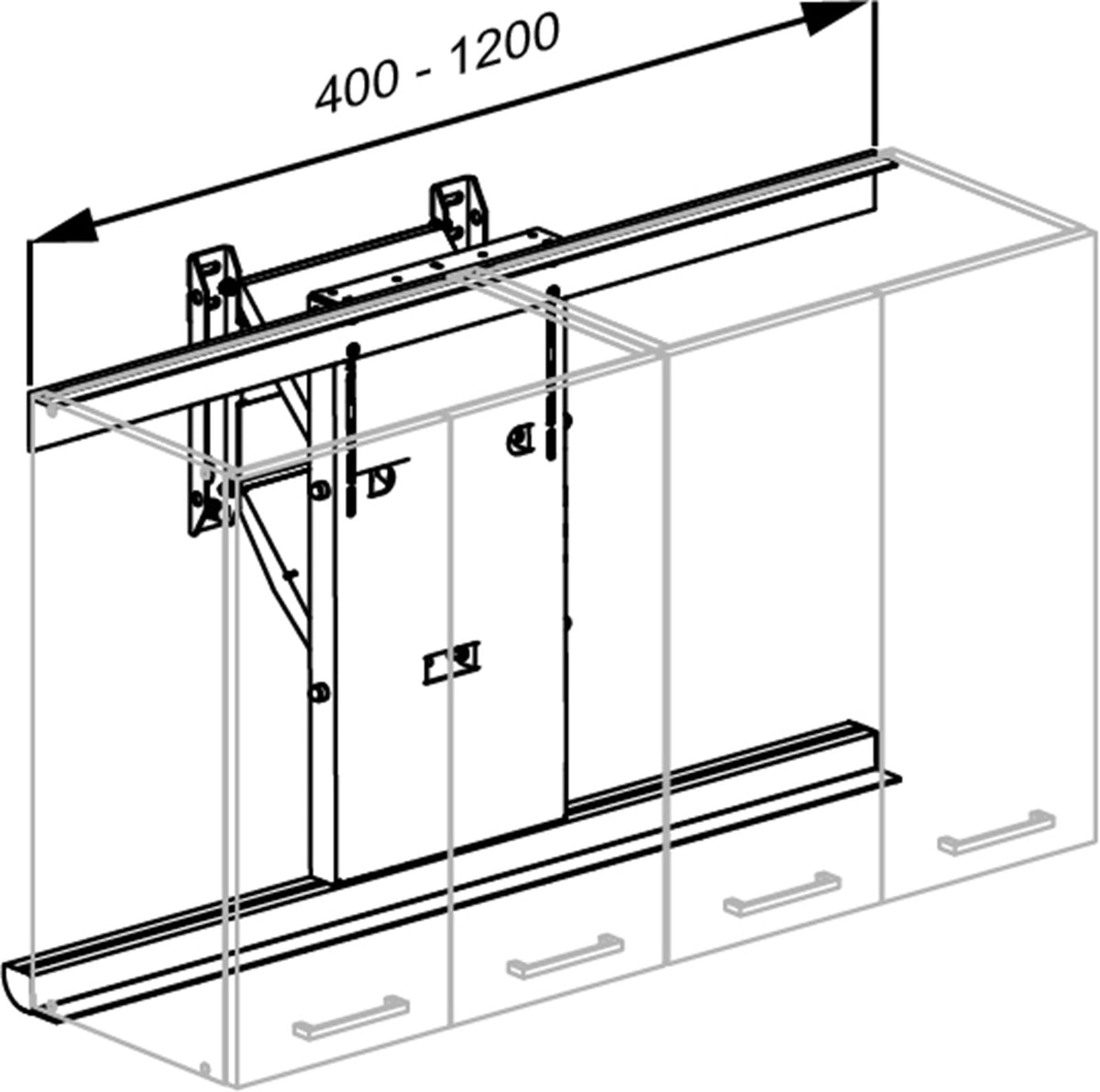

Choose by the total length of the wall cupboards to be lifted: up to 1200 mm (one actuator, RK1420) or 1201–2400 mm (two actuators, RK1421).
- Cupboard height – the maximum cupboard height is 725 mm; for taller cupboards add the INDIVO extension fittings.
- Mounting kit not included – see the technical datasheet for kits to suit your wall type.
- Wall cupboards are not included. Safety plates and safety interconnections for wall cupboard lifts are available separately.
Sizes, colours & product codes
| Cupboard length | Product code | EAN |
|---|---|---|
| Up to 1200 mm – one actuator | RK1420 | 5708590378862 |
| 1201–2400 mm – two actuators | RK1421 | 5708590378879 |
Technical specification
| Movement | 430 mm height adjustment; extends 180 mm towards the user when lowered |
| Speed | 18 mm/s up and down |
| Safe working load | 110 kg per lift, including cupboards |
| Maximum cupboard height | 725 mm (taller with extension fittings) |
| Electrical (RK1420) | 187 W at maximum load, 1.5 W standby; Linak LA31 actuator, CBD4 control box, HB53 wired remote; noise 48 dB |
| Net weight (RK1420) | 17.8 kg |
| Materials | Steel lift, aluminium cross braces, ABS switches |
| Not included | Mounting kit; wall cupboards |
| Warranty | Three years from invoice date against material and manufacturing defects |
Delivery
Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer.
Planning an accessible kitchen? Call us on 0333 772 4162.
Frequently asked questions
How do the cupboards move?
Diagonally – down by 430 mm and 180 mm forward, so the contents come towards the user.
Can I use my own cupboards?
Yes – INDIVO is designed for standard kitchen cupboards up to 725 mm high, or taller with extension fittings.
Which size do I need?
Up to 1200 mm of cupboards: RK1420. 1201–2400 mm: RK1421.
