Description
Description
Pressalit INDIVO Safety System – Safety Bars, Safety Plates & Safety Interconnections, Choice of Part (RK1390)
The INDIVO safety system protects the space under and around a moving worktop or wall cupboard. Safety bars fit beneath INDIVO worktop lifts and safety plates fit beneath INDIVO wall cupboard lifts; if either meets an obstruction, the movement stops. Where several INDIVO lifts work together in one kitchen, a safety interconnection links them so that the safety system covers every lift, helping to prevent pinching when lifts adjust at the same time.
These parts are used in accessible kitchens in homes, group homes, care centres and school kitchens, and are ordered to match the size and combination of INDIVO lifts installed.
Key features & benefits
- Safety bars – for INDIVO worktop lifts in five length bands from up to 1000 mm to 2401–3000 mm, plus a side bar for worktop ends up to 700 mm.
- Safety plates – for INDIVO wall cupboard lifts, 400–1200 mm or 1201–2400 mm.

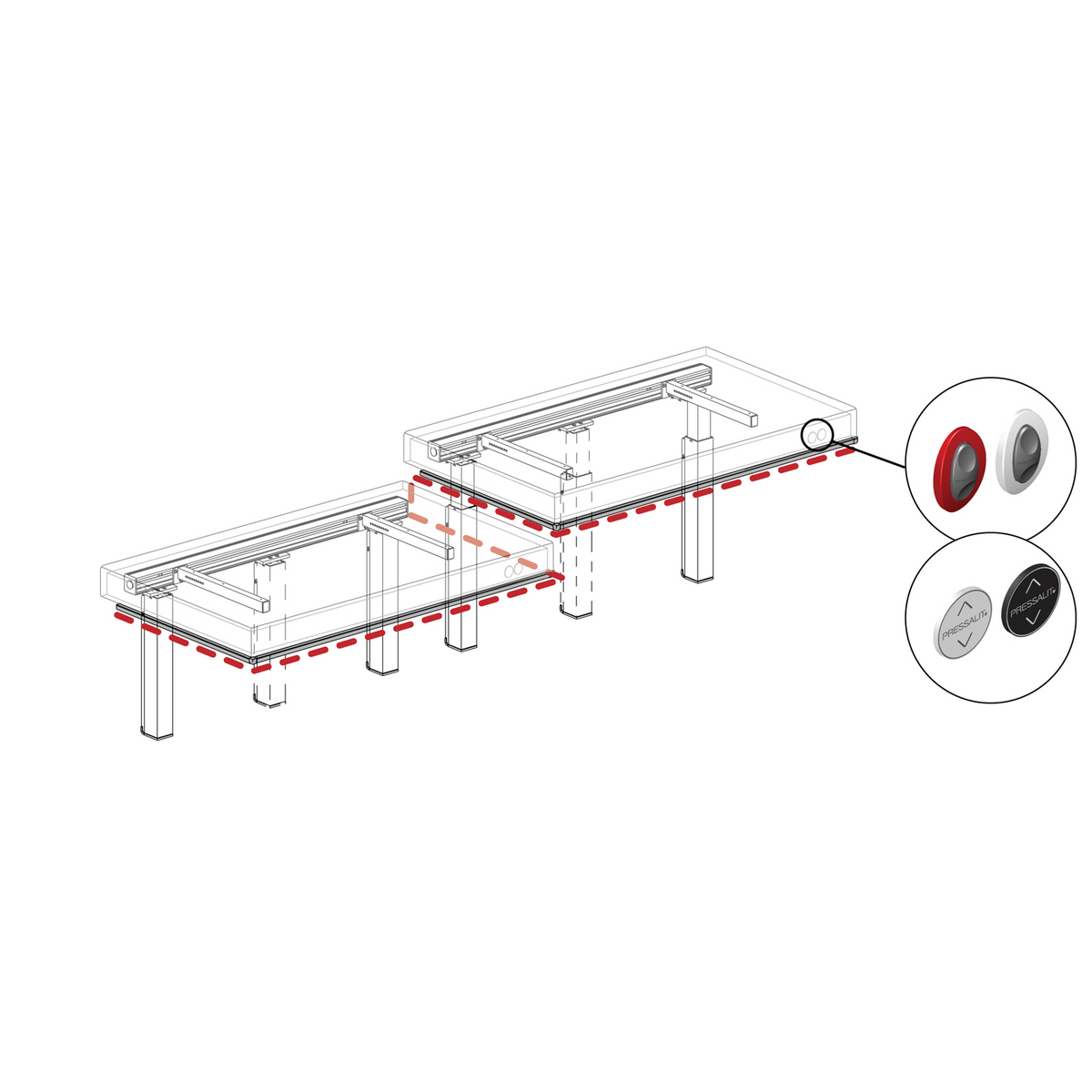

- Safety interconnections – link two or more INDIVO lifts so the safety system works across the whole kitchen.
- Works with INDIVO switches – versions for circular or oval fascia switches where specified.
- Ordered separately – so you only buy the parts your layout needs.
Choosing the right part
Safety bars: choose the length band that matches your INDIVO worktop lift, and add a side bar for each exposed worktop end. Safety plates: match the length of your wall cupboard lift (RK1420 up to 1200 mm, RK1421 1201–2400 mm). Interconnections: choose the version that matches the combination of lifts in your kitchen – RK141x is the two-actuator worktop lift, RK145x the three-actuator worktop lift and RK142x the wall cupboard lift. For example, two worktop lifts side by side use RK1372.
- Safety bars and safety plates are ordered separately from the interconnection.
- Not sure which interconnection you need? Send us your kitchen plan and we will check it with Pressalit.
Sizes, colours & product codes
| Part | Product code | EAN |
|---|---|---|
| Safety bar, worktop up to 1000 mm | RK1390 | 5708590378701 |
| Safety bar, worktop 1001–1400 mm | RK1391 | 5708590378718 |
| Safety bar, worktop 1401–2000 mm | RK1392 | 5708590378725 |
| Safety bar, worktop 2001–2400 mm | RK1393 | 5708590378732 |
| Safety bar, worktop 2401–3000 mm | RK1394 | 5708590378749 |
| Safety bar, worktop side up to 700 mm | RK1397 | 5708590378756 |
| Safety plate, wall cupboards 400–1200 mm | RK1031 | 5708590265773 |
| Safety plate, wall cupboards 1201–2400 mm | RK1032 | 5708590266855 |
| Interconnection, 1 x RK141x/RK145x + 1 x RK142x | RK1370 | 5708590378671 |
| Interconnection, 1 x RK141x + 2 x RK1420 | RK1371 | 5708590378688 |
| Interconnection, 2 x RK141x or 2 x RK145x | RK1372 | 5708590378695 |
| Interconnection, circular switch, 1 x RK141x + 2 x RK1420 | RK1373 | 5708590380124 |
| Interconnection, 1 x RK145x + 1 x RK1421 | RK1374 | 5708590380131 |
| Interconnection, oval switch, 1 x RK145x + 2 x RK1420 | RK1375 | 5708590380148 |
| Interconnection, circular switch, 1 x RK145x + 2 x RK1420 | RK1376 | 5708590380155 |
Technical specification
| System | Pressalit INDIVO height adjustable kitchen lifts |
| Net weight (interconnection) | 0.5 kg |
| Compatible lifts | RK141x and RK145x worktop lifts; RK1420 and RK1421 wall cupboard lifts |
| Warranty | Three years from invoice date against material and manufacturing defects |
Delivery
Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer.
Need help choosing the right safety parts? Call us on 0333 772 4162.
Frequently asked questions
What does a safety interconnection do?
It links the safety systems of several INDIVO lifts so that movement stops across the whole installation if an obstruction is detected, helping to prevent pinching when lifts adjust together.
Do I need a safety bar?
Safety bars and plates are part of the INDIVO safety system beneath moving worktops and cupboards – we recommend checking your layout with us.
Which interconnection for two worktop lifts?
RK1372 links two worktop lifts placed next to each other.
