Pressalit MATRIX ANGLE DEEP Vanity Wash Basin – 1000 x 571 mm, Anthracite Handrails, Left or Right Facing (R2140)

Pressalit MATRIX ANGLE DEEP Vanity Wash Basin – 1000 x 571 mm, Anthracite Handrails, Left or Right Facing (R2140)

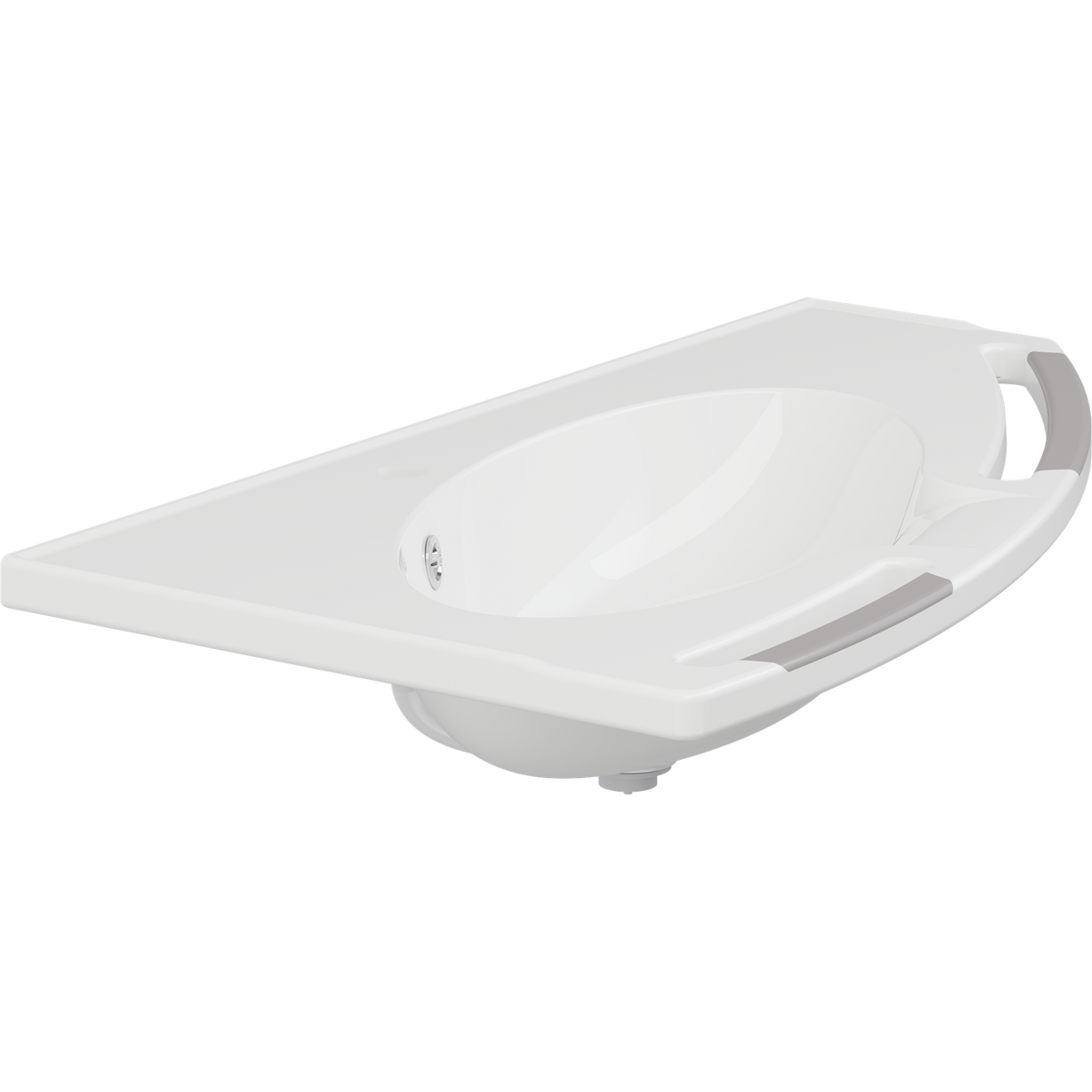

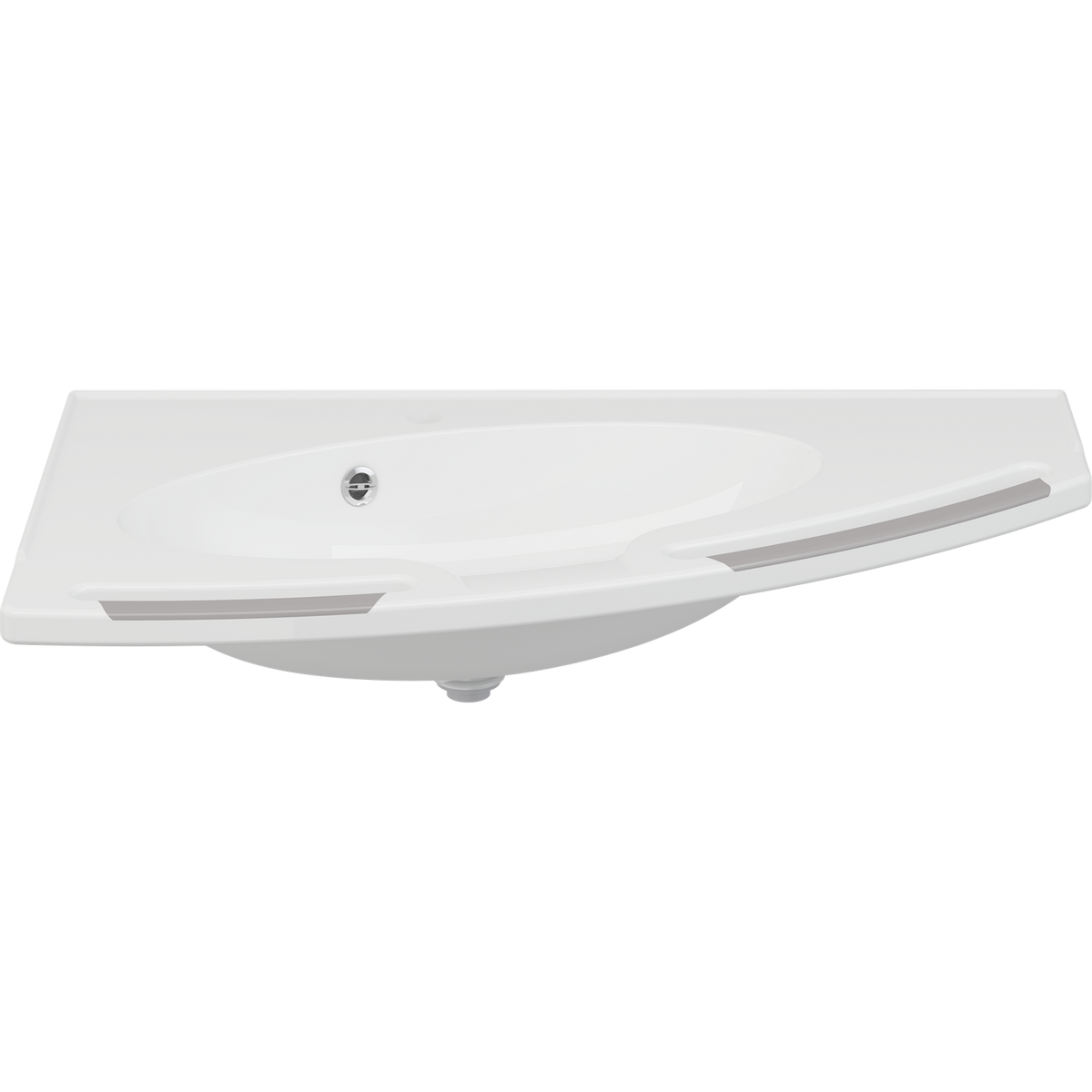

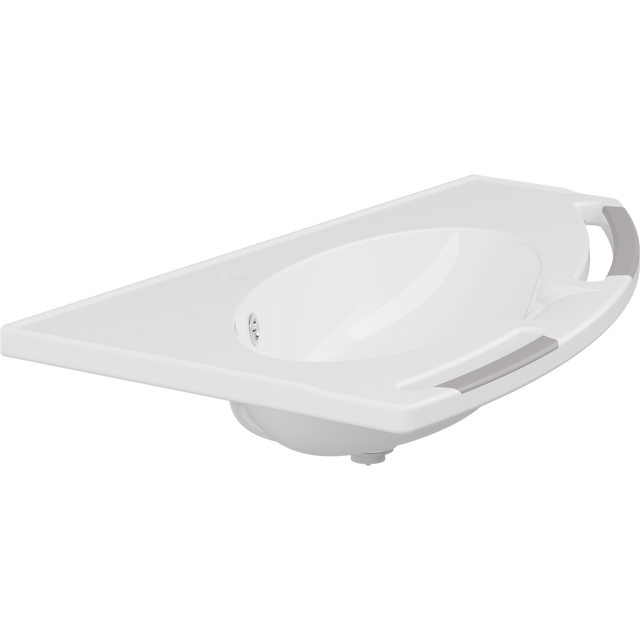

The Pressalit MATRIX ANGLE DEEP is a 1000 x 571 x 158 mm angled vanity wash basin with a deeper bowl and two integrated anthracite handrails along the front. The angled shape fits a large basin beside the toilet, gives extra room on top for toiletries, and the wide hand grips are easy to hold from several positions. The anthracite handrails stand out clearly against the white basin – a helpful high-contrast detail in care settings.

It is supplied with a drain fitting, has raised edges to keep water on the basin, and is made from cultured marble with a high-polished, pore-free gel coating.

Choose right- or left-facing, with or without overflow, and a standard version for the MATRIX ANGLE DEEP manual basin unit or MATRIX supports, or a version with up/down operating buttons in the front edge for the MATRIX ANGLE DEEP powered basin unit.

Key features & benefits

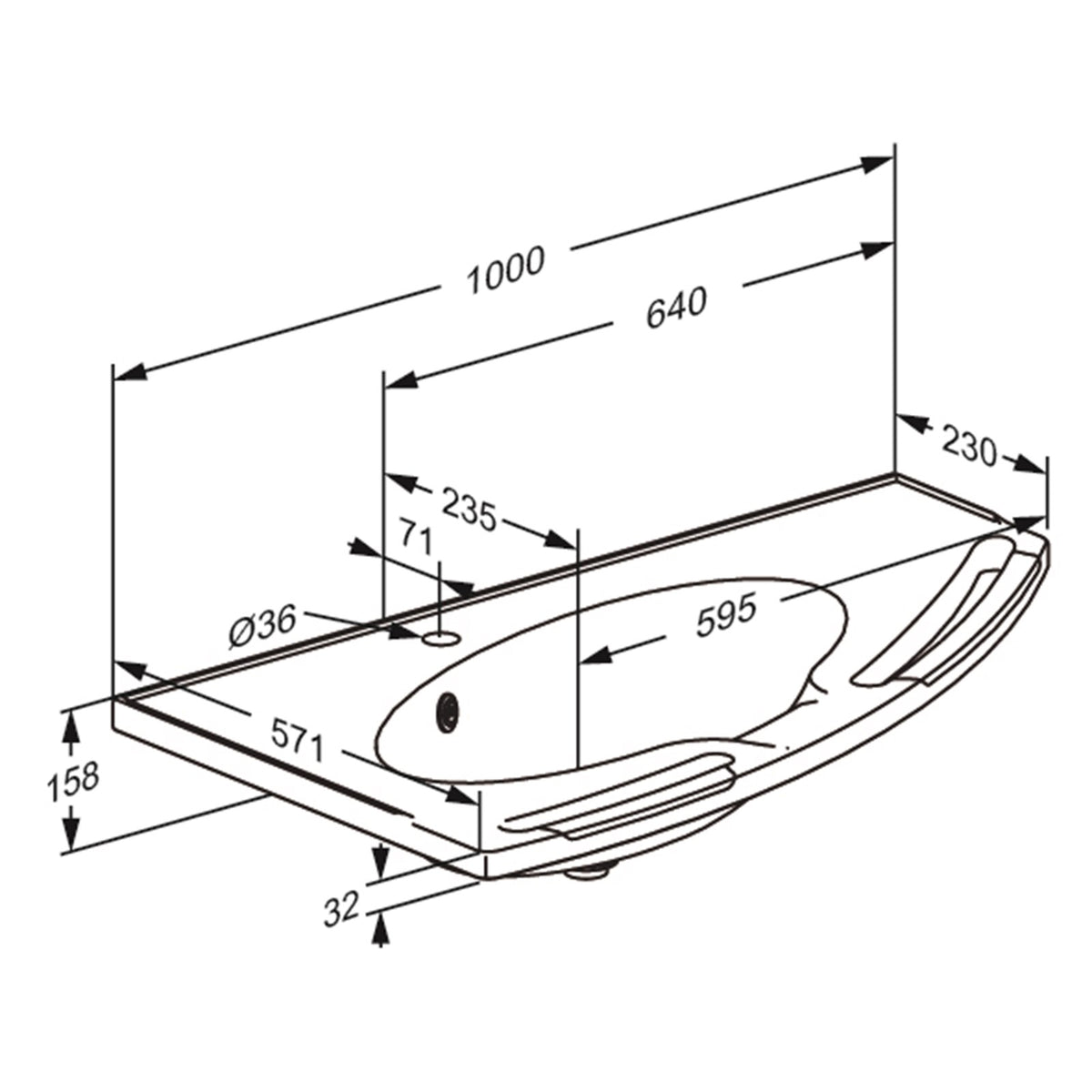

• Angled 1000 x 571 x 158 mm vanity basin with a deeper bowl
• Two integrated anthracite handrails – high-contrast and easy to grip from several positions
• Right-facing or left-facing to suit the toilet position
• Tap hole Ø36 mm; with overflow and overflow kit, or without overflow

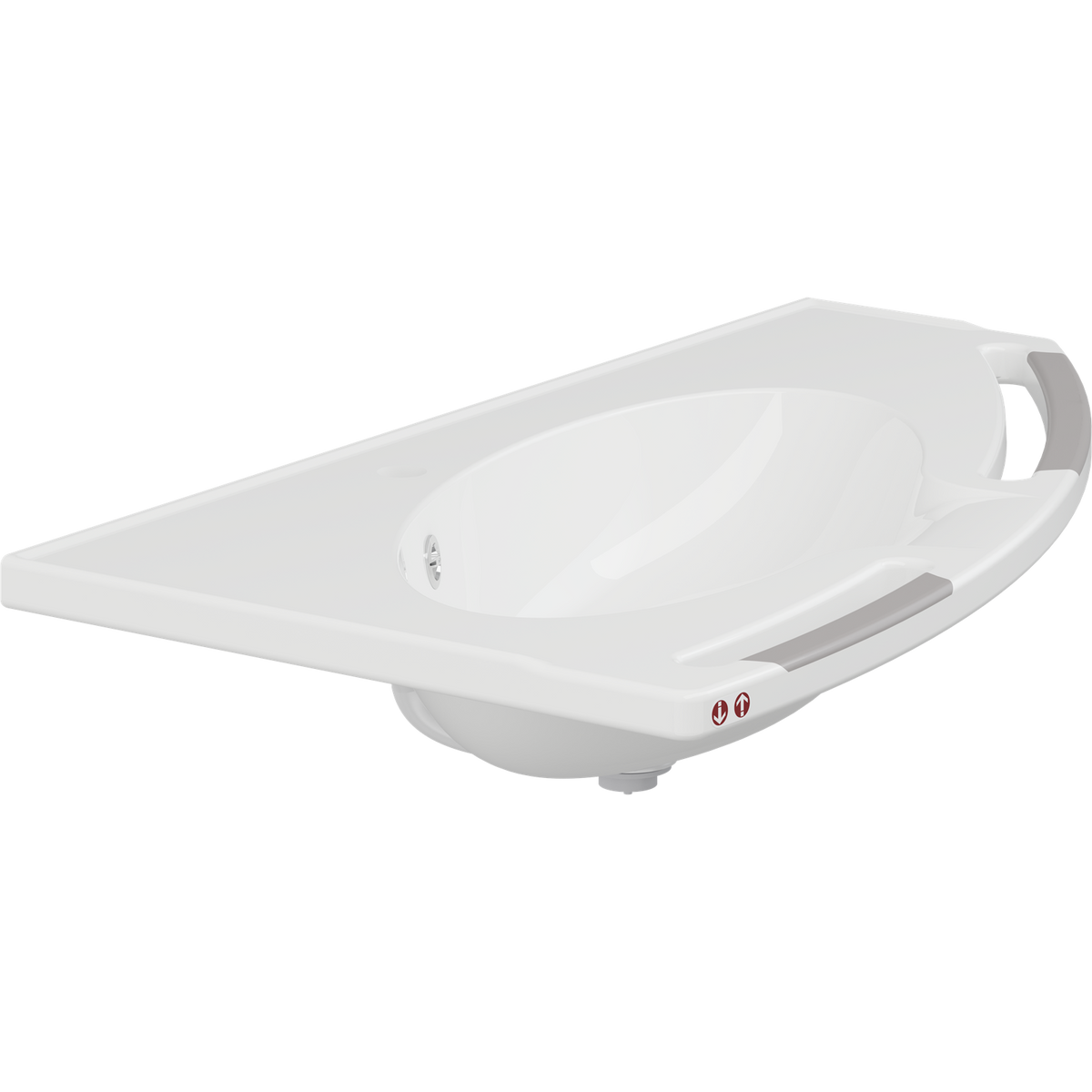

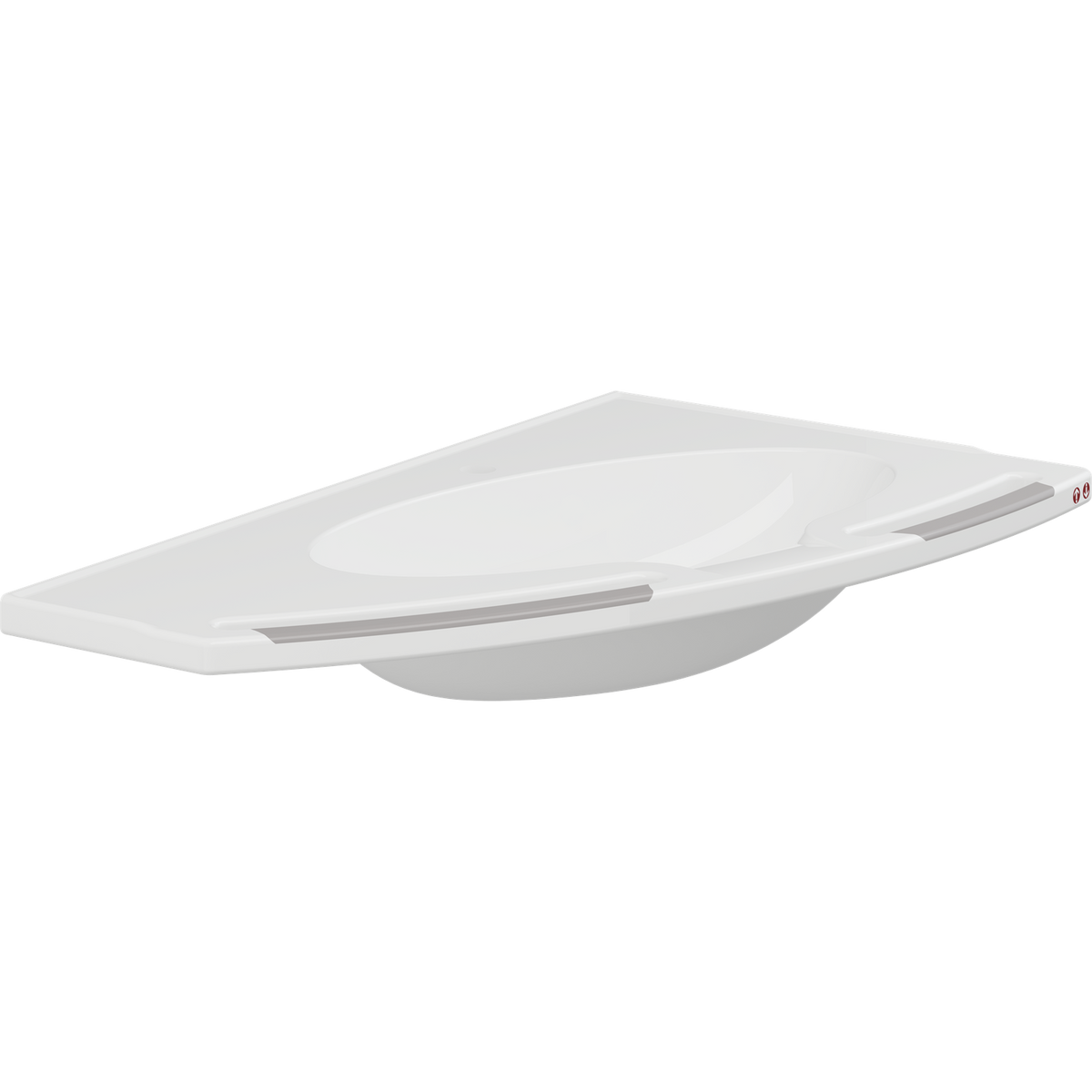

• Button version with up/down operating buttons in the front edge for the powered basin unit
• Drain fitting included; raised edges keep water on the basin
• Product capacity 200 kg; 5-year Pressalit warranty

How to choose

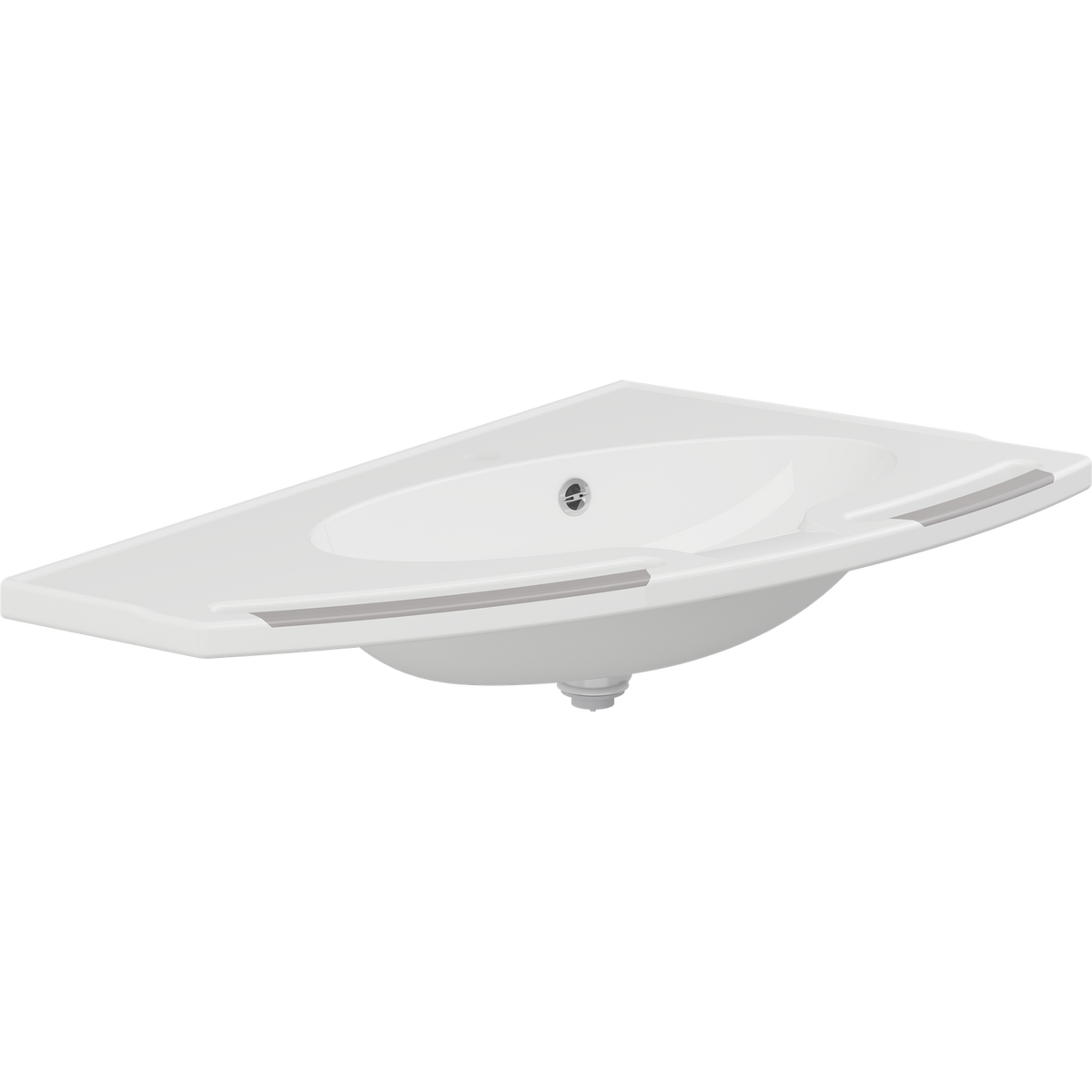

• Facing – right-facing or left-facing, angled towards the toilet.

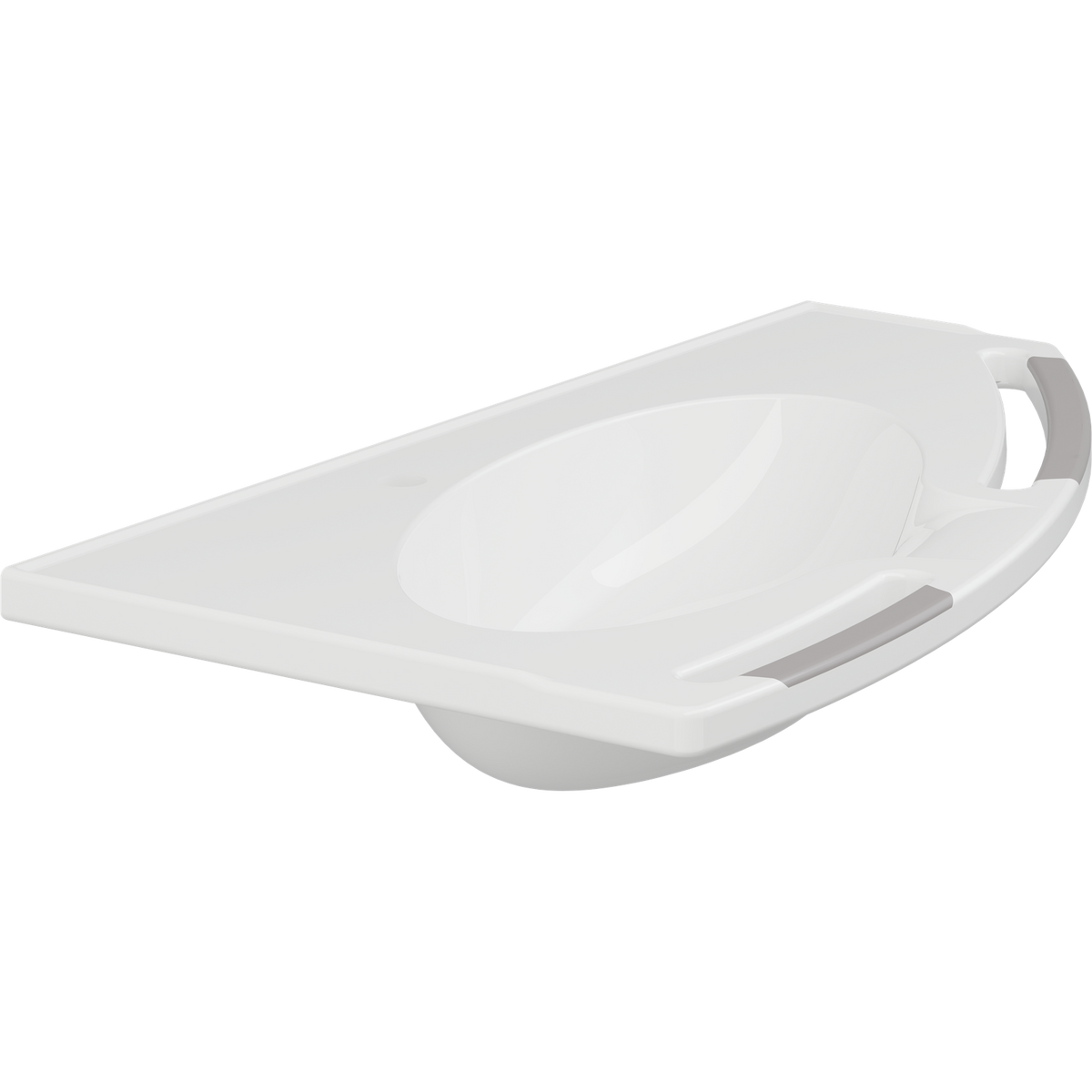

• Overflow – with overflow and overflow kit, or without.
• Version – the standard basins (R2140–R2143) fit the MATRIX ANGLE DEEP manual basin units and MATRIX supports R2015182 / R2010182; the button basins (R2150–R2153) are only for the MATRIX ANGLE DEEP powered basin units.

Matching basin units

• Right-facing standard (R2140 / R2141) – manual basin unit R4845000 or R484519000.
• Left-facing standard (R2142 / R2143) – manual basin unit R4847000 or R484719000.
• Right-facing buttons (R2150 / R2151) – powered basin unit R4855000 or R485519000.
• Left-facing buttons (R2152 / R2153) – powered basin unit R4857000 or R485719000.

Basin units, supports, mounting kits and taps are sold separately – we suggest the TMV3-rated Pressalit RT623 mixer tap.

Sizes, colours & product codes

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Need it for a specific date or want help planning a full accessible bathroom? Call us on 0333 772 4162.

Frequently asked questions

What is the difference between ANGLE and ANGLE DEEP?

ANGLE DEEP has a deeper 158 mm basin and anthracite handrails, and has matching manual and powered MATRIX basin units. MATRIX ANGLE is 120 mm deep with white handrails and mounts on MATRIX supports.

Which basin do I need for the powered unit?

Choose the "With Operating Buttons" version (R2150–R2153) – the buttons in the front edge control the powered basin unit.

With or without overflow?

Choose the overflow version for a plug-and-fill basin. Choose the version without overflow where the basin will be used with running water only – for example where a plug is not wanted – and fit a drain fitting suitable for basins without an overflow.

How do I clean it?

Use hot water or a mild soapy cleaning agent, then wipe with a soft cloth wrung out in clear water. Do not use abrasive cleaners or scouring pads on the gel-coated surface.

Downloads

• Technical datasheet – R2140112000
• Technical datasheet – R2141112000
• Technical datasheet – R2142112000
• Technical datasheet – R2143112000
• Technical datasheet – R2150112000
• Technical datasheet – R2151112000
• Technical datasheet – R2152112000
• Technical datasheet – R2153112000
• Mounting instructions – standard
• Mounting instructions – button version
• User guide
