Pressalit MATRIX CURVE Ergonomic Wash Basin – 600 x 490 mm, With or Without Overflow (R2050 / R2051)

Pressalit MATRIX CURVE Ergonomic Wash Basin – 600 x 490 mm, With or Without Overflow (R2050 / R2051)

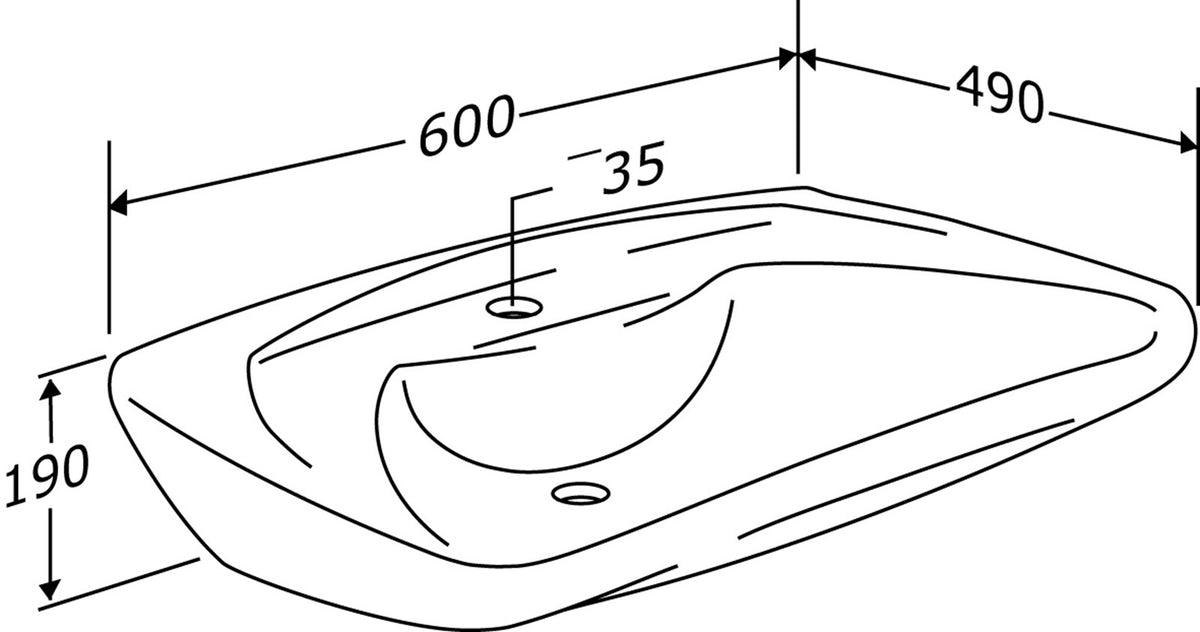

The Pressalit MATRIX CURVE is a 600 x 490 mm ergonomic wash basin with a deep, curved front that lets seated users – including wheelchair users – get close to the bowl, while standing users and carers can reach it comfortably too. It is a cost-effective basin for accessible bathrooms, care homes, hospitals and Changing Places toilets.

The basin has a Ø35 mm tap hole, raised edges to keep water on the basin and is supplied with a drain fitting. Choose with overflow (supplied with overflow kit) or without overflow.

MATRIX CURVE is recommended with the Pressalit PLUS, SELECT and VALUE height adjustable wash basin brackets, and can also be fitted on the VALUE distance piece R1201000 or directly to the wall with sanitary bolts.

Key features & benefits

• Ergonomic 600 x 490 mm basin with a curved, wheelchair-friendly front
• Supports independent use by seated and standing users
• Tap hole Ø35 mm; with overflow and overflow kit, or without overflow
• Drain fitting included
• Raised edges keep water on the basin
• Recommended with PLUS, SELECT and VALUE wash basin brackets
• Product capacity 200 kg; 5-year Pressalit warranty

How to choose

Choose R2050000 with overflow (supplied with overflow kit) or R2051000 without overflow. Both are white.

What else you need

• A bracket – a Pressalit PLUS wash basin bracket, SELECT wash basin lifter or VALUE bracket for a height adjustable basin; or the VALUE distance piece R1201000 / sanitary bolts for a fixed basin. Wall mounting kits are not included.
• An installation cover – Pressalit recommends R2056 when fitting to a SELECT lifter.
• A flexible feed and waste system – for example R2071, R2075 or R2077 – and a mixer tap such as the TMV3-rated RT623.

Sizes, colours & product codes

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Need it for a specific date or want help planning a full accessible bathroom? Call us on 0333 772 4162.

Frequently asked questions

Is this the same as MATRIX CURVE II?

No – CURVE II is a separate, shallower model. This listing is the original MATRIX CURVE (R2050000 / R2051000).

Which SELECT installation cover fits?

R2056 is the SELECT installation cover for MATRIX CURVE basins.

With or without overflow?

Choose the overflow version for a plug-and-fill basin. Choose the version without overflow where the basin will be used with running water only – for example where a plug is not wanted – and fit a drain fitting suitable for basins without an overflow.

How do I clean it?

Use hot water or a mild soapy cleaning agent, then wipe with a soft cloth wrung out in clear water. Do not use abrasive cleaners or scouring pads on the gel-coated surface.

Downloads

• Technical datasheet – R2051000
• Mounting instructions
