Pressalit MATRIX Wash Basin Supports (Pair) – Fixed or 200 mm Height Adjustable, Pale Grey (R2010 / R2015)

Pressalit MATRIX Wash Basin Supports (Pair) – Fixed or 200 mm Height Adjustable, Pale Grey (R2010 / R2015)

Pressalit MATRIX supports are a simple, power-free way to wall-mount the MATRIX MEDIUM, MATRIX ANGLE and MATRIX ANGLE DEEP vanity basins with integrated handrails. Sold as a pair in pale grey powder-coated steel, they are available at a fixed height or with 200 mm of manual height adjustment for the occasional change of user.

They are a lower-cost alternative to the MATRIX basin units where the basin does not need to be adjusted often, while still giving seated and standing users good ergonomics at the basin.

Key features & benefits

• Set of 2 wall-mounted supports for MATRIX MEDIUM (R2120/R2121), ANGLE (R2040–R2043) and ANGLE DEEP (R2140–R2143) basins

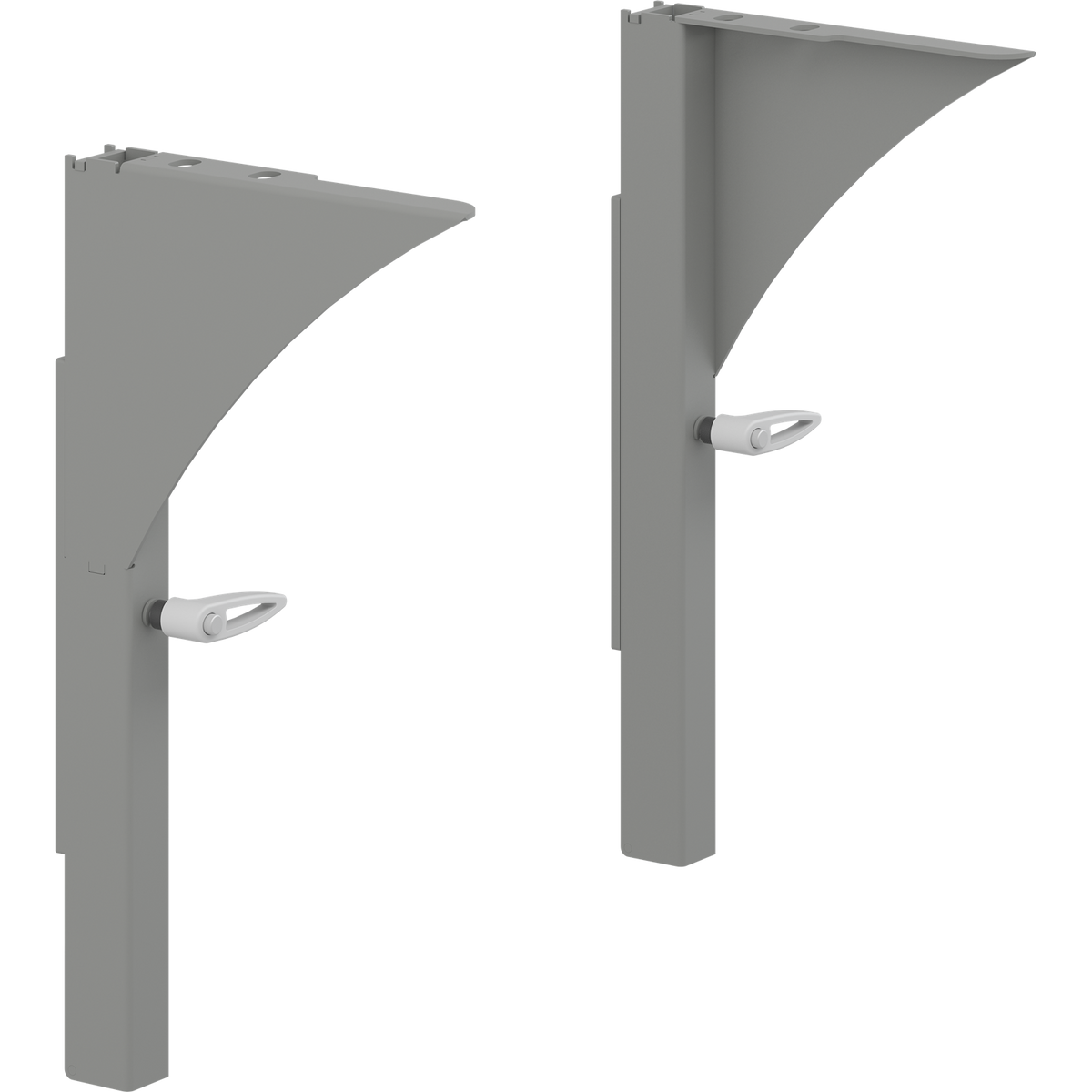

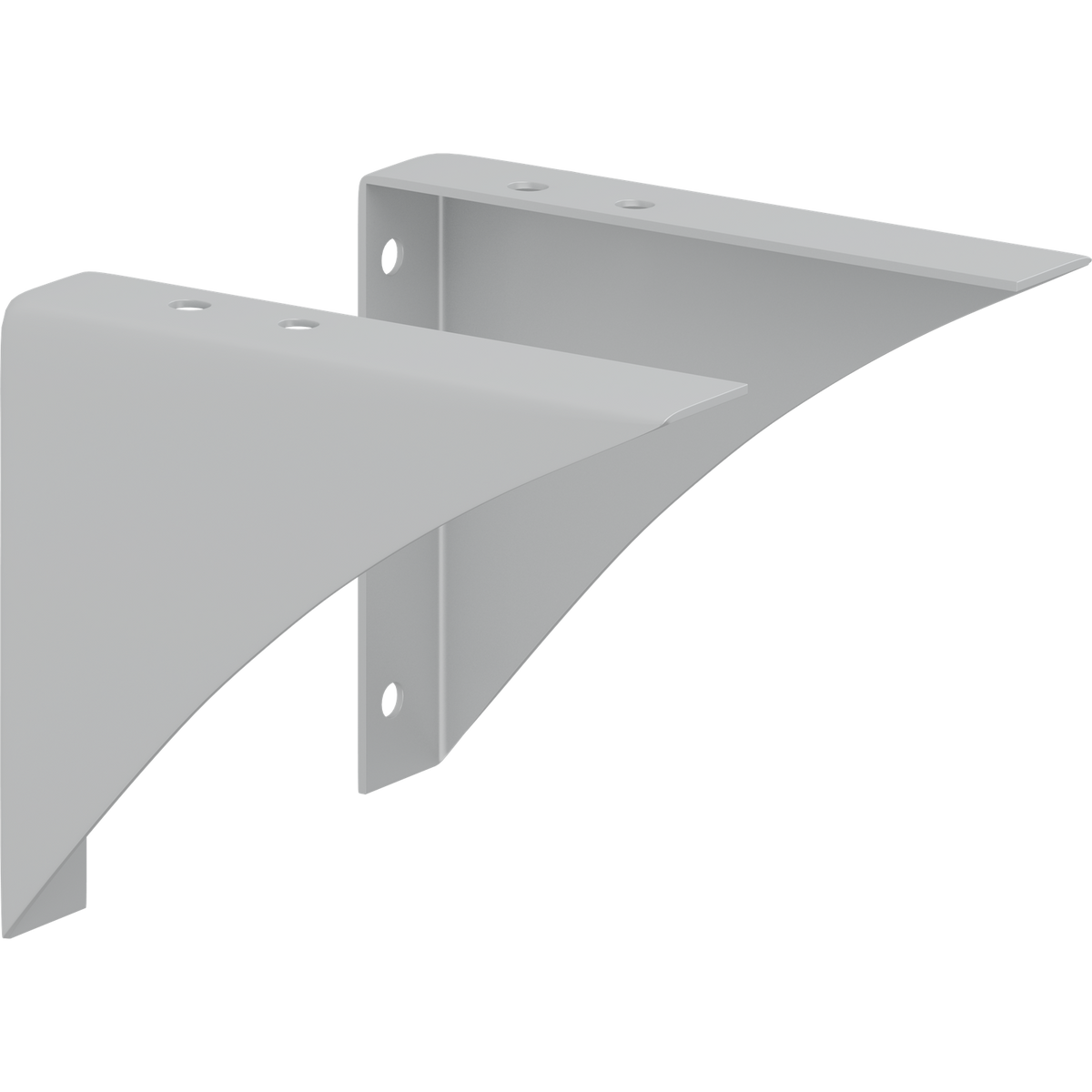

• Fixed height version, or 200 mm manually height adjustable version
• Height adjustable version is for infrequent adjustment – the person adjusting supports the weight of the basin
• No mains power needed
• Powder-coated steel in pale grey
• Suitable for basins up to 30 kg
• Fixing bolts for the wash basin included; 5-year Pressalit warranty

Fixed or height adjustable?

Choose fixed height where one basin height will suit everyone. Choose the 200 mm height adjustable pair where the height may need changing from time to time – for example when a new resident moves in. For frequent adjustment, a MATRIX basin unit is a better choice.

What else you need

• A compatible MATRIX basin – MEDIUM R2120/R2121, ANGLE R2040–R2043 or ANGLE DEEP R2140–R2143.
• A flexible feed and waste system – Pressalit recommends R2075 or R2077 with the height adjustable supports, and R2071 or R2075 with the fixed supports (UK market).
• A mounting kit to suit your wall – not included.
• A tap, and for MATRIX MEDIUM basins a drain fitting.

Sizes, colours & product codes

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Need it for a specific date or want help planning a full accessible bathroom? Call us on 0333 772 4162.

Frequently asked questions

Do I get one support or two?

Each order is a pair – two supports.

Can I use them with MATRIX SMALL or CURVE basins?

No – those basins are designed for PLUS, SELECT and VALUE brackets. MATRIX supports are for MEDIUM, ANGLE and ANGLE DEEP basins.

How often can the adjustable version be moved?

It is intended for infrequent adjustment, because the basin's weight has to be supported while adjusting.

Downloads

• Technical datasheet – height adjustable R2015182
• Technical datasheet – fixed R2010182
• Mounting instructions – height adjustable
• Mounting instructions – fixed
• Load-bearing installation recommendation
