Pressalit Mounting Kit for Aerated Concrete Wall – Choice of Kit (V8598, V8652–V8670)
Aerated concrete (lightweight block, such as Thermalite or Celcon) needs different fixings from brick. Ordinary wall plugs will not hold properly, so Pressalit make a separate set of mounting kits for aerated concrete walls. They use stainless steel bolts with special aerated-concrete plugs (FTP K 6, FTP M 8 or GB14) that grip the soft block.
Pressalit Care products are supplied without wall fixings. Choose the kit for the product you are fitting from the option list – each option names the kit, what is in it and what it is for – and use the table below to check the exact product codes.
Key features & benefits
- Genuine Pressalit fixings made for aerated concrete block walls
- Stainless steel bolts and screws with aerated-concrete plugs (FTP K 6, FTP M 8, GB14)
- Grey or white screw covers included where the product calls for them
- Kits for PLUS wall tracks, support arms, shower seats, folding seats, basin brackets and handrails
- Kits for SELECT toilet lifters, MATRIX and VALUE basin brackets, INDIVO lifts and SCT 1000 shower change tables
- Each kit matches its brick-wall equivalent, so specifiers can swap kit codes by wall type
How to choose the right kit
- Find your product code. Every Pressalit product has a code such as R9806112 or RT104000 – it is on the product label, the order paperwork and our product pages. Look it up in the table below.
- Check the number of fixings. Most kits are complete for one product. Horizontal wall track kits (3 screws) are sold per pack – Pressalit's mounting instructions give how many screws each track length needs, so order enough packs.
- Handrail tube systems built from RT3xx tube pieces need one small 4-screw kit for each wall rosette or wall mounting.
- Other wall types. For brick or solid concrete walls, choose our Pressalit Mounting Kit for Brick Wall instead. Plasterboard or stud walls must be reinforced before fitting any Pressalit product.
- Mounting kits are not included with Pressalit handrails, support arms, seats, tracks or brackets, so add the right kit to your order to avoid delays on site.
Sizes, colours & product codes
| Kit option | Contents | Fits these Pressalit products | Code | EAN |
|---|---|---|---|---|
| V8598 | 4 x GB14 plugs (no screws) | Aerated-concrete plug set – check the mounting instructions for your Pressalit product | V8598 | 5708590355177 |

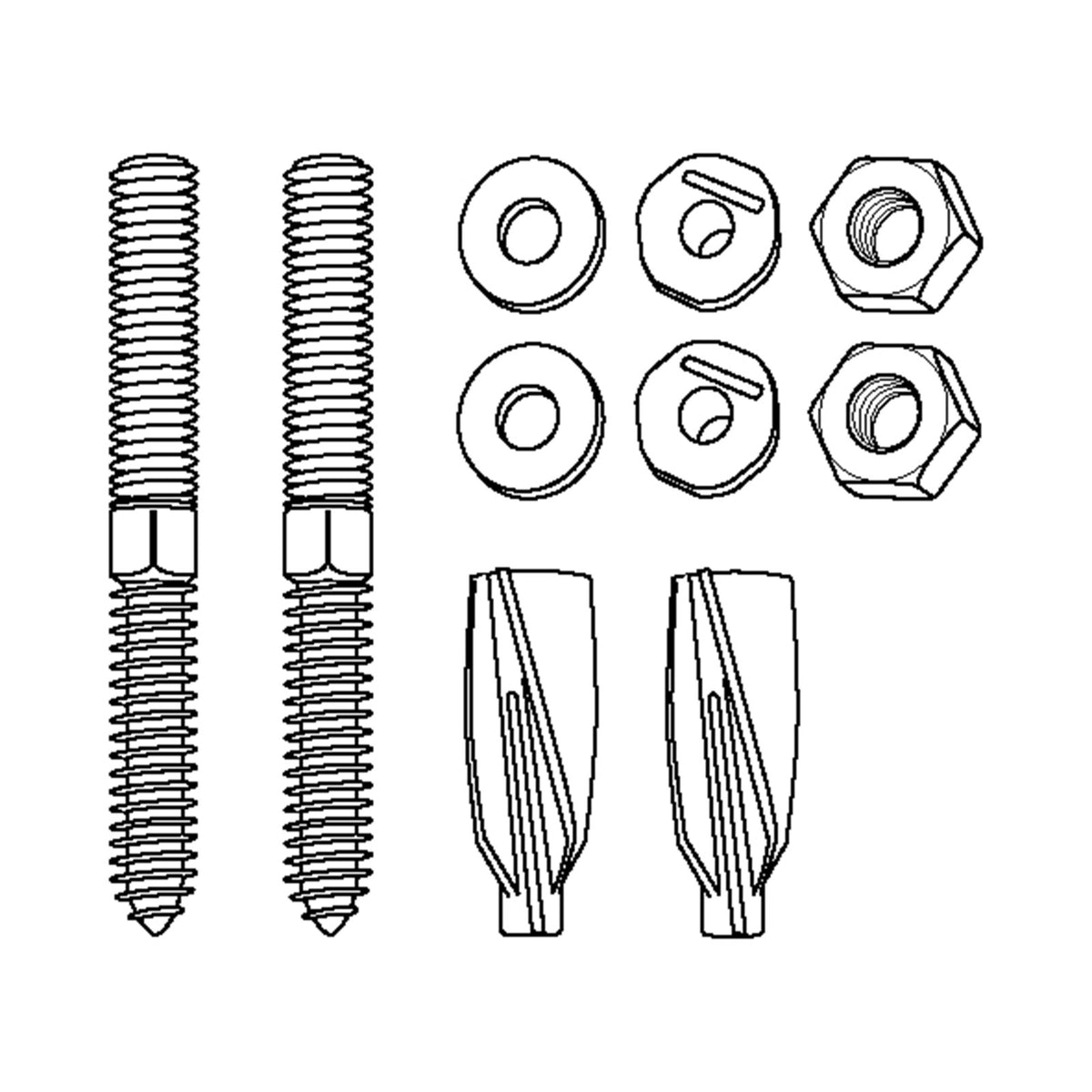

| V8652 | 2 coach screws Ø10 x 100, GB14 plugs, washers and nuts | MATRIX SMALL wash basins R2020/R2022, R2021/R2023; MATRIX CURVE wash basins R2050, R2051, R2052, R2053 | V8652 | 5708590366005 |
| V8653 | 4 bolts M8 x 35, FTP M 8 plugs | PLUS vertical wall tracks R9861, R9862; PLUS wash basin brackets R4650, R4750, R4751; PLUS shower seats R7634, R7635 | V8653 | 5708590351414 |
| V8654 | 4 countersunk bolts M8 x 35, FTP M 8 plugs, with mounting plate | PLUS support arms R360070, R360085; PLUS folding seats R5510, R5504; PLUS shower seats R7304, R7404 | V8654 | 5708590351407 |
| V8655 | 4 coach screws Ø10 x 70, GB14 plugs, grey screw covers | MATRIX wash basin units R4820, R4822, R4840, R4842, R4850, R4852, R4870 and UK versions R4825, R4827, R4845, R4847, R4855, R4857, R4875; SELECT TL1–TL5 toilet lifters (R8012, R8022, R8212, R8222, R8112, R8122, R8312, R8322, R9013, R9023, R9113, R9123, R9014, R9024, R9114, R9124, R9211, R9212, R9221, R9222); SELECT wash basin brackets R4950–R4953; VALUE wash basin bracket R1210 | V8655 | 5708590351391 |

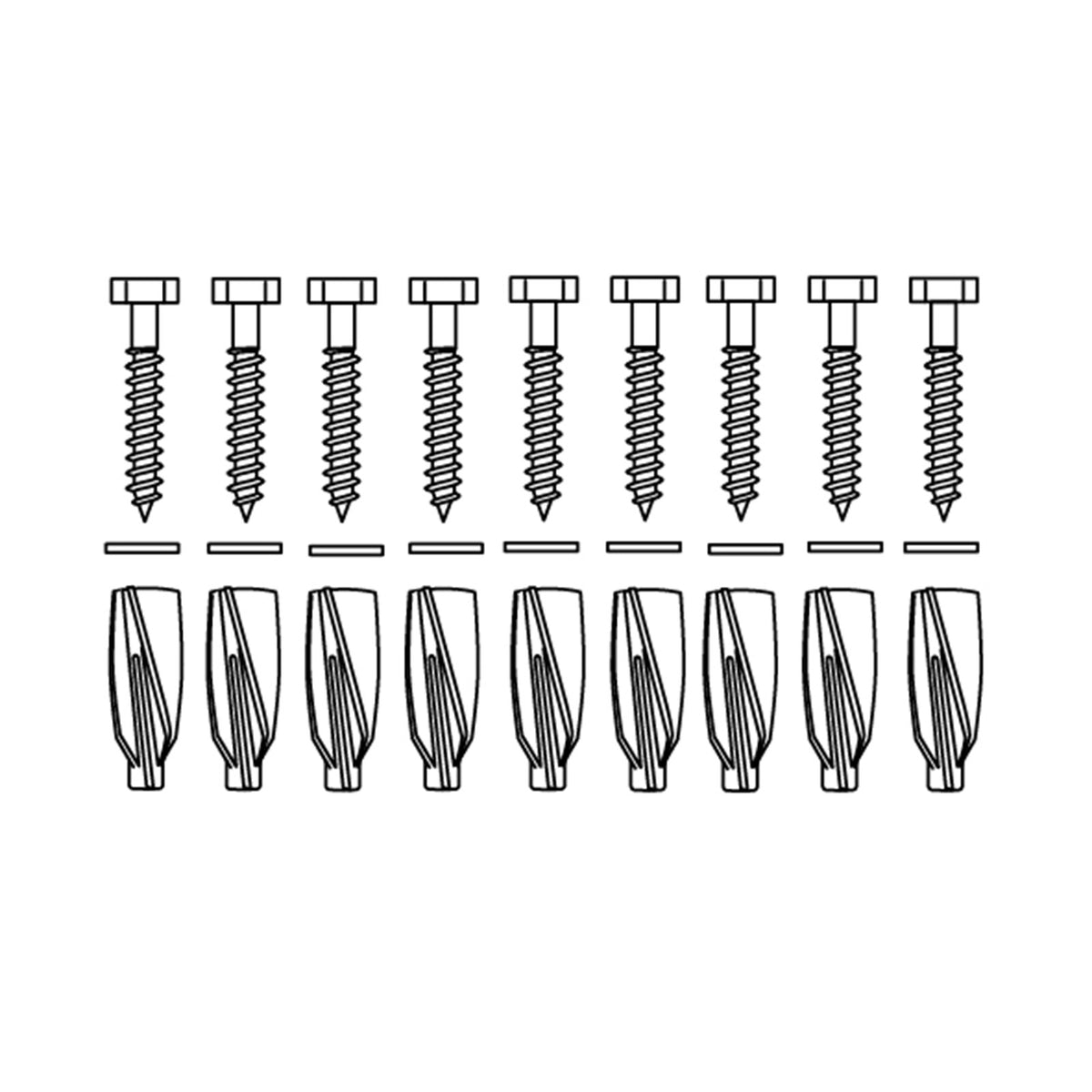

| V8657 | 9 coach screws Ø10 x 70, GB14 plugs | INDIVO electric wall-mounted worktop lifts RK1410–RK1414 and RK1450–RK1454 | V8657 | 5708590351377 |
| V8658 | 6 coach screws Ø10 x 70, GB14 plugs | Daycare changing tables with low start height R8661, R8662, R8663; SCT 3000 height adjustable shower change tables R8582313, R8582318† | V8658 | 5708590351360 |
| V8659 | 6 countersunk screws Ø10 x 80, GB14 plugs, white screw covers | Opening shower curtain rail RT225 | V8659 | 5708590351353 |
| V8660 | 8 bolts M8 x 35, FTP M 8 plugs | PLUS vertical wall tracks R9873, R9874; PLUS support arms R370370, R370470, R370385, R370485; PLUS folding seat R5520; PLUS wash basin bracket R4550; PLUS shower seats R7414, R7415 | V8660 | 5708590351346 |

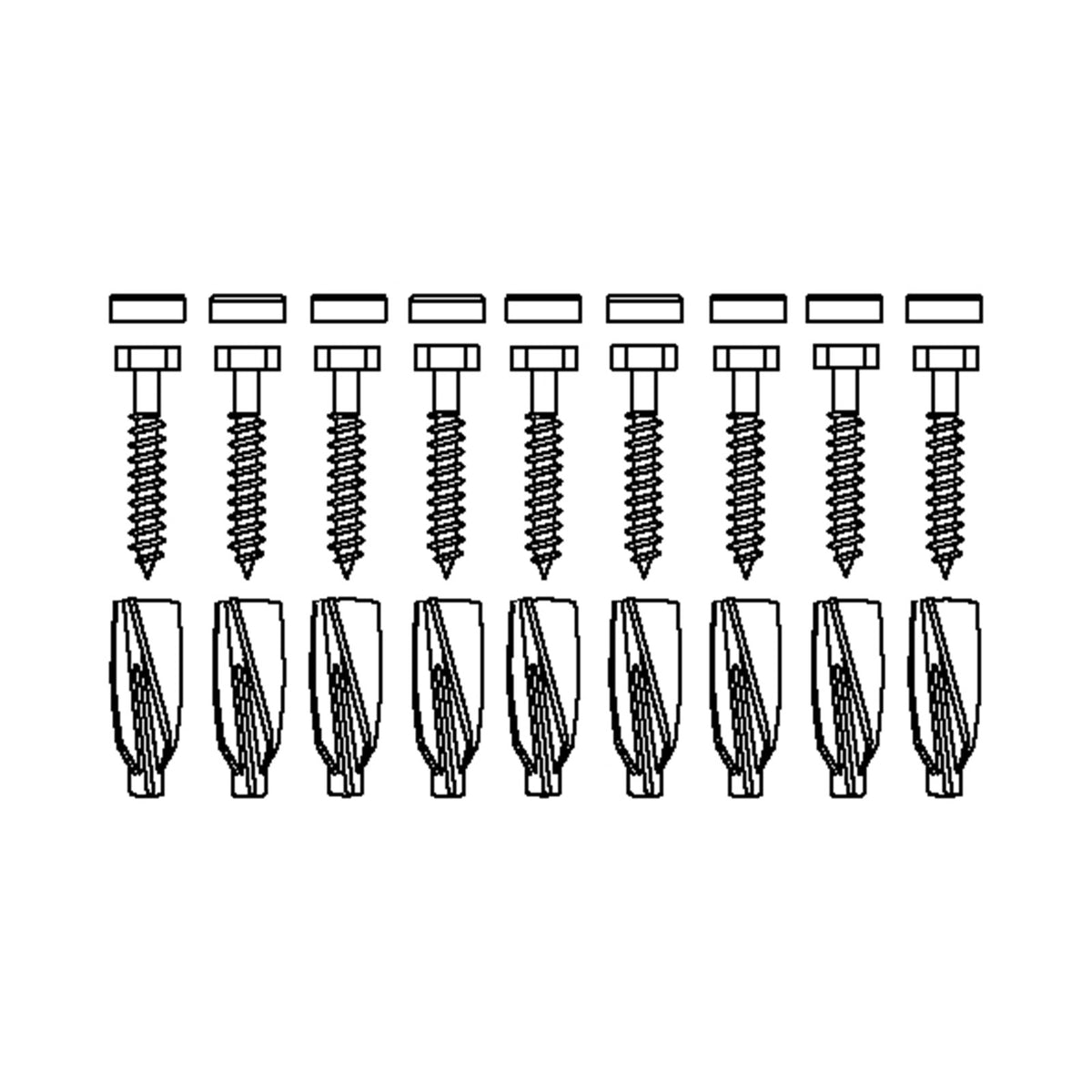

| V8661 | 9 coach screws Ø10 x 70, GB14 plugs, white screw covers | SCT 1000 foldable shower change tables R8406, R8407 | V8661 | 5708590351339 |
| V8662 | 10 bolts M8 x 35, FTP M 8 plugs | PLUS vertical wall track R9876; PLUS shower seats R7424, R7425, R7434, R7435, R7334 | V8662 | 5708590351322 |
| V8663 | 8 coach screws Ø10 x 70, GB14 plugs, grey screw covers | SCT 3000 fixed height shower change tables R8435313, R8435318† | V8663 | 5708590351315 |
| V8664 | 12 coach screws Ø10 x 70, GB14 plugs, white screw covers | Check the mounting instructions for your Pressalit product | V8664 | 5708590351308 |
| V8665 | 4 bolts M5 x 50, FTP K 6 plugs | PLUS handrail tube system components RT3xx (tube pieces and wall mountings) | V8665 | 5708590351292 |
| V8666 | 8 bolts M5 x 50, FTP K 6 plugs | PLUS straight handrails RT100, RT101, RT102, RT103, RT104, RT110 | V8666 | 5708590351285 |
| V8667 | 12 bolts M5 x 50, FTP K 6 plugs | PLUS handrails RT114, RT115, RT118, RT119, RT124, RT126, RT128, RT144; PLUS shower curtain rail RT212 | V8667 | 5708590351278 |
| V8668 | 16 bolts M5 x 50, FTP K 6 plugs | PLUS corner shower handrail combinations RT136, RT138 | V8668 | 5708590351261 |
| V8670 | 3 bolts M8 x 35, FTP M 8 plugs (order the number your track needs) | PLUS horizontal wall tracks R9806, R9809, R9812, R9815, R9818, R9821, R9824, R9827, R9830, R9833, R9836, R9839 – see the mounting instructions for the recommended number of screws | V8670 | 5708590356891 |
† The brick-wall version of this kit (same screw pattern) is listed in Pressalit's mounting instructions for these products. If your product is not listed, check its mounting instructions or call us.
Technical specification
| Brand | Pressalit |
| Wall type | Aerated Concrete Wall |
| Materials | Stainless steel bolts/screws, plastic aerated-concrete plugs (and plastic screw covers where listed) |
| Supplied as | One kit (pack) per order quantity |
| Product group | Pressalit wall mounting materials |
| Installation | Fit in line with the Pressalit mounting instructions for the product being installed |
Delivery
Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Need help choosing the right part? Call our team on 0333 772 4162 with your Pressalit product code and we will check it for you.
Frequently asked questions
Do Pressalit products come with wall fixings?
No. Pressalit supply their Care range without fixings because walls vary. Order the matching mounting kit for your wall type from this page.
Which kit do I need for a handrail?
Straight PLUS handrails RT100–RT104 use the 8-screw kit, angled and corner handrails use the 12-screw kit, the RT136/RT138 corner shower combinations use the 16-screw kit, and RT3xx tube system parts use the 4-screw kit.
My wall is plasterboard – can I use these kits?
Not on their own. Plasterboard and stud walls must be reinforced with a suitable backing first. Your installer should follow Pressalit's load-bearing installation recommendations.
Can I order several of the same kit?
Yes – just change the quantity in the basket. This is common for long horizontal wall tracks and handrail tube systems.
