Pressalit Care products are supplied without wall fixings, because the right fixing depends on the wall they are going onto. This page gathers every genuine Pressalit mounting kit for solid brick and concrete walls in one place. Each kit is made up by Pressalit for a specific product – the screws are the right diameter and length, the plugs are the right size and, where the product needs them, colour-matched screw covers are included.

Pick the kit for the Pressalit product you are fitting from the option list. Each option names the kit, what is in it and the products it is made for; the table below gives the full list of product codes for every kit.

Key features & benefits

• Genuine Pressalit fixings for brick and solid concrete walls
• Stainless steel screws with fischer-type nylon plugs (SX8, SX10 or SX12)
• Grey or white screw covers included where the product calls for them
• Kits for PLUS wall tracks, support arms, shower seats, folding seats, basin brackets and handrails
• Kits for SELECT toilet lifters, MATRIX and VALUE basin brackets and Pressalit shower change tables
• Low-cost way to make sure installers fit the product exactly as Pressalit specify

How to choose the right kit

• Find your product code. Every Pressalit product has a code such as R9806112 or RT104000 – it is on the product label, the order paperwork and our product pages. Look it up in the table below.
• Check the number of fixings. Most kits are complete for one product. Horizontal wall track kits (3 screws) are sold per pack – Pressalit's mounting instructions give how many screws each track length needs, so order enough packs.
• Handrail tube systems built from RT3xx tube pieces need one small 4-screw kit for each wall rosette or wall mounting.
• Other wall types. For aerated concrete (lightweight block) walls, choose our Pressalit Mounting Kit for Aerated Concrete Wall instead – those kits use longer bolts and special aerated-concrete plugs. For plasterboard or stud walls, the wall must be reinforced (for example with a timber or plywood pattress) before fitting; ask your installer or call us for advice.
• Mounting kits are not included with Pressalit handrails, support arms, seats, tracks or brackets, so add the right kit to your order to avoid delays on site.

Sizes, colours & product codes

* Pressalit lists the matching aerated-concrete version of this kit (same screw pattern) for these products. ** Code taken from the fixing table in Pressalit's mounting instructions for these products. If your product is not listed, check its mounting instructions or call us.

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Need help choosing the right part? Call our team on 0333 772 4162 with your Pressalit product code and we will check it for you.

Frequently asked questions

Do Pressalit products come with wall fixings?

No. Pressalit supply their Care range without fixings because walls vary. Order the matching mounting kit for your wall type from this page.

Which kit do I need for a handrail?

Straight PLUS handrails RT100–RT104 use the 8-screw kit, angled and corner handrails use the 12-screw kit, the RT136/RT138 corner shower combinations use the 16-screw kit, and RT3xx tube system parts use the 4-screw kit.

My wall is plasterboard – can I use these kits?

Not on their own. Plasterboard and stud walls must be reinforced with a suitable backing first. Your installer should follow Pressalit's load-bearing installation recommendations.

Can I order several of the same kit?

Yes – just change the quantity in the basket. This is common for long horizontal wall tracks and handrail tube systems.

Downloads

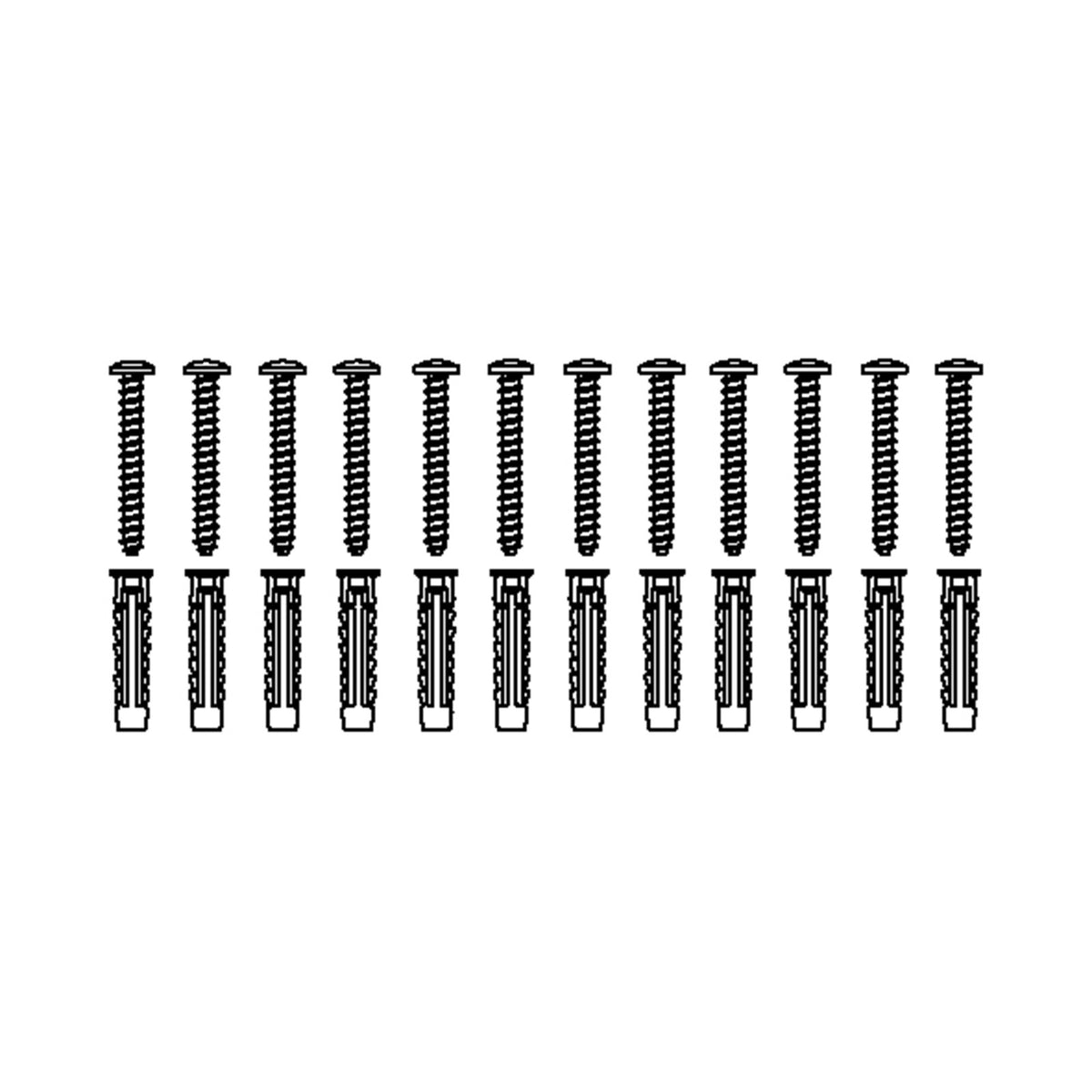

• Technical datasheet – V8617 (12 pcs)

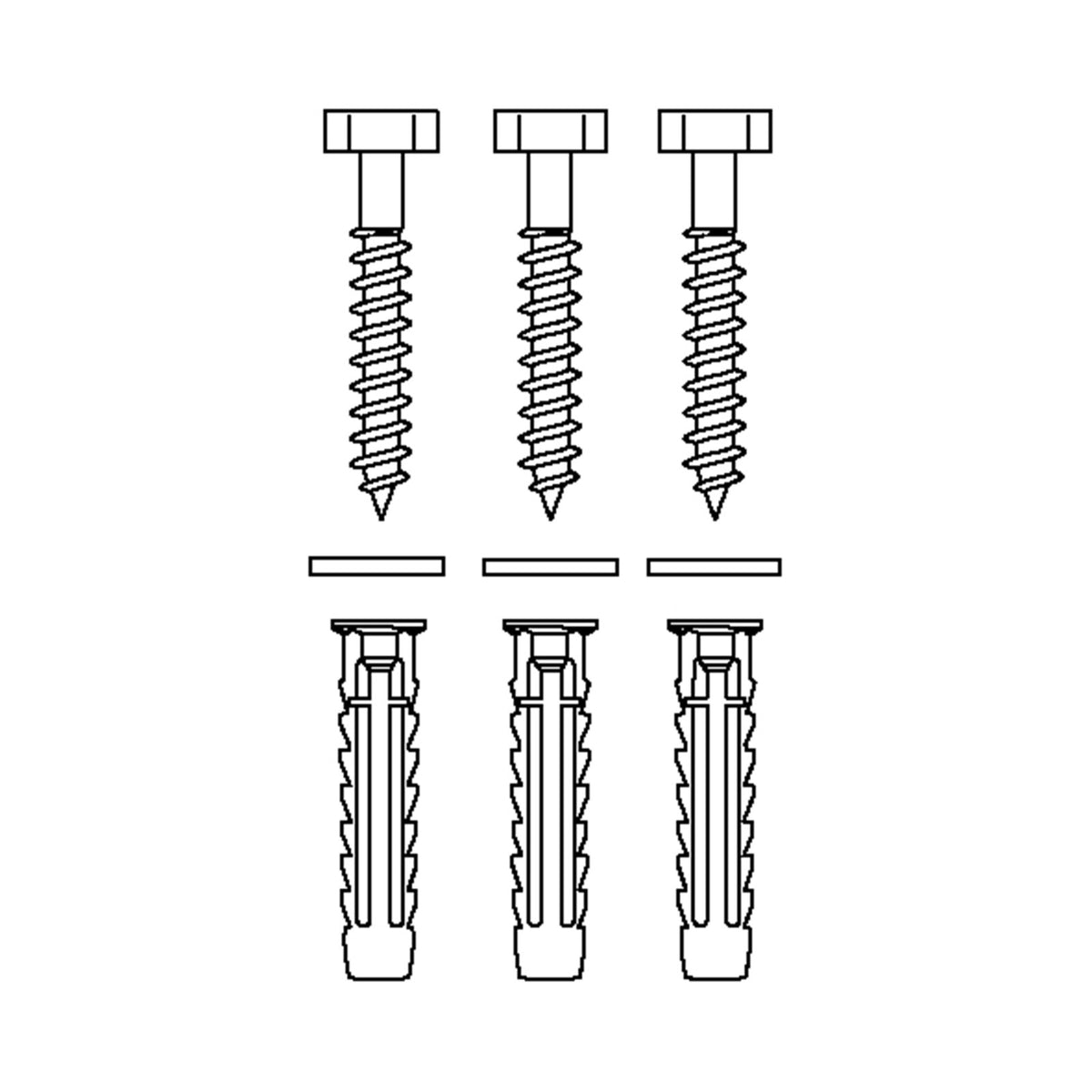

• Technical datasheet – V8620 (3 pcs)
