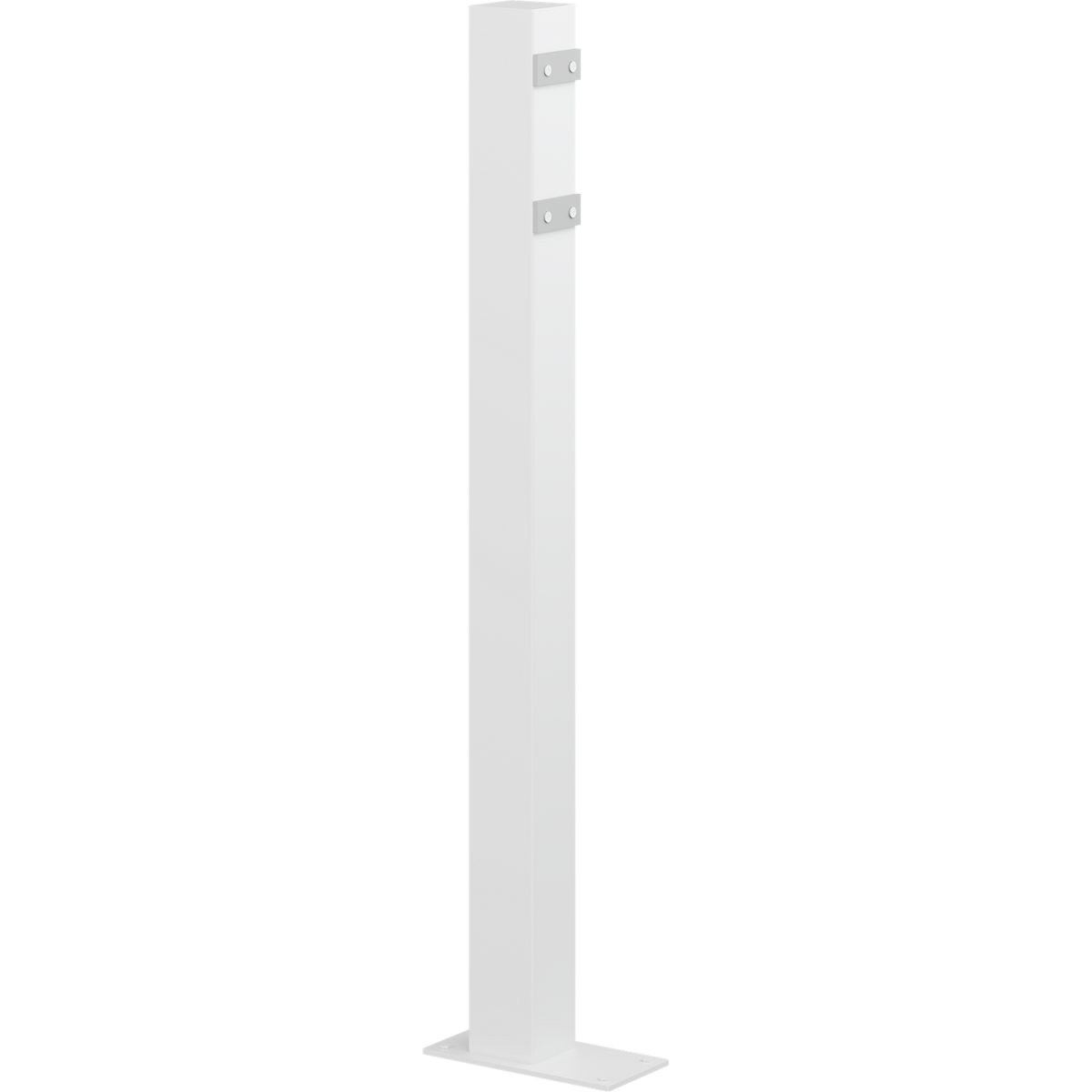

Pressalit PLUS Free-Standing Column for Support Arms – For Fixed or Height Adjustable Arms, Grey (R9430 / R9431)
The Pressalit PLUS free-standing column lets you install a PLUS support arm beside the toilet where wall mounting is not possible – for example next to a freestanding or island toilet, against a lightweight partition, or in a Changing Places toilet where the arm needs to sit away from the wall. The 945 mm grey column bolts to the floor and carries the support arm in the same way a wall would.
Two versions are available: R9430 for the fixed height PLUS support arm, and R9431 for the height adjustable PLUS support arm, which keeps the arm's 240 mm of height adjustment so it can still be set to suit different users.
Key features & benefits
- Floor-standing column for PLUS support arms where wall mounting is not possible
- Suits freestanding toilets and open-plan accessible bathroom layouts
- R9430 takes the fixed height PLUS support arm
- R9431 takes the height adjustable PLUS support arm, with 240 mm adjustment
- 945 mm column with a 200 × 100 mm floor plate
- Steel core with a durable Rilsan surface in grey
- Floor mounting kit included
- Five-year Pressalit warranty against material and manufacturing defects
How to choose
Match the column to the arm: choose R9430 if you are fitting a fixed height PLUS support arm, or R9431 for a height adjustable PLUS support arm. The support arm itself is not included – order it separately from our Pressalit PLUS support arm range.
Floor: a floor mounting kit is included. Check that the floor is solid enough for the loads involved and follow the Pressalit mounting instructions. Pressalit's brochure shows a 70 × 70 mm column section on a 200 × 100 mm base.
Pairs: where an arm is needed on both sides of a freestanding toilet, order one column per arm.
Sizes, colours & product codes
| Version | Product code | EAN |
|---|---|---|
| For Fixed Height PLUS Arms | R9430 | 5708590320427 |
| For Height Adjustable PLUS Arms | R9431 | 5708590320434 |

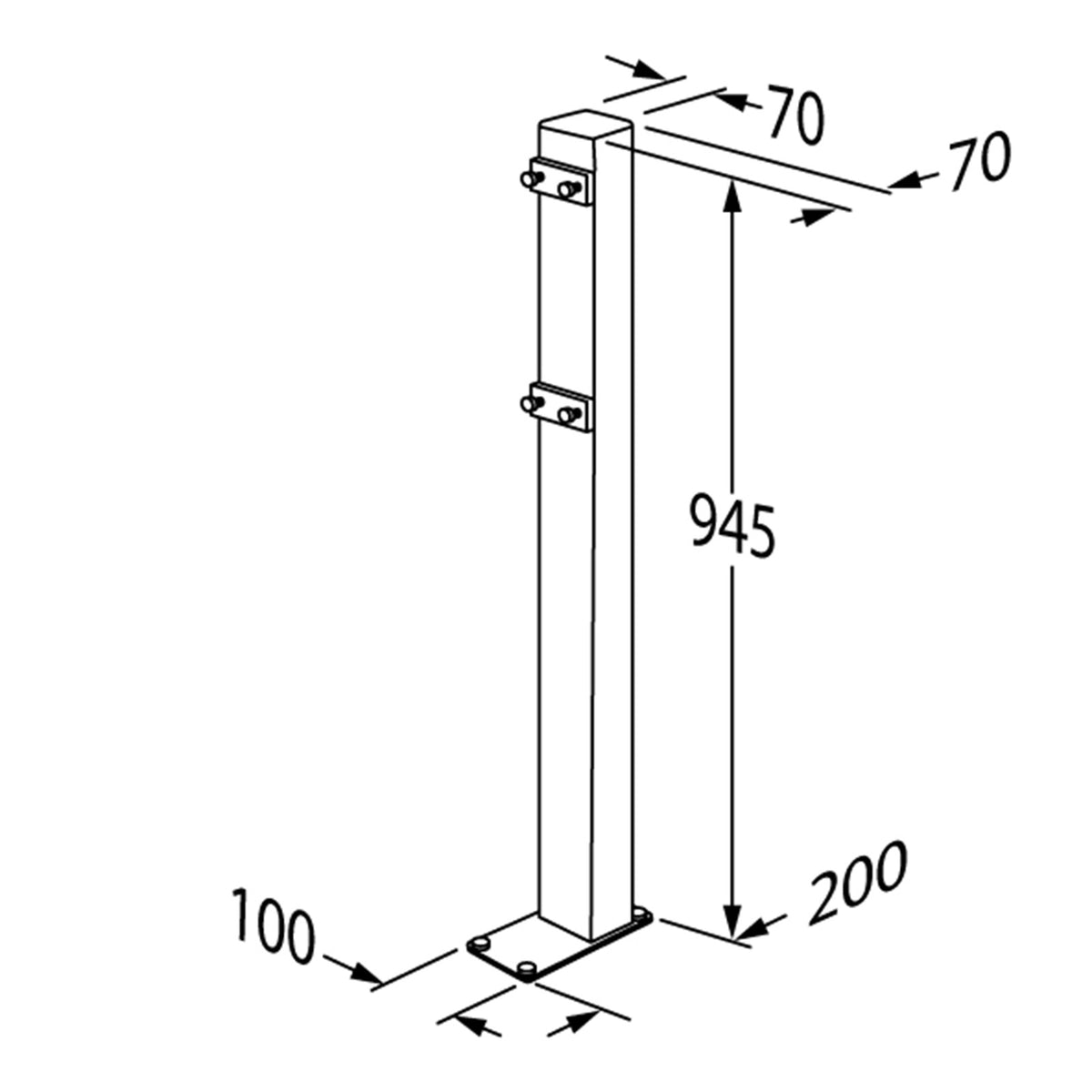

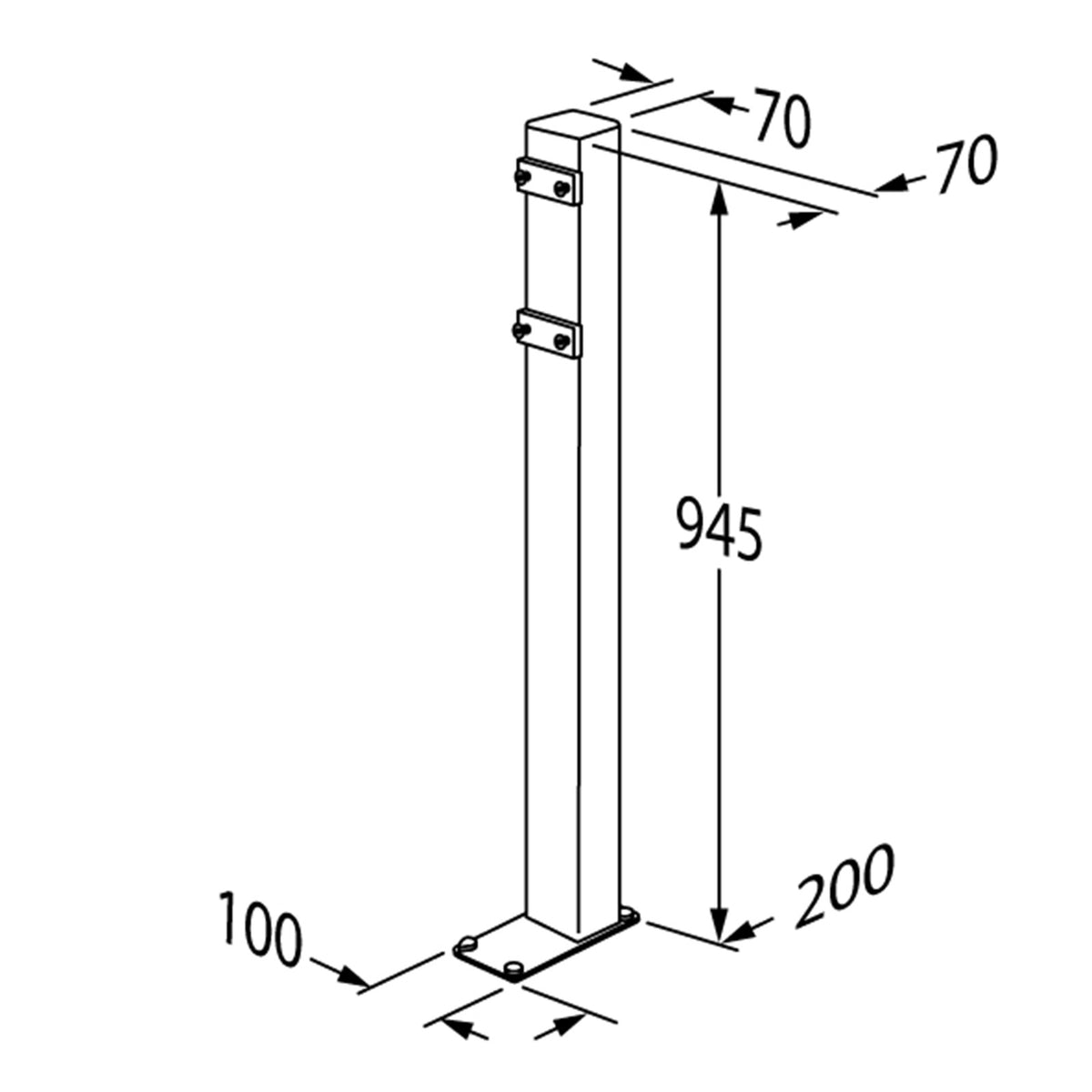

Technical specification
| Height | 945 mm |
| Column section | 70 × 70 mm |
| Floor plate | 200 × 100 mm |
| Height adjustment (R9431) | 240 mm, via the height adjustable PLUS support arm |
| Material | Steel with Rilsan surface |
| Colour | Grey |
| Net weight | 7.3 kg |
| Included | Floor mounting kit; support arm not included |
| Warranty | 5 years from invoice date (material and manufacturing defects) |
Delivery
Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Pressalit items are made to order, so please check the product code before ordering. Questions? Call us on 0333 772 4162.
Frequently asked questions
Is the support arm included?
No. The column is supplied on its own; choose a fixed height or height adjustable PLUS support arm separately.
Which column do I need?
R9430 for the fixed height PLUS support arm, R9431 for the height adjustable PLUS support arm.
Are floor fixings included?
Yes, a floor mounting kit is included.
Can I use it with a VALUE support arm?
No. VALUE has its own column version (R1161000), available in our Pressalit VALUE support arm range.
