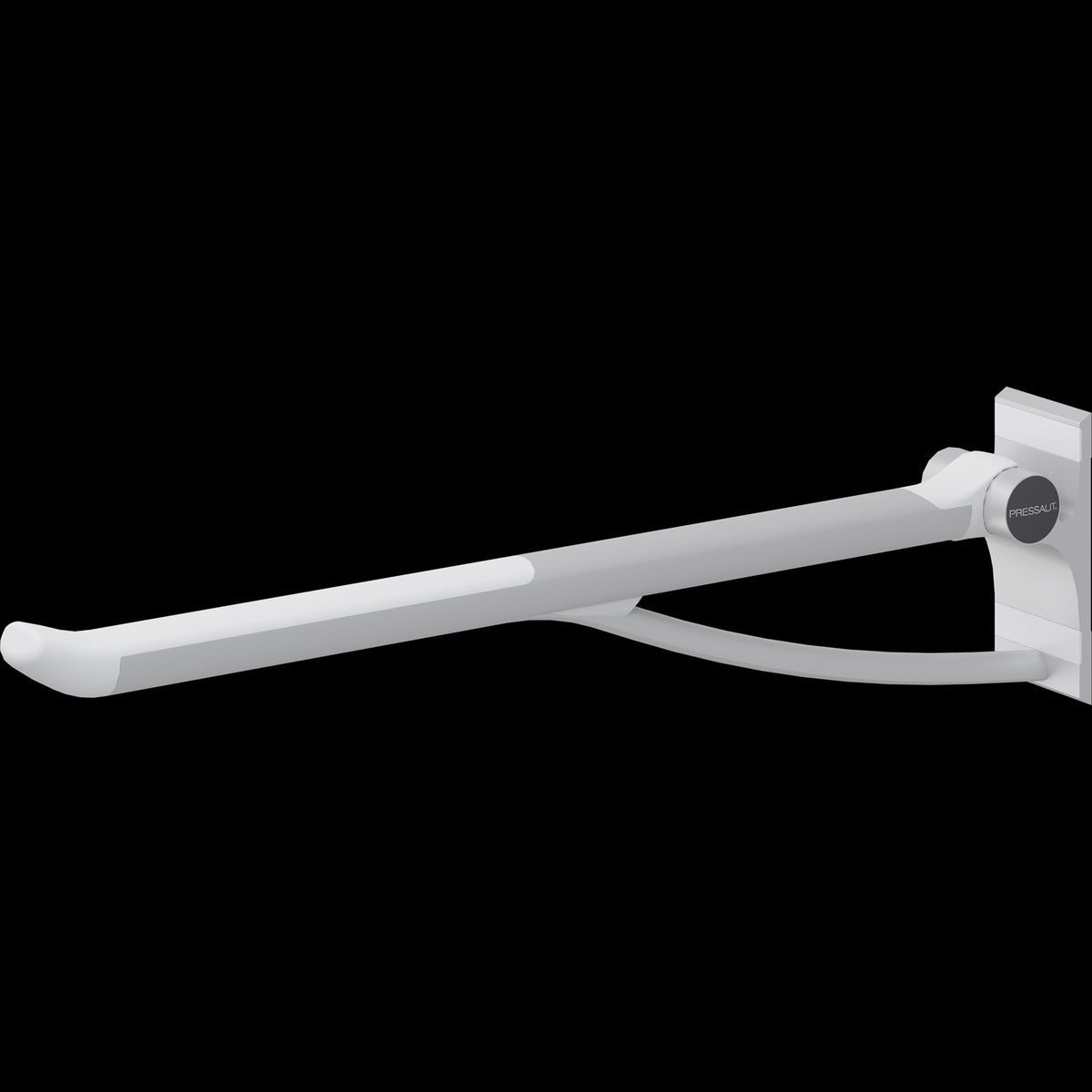

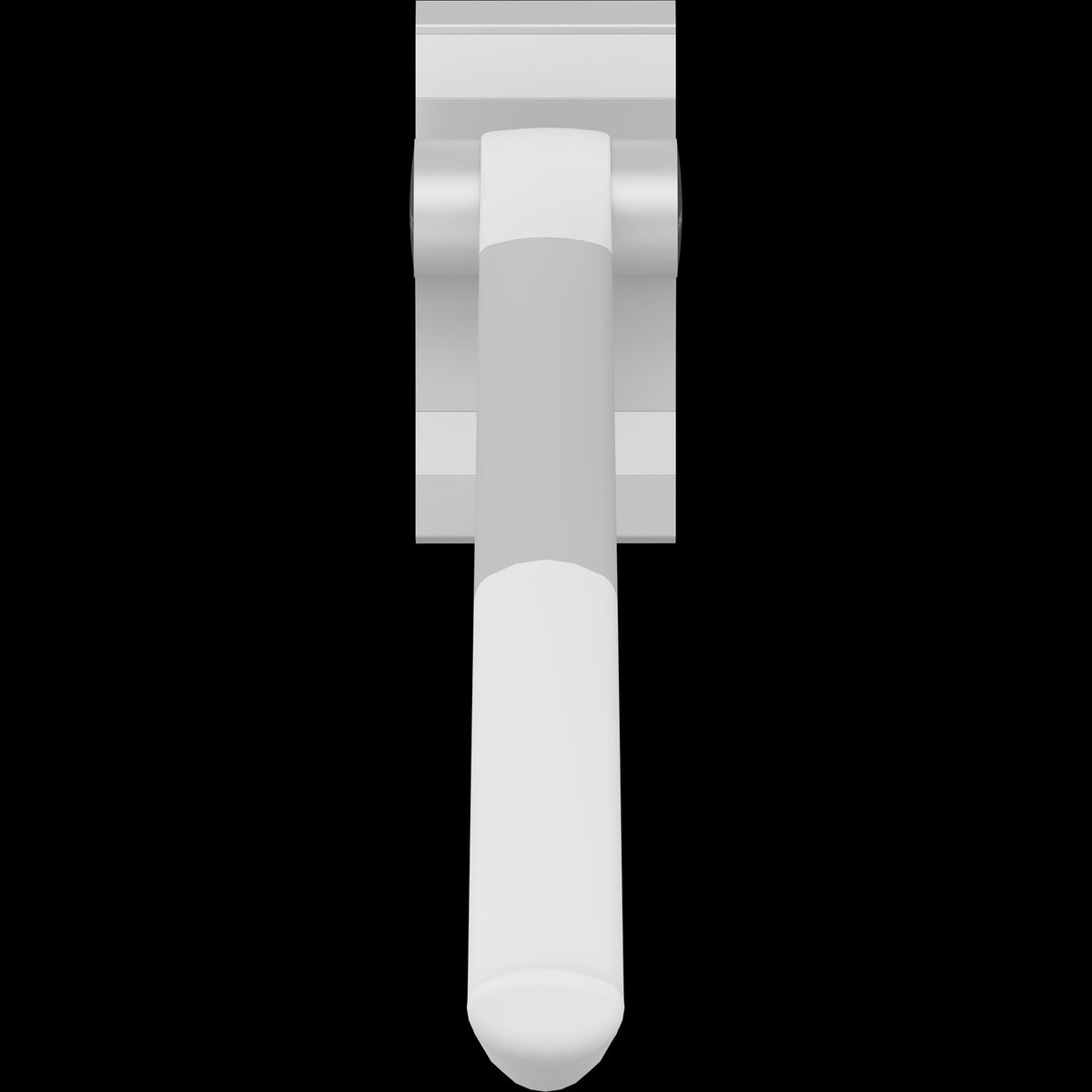

Pressalit PLUS Support Arm – Fixed Height, Wall-Mounted, Choice of Length & Colour (R3600)

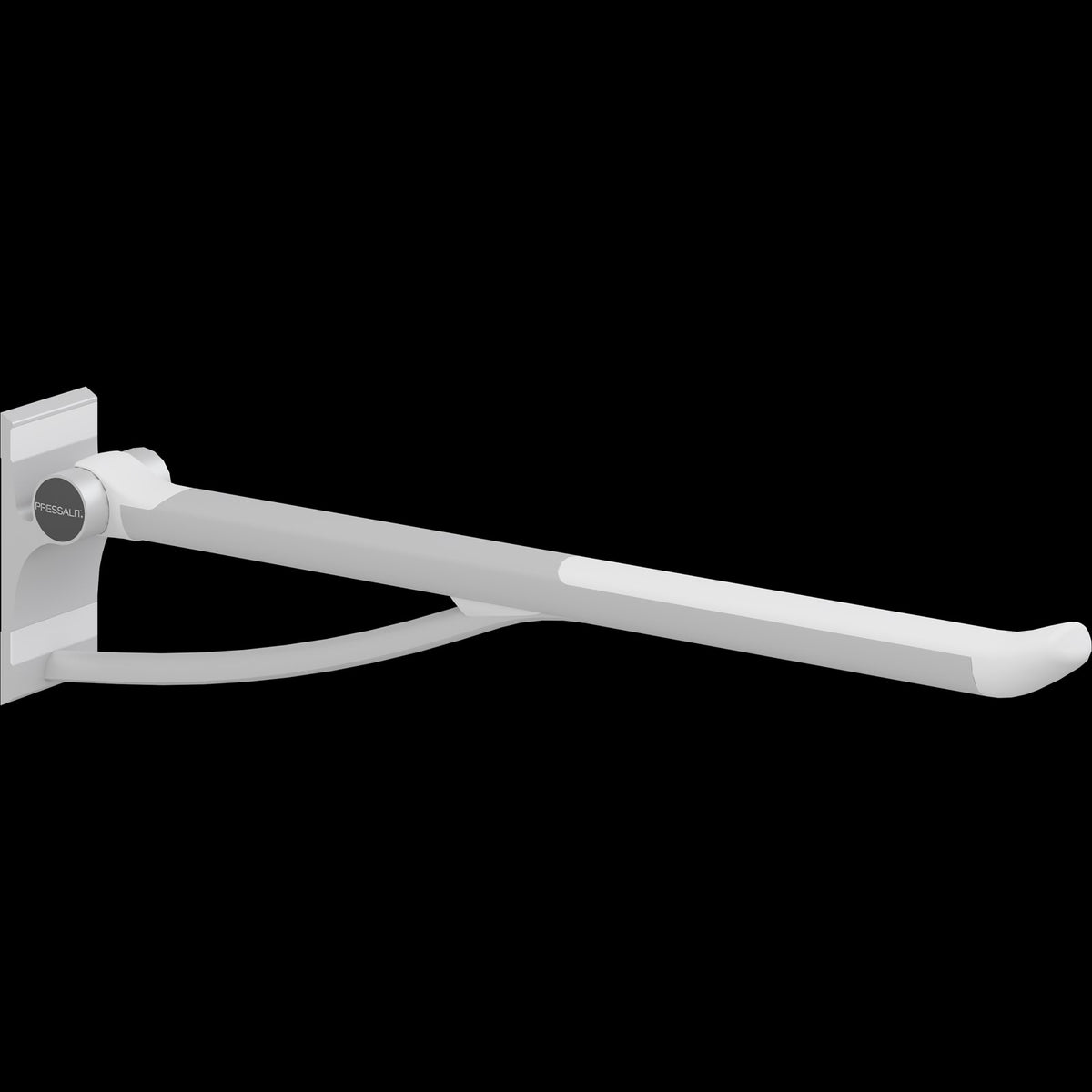

The simplest arm in the Pressalit PLUS family: a counter-balanced, fold-up support arm fixed directly to the wall at the height you choose. It gives reliable support for sitting down and standing up at the toilet and folds up against the wall for side transfers or cleaning.
It shares the award-winning PLUS design – an oval arm that is easy to push on, a soft, warm grip and an enlarged end – so it matches PLUS shower seats, handrails and adjustable arms elsewhere in the room.
Key features & benefits
- Fixed wall mounting at the height you set during installation
- Folds against the wall with a controlled counter-balanced action
- Integrated counter-balance for smooth, controlled movement between the horizontal and upright positions
- Oval arm profile that is comfortable to lean on and push against
- Enlarged end makes it easier to pull forward from a seated position and shows clearly where the arm finishes
- Soft, slip-resistant grip surface that feels warm to the touch, with an easy-grip profile
- Folds up against the wall when not in use to free up space for transfers and carers
- Underside shaped to take PLUS accessories such as a paper holder, flush button or shower curtain
- Red Dot Product Design Award winner (2018), designed by Rasmus Thygesen
- Maximum user weight 150 kg; static tested to 700 kg near the wall, 425 kg mid-arm and 225 kg at the tip
How to choose
Length: the 700 mm arm projects 700 mm from the wall and suits standard toilet pans. The 850 mm arm projects 850 mm and is the one Pressalit recommends for toilet pans projecting 700 mm and for floor-standing toilets.

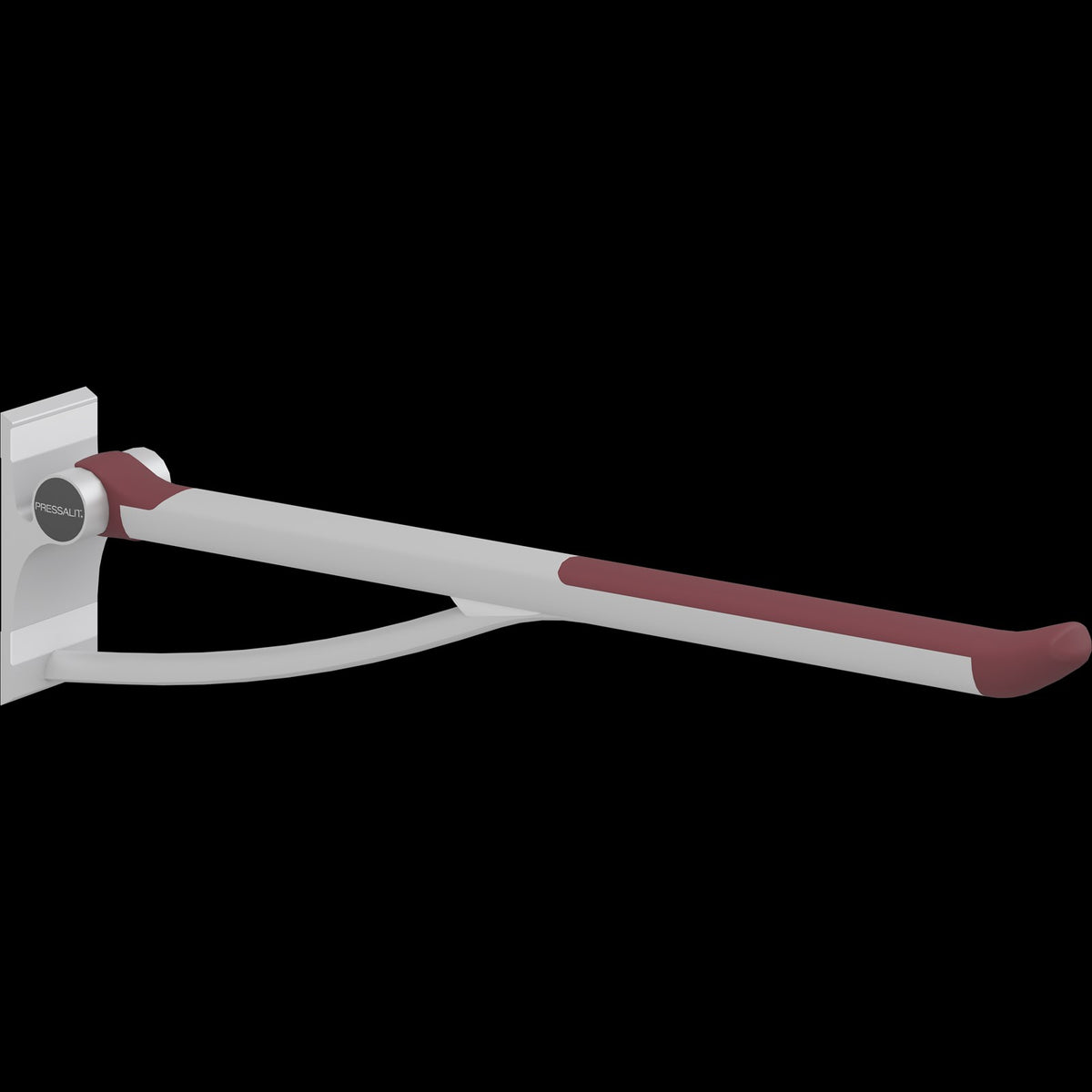

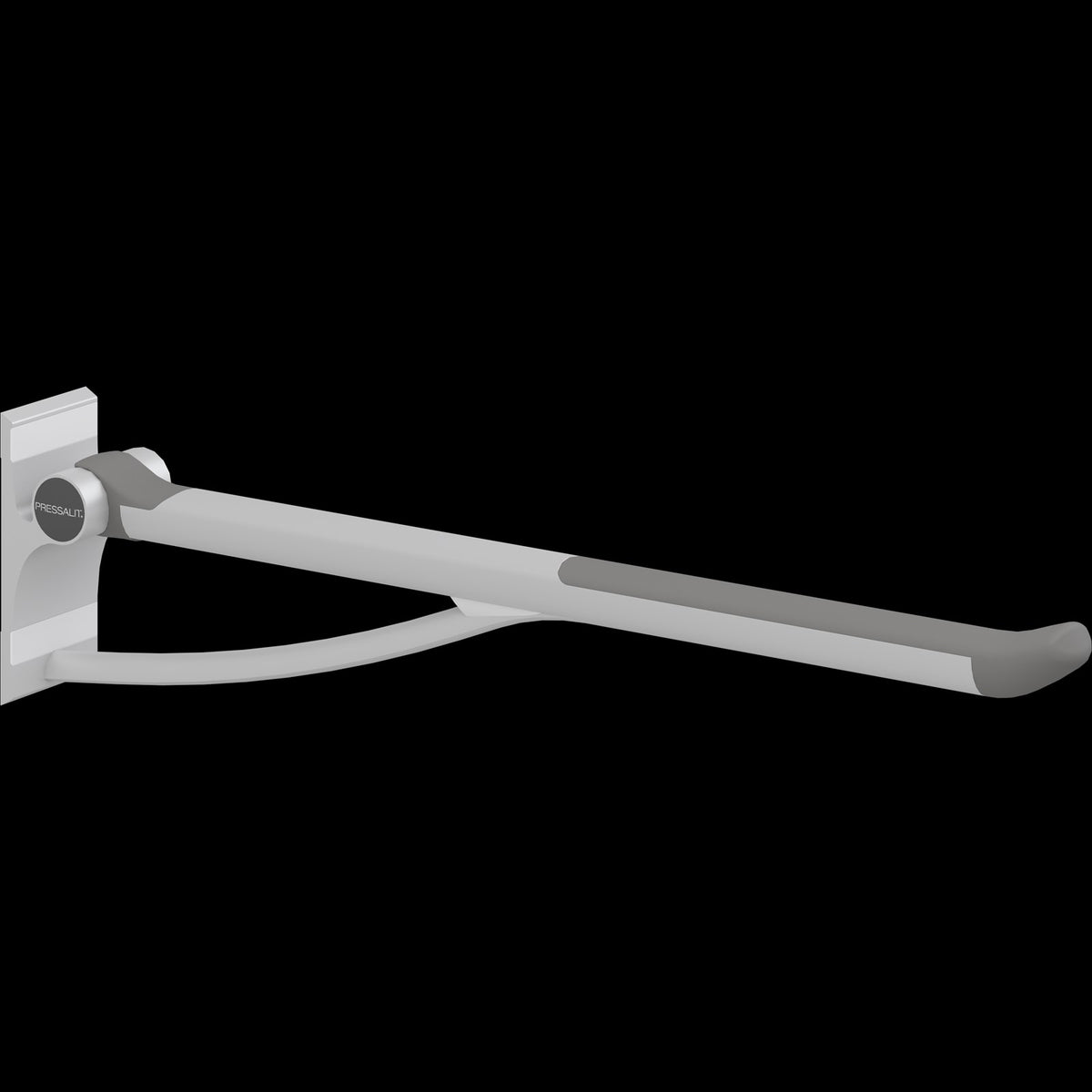

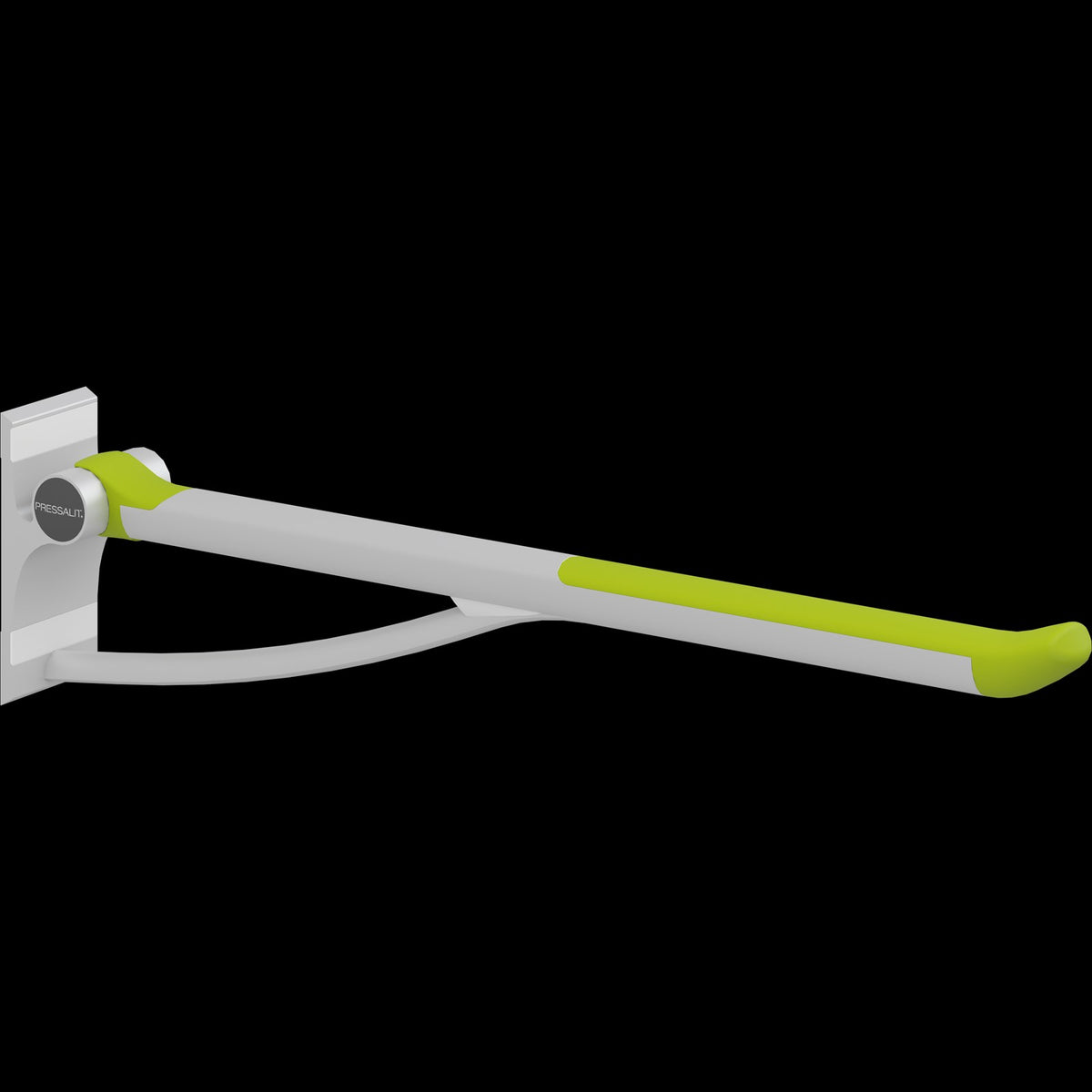

Colour: White and Anthracite Grey are the standard colours. Red, Dark Blue and Lime Green are special colours that cost a little more and take longer to make, and their high-contrast finish makes the arm stand out clearly against a pale wall.
What else you need: the mounting kit is not included because fixings depend on the wall type. See the technical datasheet for the correct Pressalit kit. If the wall cannot take the load, the arm can stand on the Pressalit free-standing column for fixed height PLUS arms (R9430).
Need adjustment? If several users share the toilet, consider the height adjustable PLUS arm, which moves 240 mm without tools.
Sizes, colours & product codes
| Length | Colour | Product code | EAN |
|---|---|---|---|
| 700 mm | White | R360070000 | 5708590367859 |
| 700 mm | Anthracite Grey | R360070112 | 5708590367897 |
| 700 mm | Dark Blue | R360070108 | 5708590367880 |
| 700 mm | Red | R360070035 | 5708590367873 |
| 700 mm | Lime Green | R360070277 | 5708590367903 |
| 850 mm | White | R360085000 | 5708590367910 |
| 850 mm | Anthracite Grey | R360085112 | 5708590367958 |
| 850 mm | Dark Blue | R360085108 | 5708590367941 |
| 850 mm | Red | R360085035 | 5708590367934 |
| 850 mm | Lime Green | R360085277 | 5708590367965 |
Technical specification
| Adjustment | Fixed height |

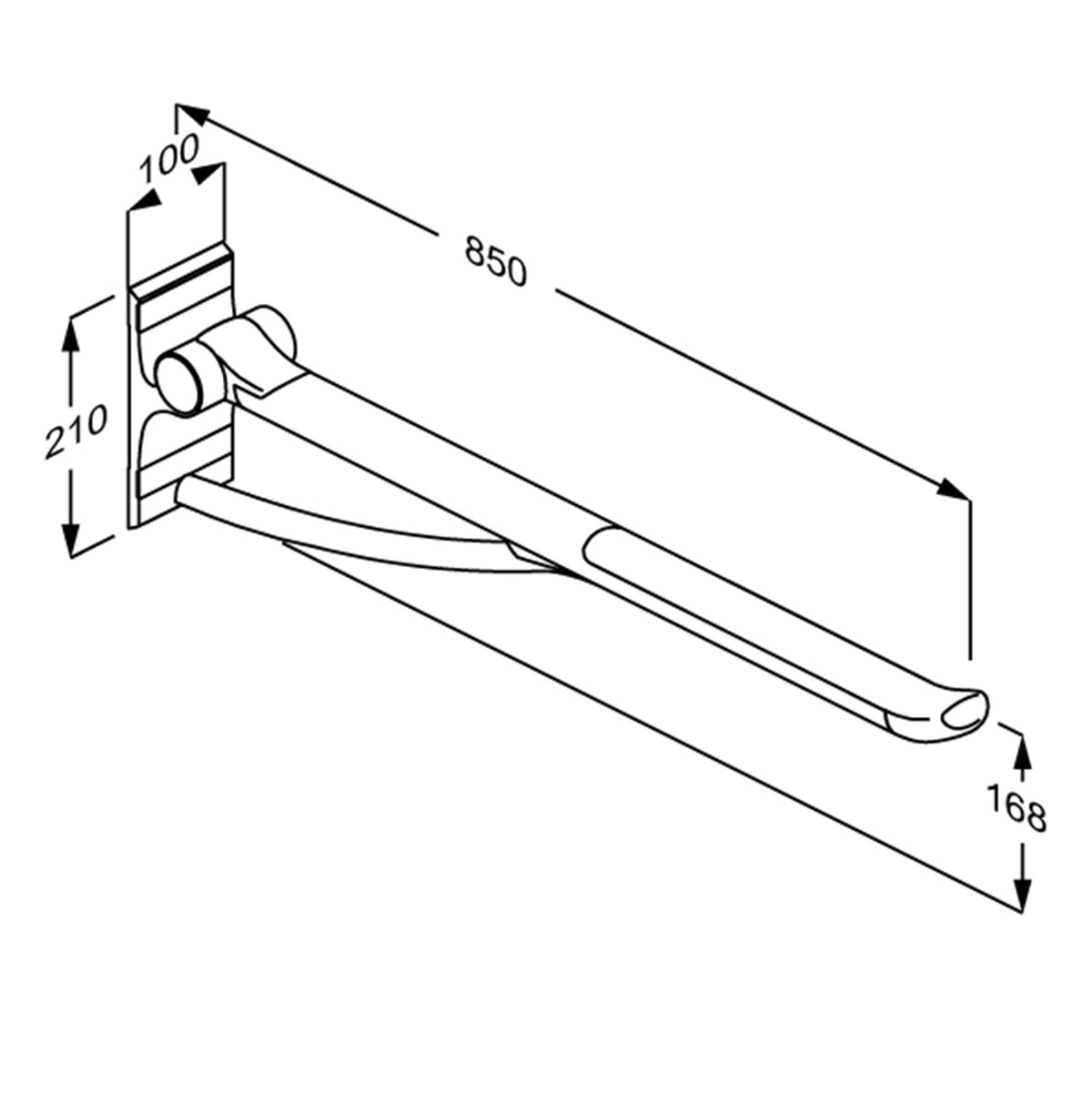

| Projection | 700 mm or 850 mm |
| Wall plate height | 210 mm |
| Mounting | Direct to wall; mounting kit not included |
| Maximum user weight | 150 kg |
| Static test loads | 700 kg near wall / 425 kg middle / 225 kg at tip |
| Net weight | approx. 3.2 kg (850 mm arm) |
| Materials | Anodised aluminium arm (10 micron), soft SEBS grip with glass-reinforced nylon core, stainless steel internal parts and fasteners, ABS hinge cap |
| Colours | White, Anthracite Grey, Dark Blue (RAL 5011), Red (RAL 3003), Lime Green |
| Expected service life | 10 years with maintenance as per the user guide |
| Compliance | Medical device, Regulation (EU) 2017/745, Risk class I; TÜV SÜD certified |
| Warranty | 5 years from invoice date (material and manufacturing defects) |
Delivery
Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Pressalit items are made to order, so please check the code, length, hand and colour before ordering. Questions? Call us on 0333 772 4162.
Frequently asked questions
Are wall fixings included?
No. Choose the Pressalit mounting kit that suits your wall type; the datasheet lists the options.
Can it be fitted to a wall track?
This version fixes directly to the wall. For track mounting choose the height adjustable or sideways adjustable PLUS arms.
Which length suits a 700 mm accessible toilet?
Pressalit recommends the 850 mm arm for toilet pans projecting 700 mm and for floor-standing toilets.
Is it left or right handed?
The fixed height arm is not handed – it can be fitted on either side of the toilet.
