These Pressalit PLUS support arms are made specifically for the Pressalit SELECT TL3, TL4 and TL5 toilet lifters. Each arm comes with its own mounting profile and fixings, so it attaches directly to the lifter and rises and lowers with it, giving the user firm support exactly where they need it.

The arm is counter-balanced, folds up out of the way, and adjusts in height by 150 mm. The left hand version is also available with a built-in control panel, so the user can raise and lower an electric TL3 or TL4 toilet lifter from the arm itself.

Key features & benefits

• Designed only for Pressalit SELECT TL3, TL4 and TL5 toilet lifters
• Mounting profile and fixing material for the toilet lifter included
• 150 mm height adjustment
• Optional integrated control panel (left hand) to operate an electric TL3/TL4 toilet lifter
• Integrated counter-balance for smooth, controlled movement between the horizontal and upright positions
• Oval arm profile that is comfortable to lean on and push against
• Enlarged end makes it easier to pull forward from a seated position and shows clearly where the arm finishes
• Soft, slip-resistant grip surface that feels warm to the touch, with an easy-grip profile
• Folds up against the wall when not in use to free up space for transfers and carers
• Underside shaped to take PLUS accessories such as a paper holder, flush button or shower curtain
• Maximum user weight 150 kg

How to choose

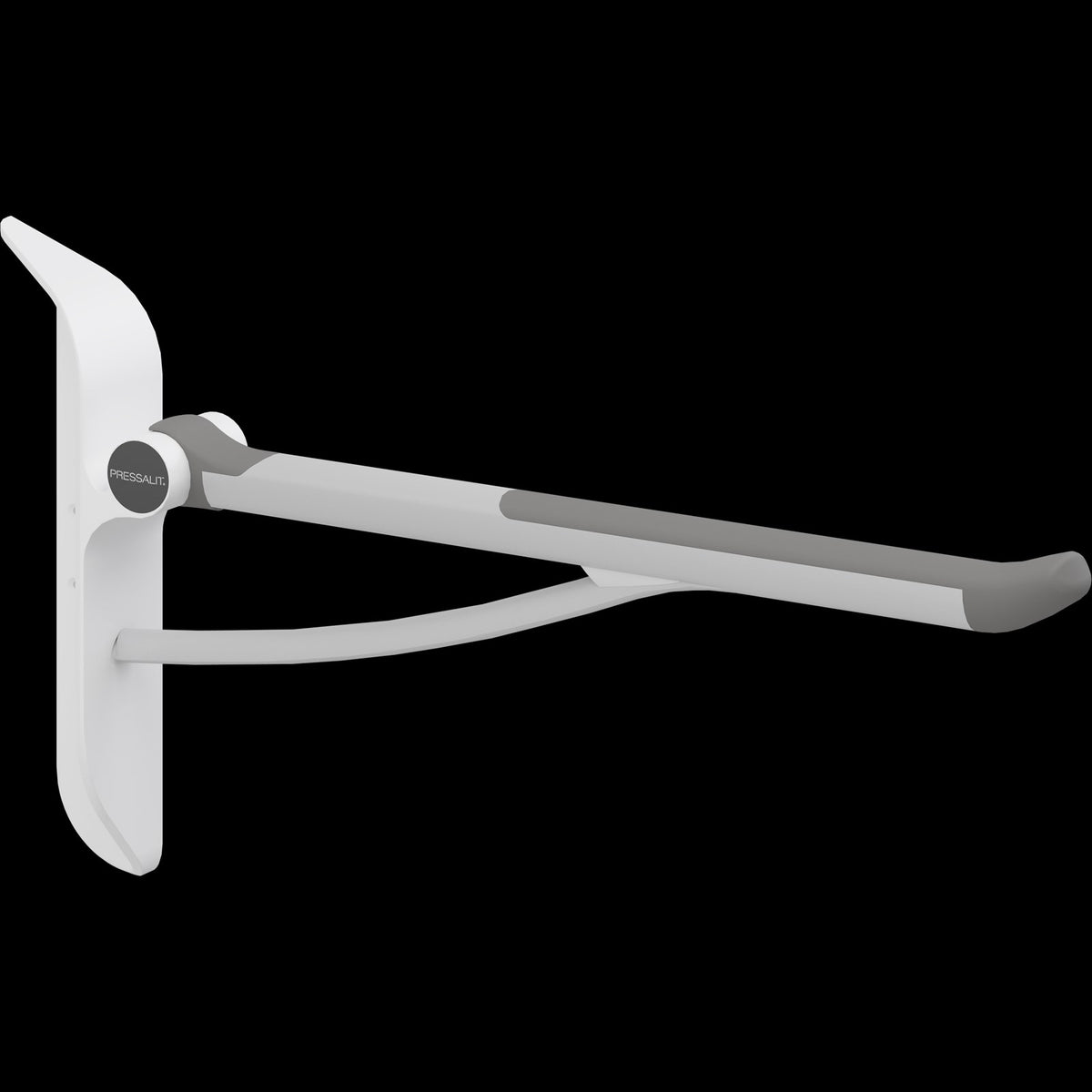

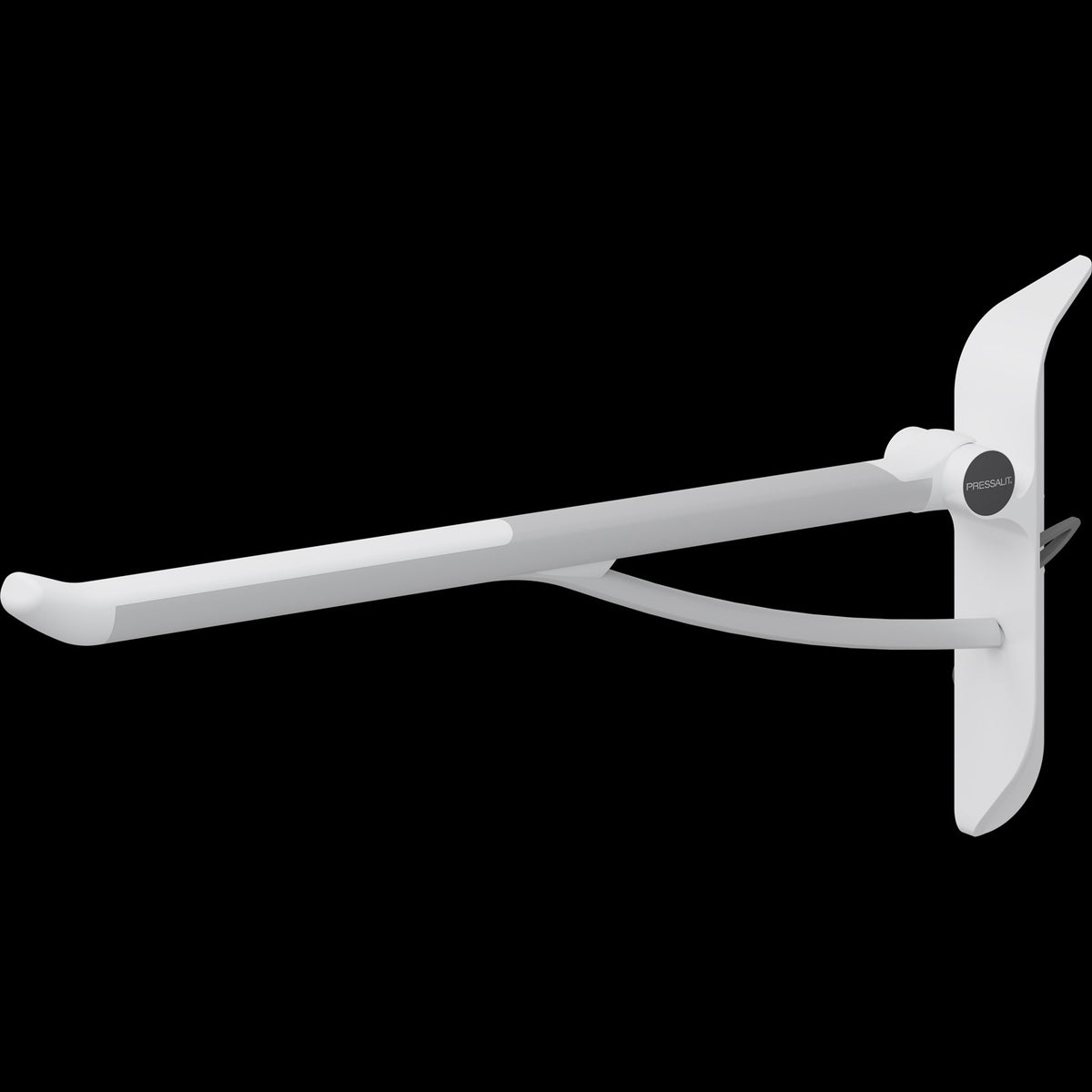

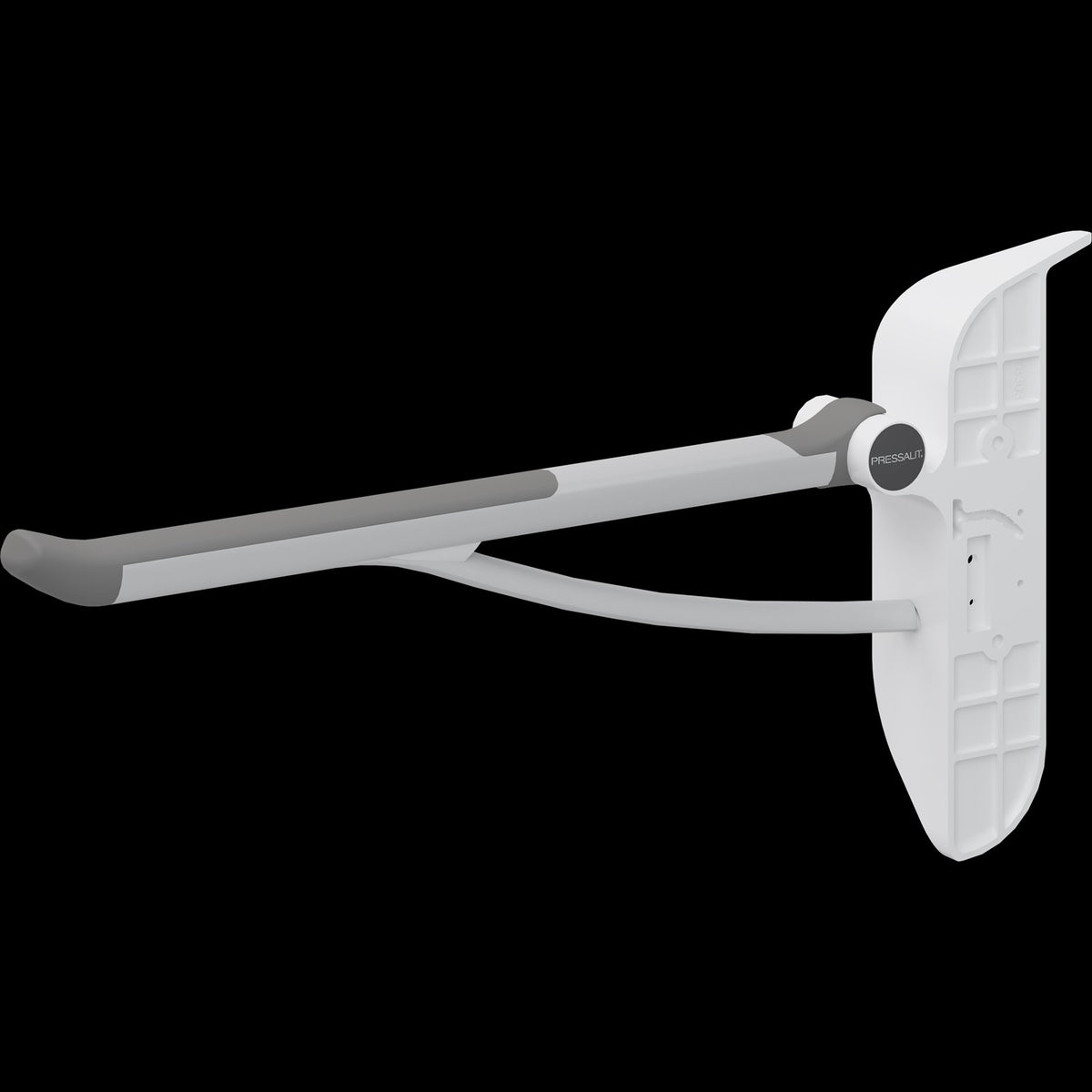

Version: the right hand arm (R3724…) fits TL3, TL4 and TL5 lifters, electric or manual. The left hand arm (R3723…) fits manual TL3/TL4 lifters. The left hand with control panel arm (R3725…) is for electric TL3/TL4 lifters and lets the user adjust the lifter from the arm. Left hand arms for the TL5 (with paper holder and control panel) are price on request – call us.

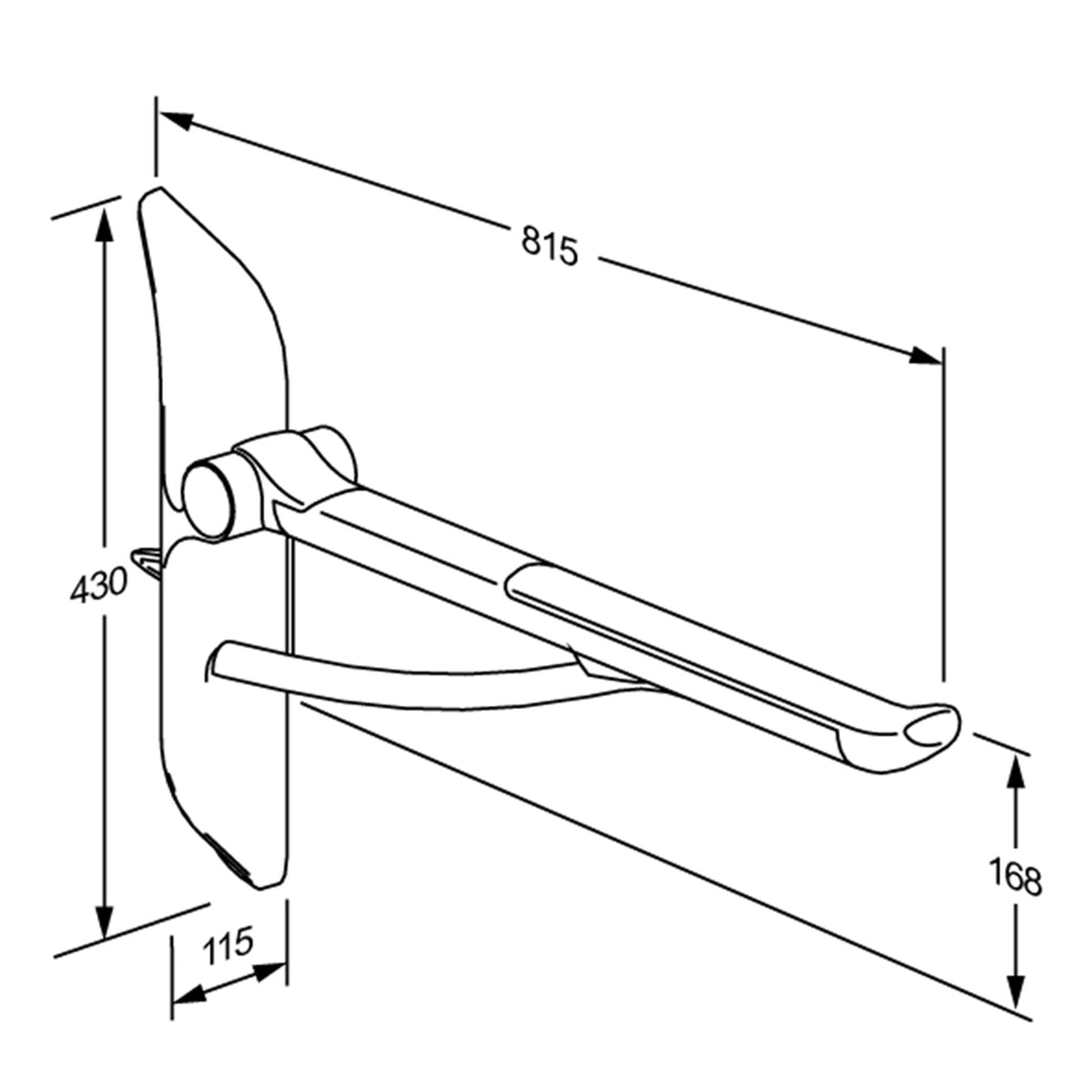

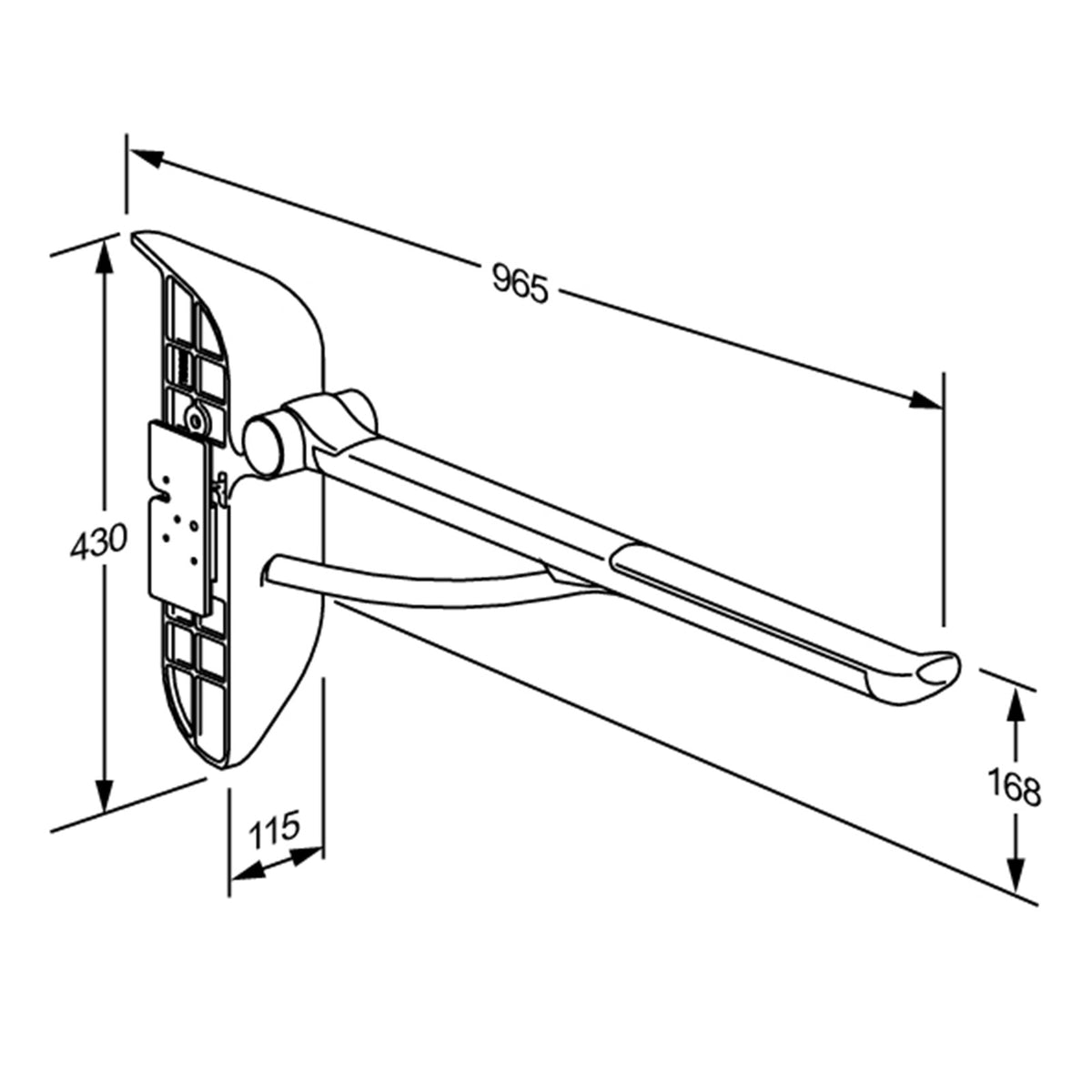

Length: the 700 mm arm projects 815 mm and the 850 mm arm projects 965 mm from the mounting profile. Match the arm to the toilet pan fitted to the lifter.

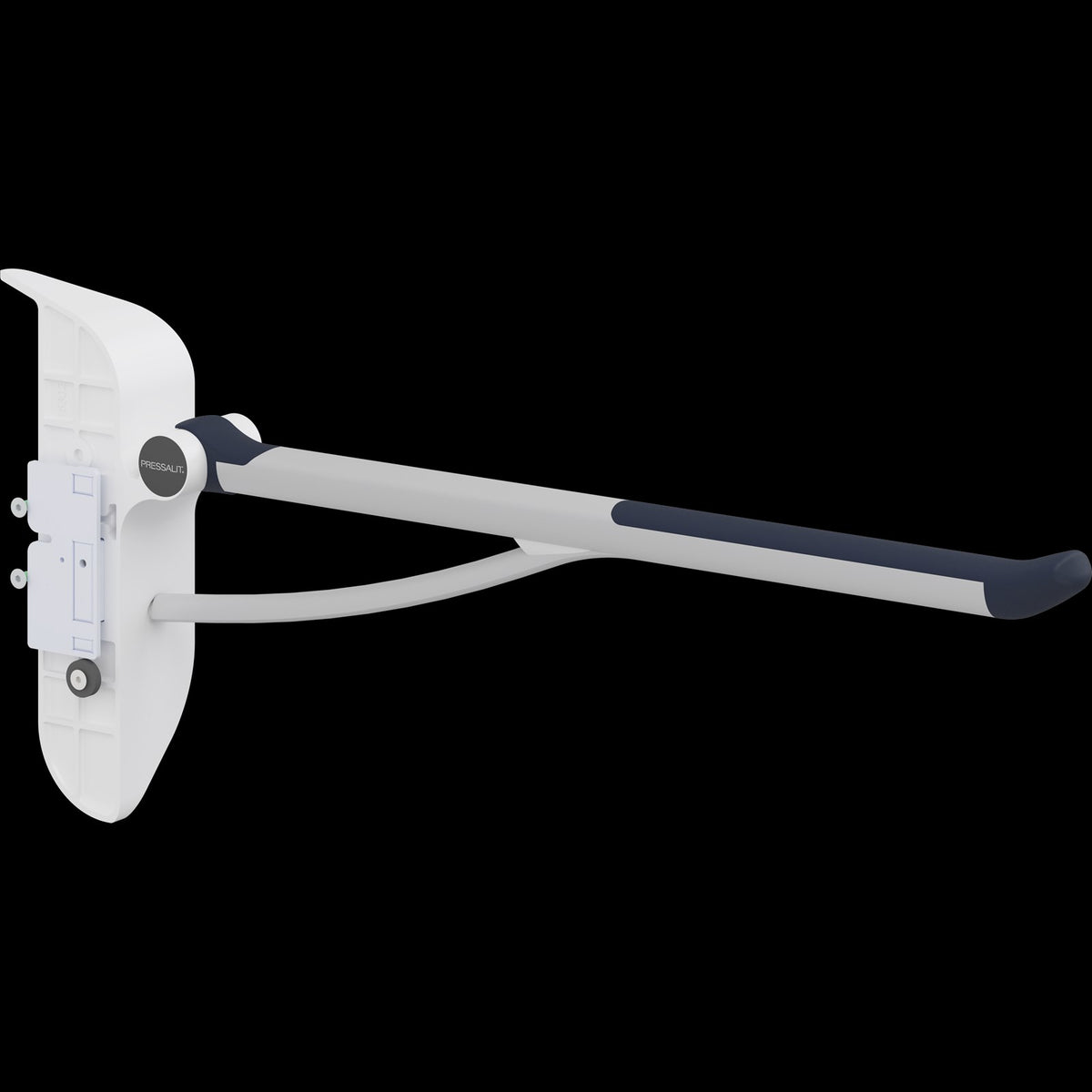

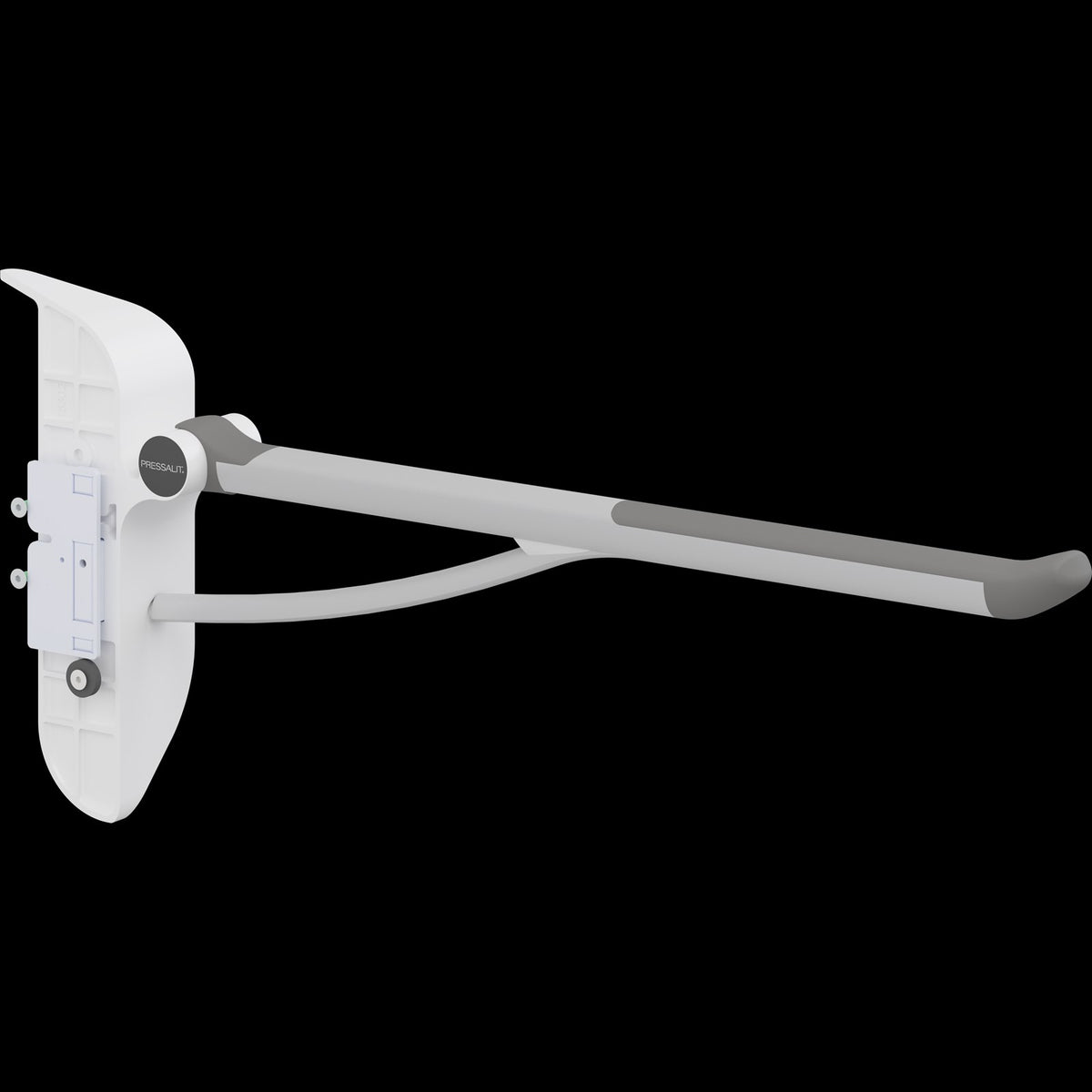

Colour: White and Anthracite Grey are standard; Dark Blue is a special colour with a longer lead time and gives strong contrast against a pale wall.

What else you need: a Pressalit SELECT TL3, TL4 or TL5 toilet lifter (not included). Most installations use an arm on each side of the toilet.

Sizes, colours & product codes

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Pressalit items are made to order, so please check the code, length, hand and colour before ordering. Questions? Call us on 0333 772 4162.

Frequently asked questions

Will this arm fit a wall track?

No. It is made only for SELECT TL3, TL4 and TL5 toilet lifters. For wall mounting choose one of the other PLUS support arms.

Which version has the control panel?

The left hand version with control panel (codes beginning R3725). It operates an electric TL3 or TL4 toilet lifter.

Can I order a TL5 left hand arm?

The TL5-only left hand arms with paper holder and control panel are price on request from Pressalit. Call us on 0333 772 4162 for a quote.

Downloads

• Technical datasheet – right hand arm (PDF)
• Technical datasheet – left hand arm (PDF)
• Mounting instructions (PDF)
