Pressalit PLUS Support Arm – Height Adjustable for Retro-Fitting, Choice of Length, Hand & Colour (R3713 / R3714)

Pressalit PLUS Support Arm – Height Adjustable for Retro-Fitting, Choice of Length, Hand & Colour (R3713 / R3714)

This is the Pressalit PLUS height adjustable support arm supplied without a wall track, for fitting to a vertical PLUS wall track or the side profile of a Pressalit SELECT toilet lifter that is already in place. It is the quickest way to add, replace or upgrade an arm without disturbing the wall.

The counter-balanced arm adjusts up and down by 240 mm without tools and folds against the wall when not needed. It is easy to retro-fit to existing tracks and can be shared between rooms, so one arm can serve more than one bathroom.

Key features & benefits

• Height adjustable by 240 mm without tools
• For existing vertical PLUS wall track or SELECT side profile – no wall drilling for the arm itself
• Removable and foldable; replaces older PLUS arms R3106, RF106, R3127 and RF127
• Integrated counter-balance for smooth, controlled movement between the horizontal and upright positions
• Oval arm profile that is comfortable to lean on and push against
• Enlarged end makes it easier to pull forward from a seated position and shows clearly where the arm finishes
• Soft, slip-resistant grip surface that feels warm to the touch, with an easy-grip profile
• Folds up against the wall when not in use to free up space for transfers and carers
• Underside shaped to take PLUS accessories such as a paper holder, flush button or shower curtain
• Red Dot Product Design Award winner (2018), designed by Rasmus Thygesen
• Maximum user weight 150 kg; static tested to 700 kg near the wall, 425 kg mid-arm and 225 kg at the tip

How to choose

Check your track first: this arm needs a vertical PLUS wall track or SELECT side profile, which is not included. For a brand-new installation choose the wall-mounted version, which comes with its own track.

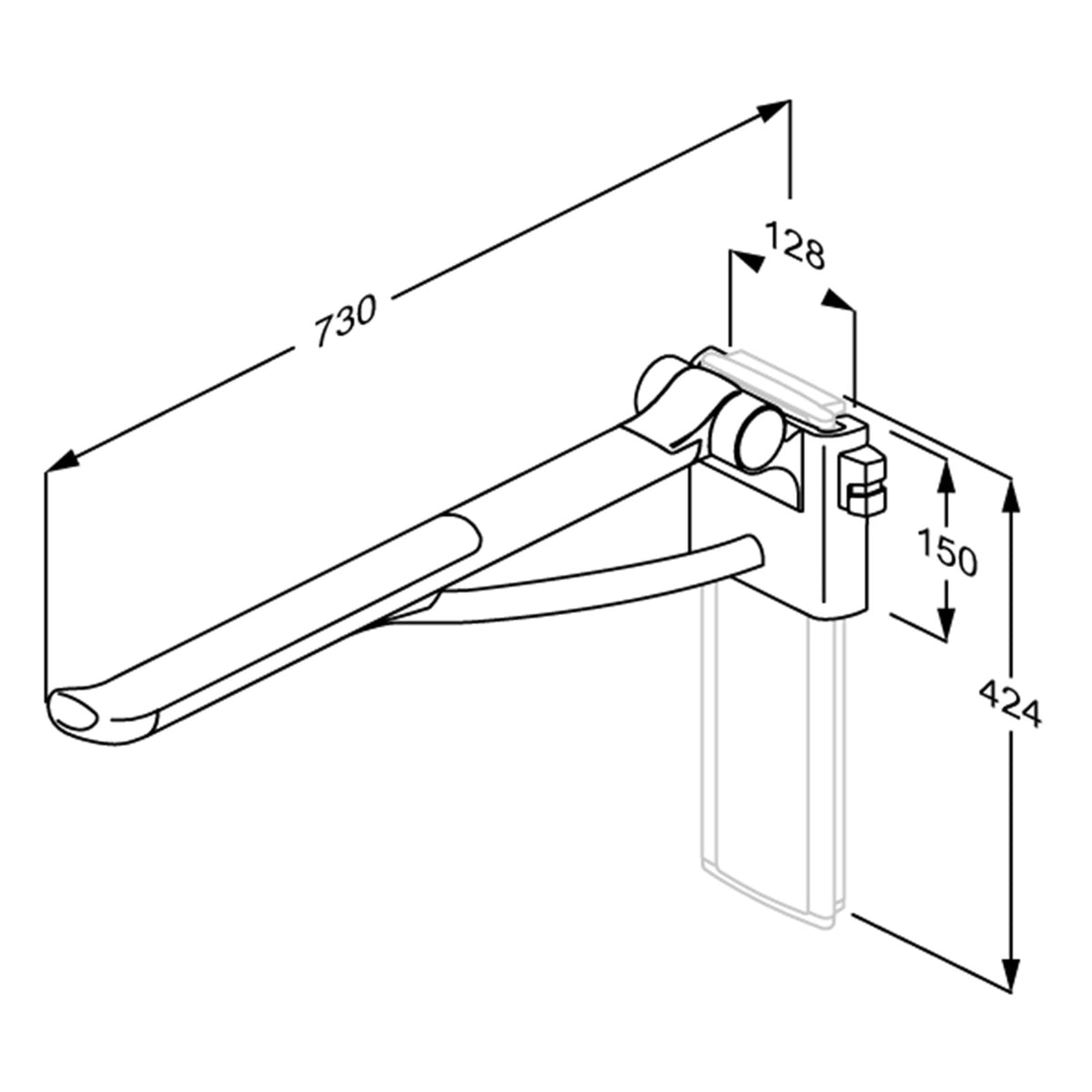

Length: 700 mm (730 mm projection) suits toilet pans projecting around 540–550 mm; 850 mm (880 mm projection) suits longer accessible pans.

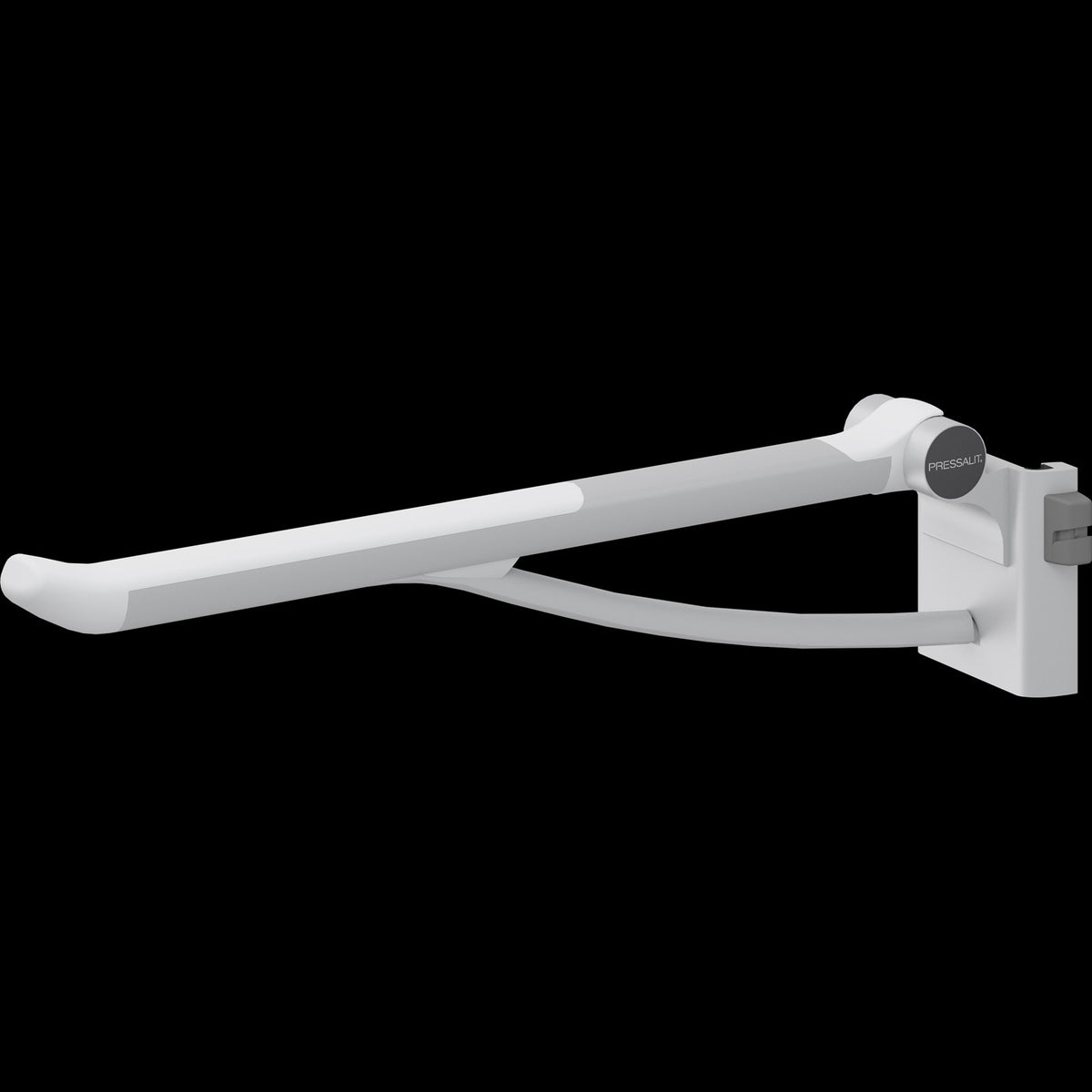

Hand: left and right hand operated versions are the same price; left hand versions may take longer to arrive.

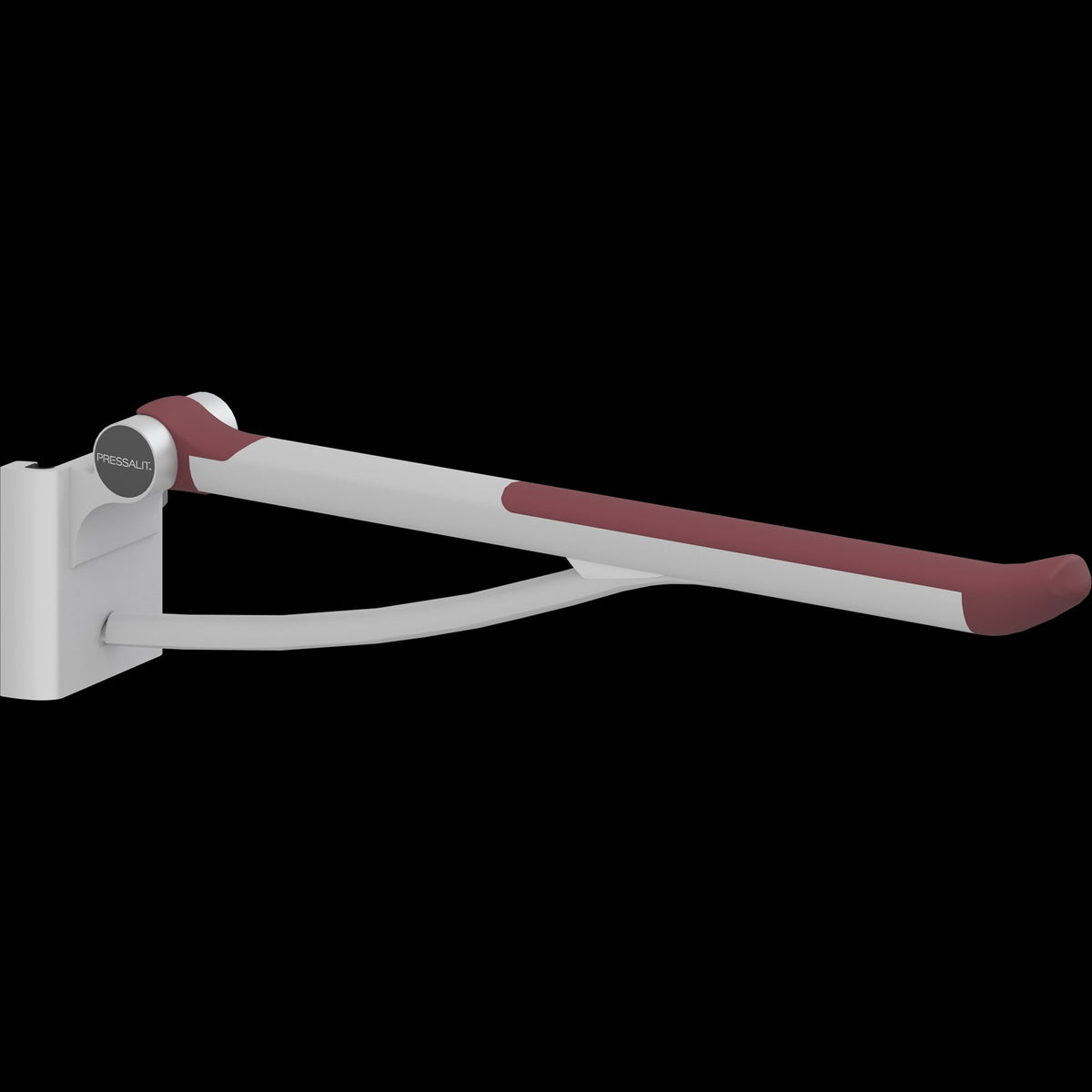

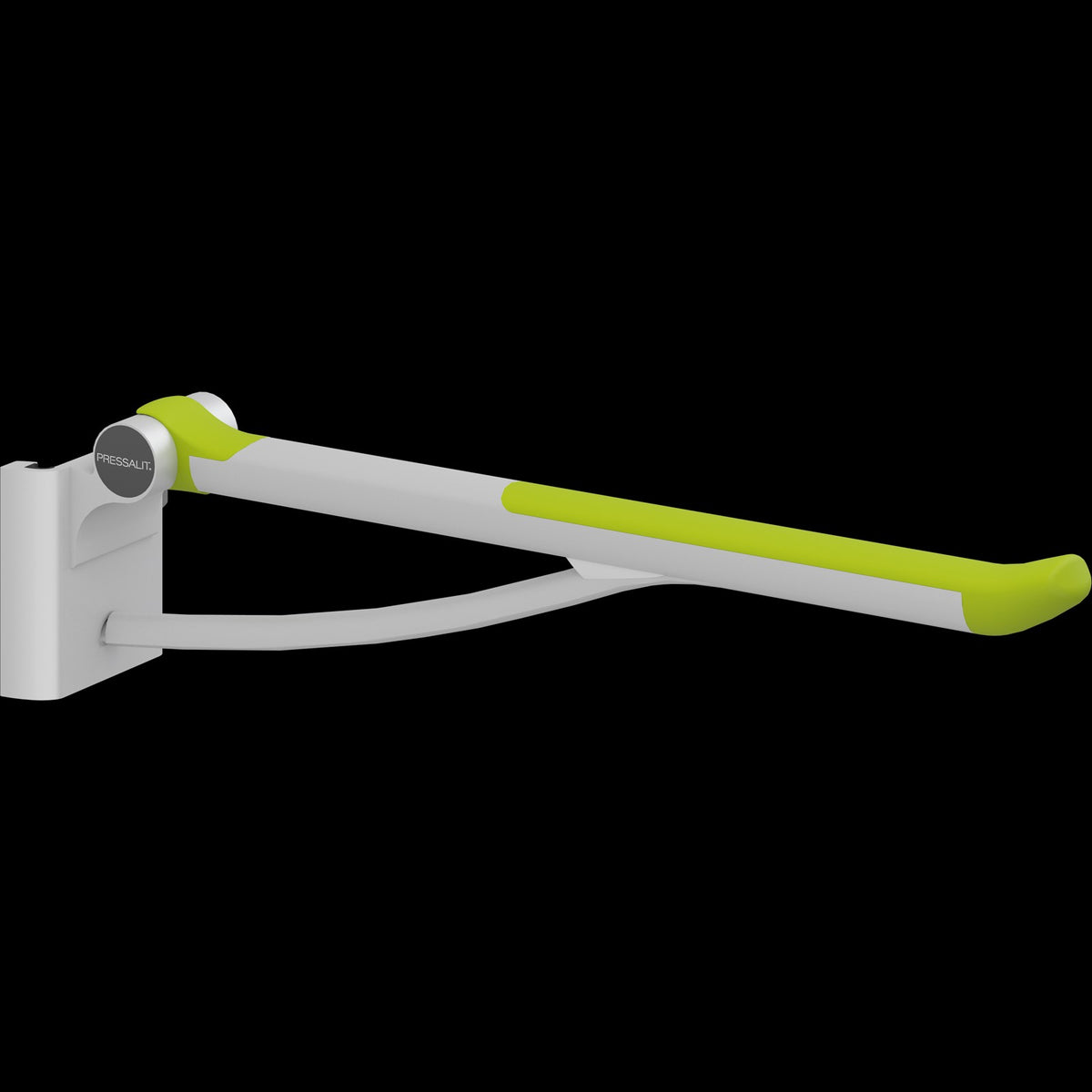

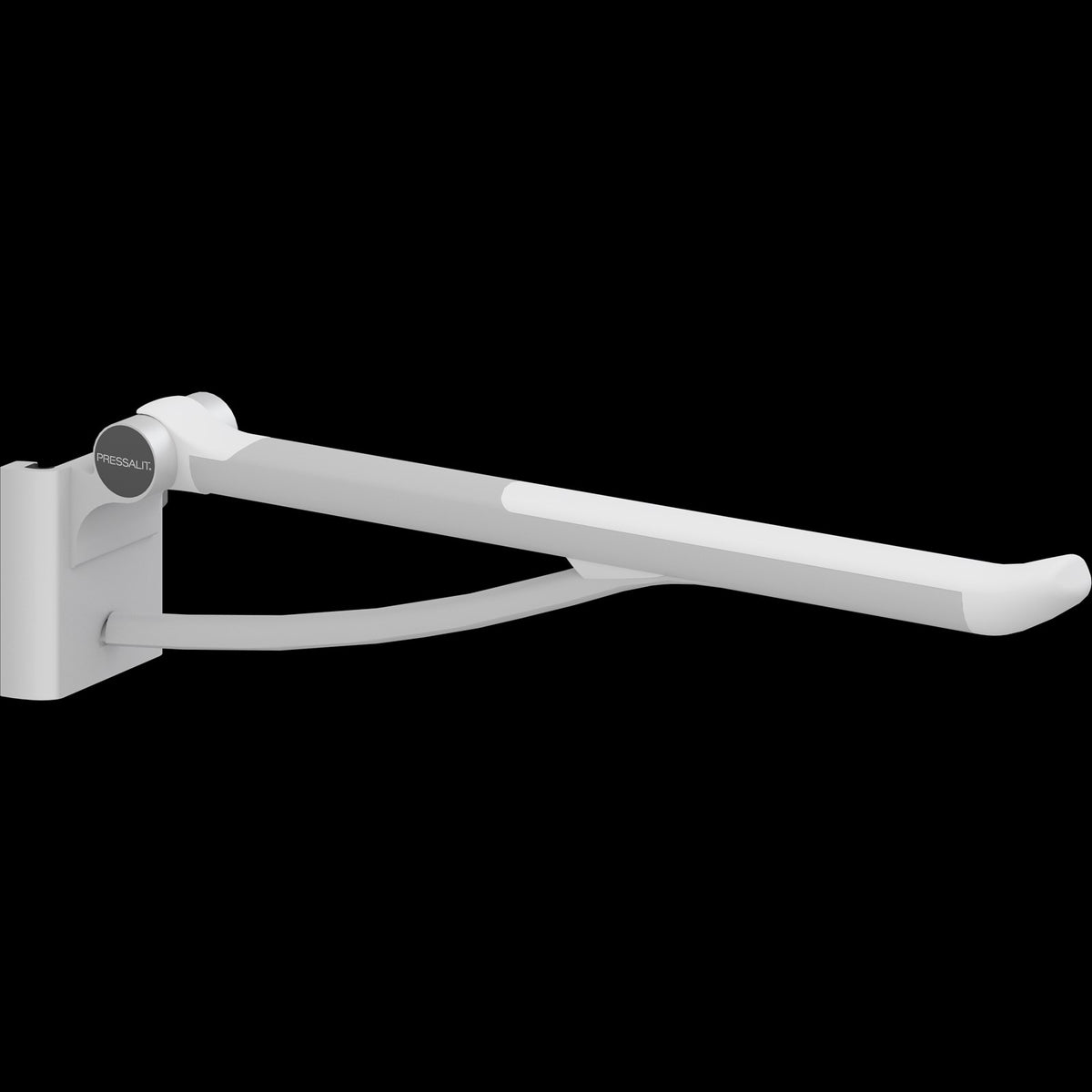

Colour: White and Anthracite Grey are the standard colours. Red, Dark Blue and Lime Green are special colours that cost a little more and take longer to make, and their high-contrast finish makes the arm stand out clearly against a pale wall.

Sizes, colours & product codes

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Pressalit items are made to order, so please check the code, length, hand and colour before ordering. Questions? Call us on 0333 772 4162.

Frequently asked questions

Will this fit my existing Pressalit track?

It fits a vertical PLUS wall track or the side profile of a SELECT toilet lifter. Send us your existing code or a photo and we will confirm.

Does it replace older PLUS arms?

Yes. Pressalit lists it as the replacement for discontinued arms R3106, RF106, R3127 and RF127.

Is a wall track included?

No – choose the wall-mounted version if you need the vertical track as well.

How much height adjustment do I get?

240 mm, set by hand without tools.

Downloads

• Technical datasheet (PDF)
• Mounting instructions (PDF)
• User guide (PDF)
