A complete wall-mounted Pressalit PLUS support arm: the counter-balanced arm comes with its own short vertical wall track (anthracite cover plate), so it can be fixed straight to the wall beside the toilet. The arm then adjusts up and down by 240 mm without tools, letting you set the perfect height for each user – ideal where several users share one bathroom.

It provides firm support for sitting, standing and side transfers, and folds neatly against the wall when not in use. Like every PLUS arm, it can be lifted off and moved to another PLUS track elsewhere in the building.

Key features & benefits

• Height adjustable by 240 mm without tools
• Supplied with vertical wall track and anthracite cover plate for direct wall mounting
• Removable – can be moved to other PLUS tracks in the bathroom or building
• Integrated counter-balance for smooth, controlled movement between the horizontal and upright positions
• Oval arm profile that is comfortable to lean on and push against
• Enlarged end makes it easier to pull forward from a seated position and shows clearly where the arm finishes
• Soft, slip-resistant grip surface that feels warm to the touch, with an easy-grip profile

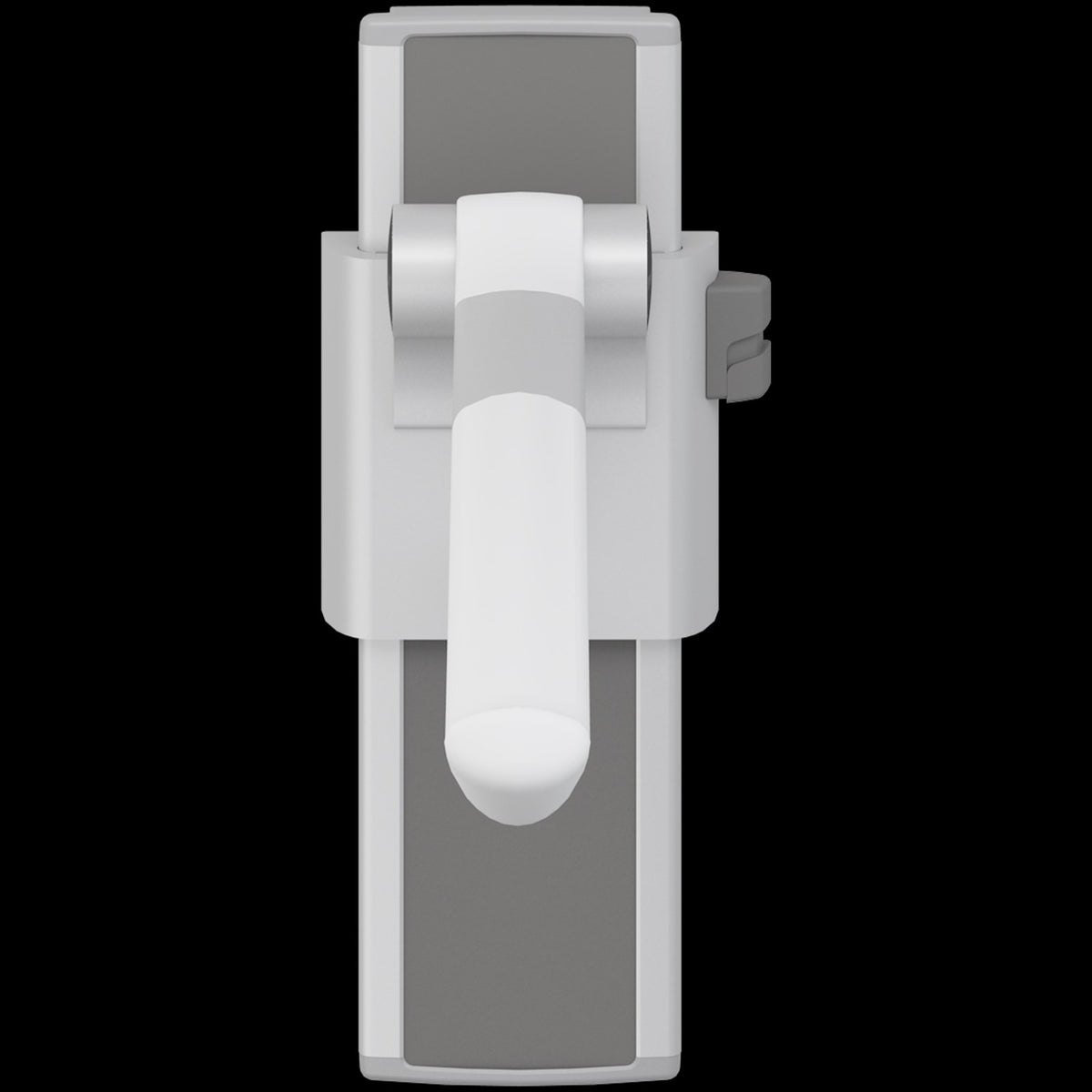

• Folds up against the wall when not in use to free up space for transfers and carers
• Underside shaped to take PLUS accessories such as a paper holder, flush button or shower curtain
• Maximum user weight 150 kg; static tested to 700 kg near the wall, 425 kg mid-arm and 225 kg at the tip

How to choose

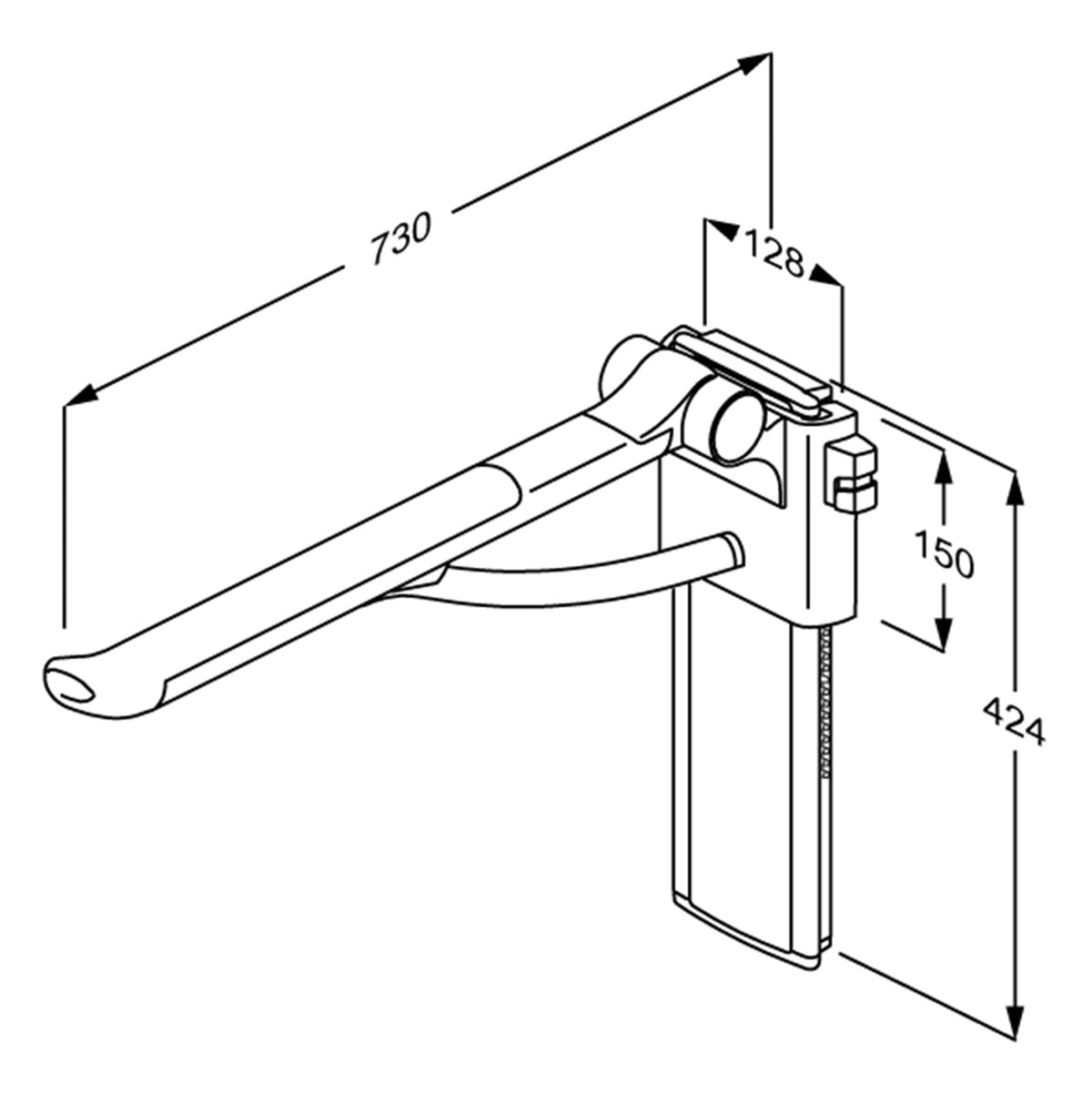

Length: the 700 mm arm projects 730 mm and suits toilet pans projecting around 540–550 mm. The 850 mm arm projects 880 mm for longer pans such as 700 mm projection accessible toilets.

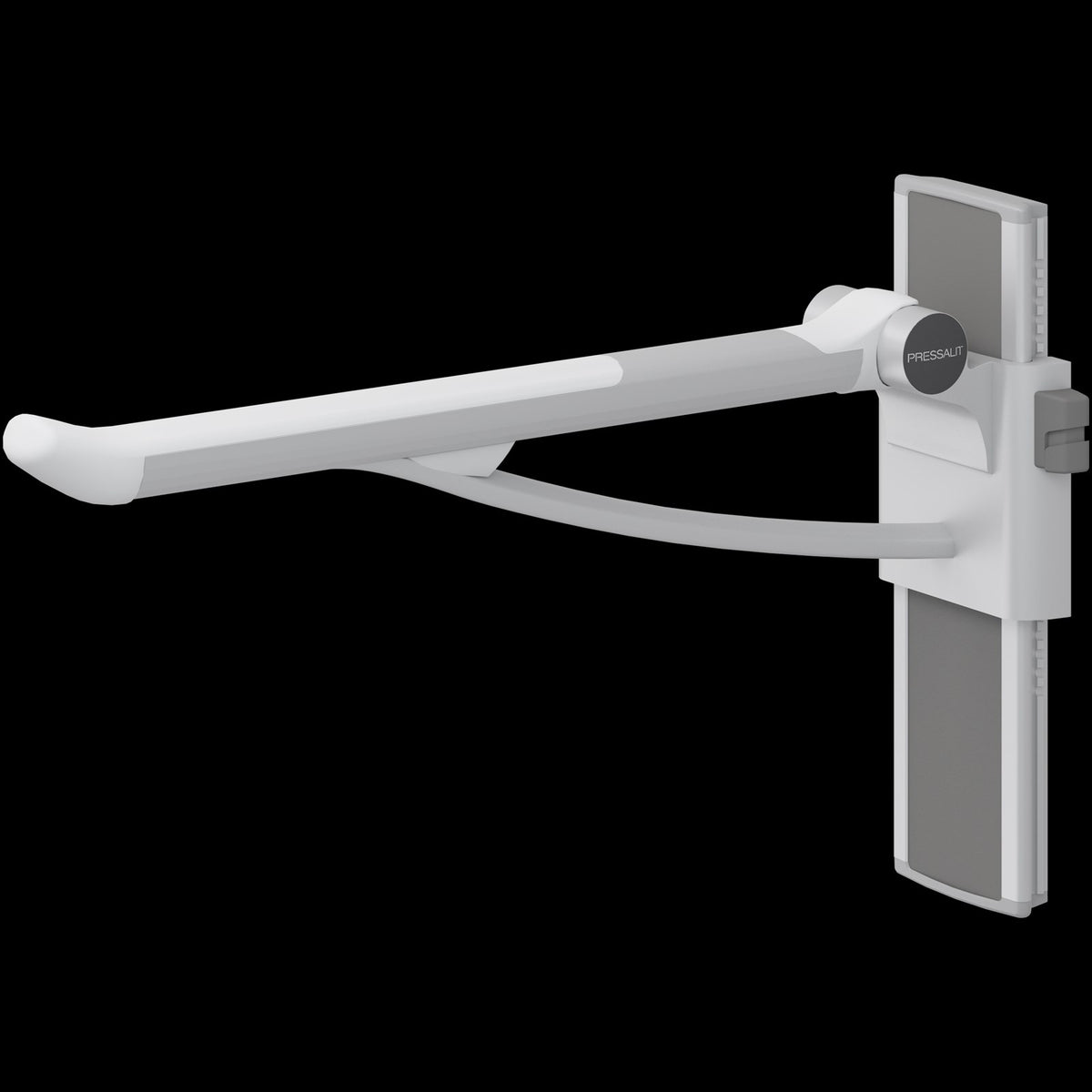

Hand: left and right hand operated versions cost the same; left hand versions may take a little longer to arrive. Choose the hand that suits the side of the toilet and the person operating the arm.

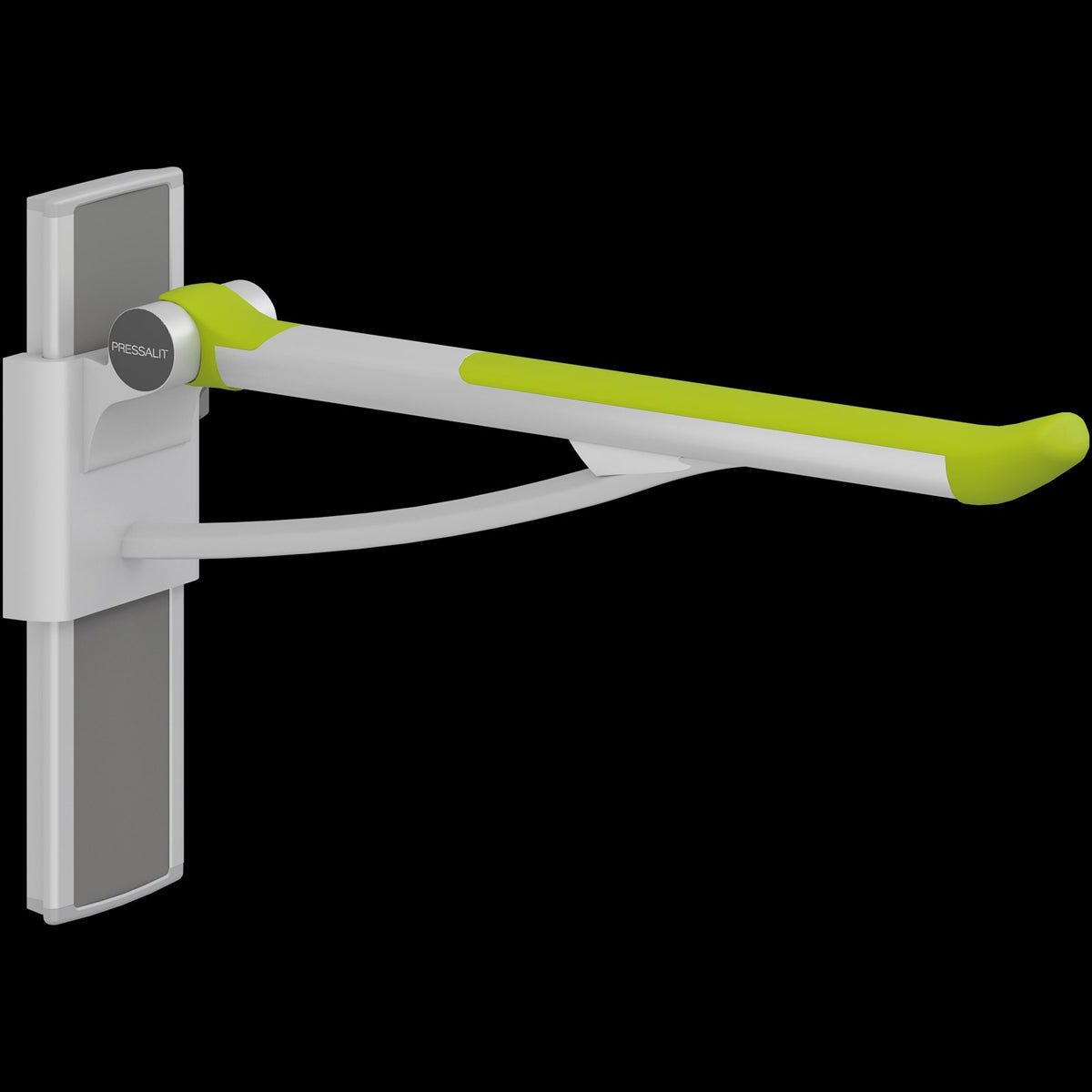

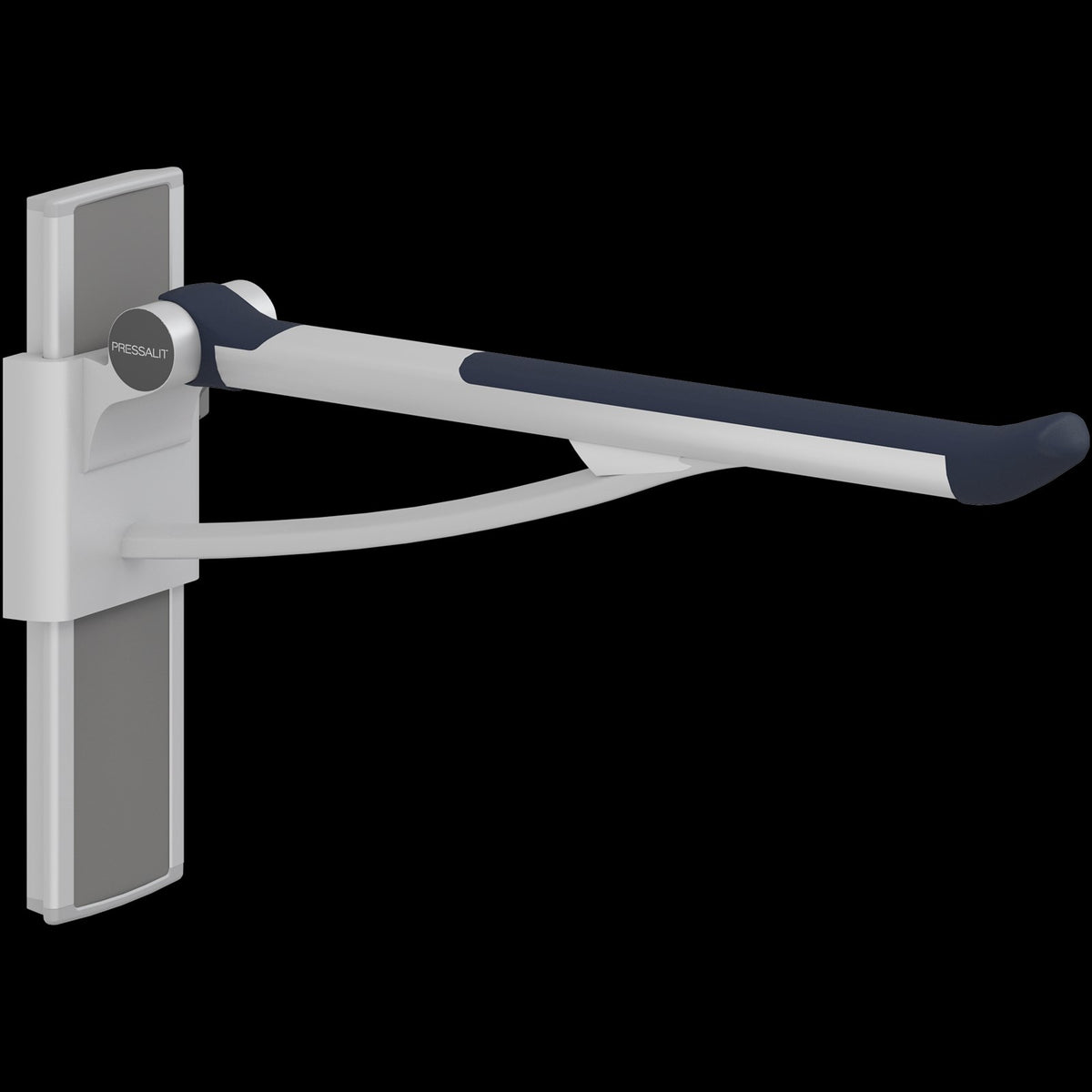

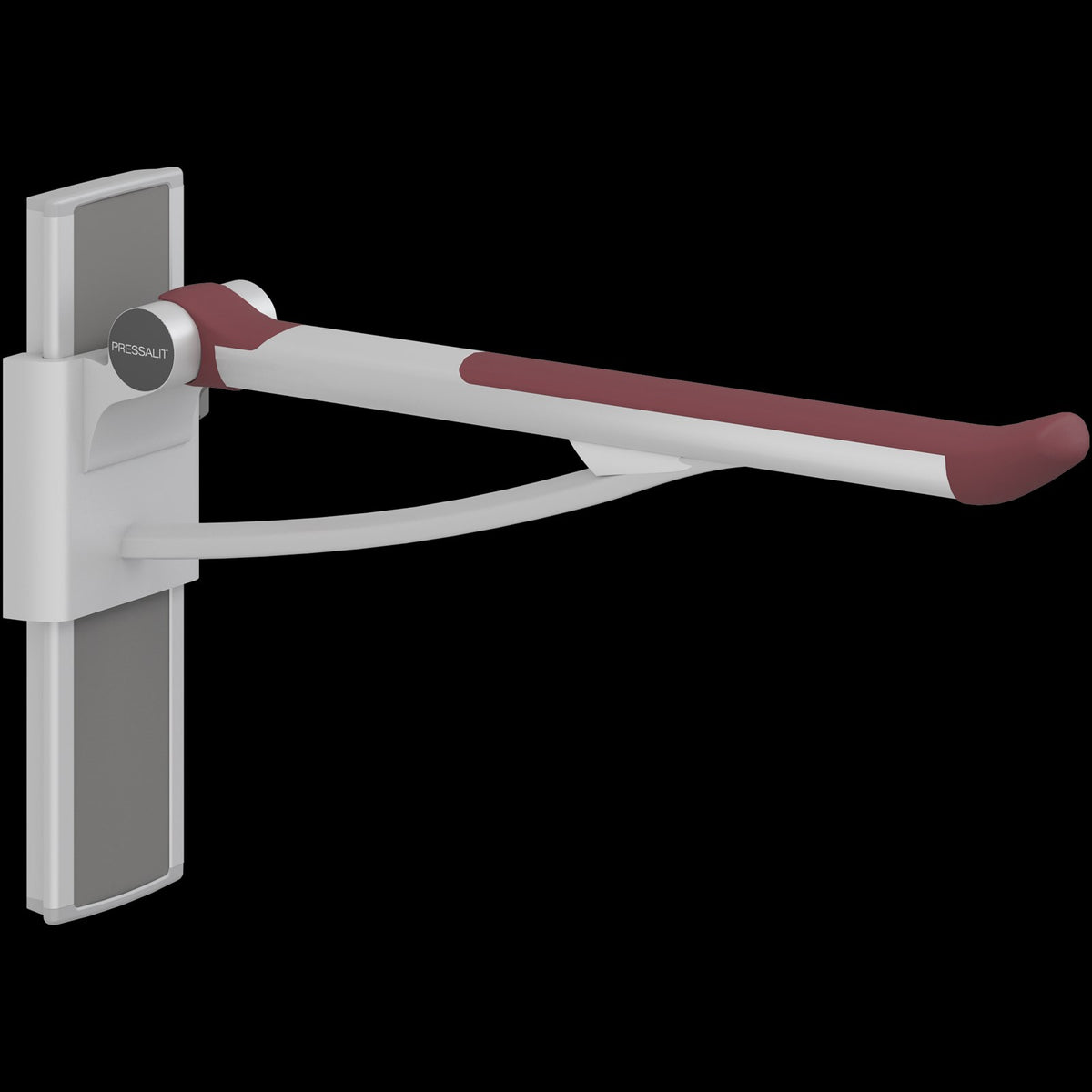

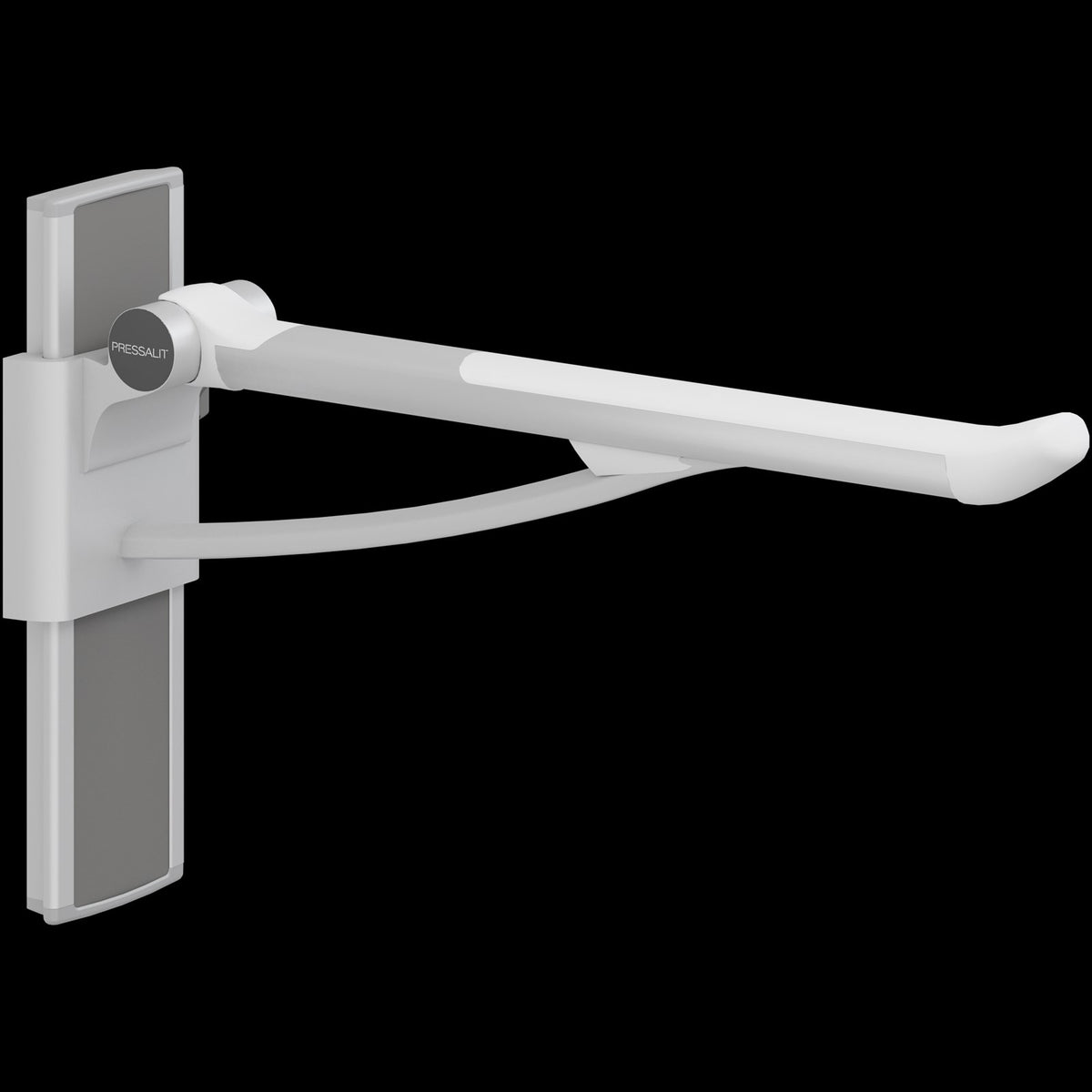

Colour: White and Anthracite Grey are the standard colours. Red, Dark Blue and Lime Green are special colours that cost a little more and take longer to make, and their high-contrast finish makes the arm stand out clearly against a pale wall.

What else you need: wall fixings are not included because the right mounting kit depends on your wall (brick, concrete, aerated block or stud). Pressalit lists suitable kits in the technical datasheet, and you will find them in our Pressalit mounting kit range. Already have a PLUS vertical track or a SELECT TL2 lifter? Choose the retro-fit version of this arm instead.

Sizes, colours & product codes

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Pressalit items are made to order, so please check the code, length, hand and colour before ordering. Questions? Call us on 0333 772 4162.

Frequently asked questions

Is the wall track included?

Yes – this version includes the vertical wall track with anthracite cover plate. Only the wall fixings need to be ordered separately.

How is the height adjusted?

The arm slides up and down the vertical track over a 240 mm range and locks in place without any tools.

What is the retro-fit version?

The retro-fit PLUS arm has no wall track and is for fitting to an existing PLUS vertical track or SELECT side profile. This version is for new installations.
