Pressalit PLUS Support Arm – Height & Sideways Adjustable, Choice of Length, Hand & Colour (R3913 / R3914)

Pressalit PLUS Support Arm – Height & Sideways Adjustable, Choice of Length, Hand & Colour (R3913 / R3914)

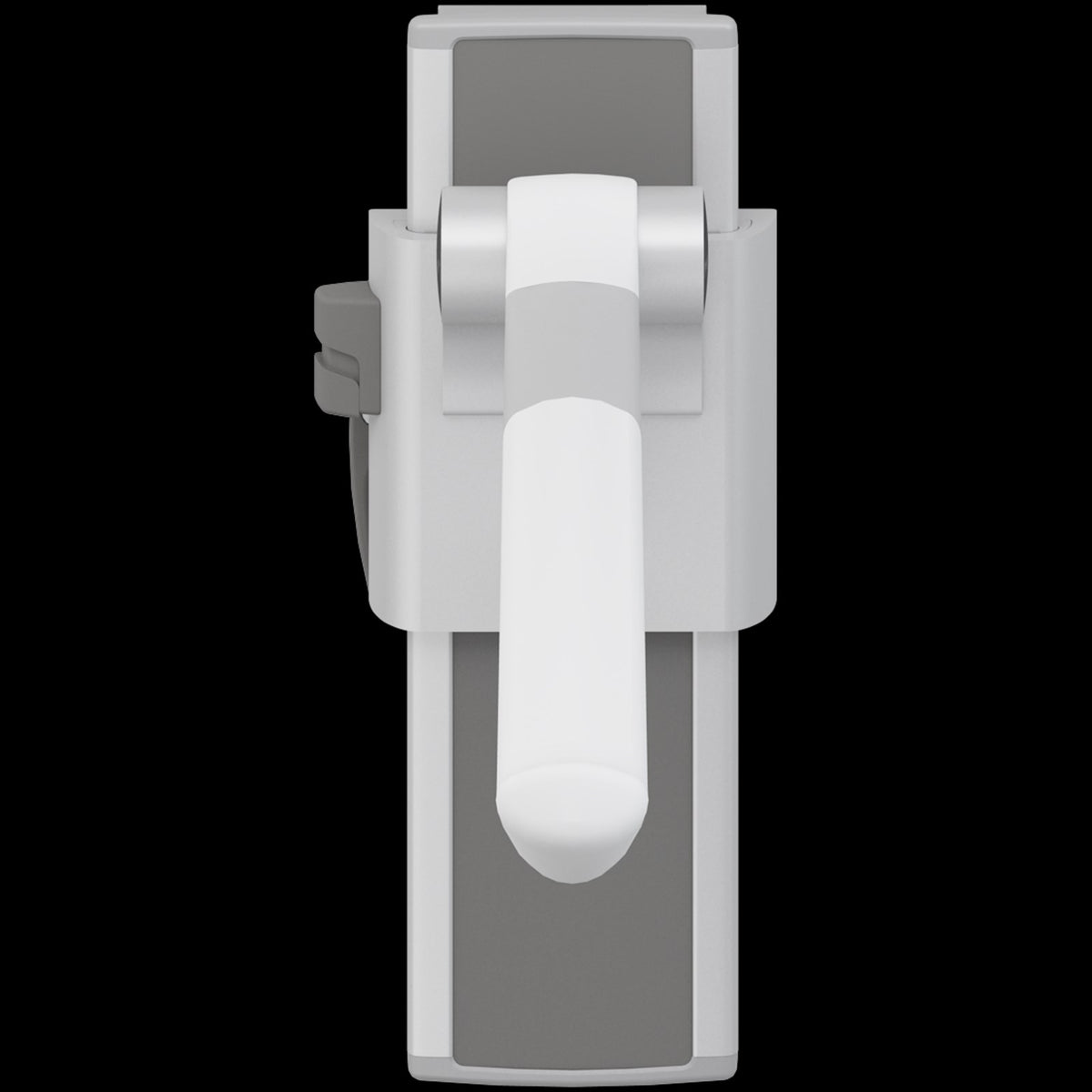

The most flexible arm in the Pressalit PLUS range. This counter-balanced support arm hooks onto a horizontal PLUS wall track, so it can be slid sideways to exactly where the user needs it and adjusted up or down by 240 mm – all without tools. It gives firm support when sitting down on, or getting up from, the toilet and when making a side transfer from a wheelchair.

Because the arm lifts off the track, it can be moved between the toilet and the shower, or shared between rooms – ideal for care homes, hospitals and Changing Places toilets.

Key features & benefits

• Height adjustable by 240 mm and sideways adjustable along a horizontal PLUS wall track – no tools needed

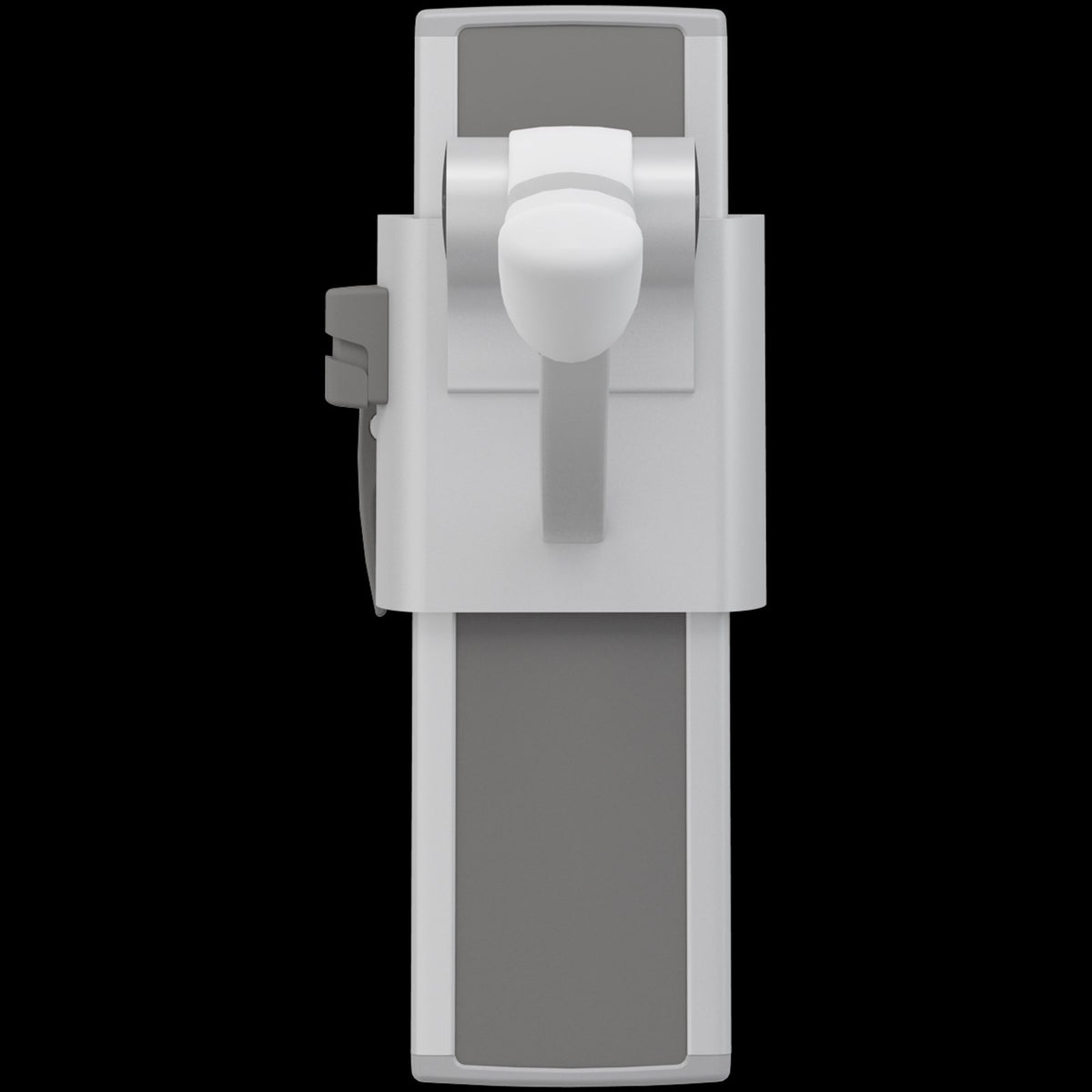

• Lifts off the track so it can be moved to another position or another room
• Integrated counter-balance for smooth, controlled movement between the horizontal and upright positions
• Oval arm profile that is comfortable to lean on and push against
• Enlarged end makes it easier to pull forward from a seated position and shows clearly where the arm finishes
• Soft, slip-resistant grip surface that feels warm to the touch, with an easy-grip profile
• Folds up against the wall when not in use to free up space for transfers and carers
• Underside shaped to take PLUS accessories such as a paper holder, flush button or shower curtain
• Maximum user weight 150 kg; static tested to 700 kg near the wall, 425 kg mid-arm and 225 kg at the tip

How to choose

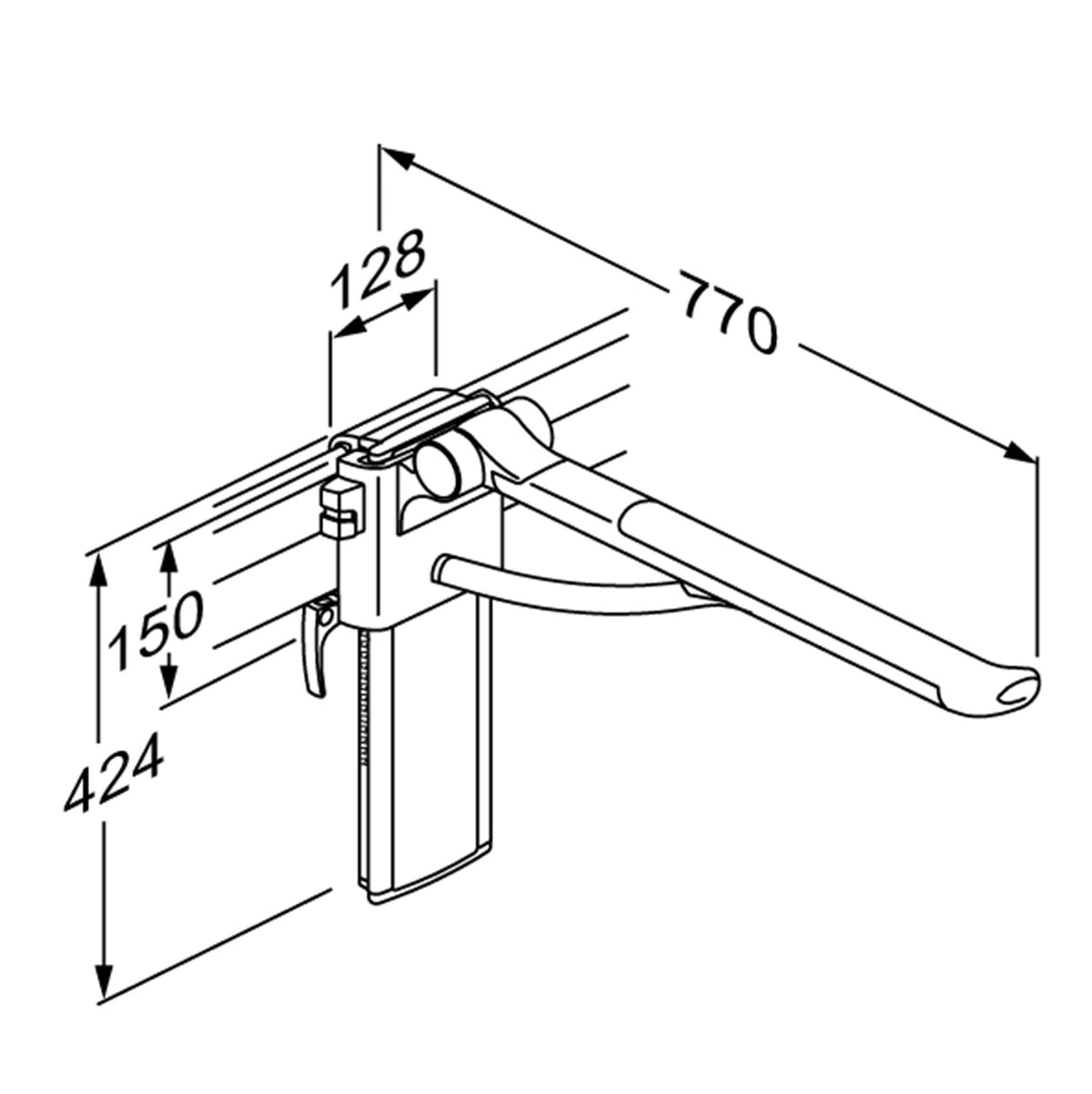

Length: the 700 mm arm has a total projection of 770 mm from the wall and suits standard toilet pans projecting around 540–550 mm. The 850 mm arm projects 920 mm and suits longer pans, such as 700 mm projection accessible toilets. The arm should finish just beyond the front of the pan so the user can push up from it.

Hand: right and left hand operated versions are the same price. Choose the version that suits the side of the toilet the arm is fitted on and the hand the user or carer will use to operate it. Left hand operated versions can take a little longer to arrive.

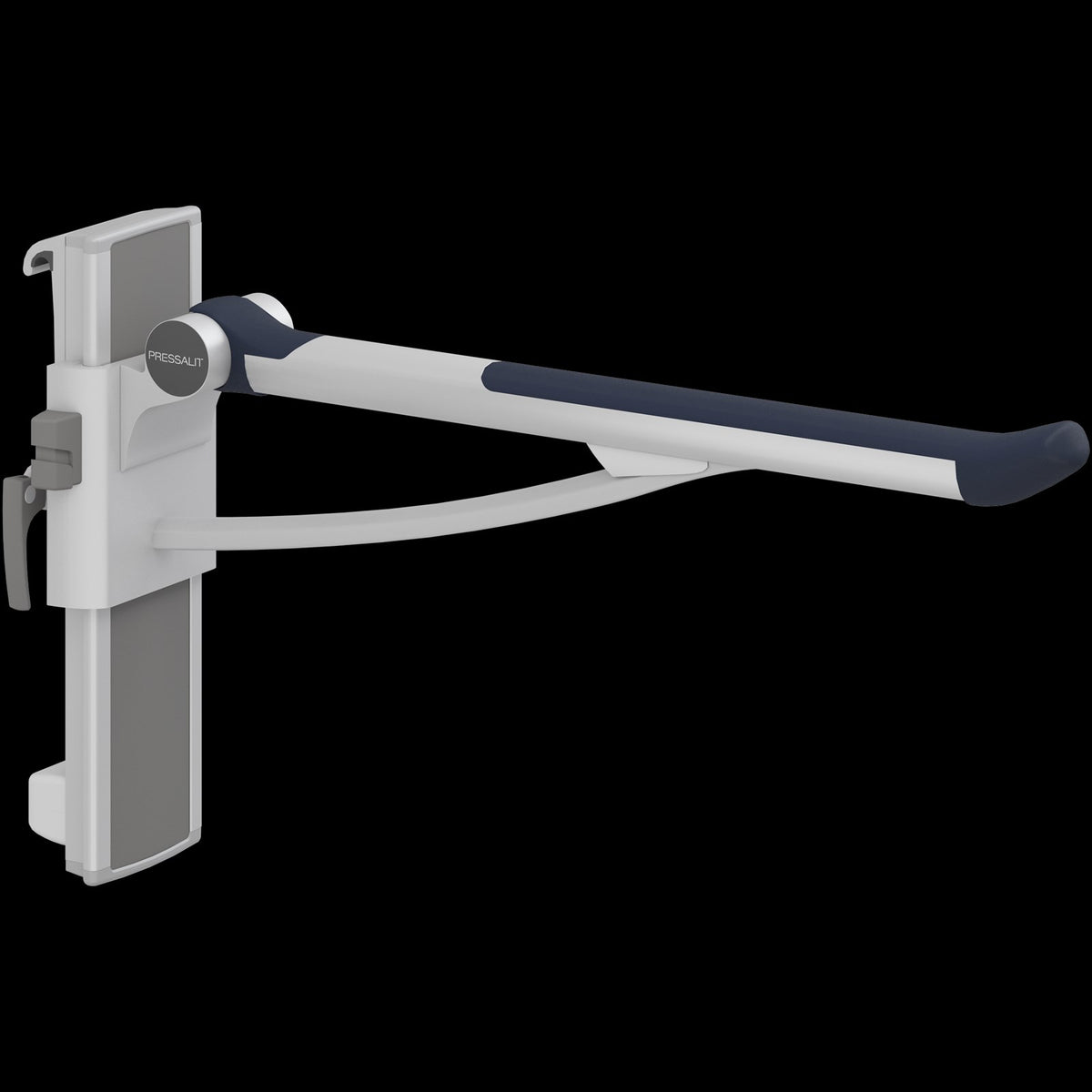

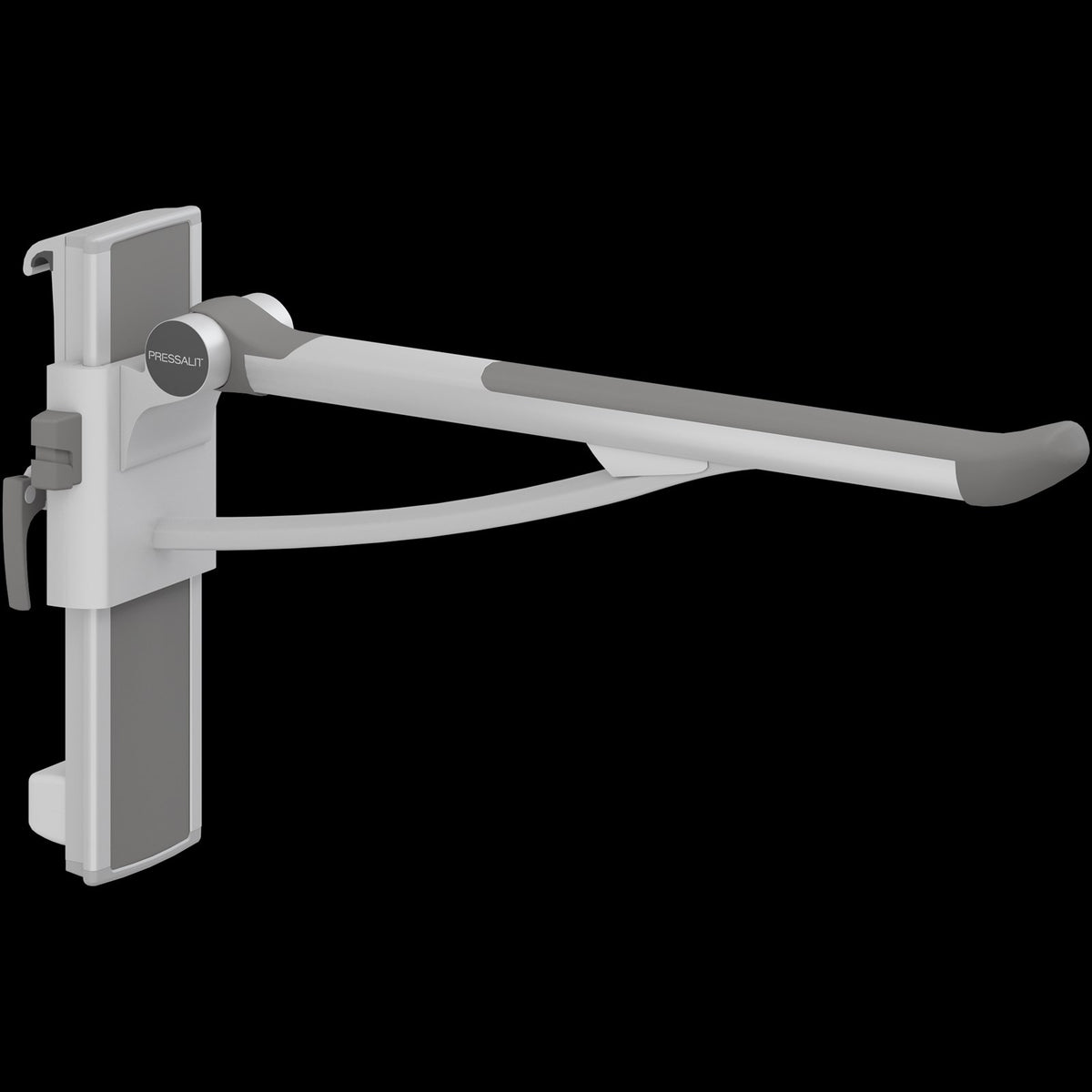

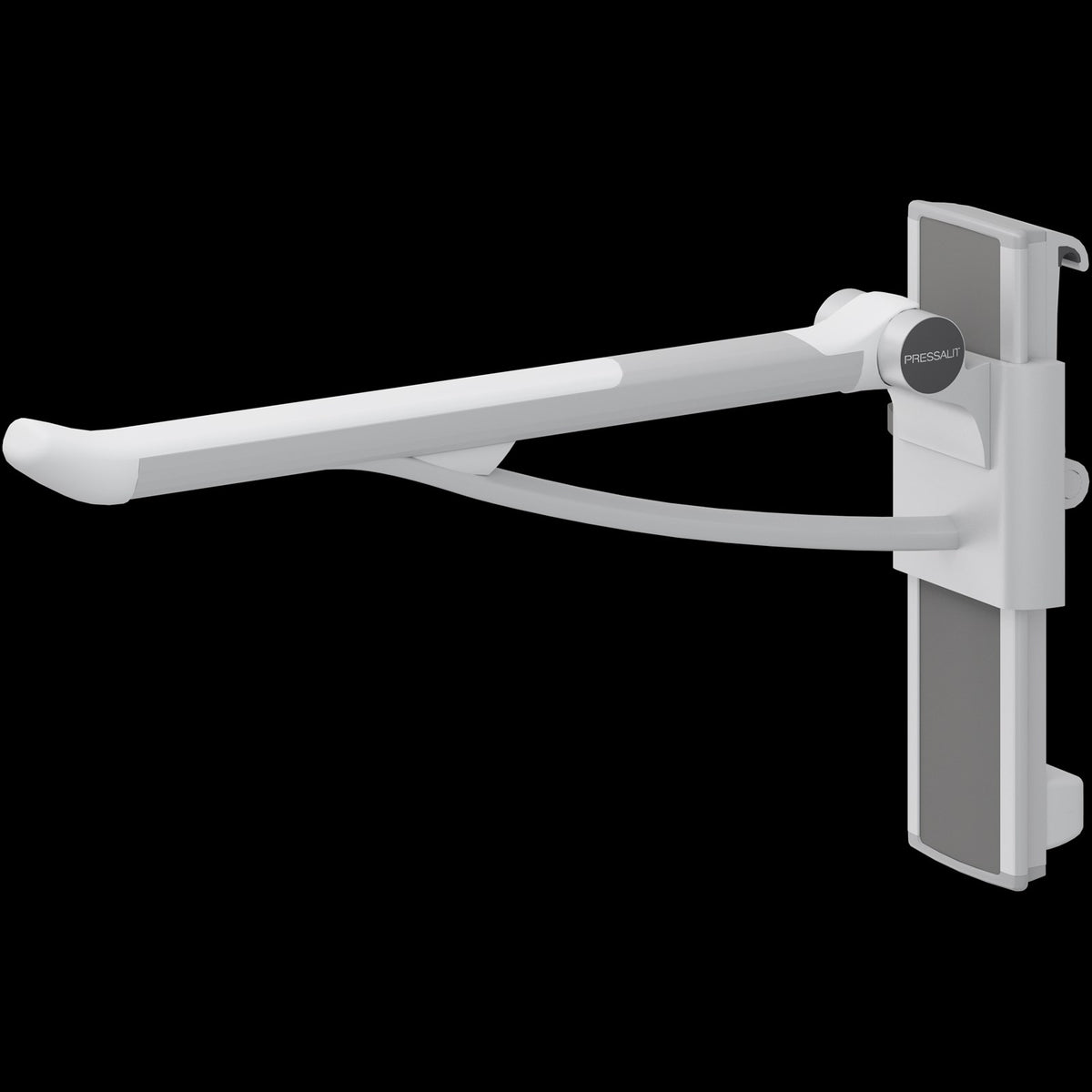

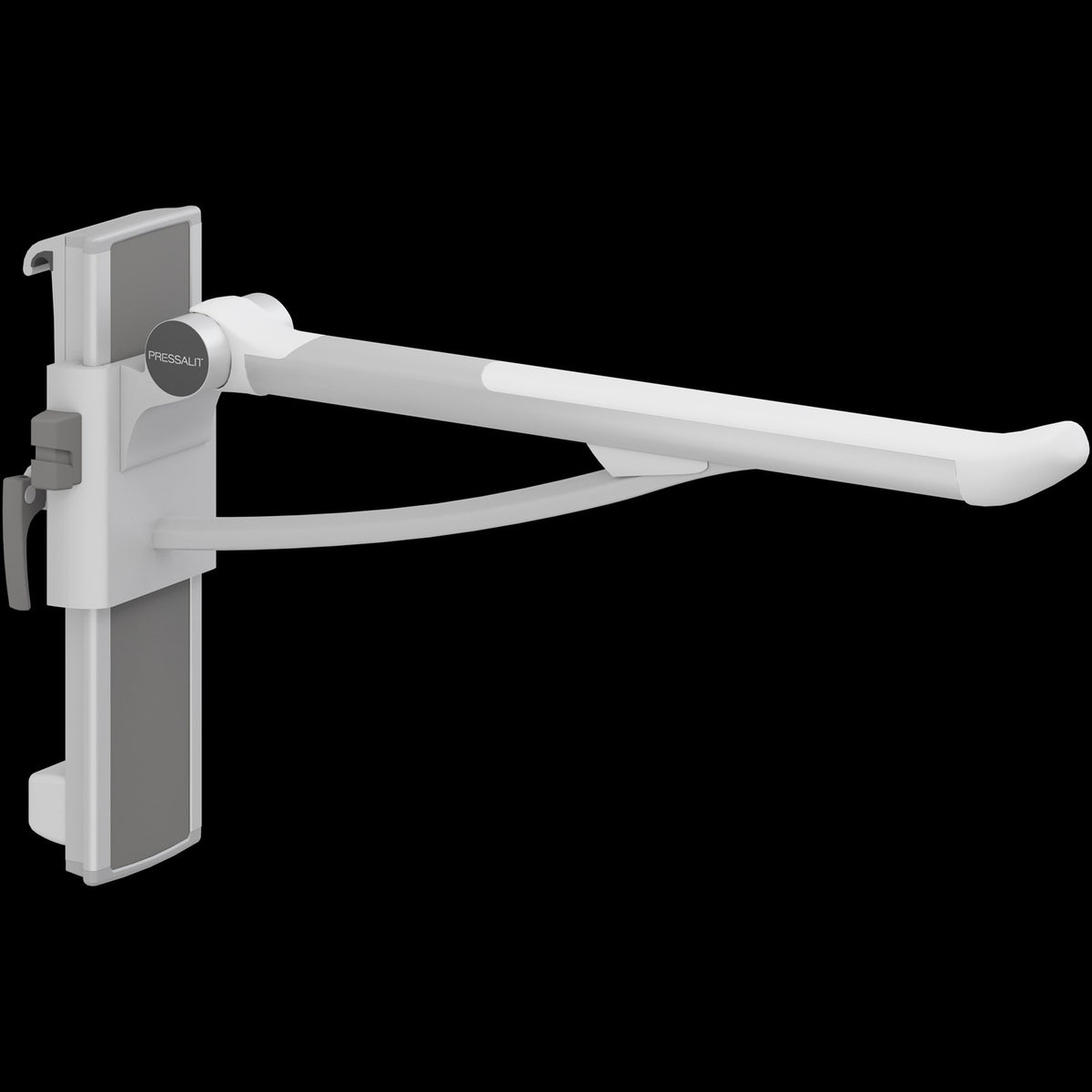

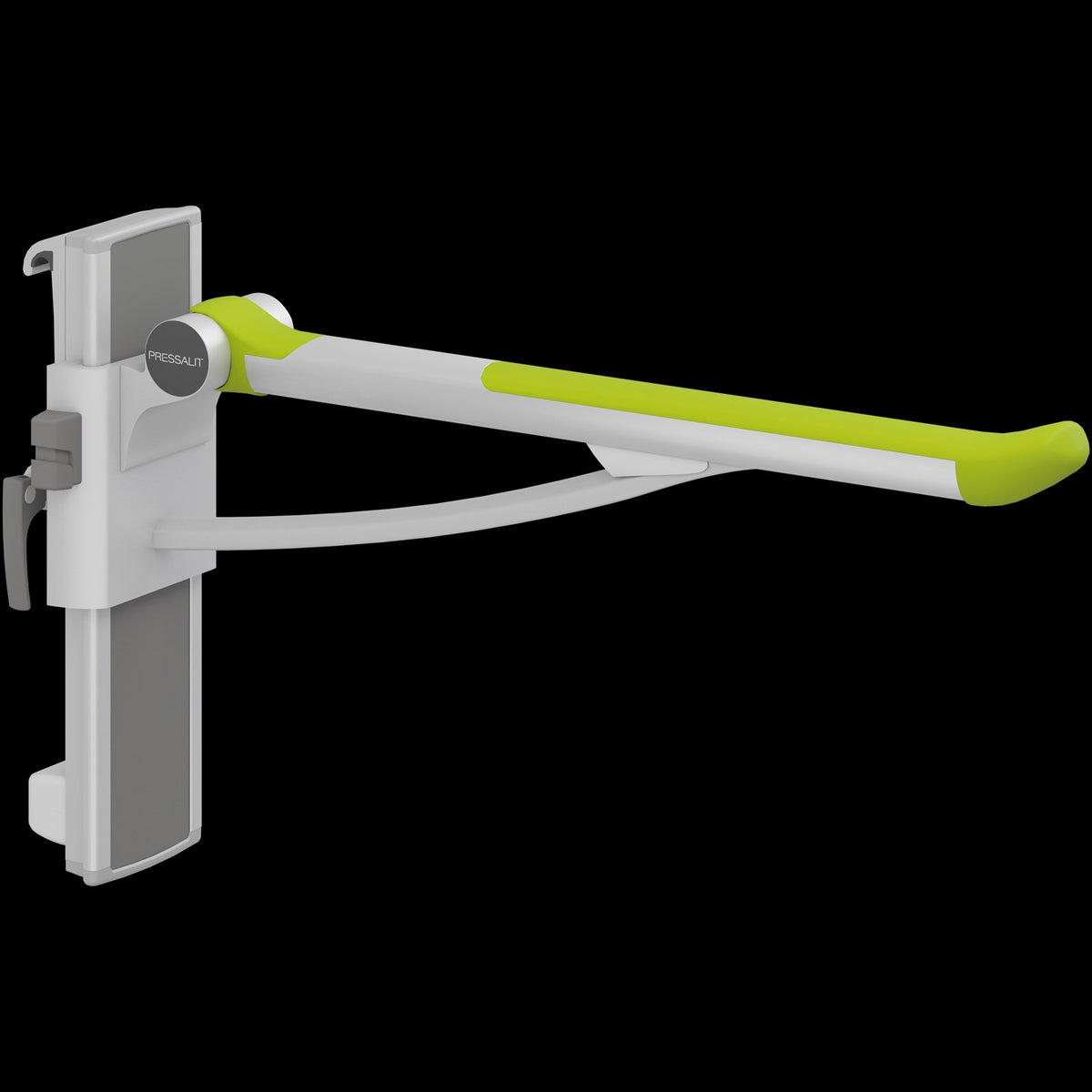

Colour: White and Anthracite Grey are the standard colours. Red, Dark Blue and Lime Green are special colours that cost a little more and take longer to make, and their high-contrast finish makes the arm stand out clearly against a pale wall.

What else you need: this arm must be hung on a horizontal Pressalit PLUS wall track, which is not included. Wall fixings for the track depend on your wall type. Most installations use a pair of arms, one each side of the toilet.

Sizes, colours & product codes

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Pressalit items are made to order, so please check the code, length, hand and colour before ordering. Questions? Call us on 0333 772 4162.

Frequently asked questions

Is the wall track included?

No. This arm hangs on a horizontal PLUS wall track, which is sold separately. If you already have a PLUS horizontal track fitted, the arm simply hooks on.

Can the arm be moved to the shower?

Yes. It lifts off the track without tools, so it can be slid along the track or moved to another track position, for example from the toilet to a shower seat.

What is the difference between 700 mm and 850 mm?

The 850 mm arm reaches further forward (920 mm total projection against 770 mm). Match it to the projection of your toilet pan.

Downloads

• Technical datasheet (PDF)
• Mounting instructions (PDF)
• User guide (PDF)
• Quick guide (PDF)
