Pressalit SELECT TL4 Toilet Lifter for Shower Toilets – Manual or Electric, Floor or Wall Outlet, White or Anthracite (R9014 / R9024 / R9114 / R9124)

Pressalit SELECT TL4 Toilet Lifter for Shower Toilets – Manual or Electric, Floor or Wall Outlet, White or Anthracite (R9014 / R9024 / R9114 / R9124)

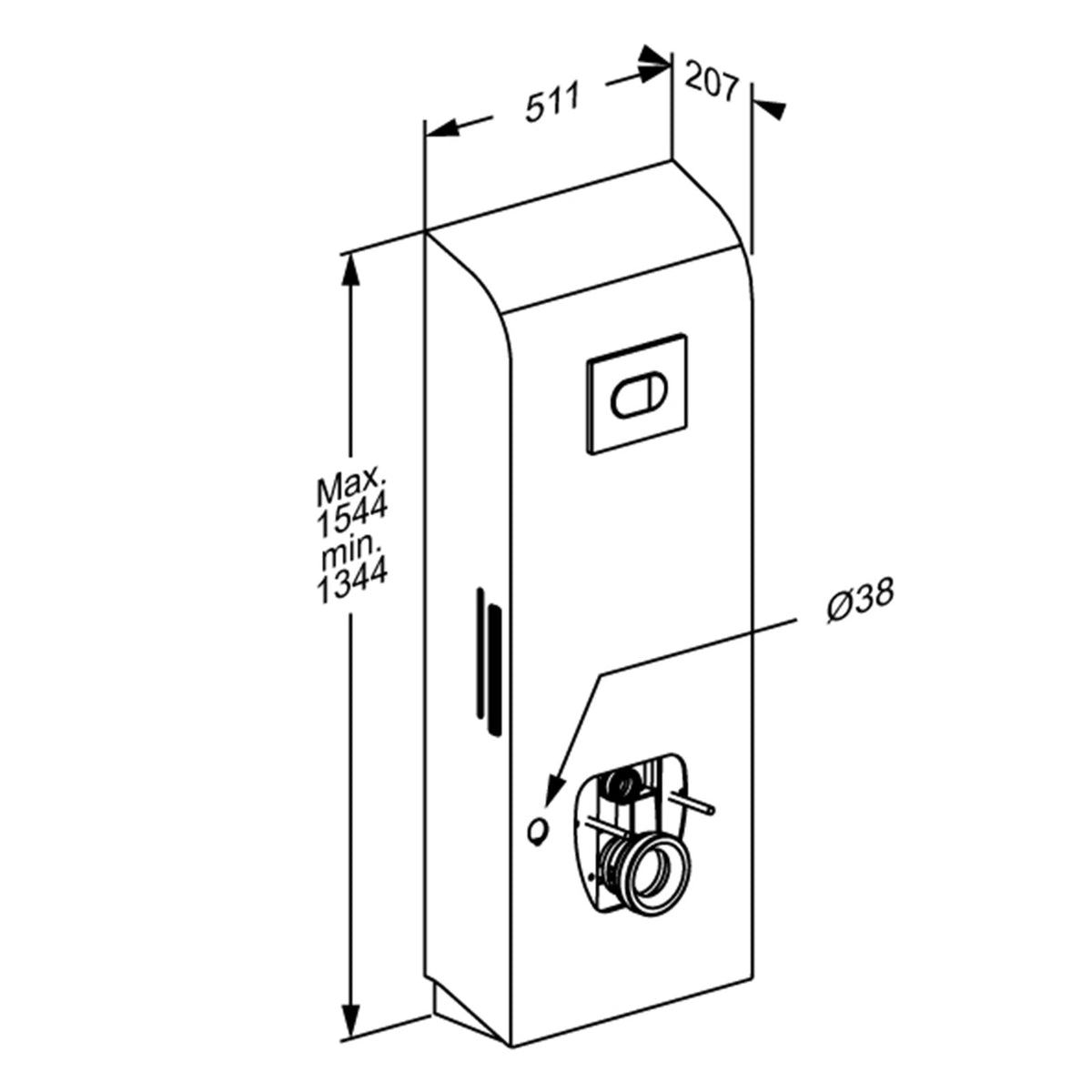

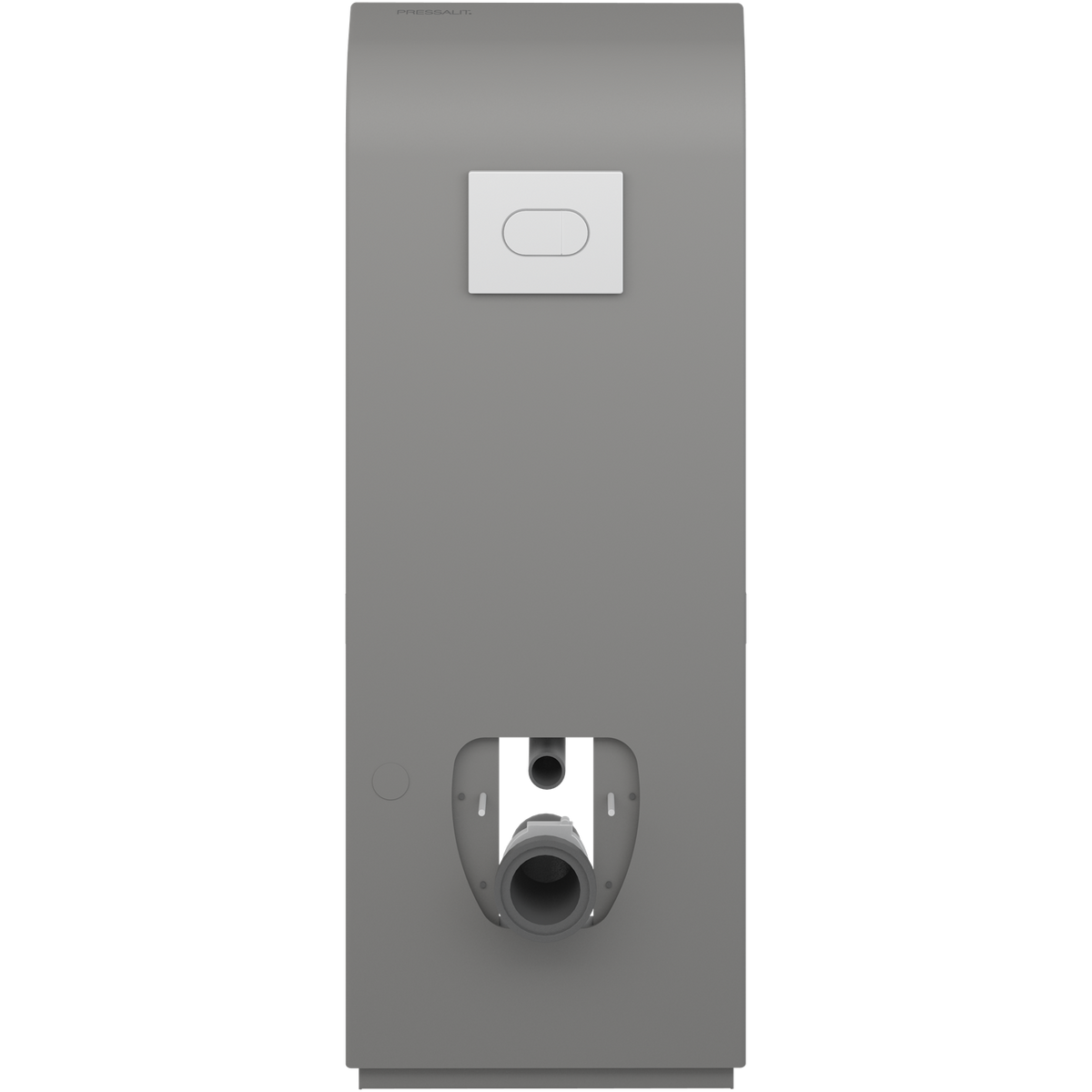

The Pressalit SELECT TL4 is a compact, height adjustable toilet lifter in a slim housing just 511 mm wide. It moves a wall-hung toilet up and down by 200 mm so the seat can be set at the right height for each person, making sitting down and standing up easier and supporting carers during transfers. It is intended for seated and standing users and suits private homes, care homes, hospitals and other care settings.

TL4 is prepared for a shower toilet (douche toilet) or shower toilet seat, so you can combine height adjustment with wash-and-dry hygiene that supports independent use.

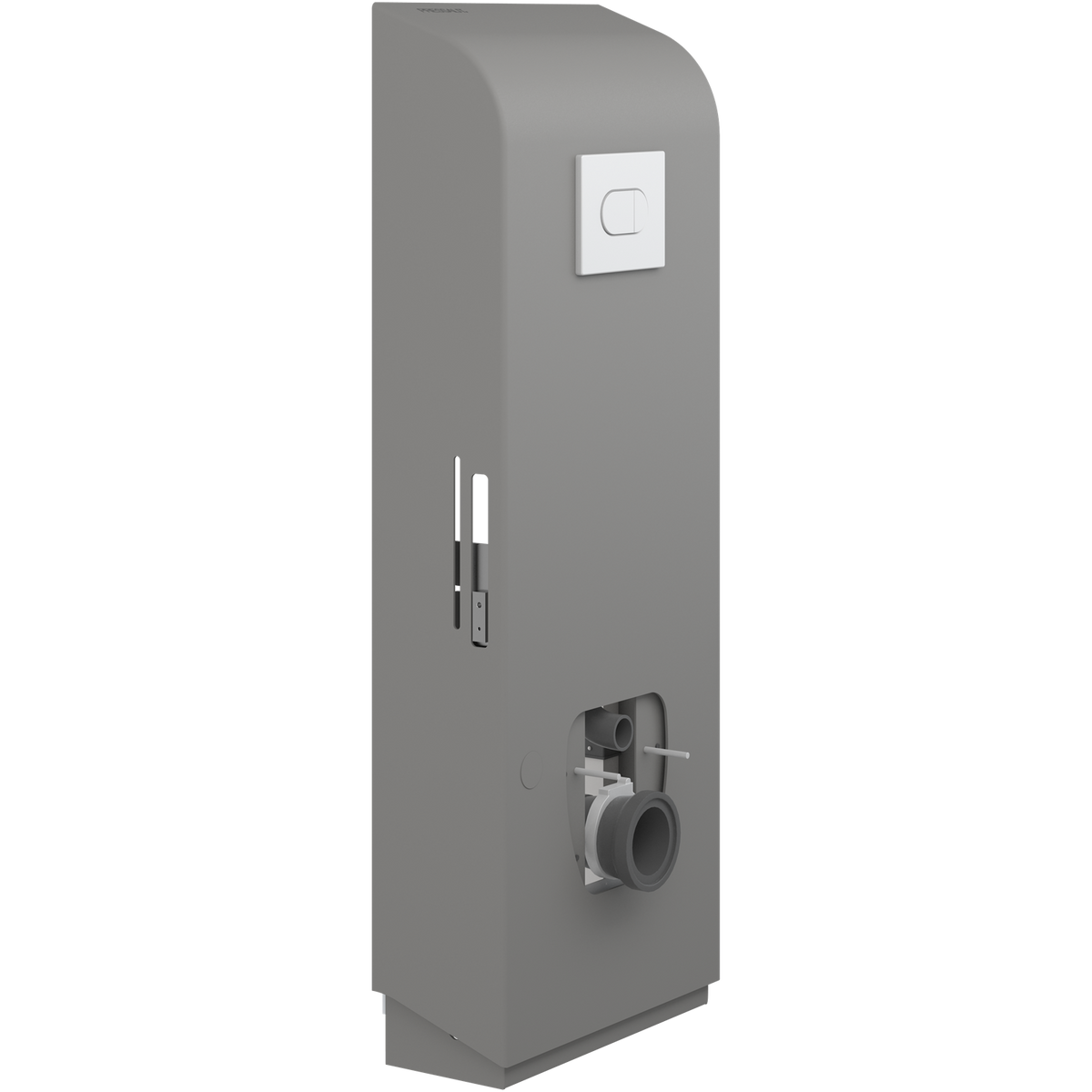

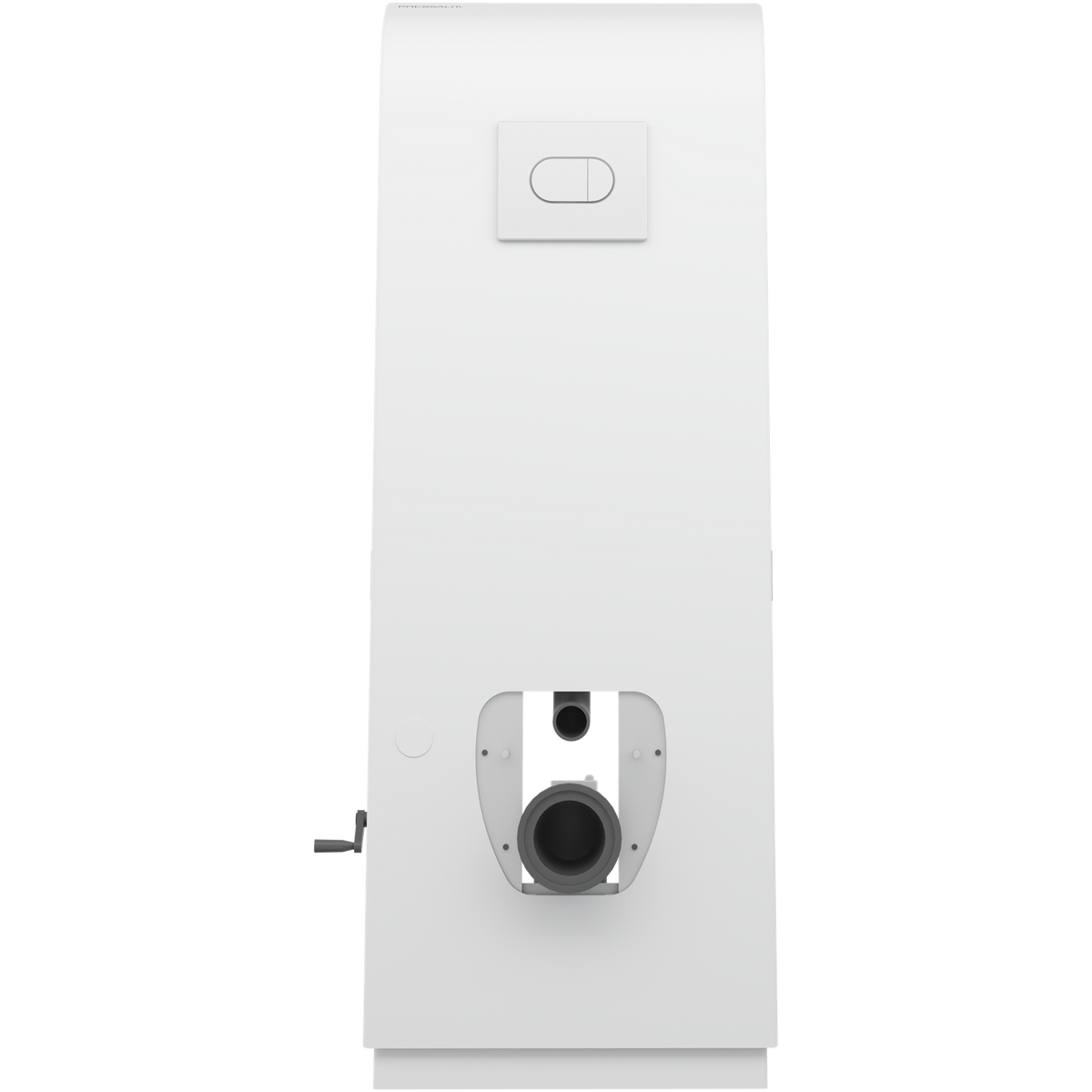

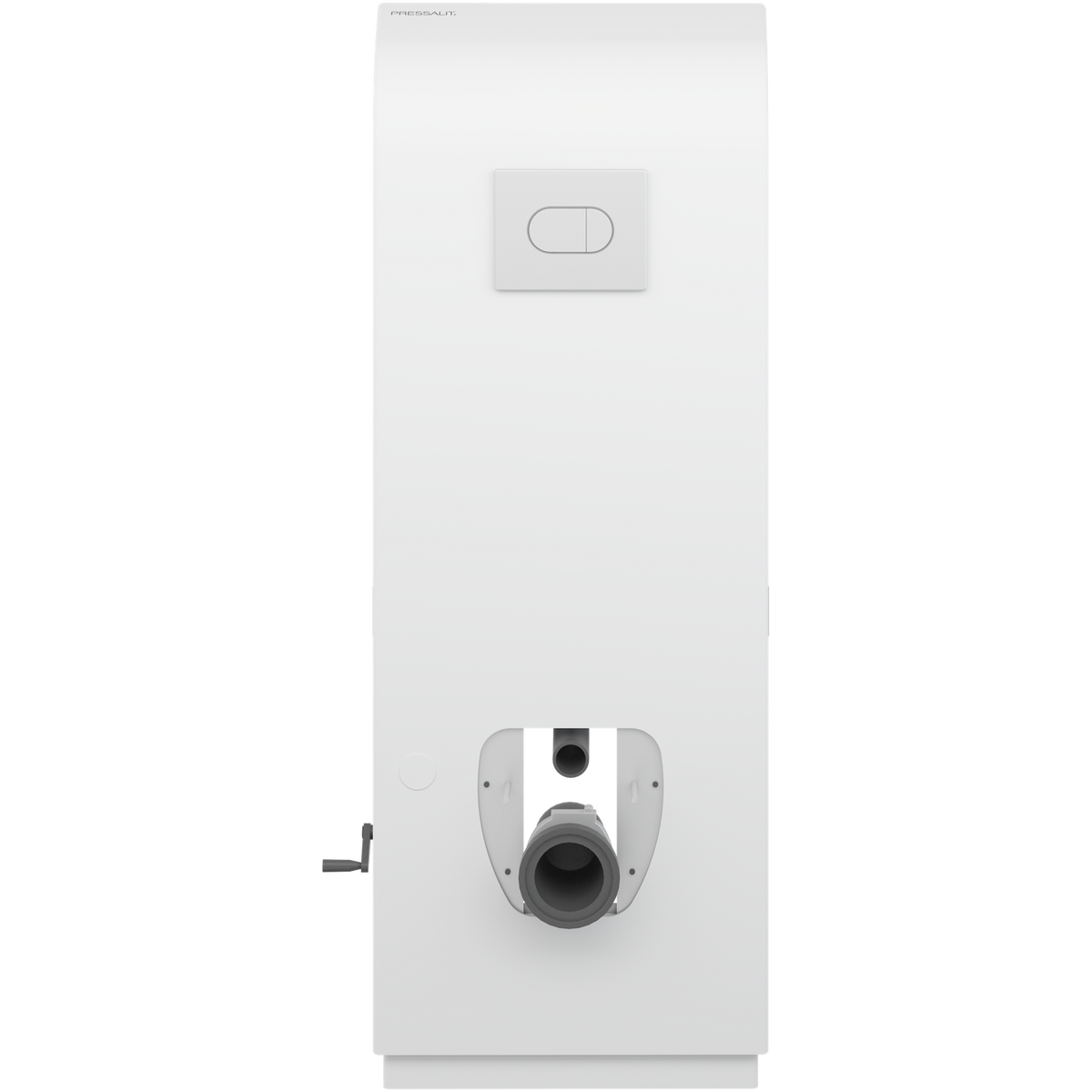

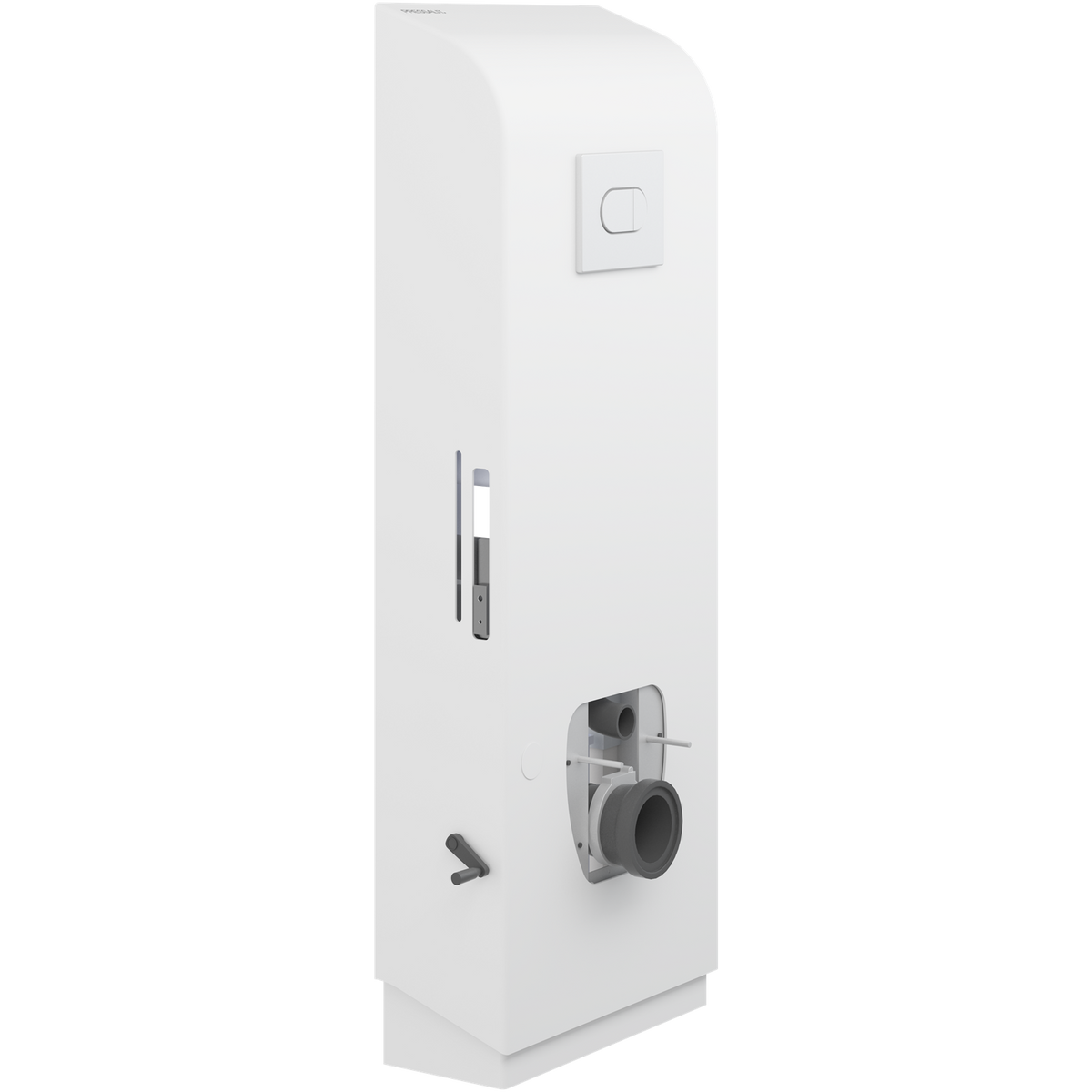

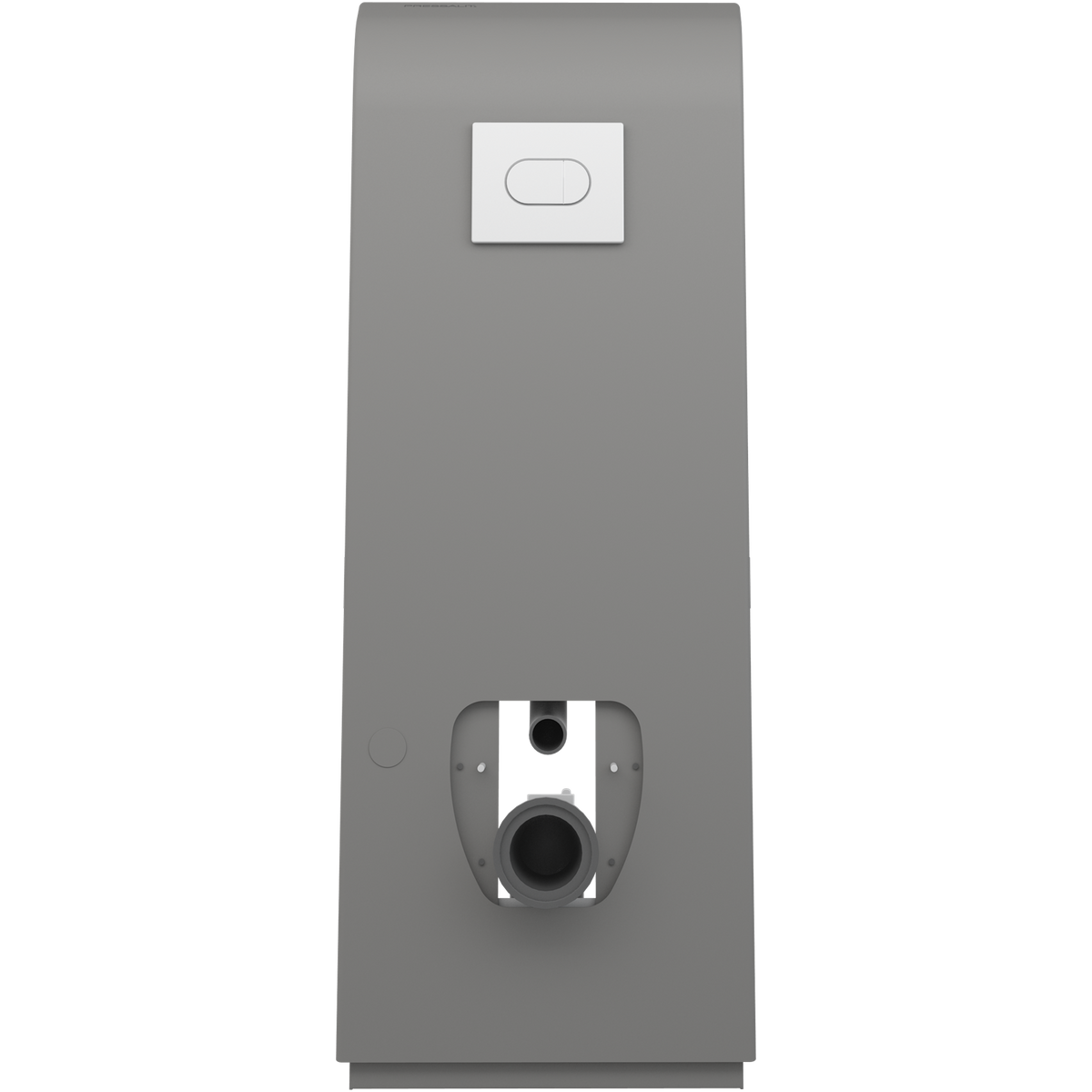

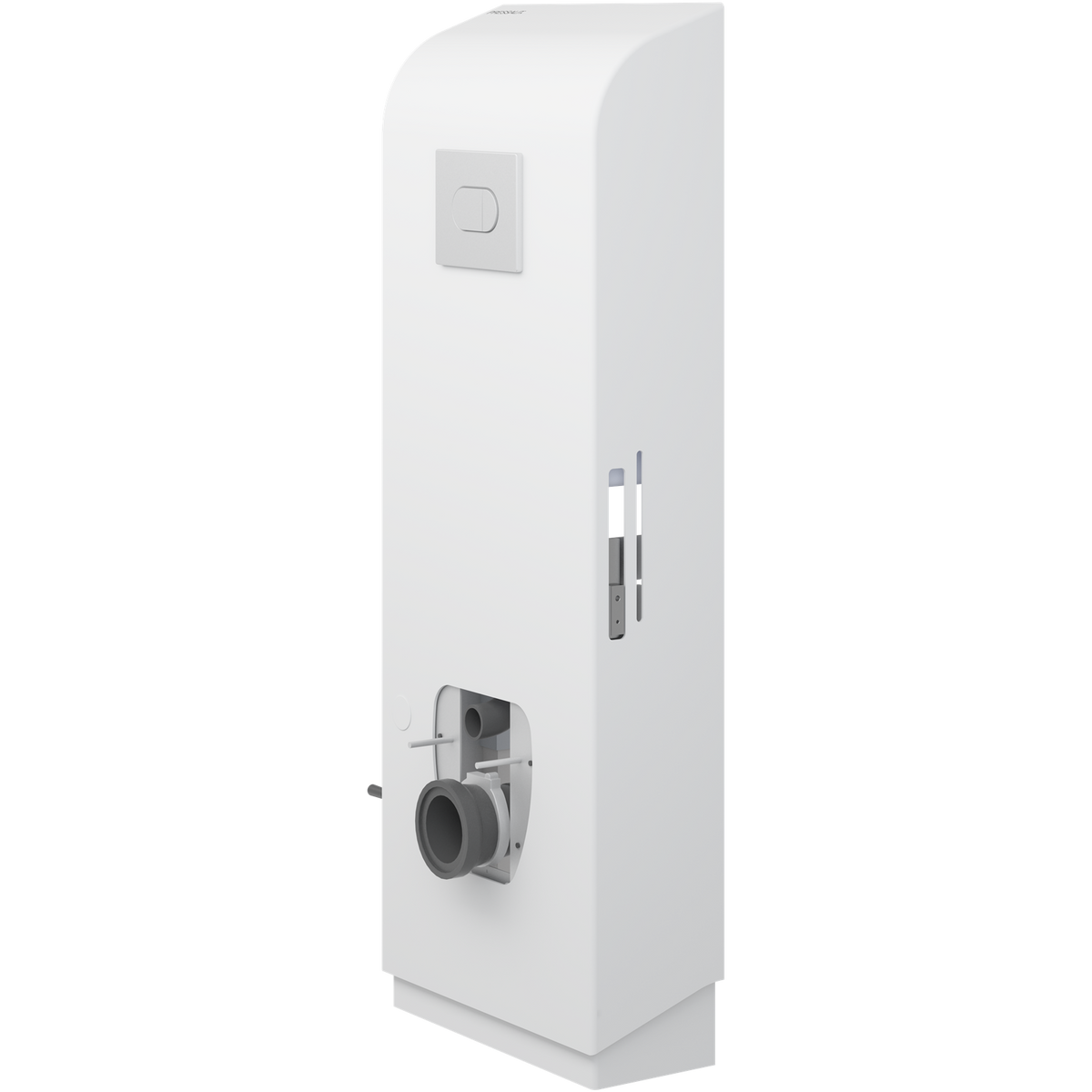

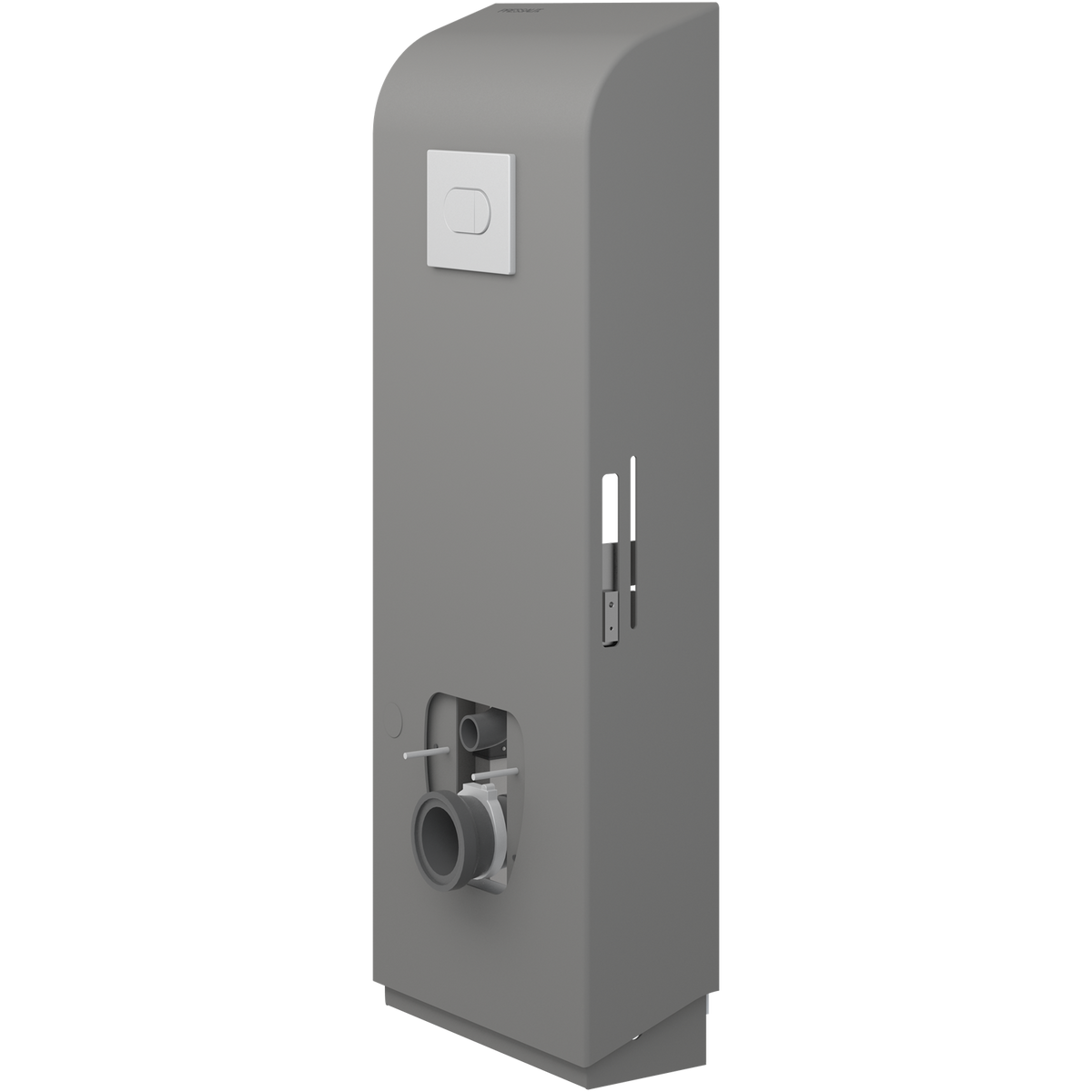

The manual version is adjusted with a crank handle. The electric version is operated from the control panel on a Pressalit PLUS or VALUE support arm suited to TL3/TL4 – that support arm is required and is not included. Both are available for floor or wall outlet drainage, in a white or anthracite grey housing, and come with a built-in cistern with dual flush preset to 3/6 litres (changeable to 2/4 litres).

Key features & benefits

• 200 mm height adjustment – manual with crank handle or electric
• Electric version is operated from the operating panel on a PLUS or VALUE support arm suited to TL3/TL4 (sold separately)
• Slim 511 mm housing in a single moulded cover – easy to wipe clean
• Built-in cistern with dual flush, preset to 3/6 litres and changeable to 2/4 litres
• Maximum user weight 200 kg; safe working load 235 kg
• Option to retrofit PLUS or VALUE support arms suited to TL3/TL4 and the PLUS backrest R6408/R6409
• Prepared for a shower toilet or shower toilet seat
• Five-year Pressalit warranty against material and manufacturing defects

How to choose your SELECT lifter

TL3 or TL4? Both have the same frame, housing and height range. Choose TL4 because it is prepared for a shower toilet or shower toilet seat; for a standard toilet the SELECT TL3 is the alternative.

Manual or electric? The manual version suits occasional changes in height. The electric version suits rooms with frequent changes – remember to order a PLUS or VALUE support arm with operating panel for TL3/TL4, as the electric lifter cannot be operated without one.

Floor or wall outlet? Pick the version that matches the soil pipe position.

What else you need: wall-hung toilet pan, toilet seat, support arms and a mounting kit for your wall type are not included.

Sizes, colours & product codes

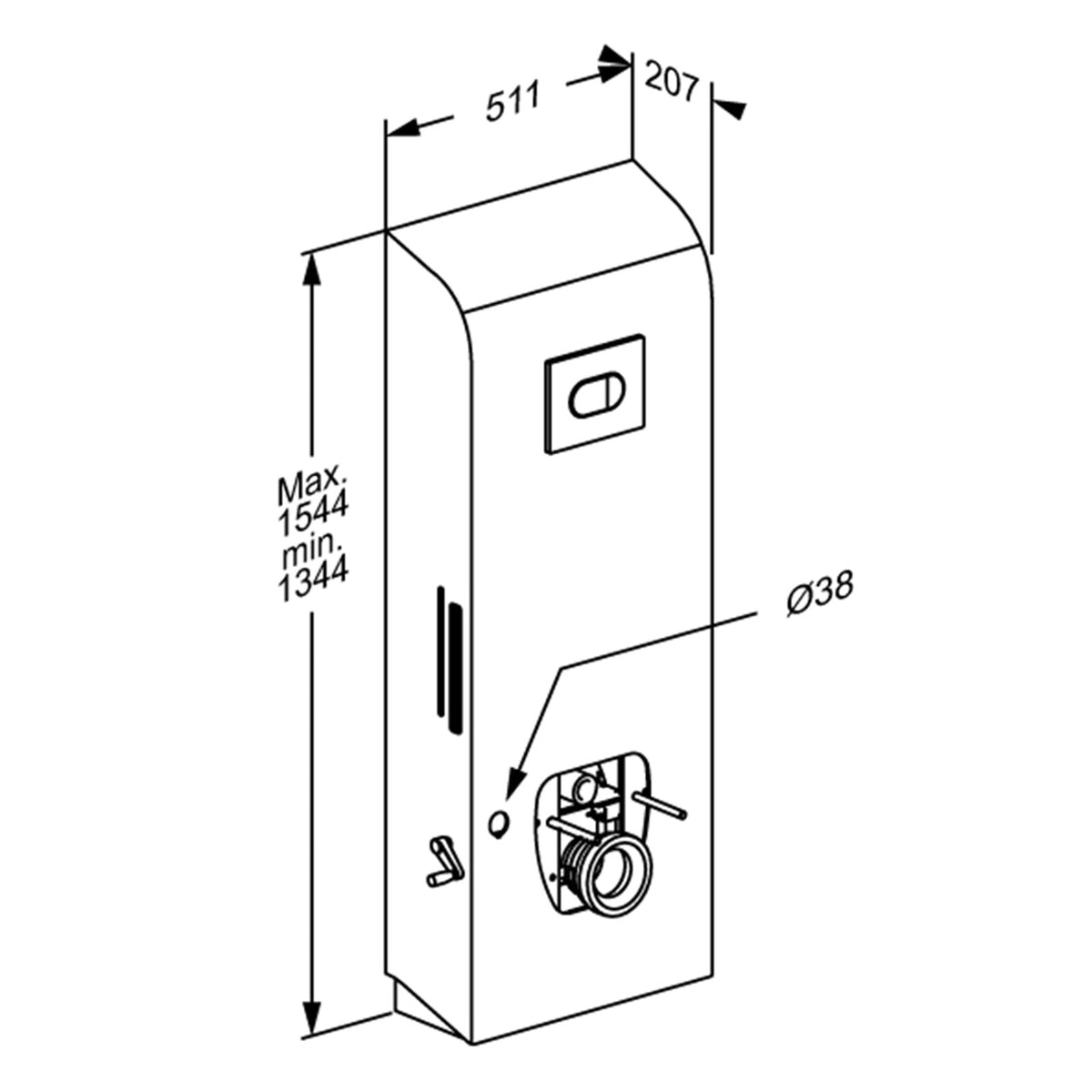

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer.

Frequently asked questions

Is a mounting kit included?

No. The wall mounting kit is not included because the right fixings depend on your wall construction. Pressalit's technical datasheet lists suitable kits for different wall types – call us on 0333 772 4162 and we will help you pick the correct one.

Does it come with a toilet pan and seat?

No. The lifter includes the cistern with dual flush, but the wall-hung toilet pan and the toilet seat are ordered separately. Pressalit's own wall-hung toilets (540 mm or 700 mm projection) and Dania care seats are good matches and are available from us.

How is the electric version controlled?

From the operating panel built into a Pressalit PLUS or VALUE support arm suited to TL3/TL4. The support arm is required and must be ordered separately.

Which shower toilets can I use?

TL4 is prepared for shower toilets and shower toilet seats. Call us on 0333 772 4162 with the model you have in mind and we will confirm compatibility.

Downloads

• Technical datasheet – manual TL4
• Technical datasheet – electric TL4
• Mounting instructions – manual
• Mounting instructions – electric
• User guide – manual
• User guide – electric
