Pressalit SELECT Wash Basin Lifter – Electric, Wall-Mounted with Floor Support, Choice of Colour and Control (R4950 / R4951 / R4952 / R4953)

Pressalit SELECT Wash Basin Lifter – Electric, Wall-Mounted with Floor Support, Choice of Colour and Control (R4950 / R4951 / R4952 / R4953)

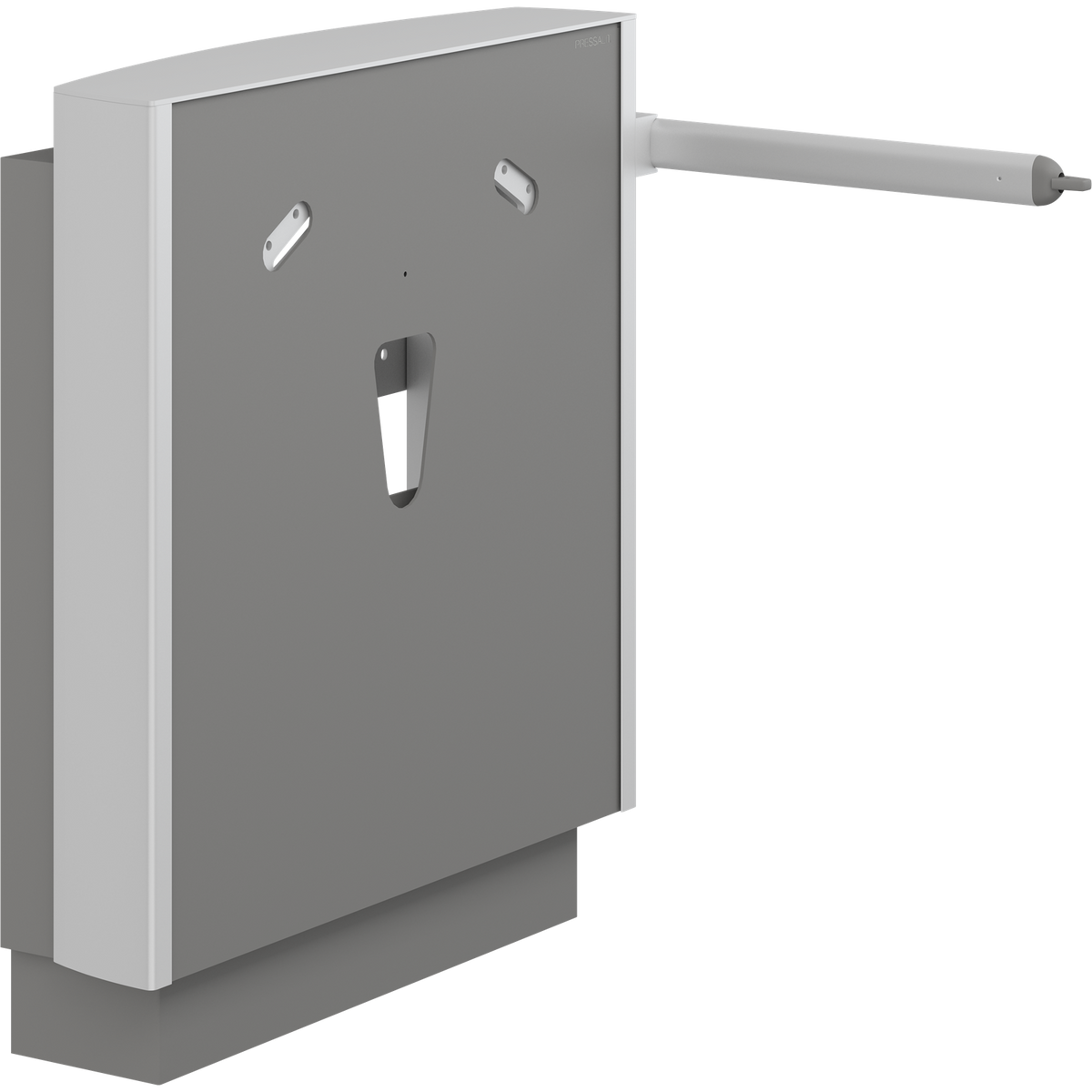

The Pressalit SELECT wash basin lifter is an electrically height adjustable basin bracket with concealed plumbing. It is wall-mounted with floor support and raises or lowers the basin by 300 mm – from 670 to 970 mm above the floor – so seated and standing users can both use the basin comfortably. A front cover plate hides the pipework for a clean, hygienic look that suits care homes, hospitals, schools and Changing Places toilets.

It is recommended with the MATRIX SMALL and MATRIX CURVE / CURVE II wash basins. Choose an anthracite grey or white front cover plate, operation by lever control at the end of the basin or by wired hand control, and versions with or without a safety stop function.

Key features & benefits

• Electric height adjustment of 300 mm (670–970 mm), 21 mm/s up and down
• Wall-mounted with floor support; concealed plumbing behind a front cover plate
• Lever control can be fitted on either side of the basin, doubles as a towel holder and is strong enough to use as extra support
• Wired hand control option for carers or users who prefer it
• Versions with integrated safety stop function
• Slim anodised aluminium side profiles and smooth surfaces for easy cleaning
• Fixing bolts for the basin included; expected service life 10 years; 5-year Pressalit warranty

How to choose

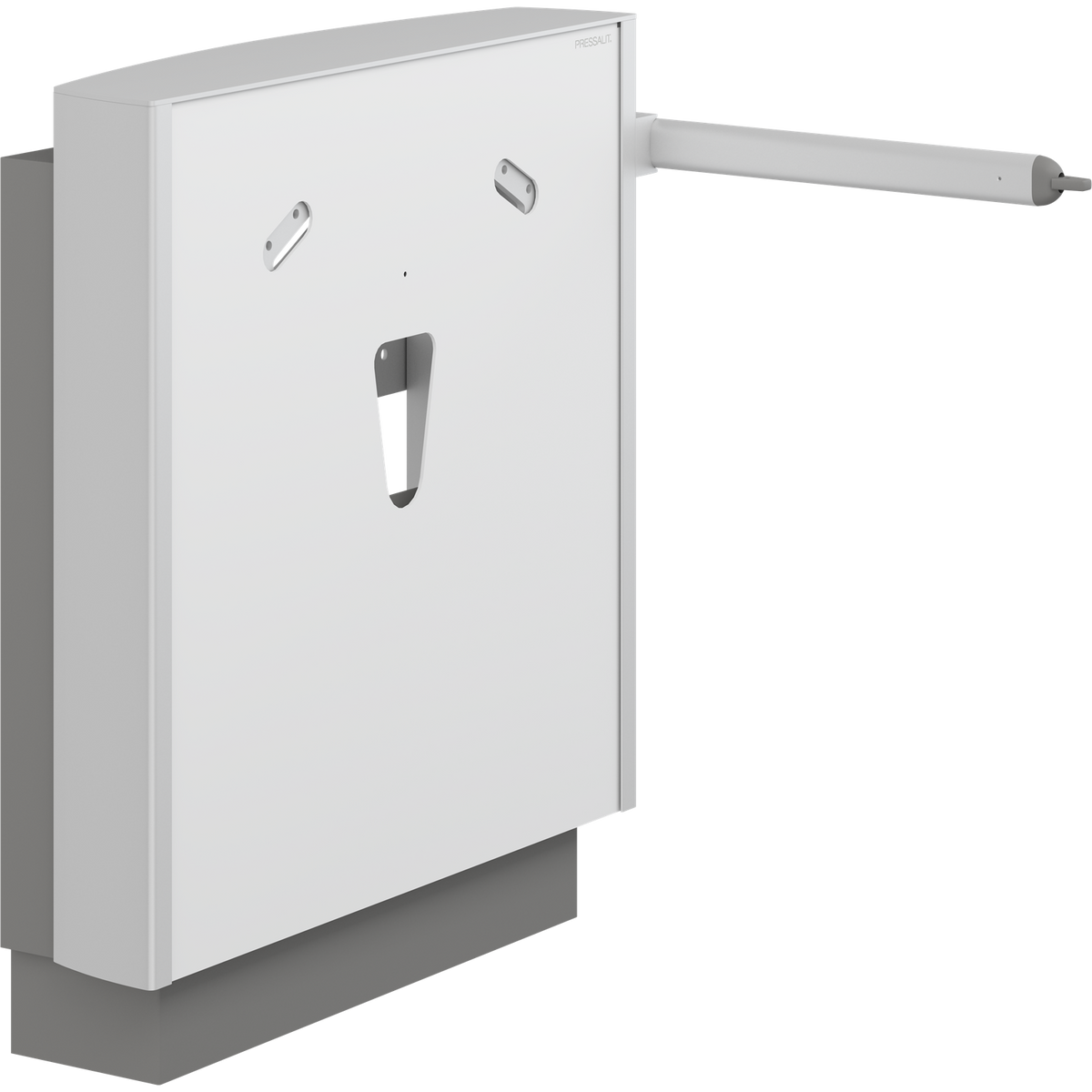

• Colour – anthracite grey or white front cover plate.

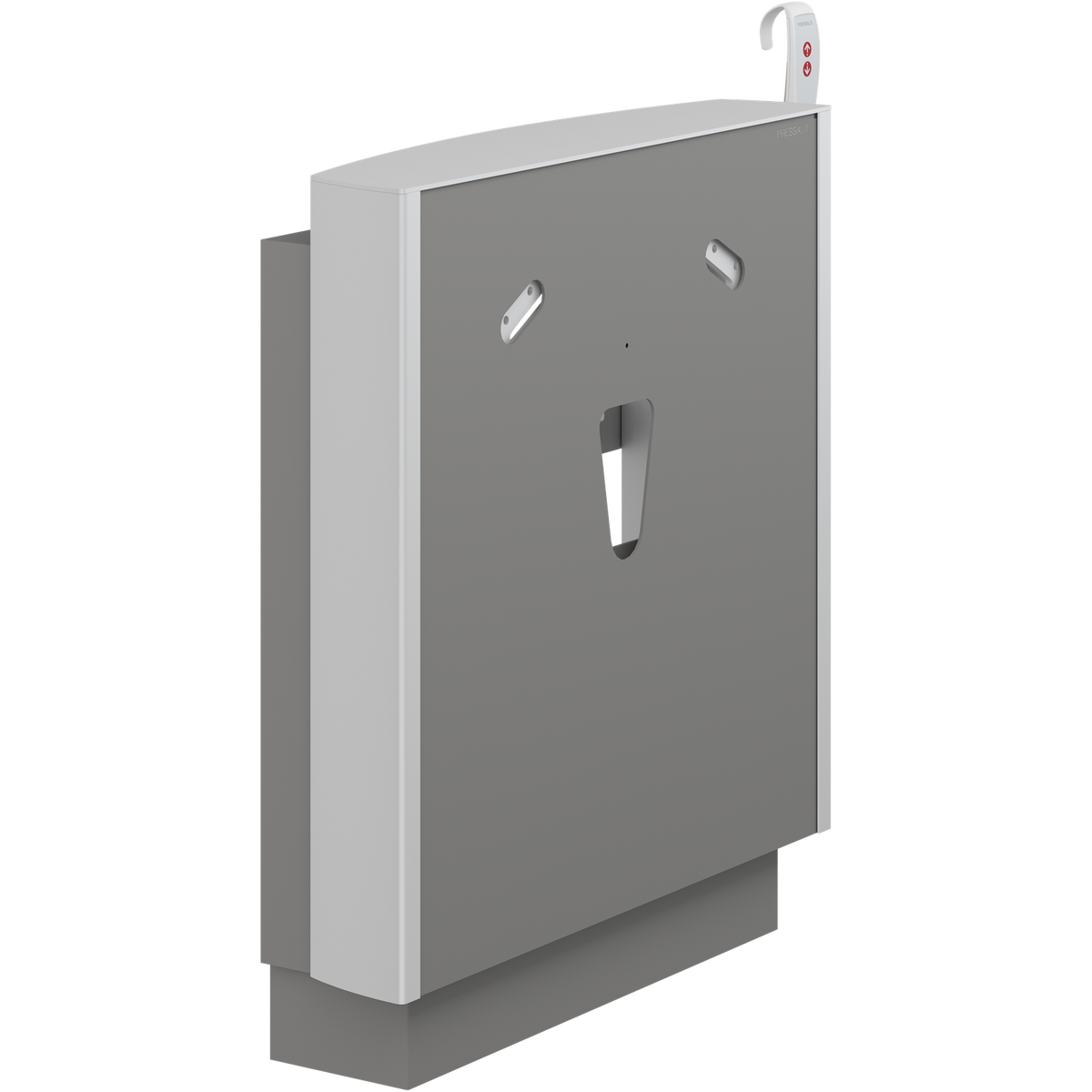

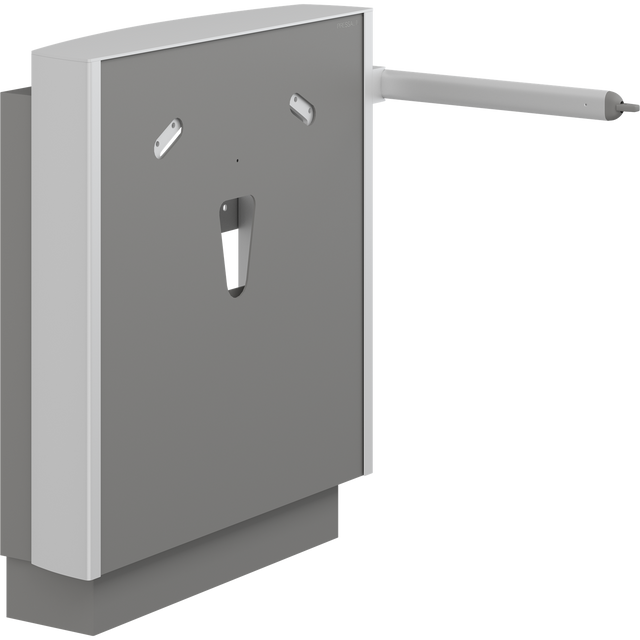

• Control – lever control at the end of the basin (can also be used as a towel holder and support), or a wired hand control.
• Safety stop – choose a version with the safety stop function where it is required by your risk assessment or specification.

What else you need

• A wash basin – MATRIX SMALL or MATRIX CURVE / CURVE II.
• An installation cover – Pressalit recommends R2056 with MATRIX CURVE / CURVE II and R2057 with MATRIX SMALL.
• A flexible feed and waste system – R2075 is recommended for the UK market (sold separately).
• A mounting kit to suit your wall – not included.
• A mixer tap, such as the TMV3-rated RT623, and an in-line trap such as the HepVo R2076.

Sizes, colours & product codes

Technical specification

Delivery

Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Need it for a specific date or want help planning a full accessible bathroom? Call us on 0333 772 4162.

Frequently asked questions

Which basins can I use?

Pressalit recommends MATRIX SMALL and MATRIX CURVE / CURVE II wash basins with the SELECT lifter.

Is the installation cover included?

No – choose R2056 for MATRIX CURVE / CURVE II or R2057 for MATRIX SMALL.

Does it need mains power?

Yes – it is electrically operated (230 V). For a power-free option, see the PLUS gas-assisted or VALUE gas-assisted brackets.

Can the lever be fitted on the left?

Yes – the lever control can be mounted on either side of the basin.

Downloads

• Technical datasheet
• Technical datasheet – with safety stop, wired hand control
• Mounting instructions
• User guide
• Load-bearing installation recommendation
