Pressalit VALUE Wash Basin Bracket – Gas-Assisted or Manual Height Adjustment, White (R1210 / R1214)
Pressalit VALUE wash basin brackets are a straightforward, cost-effective way to make a basin height adjustable for seated and standing users. Made from steel with a white Rilsan coating, they are wall-mounted and recommended with the MATRIX CURVE and CURVE II wash basins (and suit MATRIX SMALL).

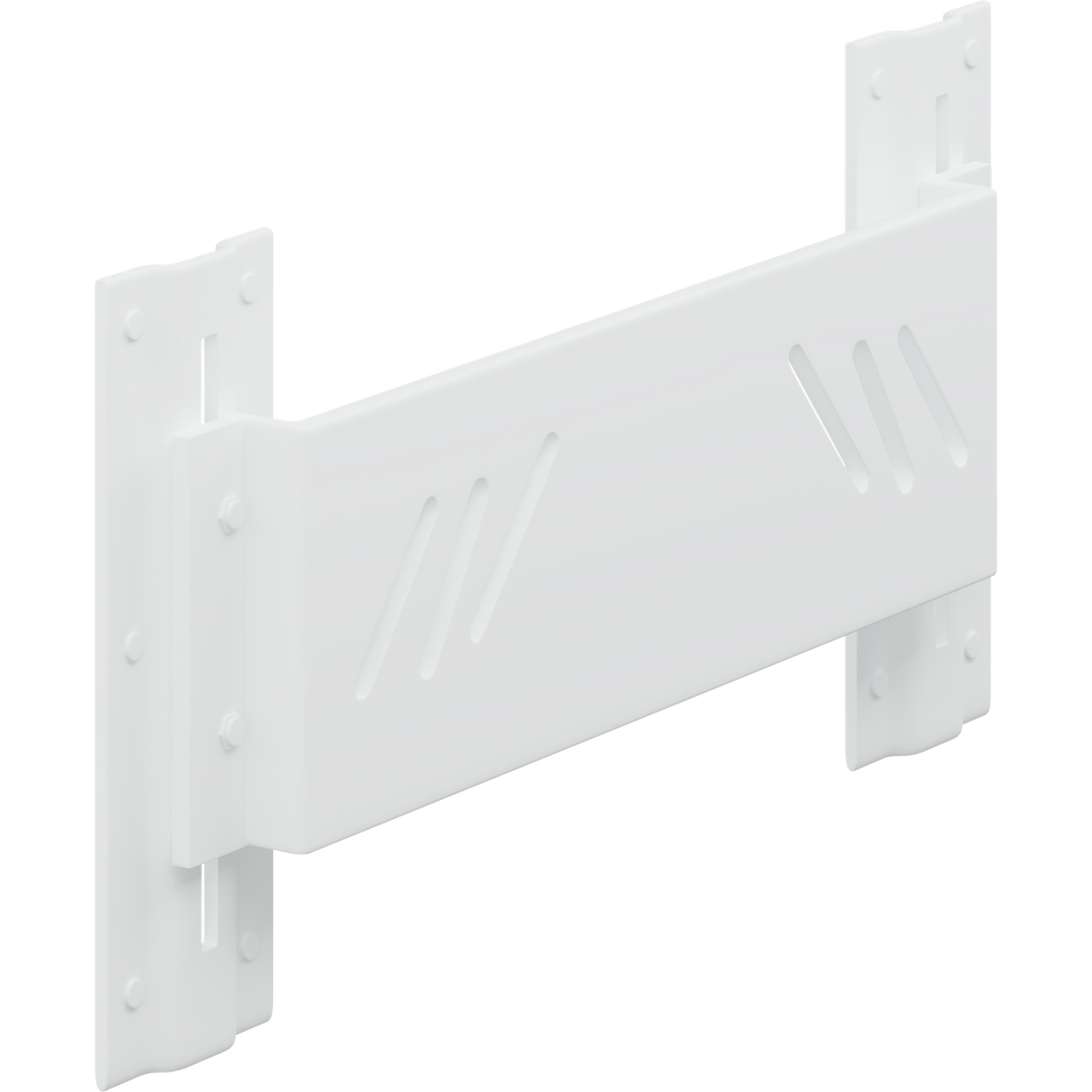

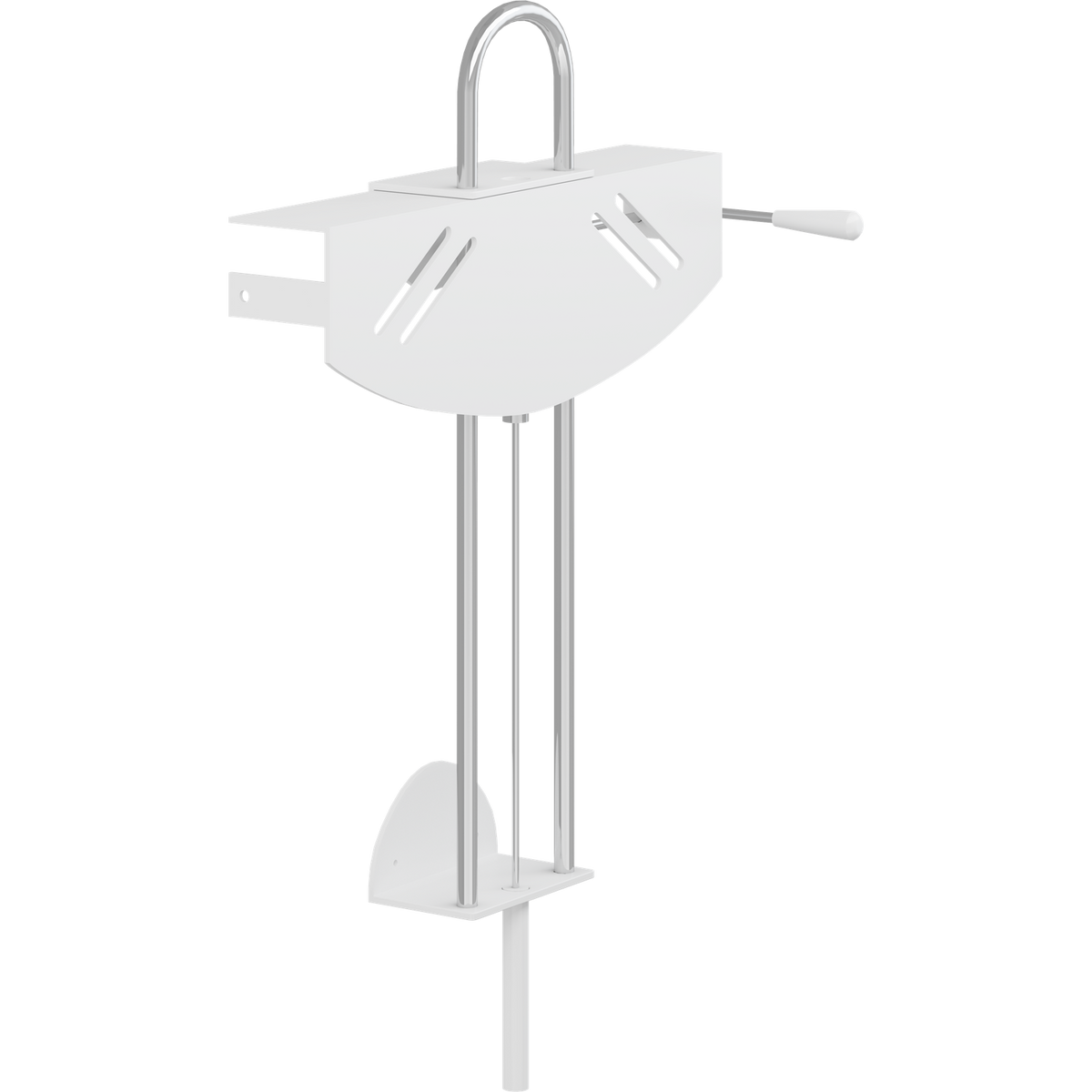

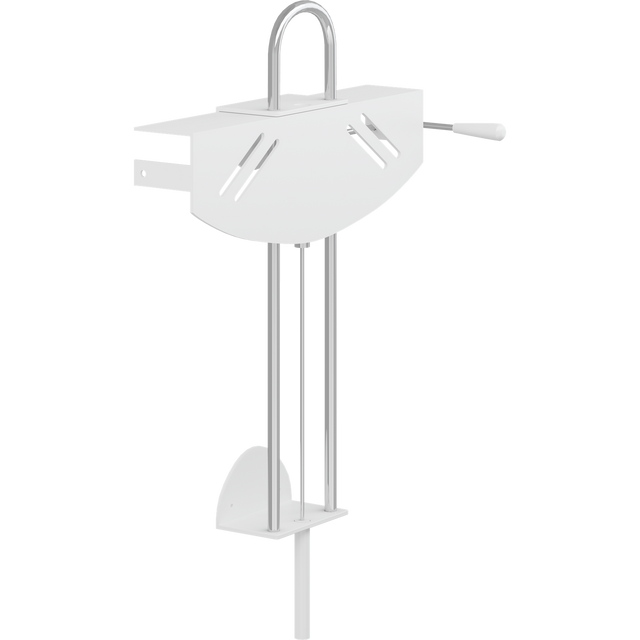

Choose the gas-assisted bracket (R1210000), which adjusts by 315 mm with a lever and needs no electricity, or the manual mounting plate (R1214000), which gives 150 mm of adjustment for occasional changes.
Key features & benefits
- Gas-assisted version: 315 mm height adjustment (660–975 mm) with lever control
- Manual mounting plate: 150 mm height adjustment (750–900 mm) for infrequent adjustment
- No mains power needed
- Steel with white Rilsan coating – comfortable to touch and easy to clean
- Height adjustable to suit different users; good access to the working mechanism
- Maximum load 80 kg; for basins up to 22 kg
- 5-year Pressalit warranty
Gas-assisted or manual?
Choose the gas-assisted R1210000 where the height will be changed regularly – the gas cylinder makes adjustment light. The manual R1214000 mounting plate is for infrequent adjustment only; where frequent adjustment is expected, Pressalit recommends the gas-assisted bracket.
What else you need
- A wash basin – MATRIX CURVE / CURVE II recommended.
- A flexible feed and waste system – Pressalit recommends R2071, R2075 or R2077 with the gas-assisted bracket and R2075 or R2077 with the manual plate (UK market).
- Wall fixings – the gas-assisted bracket includes fixing bolts for the basin and for a brick wall, but wall plugs depend on the wall type and must be ordered separately. Check the technical datasheet for the manual plate's fixings.
Sizes, colours & product codes
| Adjustment | Product code | EAN |
|---|---|---|
| Gas-Assisted – 315 mm Height Adjustment | R1210000 | 5708590176710 |
| Manual Mounting Plate – 150 mm Height Adjustment | R1214000 | 5708590176499 |
Technical specification
| Specification | Detail |
|---|---|
| Height adjustment | Gas-assisted: 315 mm (660–975 mm); manual: 150 mm (750–900 mm) |
| Maximum load | 80 kg |
| Maximum basin weight | 22 kg |
| Material | Steel with Rilsan coating |
| Colour | White |
| Net weight | Gas-assisted 12.4 kg; manual 7.9 kg |
| Warranty | 5 years from invoice date |
| Compliance | EU MDR 2017/745 Class I; UK MDR 2002 (gas version also Machinery Directive 2006/42/EC) |
Delivery
Delivered direct from Pressalit, usually within 7–21 working days. Special colours (Red, Dark Blue, Lime Green) may take longer. Need it for a specific date or want help planning a full accessible bathroom? Call us on 0333 772 4162.
Frequently asked questions
Can the user lean on the basin?
The bracket supports the basin plus a user leaning on it or pushing up from sitting, but it is not designed to carry a person's full body weight.
Does it need electricity?
No – both versions are power-free.
Which basin should I use?
Pressalit recommends MATRIX CURVE / CURVE II wash basins with VALUE brackets.
