Triton Elina TMV3 Thermostatic Mixer Shower with Grab Riser Rail – Exposed Concentric or Bar Valve
The Triton Elina is a TMV3 approved thermostatic mixer shower made for care homes, hospitals and nursing homes. Its front-facing, low-resistance levers are easy to grip, flow and temperature are controlled separately, and the shower shuts down automatically if either the hot or cold supply fails.

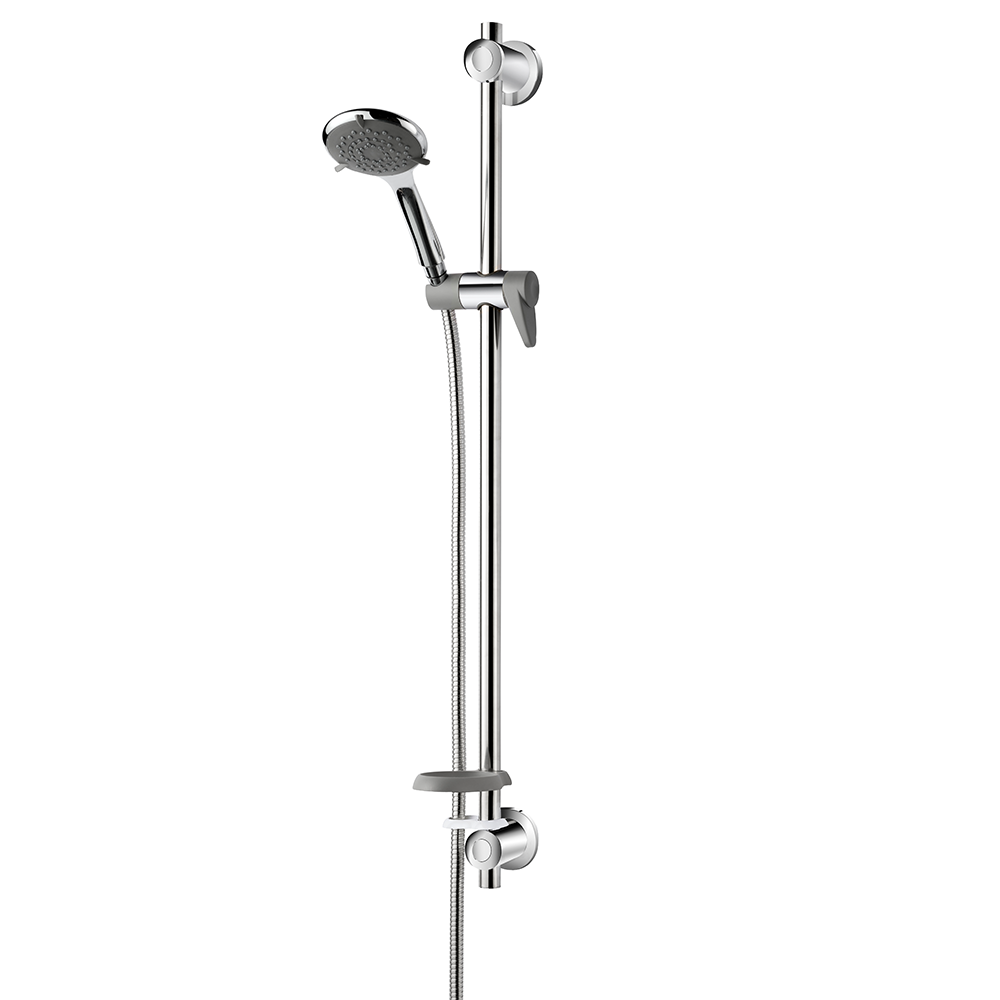

Every Elina in this listing comes with a dual-purpose grab riser rail that supports up to 150kg, so the rail that holds the shower head is also a secure handhold. Choose the exposed concentric valve or the bar valve.
Key features & benefits
- TMV3 approved thermostatic control for healthcare and care settings
- Easy-grip, front-facing separate flow and temperature levers
- Tamper-proof controls
- Automatic shutdown on hot or cold supply failure
- Dual-purpose grab riser rail rated to 150kg
- Rub-clean shower head with five spray patterns
- Suitable for all pressure systems
- Easy to install and maintain
Concentric or bar valve?

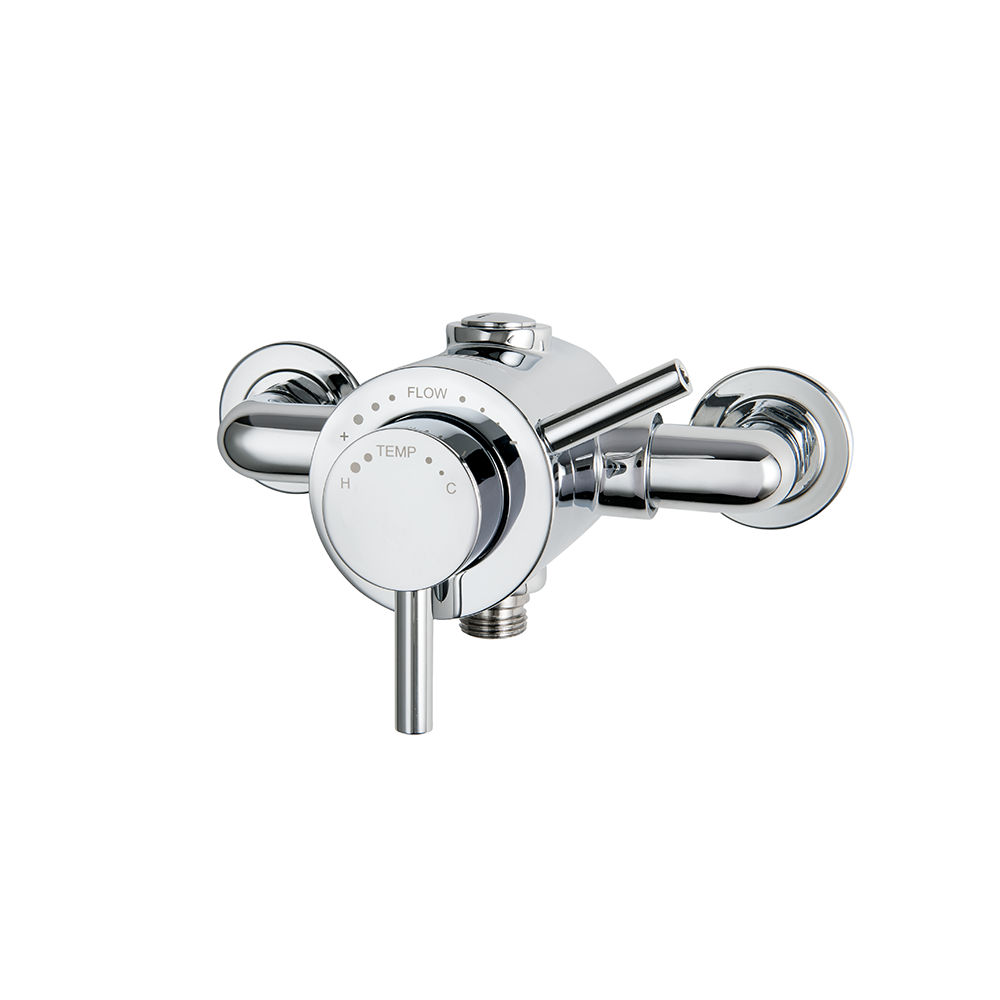

The Exposed Concentric Valve (06MS15) has its flow and temperature controls arranged on one round valve body and suits 15mm supplies at 150mm centres. The Bar Valve (06MS16) is the Elina TMV3 bar mixer. Both are TMV3 approved and both include the grab riser rail kit. Not sure which suits your pipework? Send us a photo and we will advise.
Sizes & product codes
| Option | AKW / supplier code | EAN barcode |
|---|---|---|
| Exposed Concentric Valve with Grab Rail Kit | 06MS15 | 5012663021976 |
| Bar Valve with Grab Rail Kit | 06MS16 | 5012663022393 |
Technical specification
| Feature | Detail |
|---|---|
| Approvals | TMV3; WRAS |
| Suitable for | All pressure systems |
| Controls | Separate tamper-proof flow and temperature levers, front facing |
| Safety | Automatic shutdown if the hot or cold supply fails |
| Grab riser rail | Dual purpose, supports up to 150kg |
| Shower head | Rub-clean, five spray patterns |
| Concentric model pressures | 0.2 bar minimum running (at 8 l/min), 5 bar maximum running, 10 bar maximum static (Triton data) |
| Concentric model connections | 15mm compression inlets at 150mm centres, ½" BSP bottom outlet (Triton data) |
| Concentric model kit | 940mm grab riser rail with soap dish, 2m hose, 110mm five-spray head (Triton data) |
| Factory pre-set | 38°C (Triton data) |
| Guarantee | Triton 5 year guarantee |
Frequently asked questions
Can the riser rail be used as a grab rail?
Yes – the rail is dual purpose and is rated to support up to 150kg.
Is the Elina suitable for a care home?
Yes – it is TMV3 approved and designed for care homes, hospitals and nursing homes.
What happens if the cold supply fails?
The valve shuts down automatically to protect the user from scalding.
