Whale AK1570 Mixer Valve Conversion Kit

Whale AK1570 Mixer Valve Conversion Kit

The Whale AK1570 Mixer Valve Conversion Kit is designed to adapt Whale wastewater pumps — including the Whale Switch Connect, Whale Automatic, and Whale Flow Connect — for use with mixer showers that feature both hot and cold water feeds.

This practical kit includes a flow switch and a flow restrictor that work together to regulate water flow, reduce gulley suction noise, and maintain smooth, efficient performance. By installing the included flow reducer into your shower hose, you can easily convert your existing Whale pump system for mixer shower compatibility.

Key Features

Enhanced Compatibility: Enables your Whale wastewater pump to work seamlessly with mixer showers.

Flow Regulation: Includes a flow restrictor to maintain a 10L/min flow rate, optimizing performance and minimizing suction noise.

Flexible Installation: Compatible with 15mm pipework and includes fittings for 22mm connections.

Performance Boost: When using 22mm pipework between the gulley and pump inlet, flow rate can be increased from 8L/min to 12L/min.

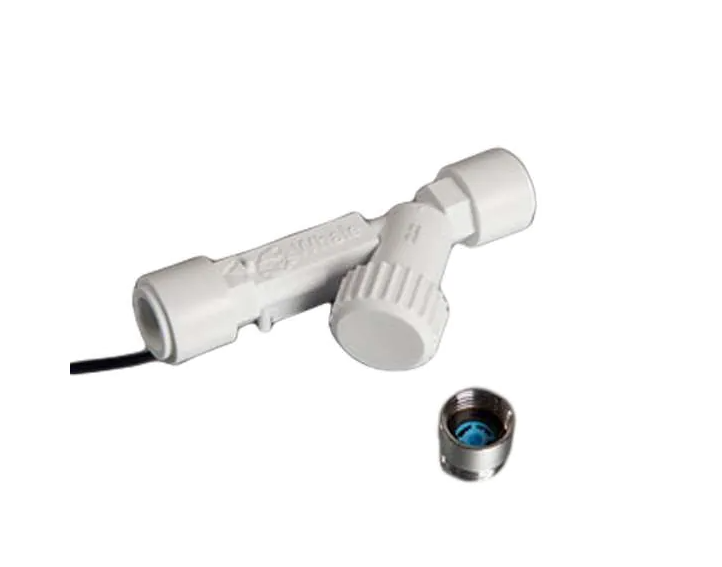

Complete Kit Contents:

• 1 x Flow Switch

• 1 x Flow Restrictor (10L/min)

• 2 x 22mm Equal Straight Push-Fit Connectors

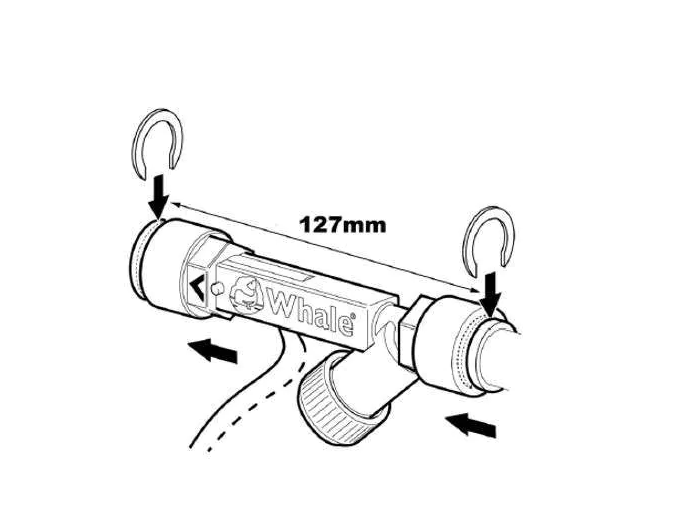

Flow Switch Technical Details

• Designed for 15mm pipework (ensure "C clips" are fitted)

• Overall length: 127mm

• Directional arrow indicates water flow direction

• Complies with BS7671: 2008 17th Edition Wiring Regulations (earth bonding strip required for continuity)

• Do not install in the waste pipe or within 300mm of the pump or transformer

Summary

The Whale AK1570 Mixer Valve Conversion Kit includes everything you need to modify your Whale pump system for mixer shower use. It’s a simple, effective solution for achieving quiet, efficient drainage and consistent shower performance across hot and cold feeds.
