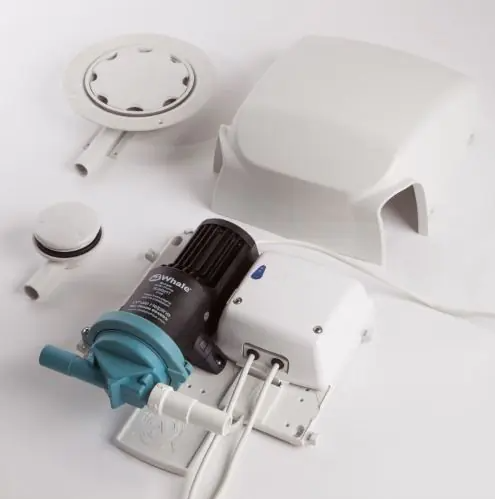

Whale SDP134T Instant Match Bluetooth Pump Kit

Whale SDP134T Instant Match Bluetooth Pump Kit

For Mira Advance Flex Extra Wireless Shower (8.7kW)

Experience smarter, quieter showering with the Whale SDP134T Instant Match Pump Kit — the advanced waste pump solution designed to work seamlessly with the Mira Advance Flex Extra Wireless Shower (J09N). With built-in Bluetooth technology, this intelligent pump automatically adjusts its speed to match your shower’s flow rate, delivering whisper-quiet performance and reliable drainage every time.

Why Choose the Whale SDP134T?

Smart Bluetooth Control: The pump receives digital signals from your shower’s flow sensor, automatically matching speed and flow for efficient, synchronized performance.

Quiet Operation: Intelligent speed adjustment minimizes gulley suction noise, ensuring a peaceful shower experience.

Timed Auto-Shutdown: After the shower turns off, the pump runs a timed cycle to remove residual water, then automatically reactivates briefly after 15 minutes to clear any remaining moisture.

Dry-Run Protection: Designed to safely operate without water, extending pump life and reliability.

Odour Prevention: Built-in non-return valves stop unpleasant odours from escaping through the waste system.

Key Benefits

Effective Water Removal: Ideal for bathrooms without gravity drainage, reliably removing waste water.

Maintenance-Free Design: No internal filters to clean — the system handles hair, gels, and debris with ease.

Fast, Hassle-Free Installation: Supplied pre-mounted on a backplate with transformer for simple setup.

Versatile Placement: IP45-rated for safe installation in zones 1, 2, or 3.

User-Friendly Controls: Transformer includes easy-access jumper settings for configuration adjustments.

Included Components

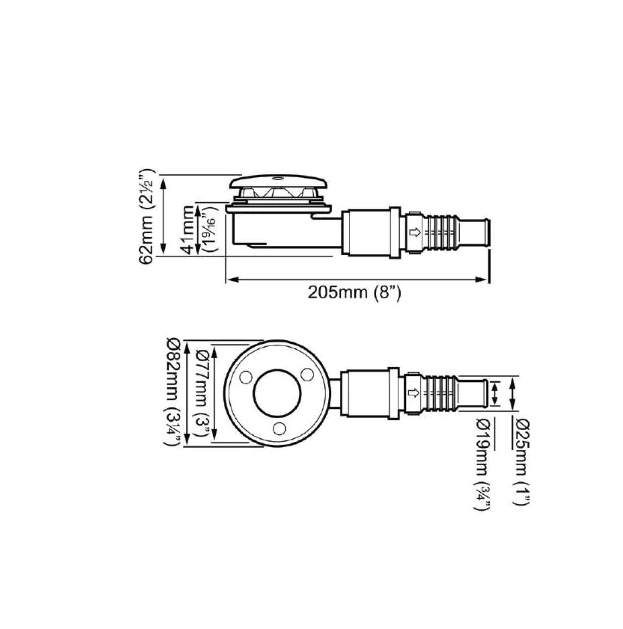

• 50mm Pumped Shower Tray Gulley (82mm overall diameter)

• Pumped Floor Former Waste for Vinyl Flooring with clamping ring (199.8mm overall diameter)

Technical Features

Plug & Play: Fully compatible with Mira Advance Flex Extra — no setup required.

Power Failure Safety: The shower automatically powers down if the pump loses power.

Quiet Gulley Options: Choose from a tray waste or vinyl floor gulley for reduced noise.

Simple Pairing: Quick Bluetooth pairing or optional hard-wired connection.

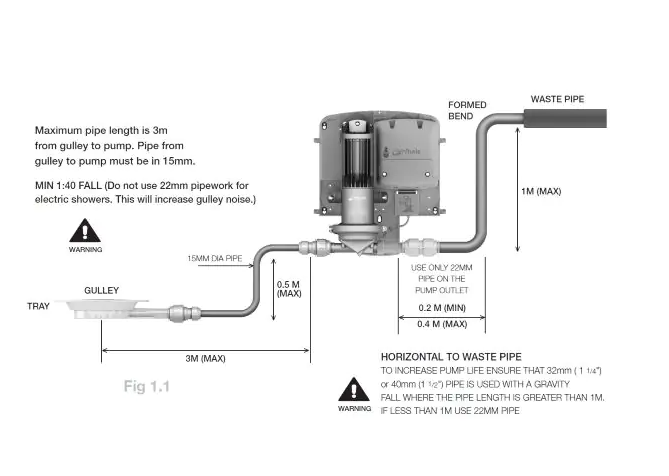

Flow Requirements: Requires shower base with a minimum 1:40 fall to gulley; maximum flow rate 8 L/min.

Waste Discharge Compatibility: Can be connected to a macerator pump.

Pump Specifications

Product Code: SDS021T
Dry Running Current: 1.2 amp
Maximum Head: 1.0m
Maximum Lift: 500mm
Combined Head & Lift: 1.5m
Transformer: Includes patented ActiveLink diagnostics with power and flow indicators

Warranty

5-Year Manufacturer’s Warranty when registered with Whale within 30 days of purchase (standard 3-year warranty otherwise).
