Kartell K-VIT Standard 700 x 515mm End Bath Panel for Refine, Spirit & Luxe – White Gloss (SEP700515)

Kartell K-VIT Standard 700 x 515mm End Bath Panel for Refine, Spirit & Luxe – White Gloss (SEP700515)

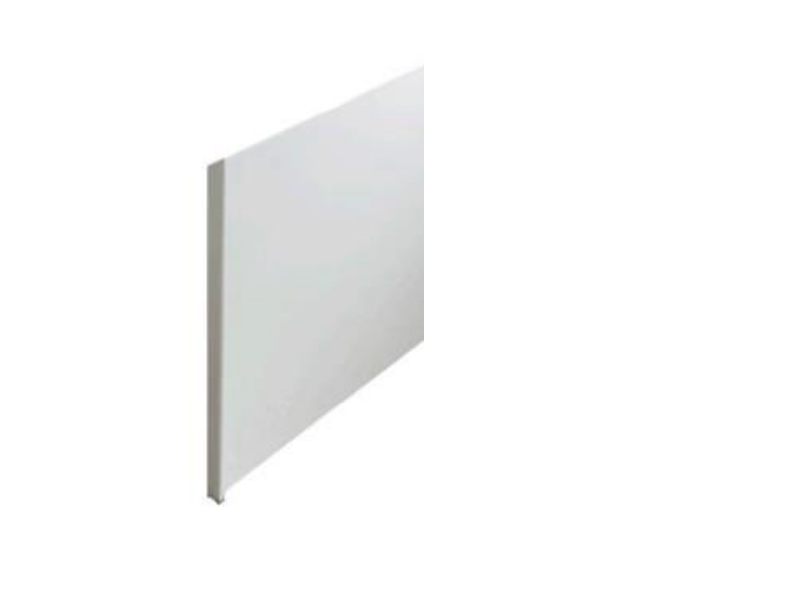

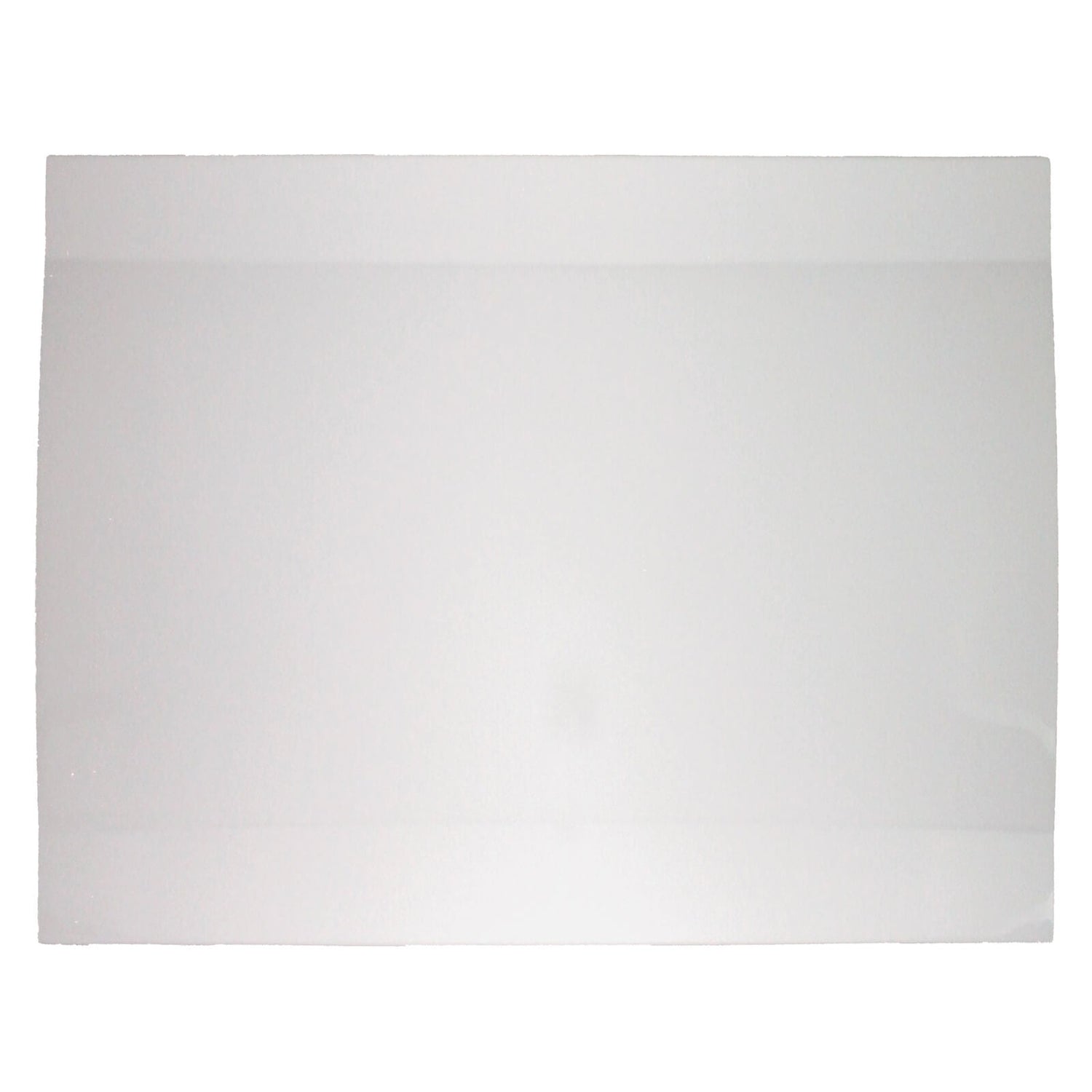

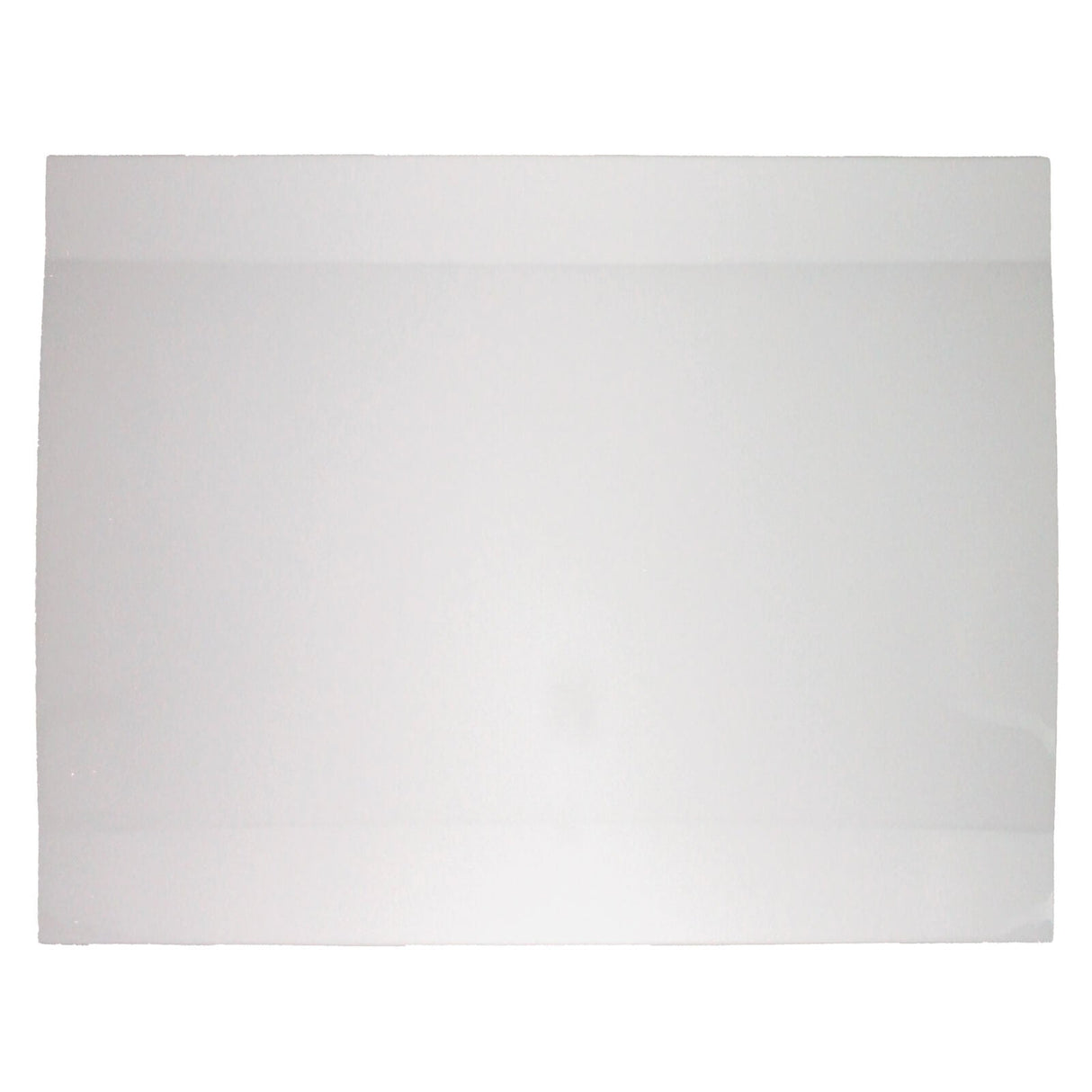

Kartell's standard 700 x 515mm end bath panel in gloss white acrylic. It's the end panel Kartell's brochure pairs with the 700mm-wide Refine, Spirit and Luxe baths, so the height and finish match the front panel and the bath.

Fits these baths

• Refine 1600 x 700mm (REF1670SE)
• Refine 1700 x 700mm (REF1770SE)
• Spirit 1500 x 700mm (SPI1570SE)
• Spirit 1600 x 700mm (SPI1670SE)
• Spirit 1700 x 700mm (SPI1770SE)
• Luxe 1500 x 700mm (LUX1570SE)
• Luxe 1700 x 700mm (LUX1770SE)

Got the Refine 1700 x 750mm? It's wider and taller, and needs the 750 x 540mm end panel (SEP750540).

Do you actually need an end panel?

Only if one end of the bath is open, as in a corner layout. A bath fitted into an alcove between two walls needs a front panel alone – ordering an end panel you can't use is an easy mistake to make.

Key features

• Gloss white acrylic – wipes clean and matches the bath's finish
• 515mm high – the same height as the matching front panels
• Light and easy to handle at 0.66kg
• 5-year guarantee

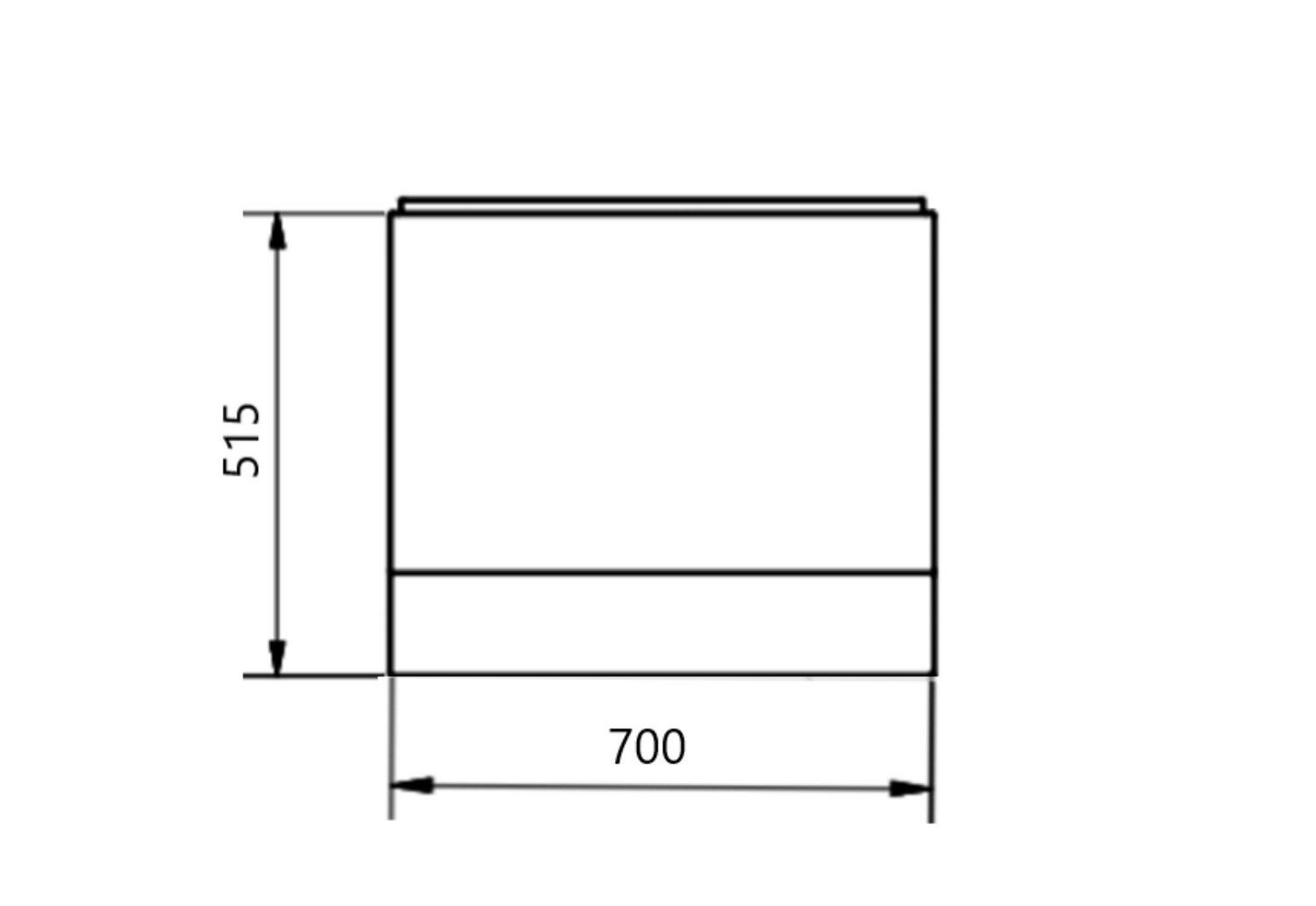

Specification

Matching front panels

• 1500mm baths: 1500 x 515mm (SFP1500515)
• 1600mm baths: 1600 x 515mm (SFP1600515)
• 1700 x 700mm baths: 1700 x 515mm (SFP1700515)

Fitting tips

Level the bath at its 515mm installed height before offering up the panels, and fit the end panel so it meets the front panel neatly at the corner. Fix both so they can be removed again – it's the only way back to the waste and trap if they ever need attention. The data sheet below shows the details.

Downloads

Standard 700 x 515mm end panel technical data sheet
