Carron 725 x 540mm End Bath Panel – White (02287 / 02307)

Carron 725 x 540mm End Bath Panel – White (02287 / 02307)

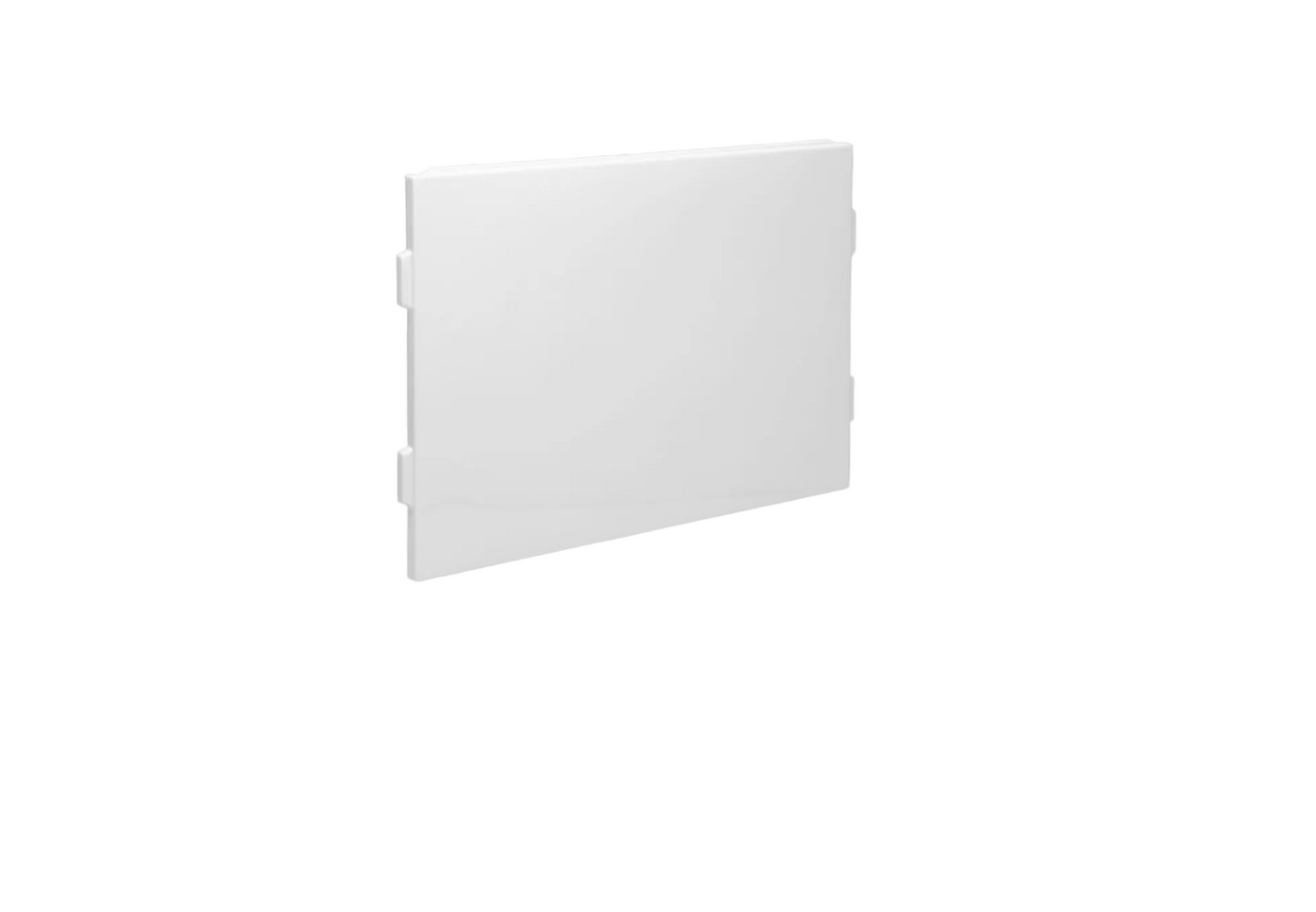

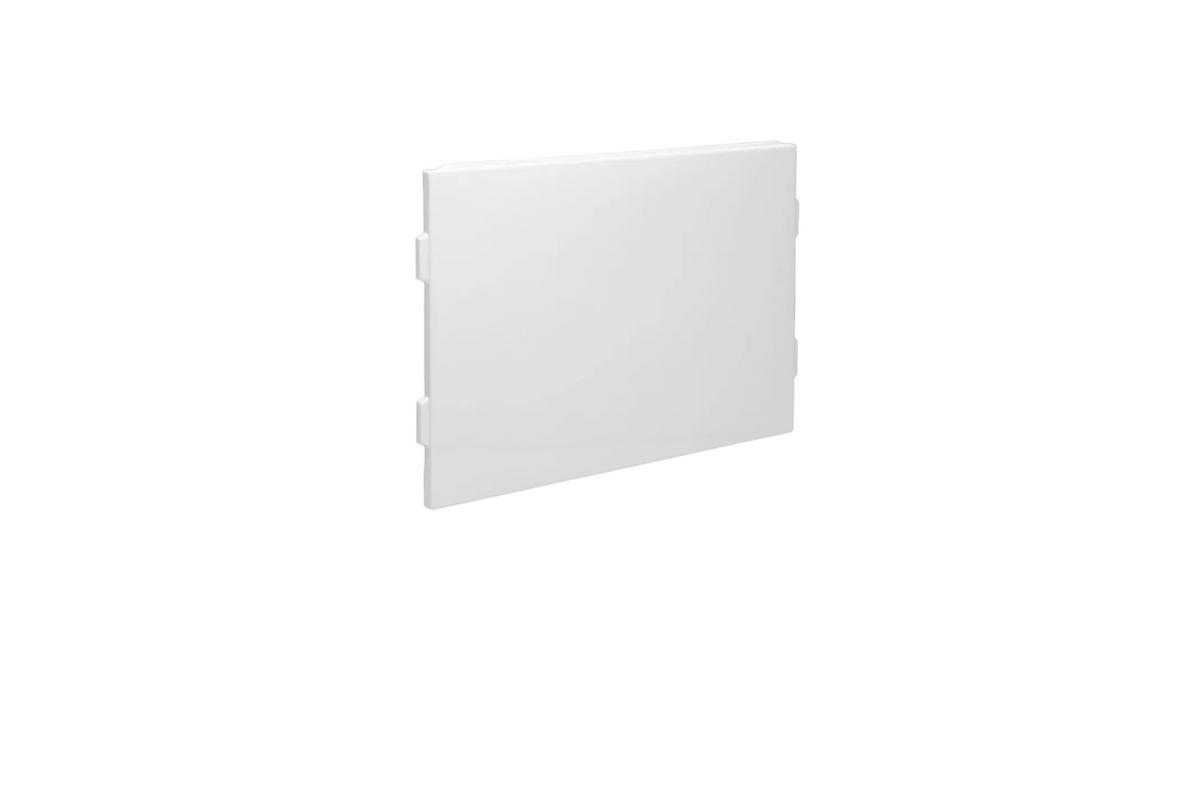

Carron's 725 x 540mm end bath panel, made in two versions to go with Carron's two bath finishes: a standard panel for Carron's 5mm acrylic baths, and a Carronite panel for Carronite baths. Choose the one that matches the finish of your bath.

725mm is an unusual width, made for one bath in particular – check yours before ordering.

Fits this bath

• Carron Quantum Single Ended 1800 x 725mm – 5mm acrylic (standard panel) or Carronite (Carronite panel)

Do you actually need an end panel?

Only if one end of the bath is open, as in a corner layout. A bath fitted into an alcove between two walls needs a front panel alone – ordering an end panel you can't use is an easy mistake to make.

Specification

Matching front panel

Carron 1800 x 540mm front panel, in the same two finishes.

Fitting tips

Level the bath so its rim sits at 540mm before offering up the panels, and fit the end panel so it meets the front panel neatly at the corner. Fix both so they can be removed again – it's the only way back to the waste and trap if they ever need attention.
