Carron Status Front Bath Panel for 1700 x 800mm Bath – White (02338 / 02339)

Carron Status Front Bath Panel for 1700 x 800mm Bath – White (02338 / 02339)

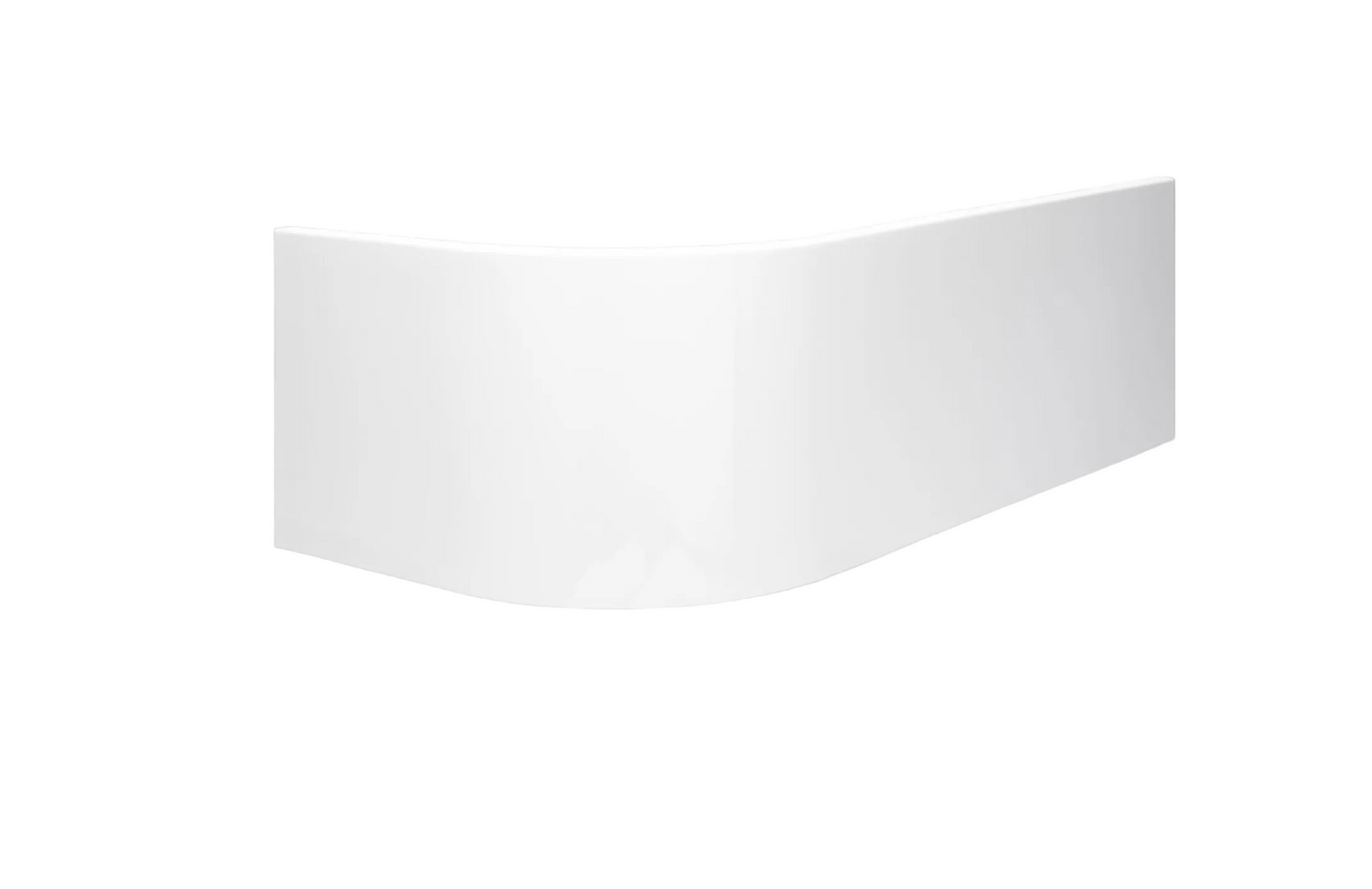

The shaped front panel for the Carron Status 1700 x 800mm bath. It wraps around the bath's curved end, so no separate end panel is needed.

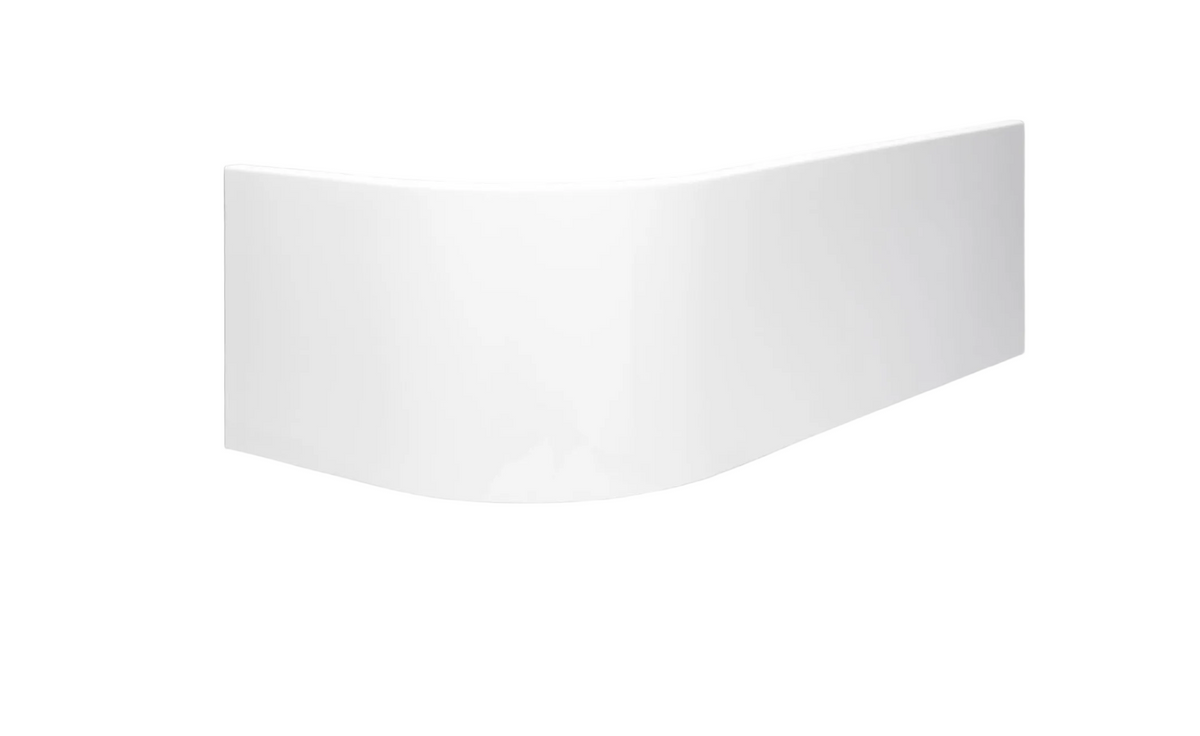

It comes in two versions to go with Carron's two bath finishes: a standard panel for 5mm acrylic baths, and a Carronite panel for Carronite baths. Choose the one that matches the finish of your bath.

Fits this bath only

• Carron Status 1700 x 800mm, left or right hand

Each Status size has its own panel. The 1700 x 725mm bath takes a different panel, even though both are 1700mm long – order the one for your exact bath size.

Specification

Fitting tips

Level the bath so its rim sits at 540mm before offering up the panel, and work the shaped section around the curved end before fixing. Fix it so it can be removed again – it's the only way back to the waste and trap if they ever need attention.
