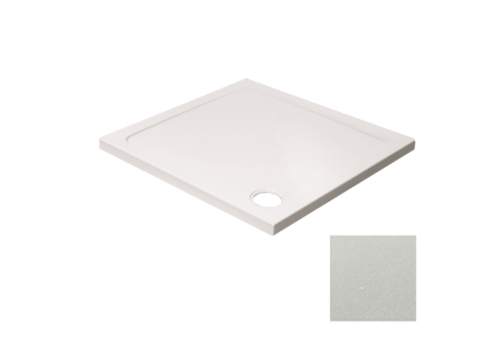

Kartell K-VIT Unity Square Anti-Slip Shower Tray – White (All Sizes)

The Kartell K-VIT Unity anti-slip square shower tray is the same British-made stone resin tray as the standard Unity square, but with a textured surface moulded into the tray floor that gives it a Class C slip rating to DIN 51097 — the highest of the three barefoot-wet classifications, and the one specified for shared and commercial changing areas. Like the standard range it sits just 45mm off the floor, so you get the safer surface without giving up the low, near level-access step.

Who it's for

Class C matters most where a fall would be serious or the shower gets heavy use: bathrooms adapted for an elderly or less mobile user, wet rooms in care and supported housing, holiday lets and student accommodation, gyms and clubhouses. It's also worth considering in an ordinary family bathroom — a wet stone resin tray is slippery, and the texture costs far less than the consequences of someone going over.

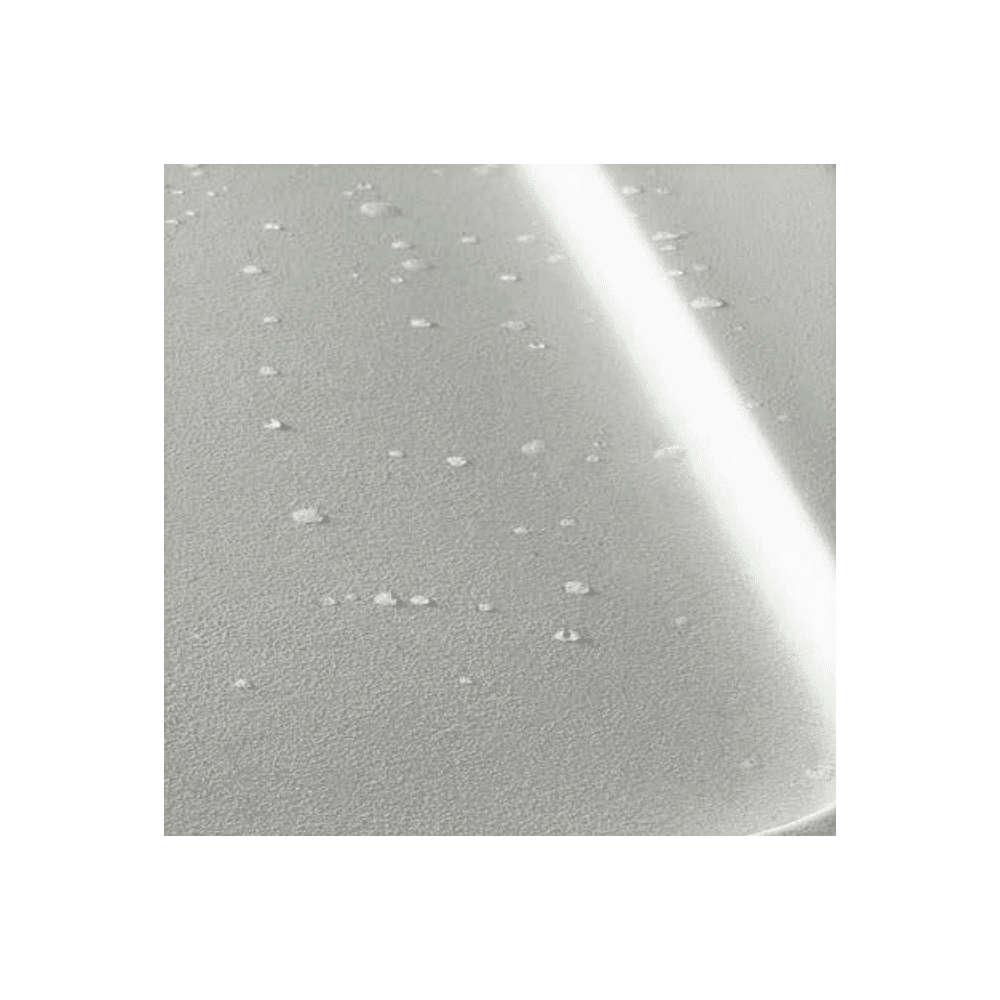

The surface is textured rather than coated, so it can't wear off or peel the way an applied anti-slip finish eventually does. It does hold onto soap scum a little more than a smooth tray, so give it a regular wipe with a non-abrasive cleaner rather than letting it build up.

What it's made of

Moulded from acrylic-capped stone resin and double skinned. The stone resin core gives the tray its rigidity — it won't creak or flex underfoot the way a thin acrylic tray can — while the ABS acrylic cap gives a hard, non-porous surface. Made in Britain and covered by Kartell's 25 year guarantee.

Choosing your size

Measure both walls at floor level rather than at waist height — walls are rarely truly square, and it's the floor dimension the tray has to sit in. 700 and 760mm suit a cloakroom or a tight en-suite, 800 and 900mm are the comfortable everyday sizes, and 1000mm gives a generous corner shower. Pair the tray with a square or corner-entry enclosure at the same dimensions.

Sizes, codes and barcodes

You'll need a waste

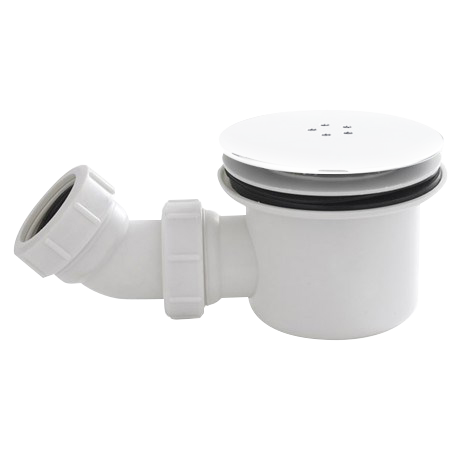

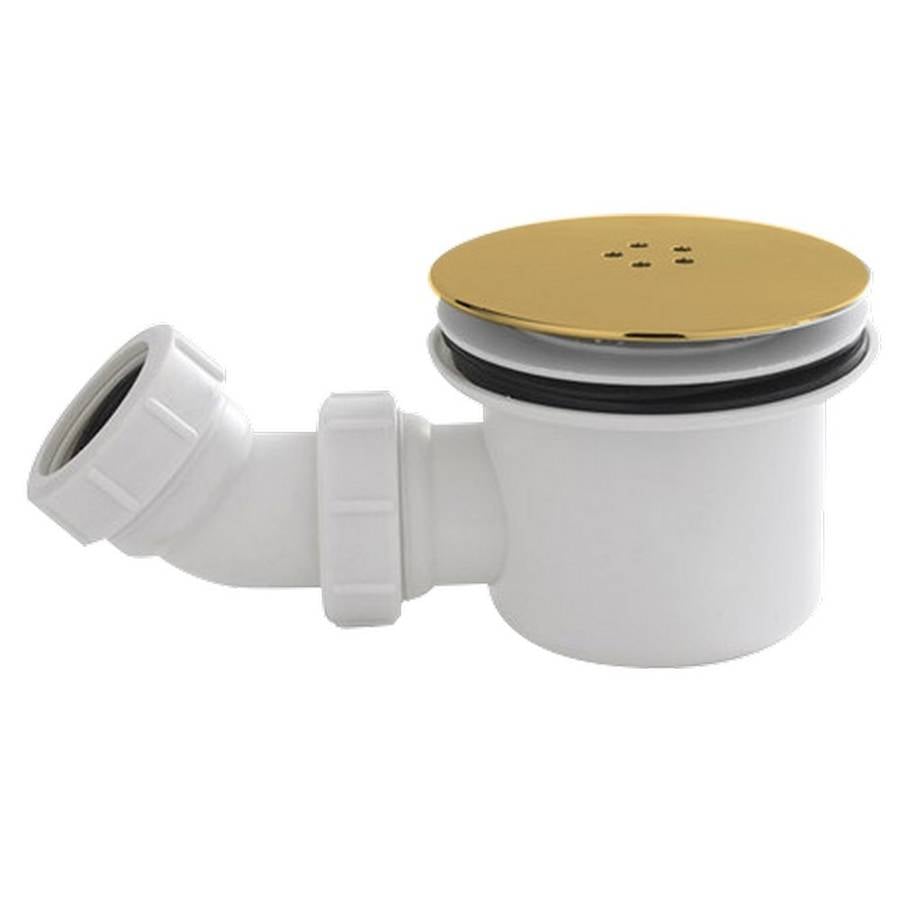

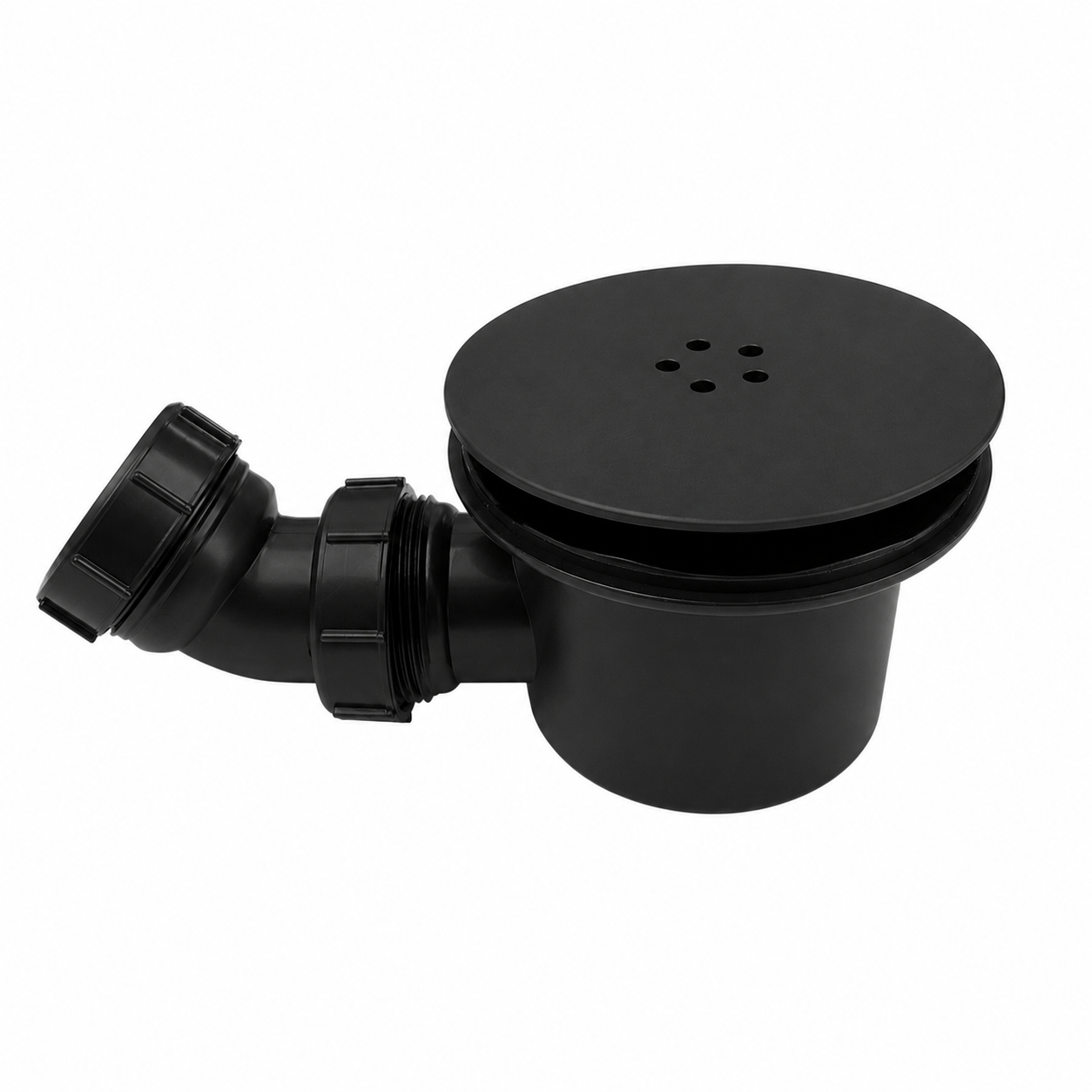

Unity trays are supplied without a waste, and an ordinary shower waste will not fit — the outlet takes a 90mm fast flow waste. Add one from the dropdown above in chrome (FFW90), matt black, brushed brass or white, or choose "Without a waste" if you're reusing one.

Fitting it

On a solid floor the trap needs to sit below floor level, so the pipework usually has to be chased in. Where that isn't practical — a timber floor, an upstairs bathroom, or a concrete slab you'd rather not cut — a Unity riser kit lifts the tray onto a 90mm plinth and hides the pipework behind a matching gloss white front panel:

• Riser kit for the 760 x 760mm tray (UNP76100)
• Riser kit for 700–1200mm trays (UNP1290100)

The legs adjust between 90 and 120mm. Riser kits carry a 1 year guarantee rather than the 25 years on the tray.

Bear in mind that raising the tray reintroduces a step, which rather works against the point if you've chosen anti-slip for accessibility reasons. Where step-free access is the priority, it's worth the extra work to drop the waste below the floor.

Stone resin is heavy — treat these as a two-person lift.

Specification

• Class C slip rating to DIN 51097-1992-11
• Manufactured in the UK
• ABS-capped acrylic stone resin, double skinned for added strength
• 45mm low profile height
• Colour: white
• 90mm waste outlet — waste sold separately
• Compatible wastes: FFW90, FFW90-BLACK, FFW90-BRASS, FFW90-WHITE
• Compatible riser kits: UNP76100 (760mm), UNP1290100 (700–1200mm)
• 25 year manufacturer's guarantee
