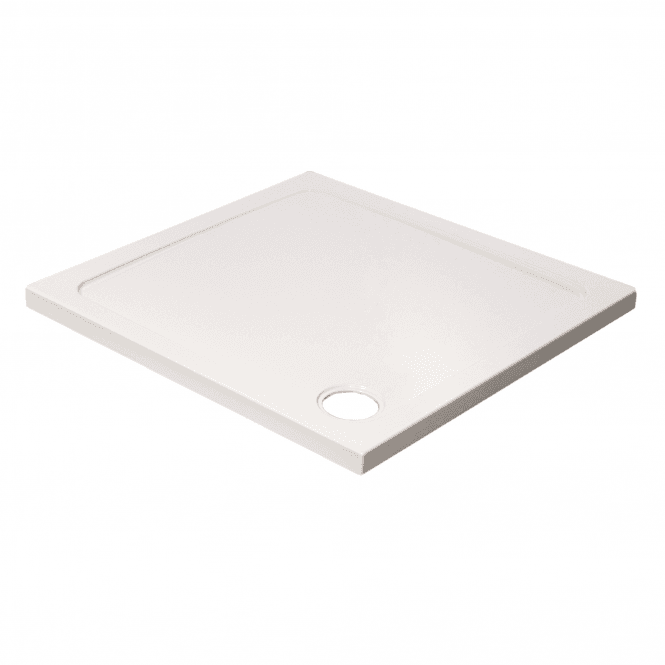

Kartell K-VIT Unity Square Low Profile Shower Tray – White (All Sizes)

A square tray is the workhorse of the corner shower — two walls, two glass panels, and a footprint that makes the most of a tight corner without eating into the room. The Kartell K-VIT Unity square is the low profile version, sitting just 45mm off the floor rather than the 80–110mm of an older-style tray. That gives you close to a flush, walk-in look without the cost and disruption of tanking out a full wet room.

What it's made of

Unity trays are moulded from acrylic-capped stone resin and double skinned. The stone resin core gives the tray its rigidity and its weight — it won't creak or flex underfoot the way a thin acrylic tray can — while the ABS acrylic cap gives a hard, non-porous surface that wipes clean and holds its colour rather than yellowing. Every Unity tray is made in Britain and carries Kartell's 25 year guarantee.

Choosing your size

Measure both walls at floor level rather than at waist height — walls are rarely truly square, and it's the floor dimension the tray has to sit in. As a rough guide, 700 and 760mm suit a cloakroom or a tight en-suite, 800 and 900mm are the comfortable everyday sizes most people end up with, and 1000mm gives a genuinely generous corner shower. Pair the tray with a square or corner-entry enclosure at the same dimensions.

Sizes, codes and barcodes

You'll need a waste

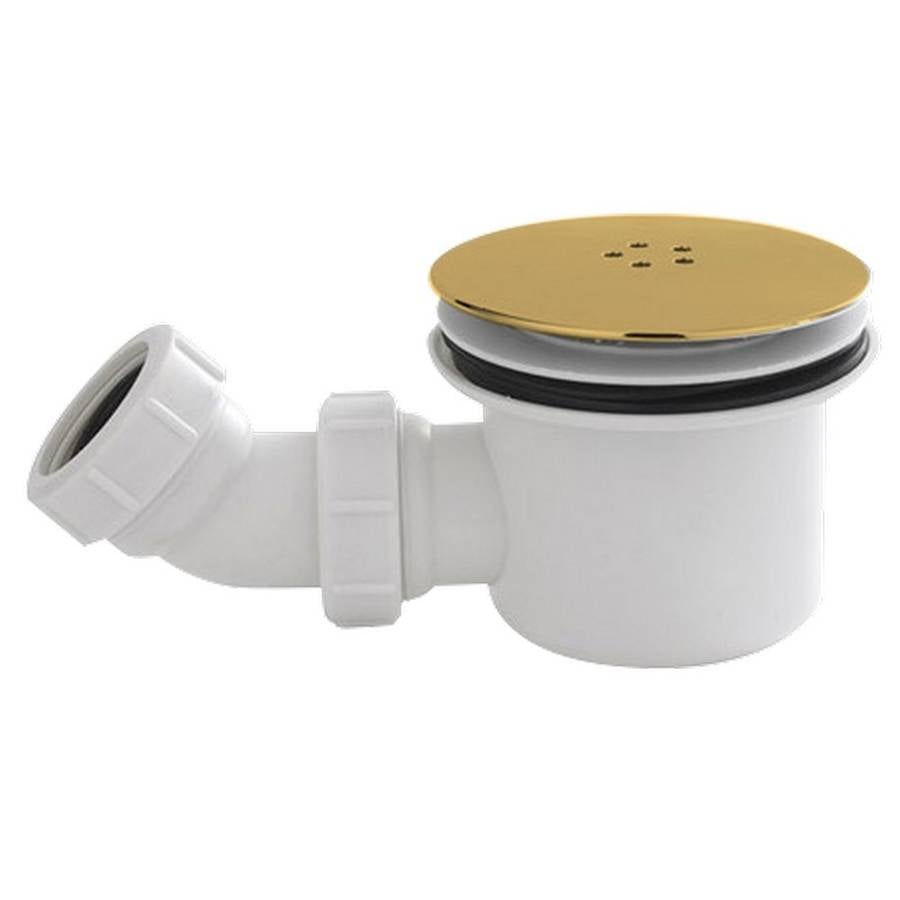

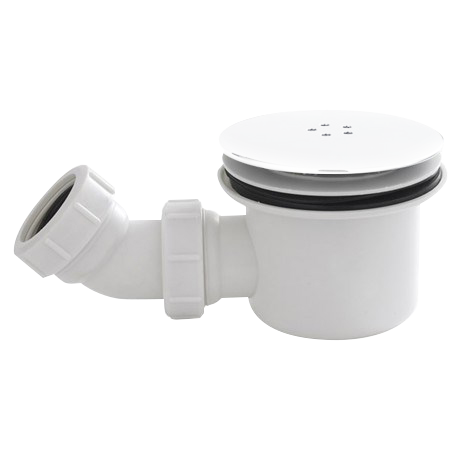

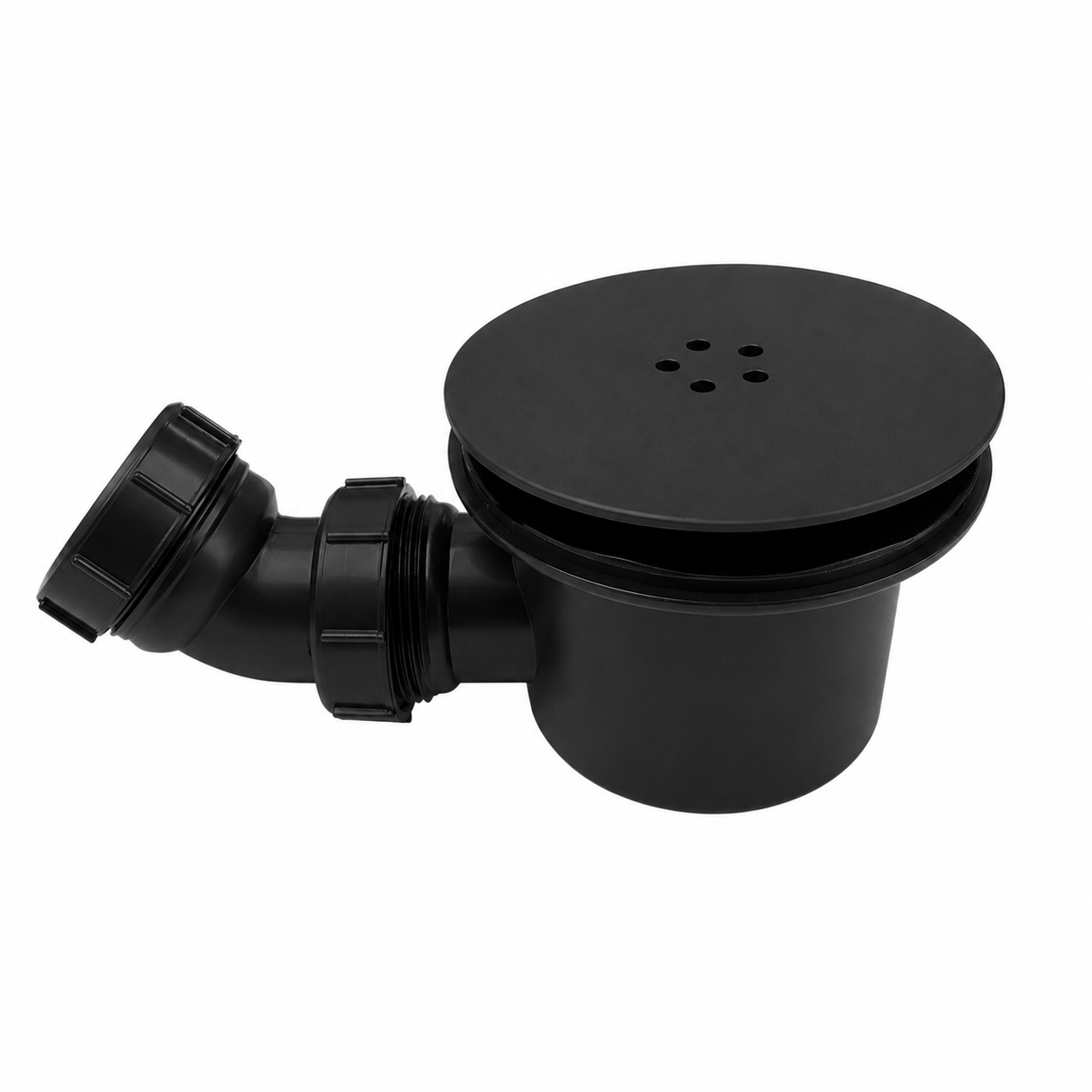

Unity trays are supplied without a waste, and an ordinary shower waste will not fit — the outlet takes a 90mm fast flow waste. Add one from the dropdown above in chrome (FFW90), matt black, brushed brass or white, or choose "Without a waste" if you're reusing one. The fast flow design clears water quickly, which matters more on a low profile tray because there is less depth to hold a surge if someone turns the shower up.

Fitting it

On a solid floor the trap needs to sit below floor level, so the pipework usually has to be chased in. Where that isn't practical — a timber floor, an upstairs bathroom, or a concrete slab you'd rather not cut — a Unity riser kit lifts the tray onto a 90mm plinth and hides the pipework behind a matching gloss white front panel:

• Riser kit for the 760 x 760mm tray (UNP76100)
• Riser kit for 700–1200mm trays (UNP1290100)

The legs adjust between 90 and 120mm; going above 90mm means sourcing a taller plinth. Riser kits carry a 1 year guarantee rather than the 25 years on the tray.

Stone resin is heavy. Even the smallest size is a two-person lift once it's out of the packaging, so plan for that on delivery day.

Specification

• Manufactured in the UK
• ABS-capped acrylic stone resin, double skinned for added strength
• 45mm low profile height
• Colour: white
• 90mm waste outlet — waste sold separately
• Compatible wastes: FFW90, FFW90-BLACK, FFW90-BRASS, FFW90-WHITE
• Compatible riser kits: UNP76100 (760mm), UNP1290100 (700–1200mm)
• 25 year manufacturer's guarantee

Downloads

Download the technical data sheet
Download the fitting instructions
